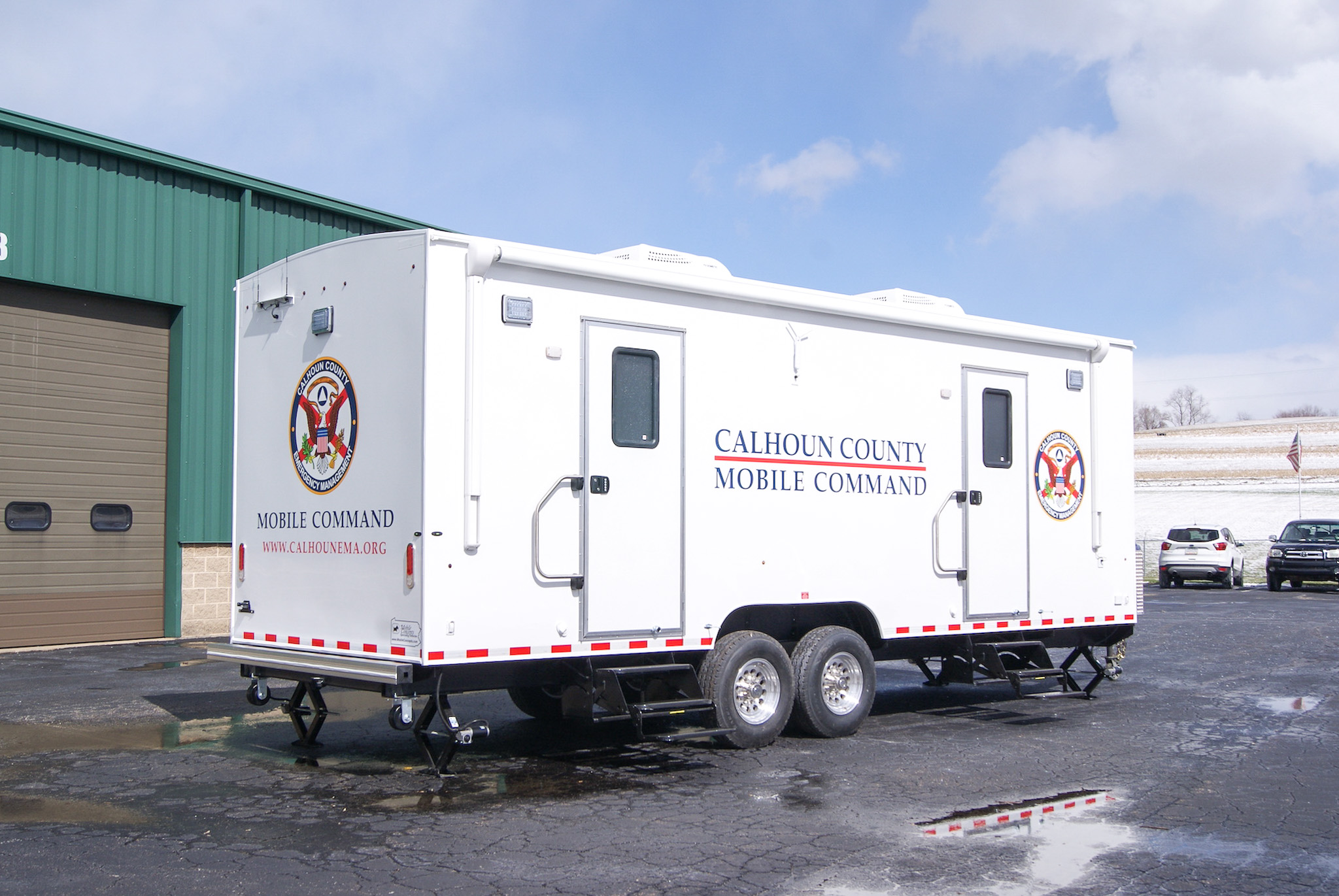

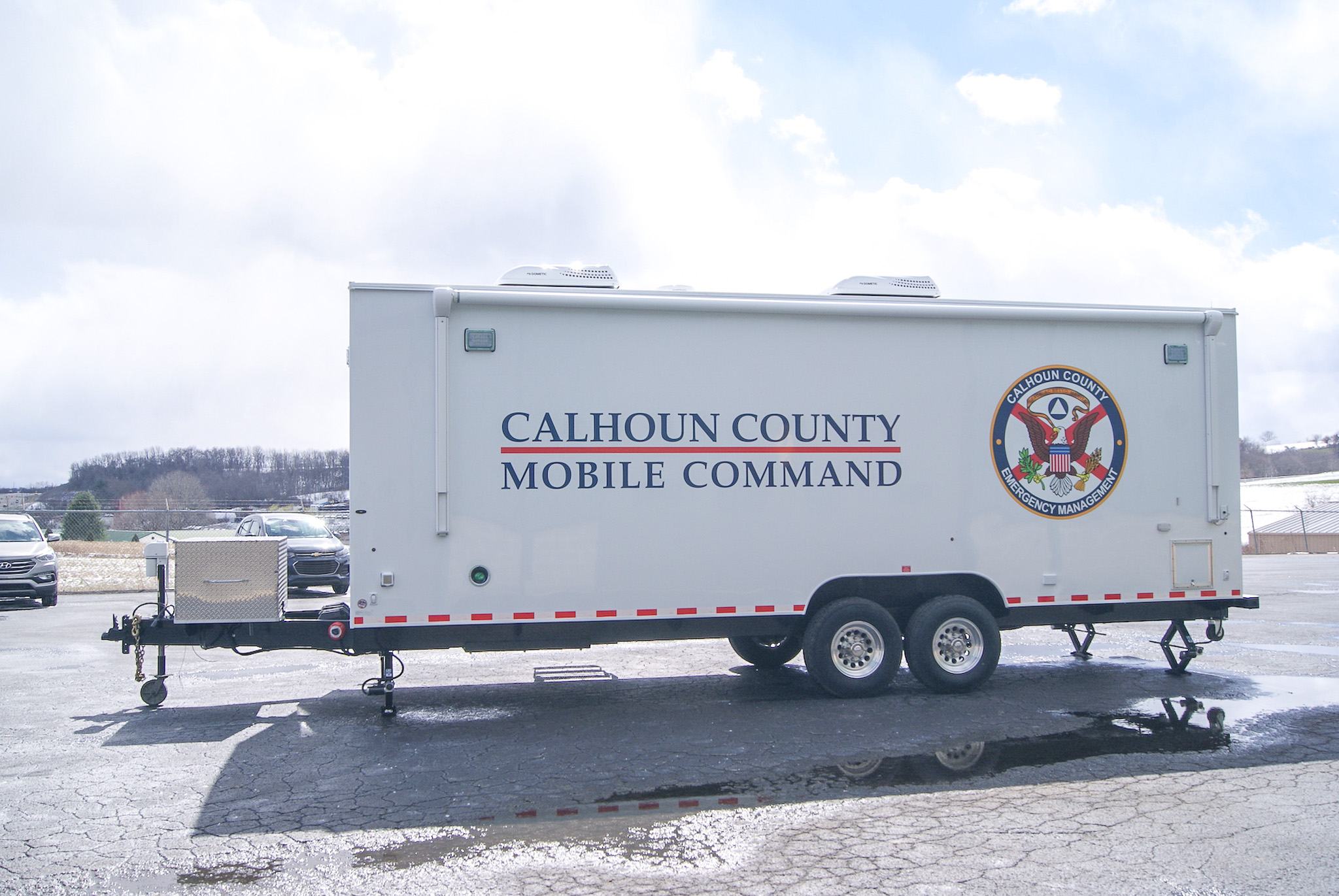

An exterior view of the unit for Jacksonville, AL.

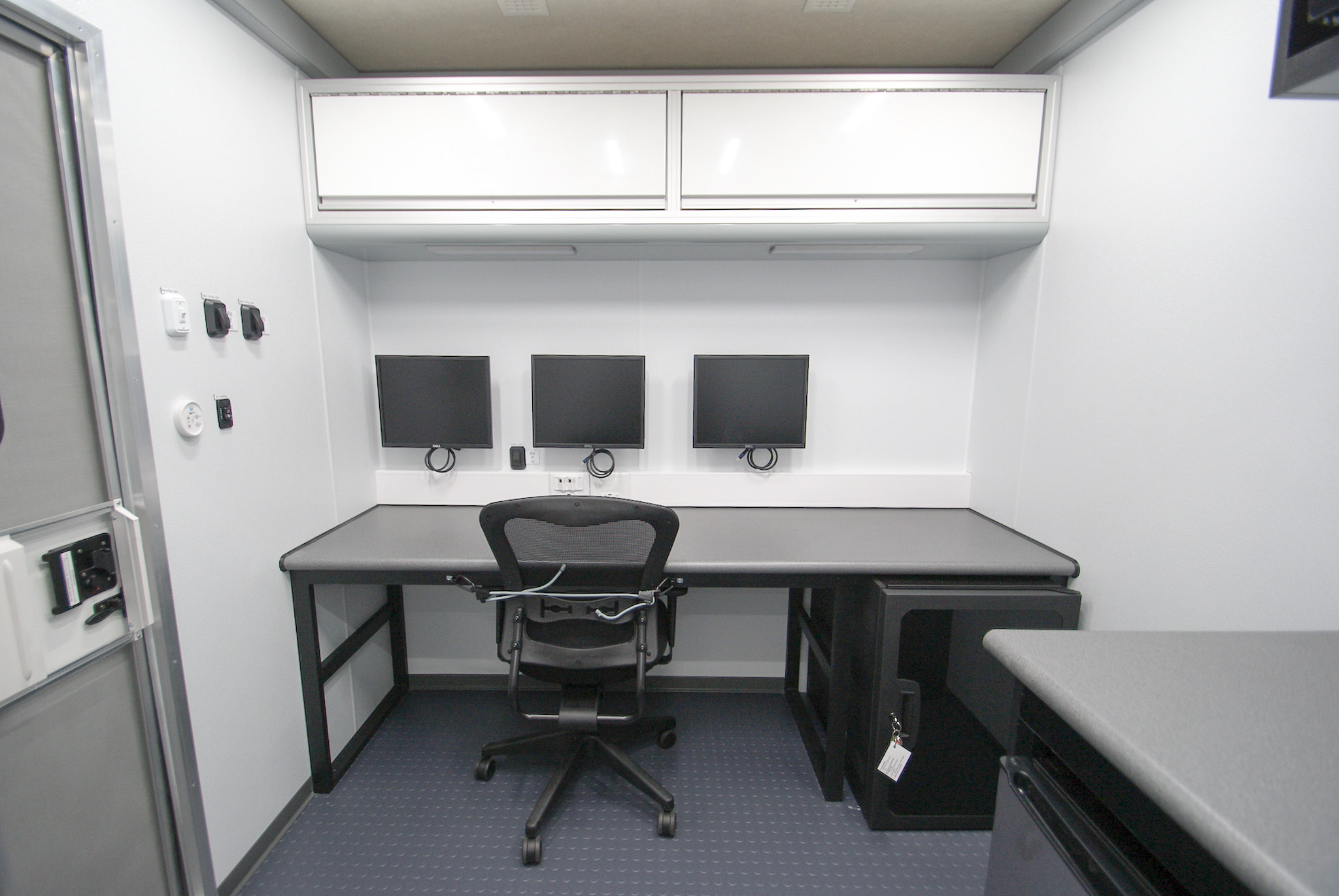

A workstation inside the unit for Jacksonville, AL.

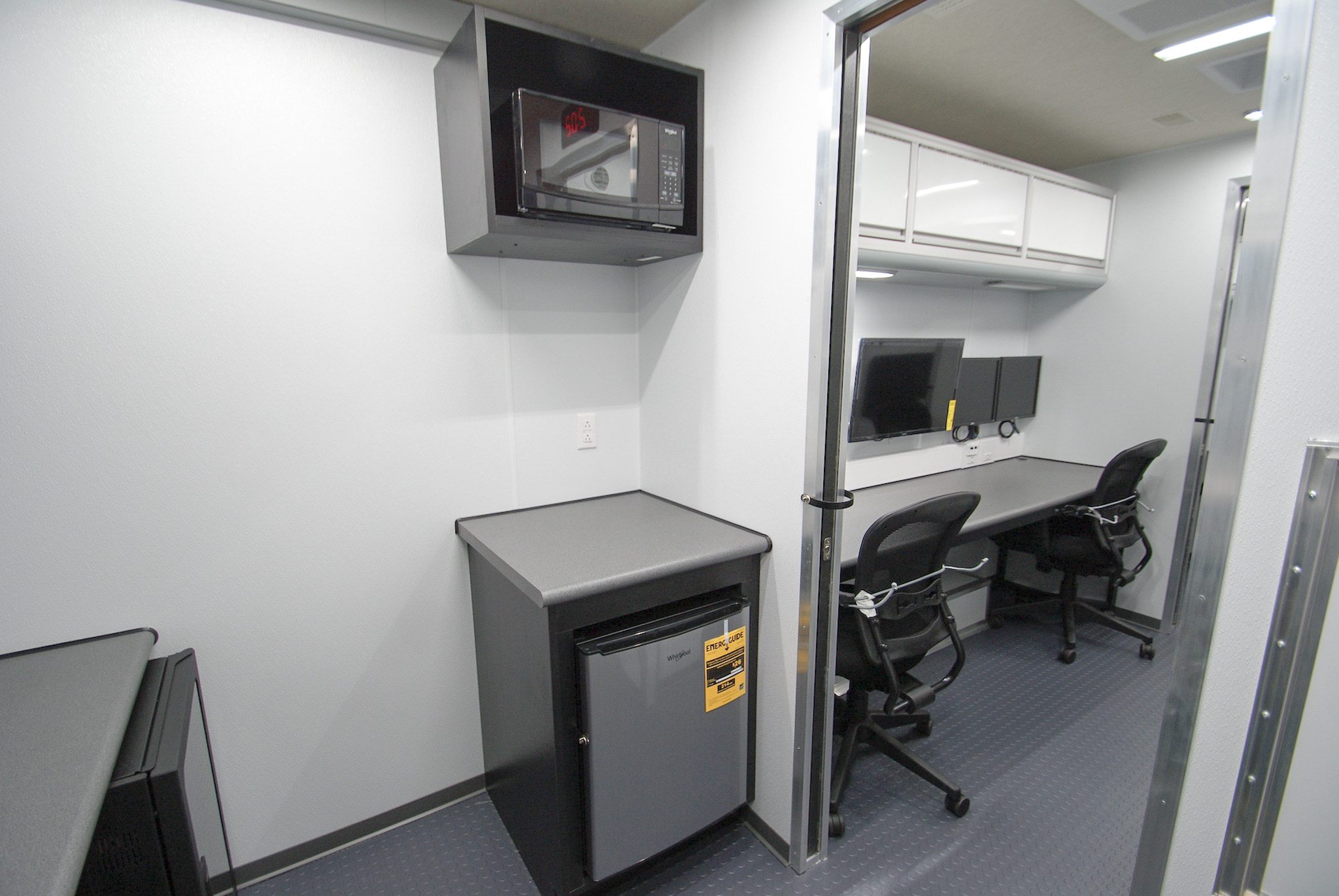

The refrigerator and microwave inside the unit for Jacksonville, AL.

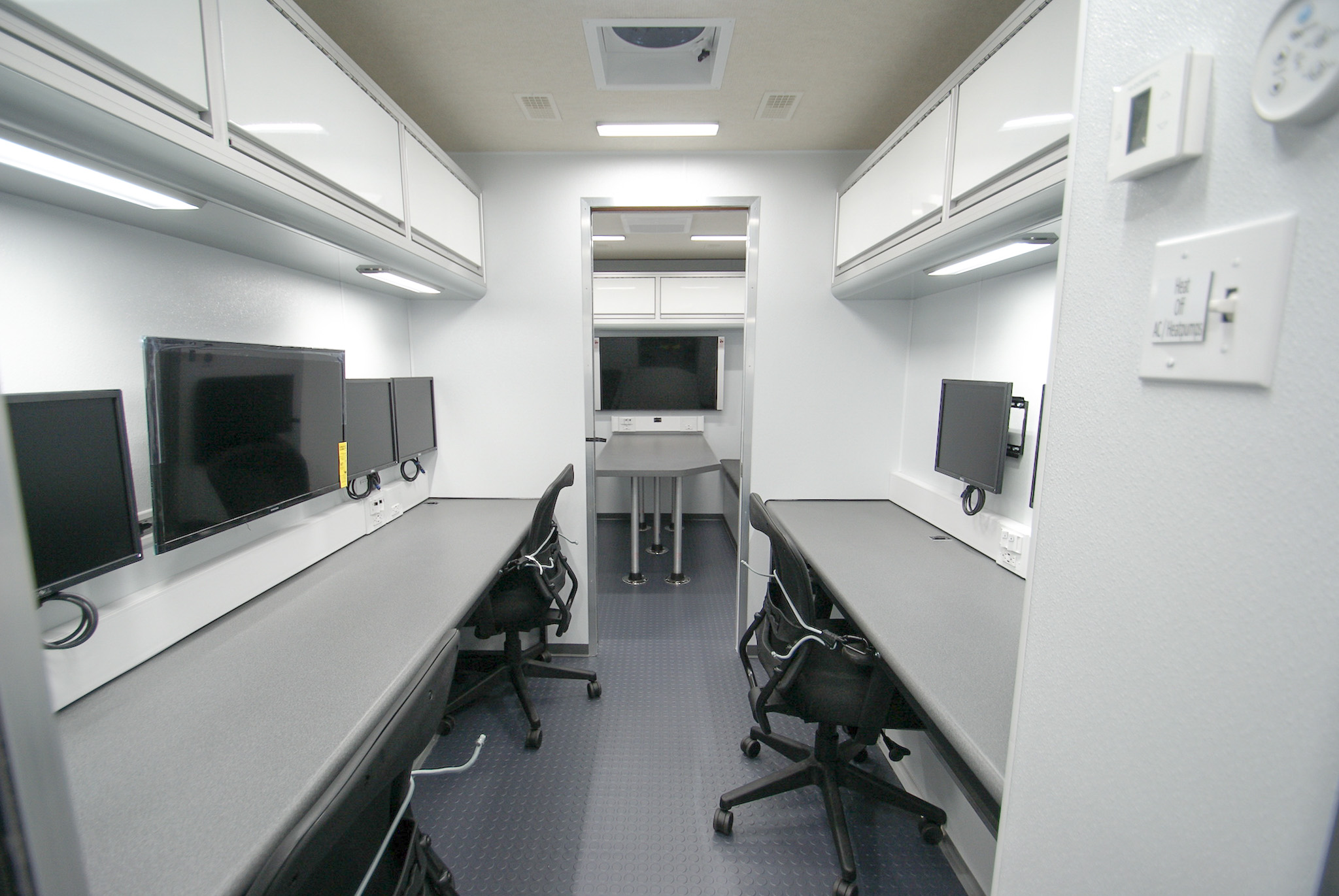

A front-to-back view inside the unit for Jacksonville, AL.

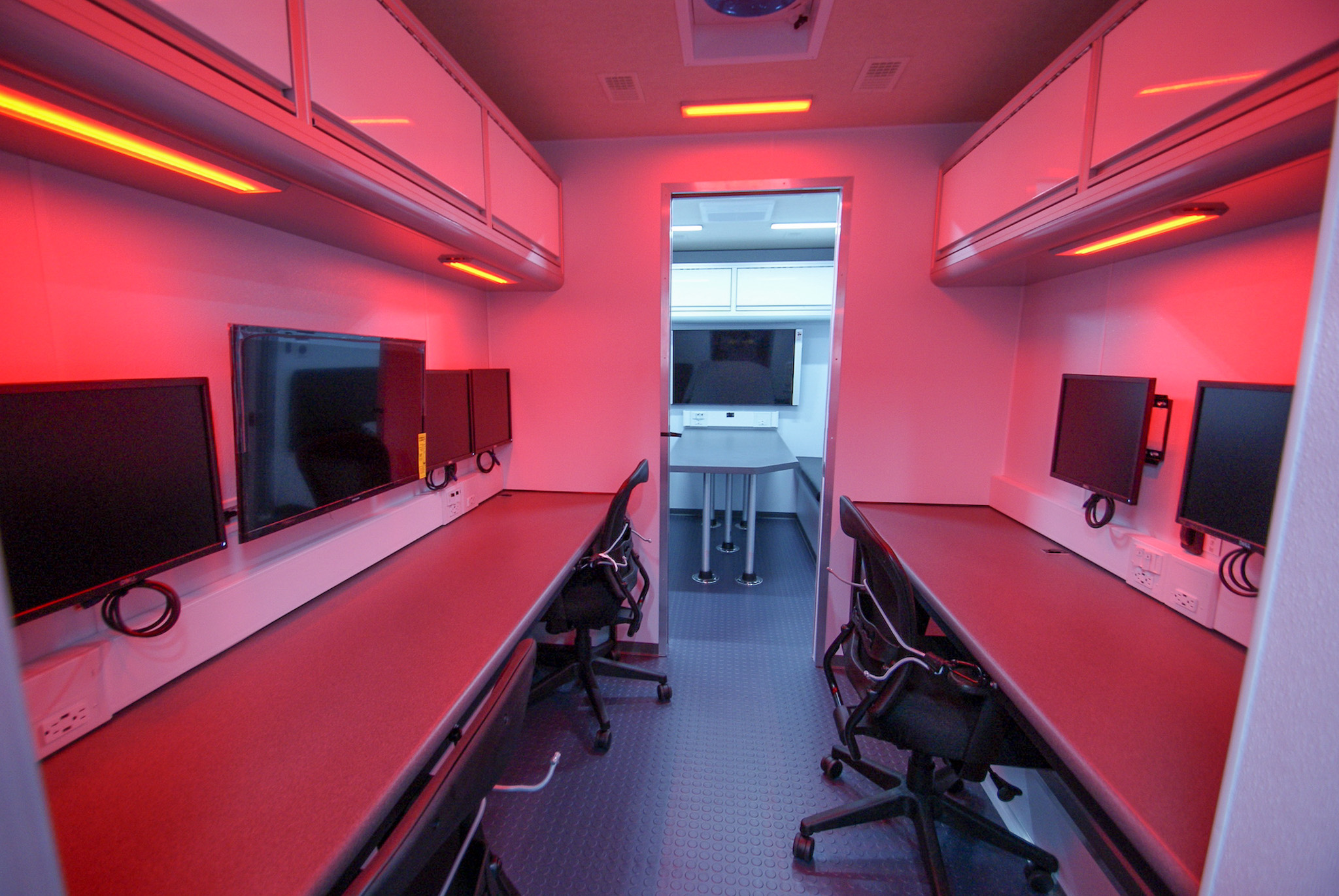

A front-to-back view inside the unit for Jacksonville, AL. The lighting is red.

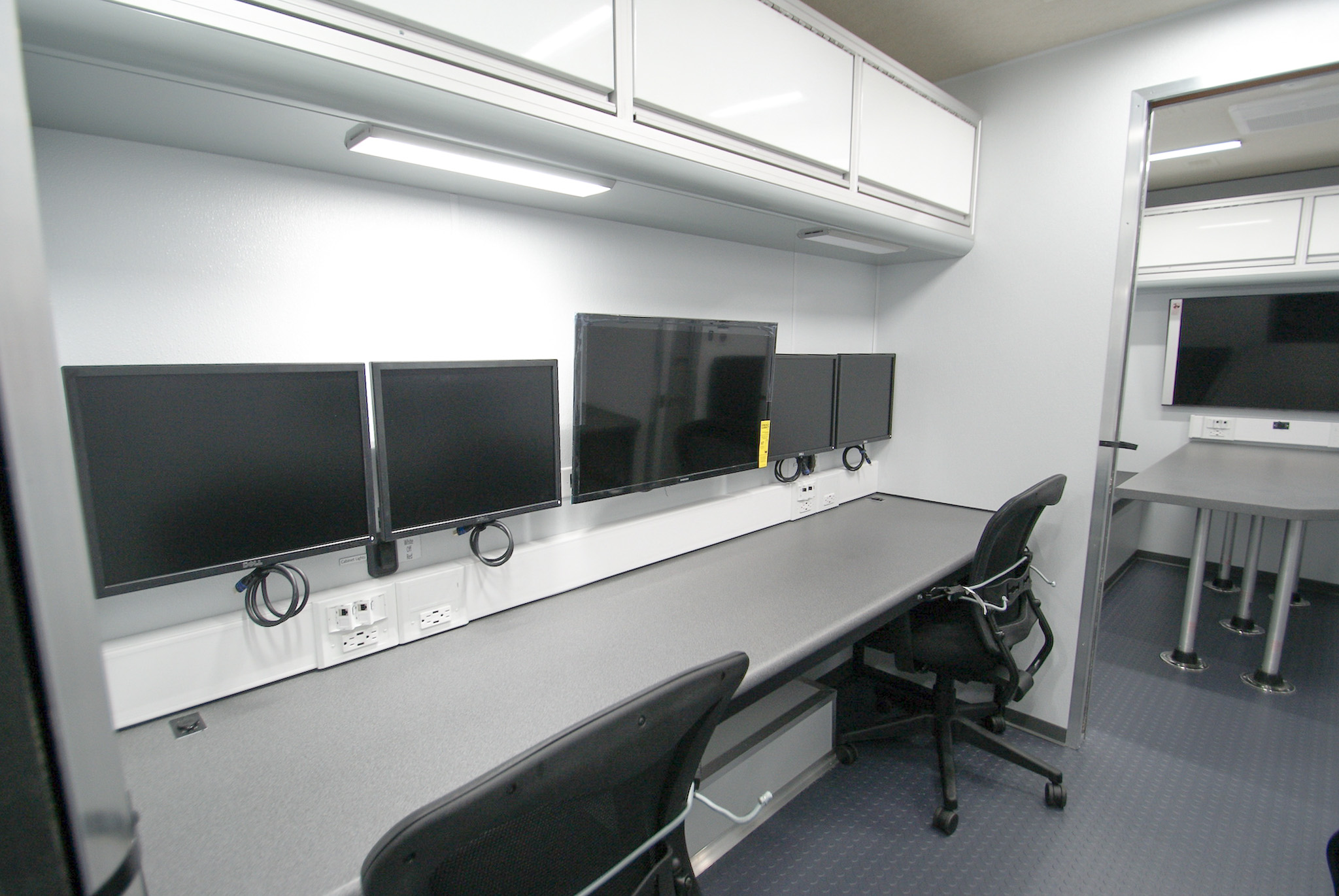

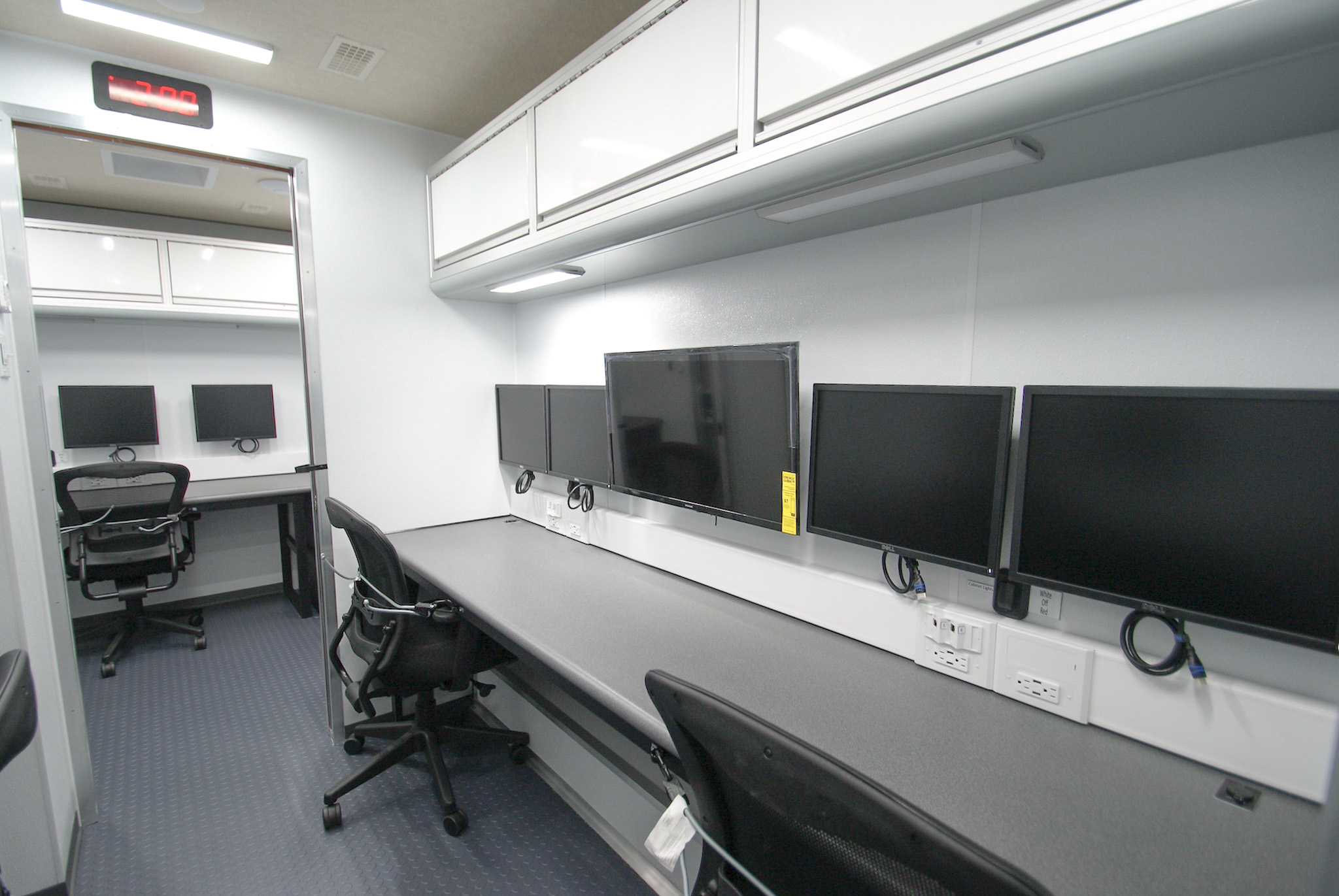

Two workstations inside the unit for Jacksonville, AL.
Two workstations inside the unit for Jacksonville, AL.

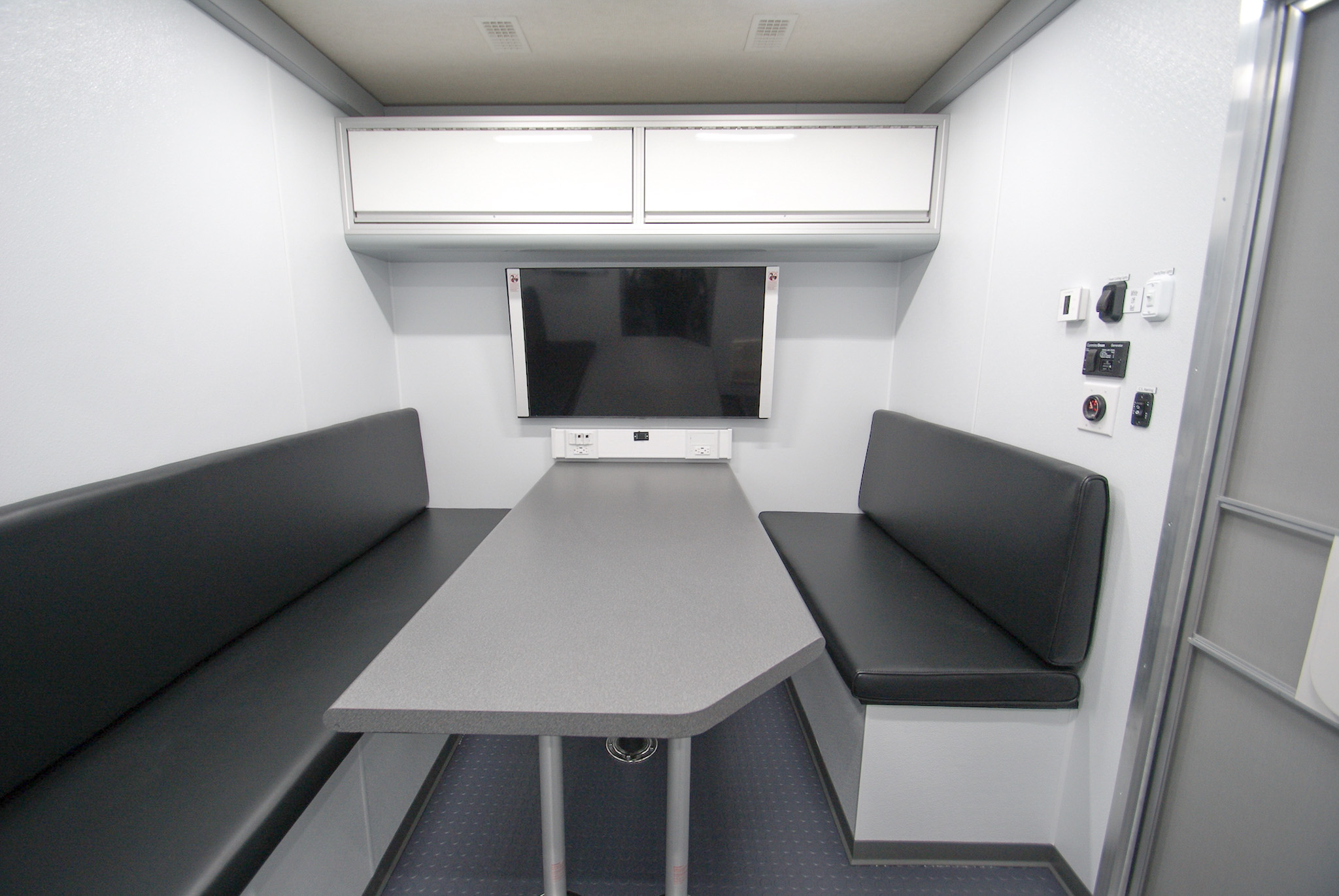

The conference area inside the unit for Jacksonville, AL.

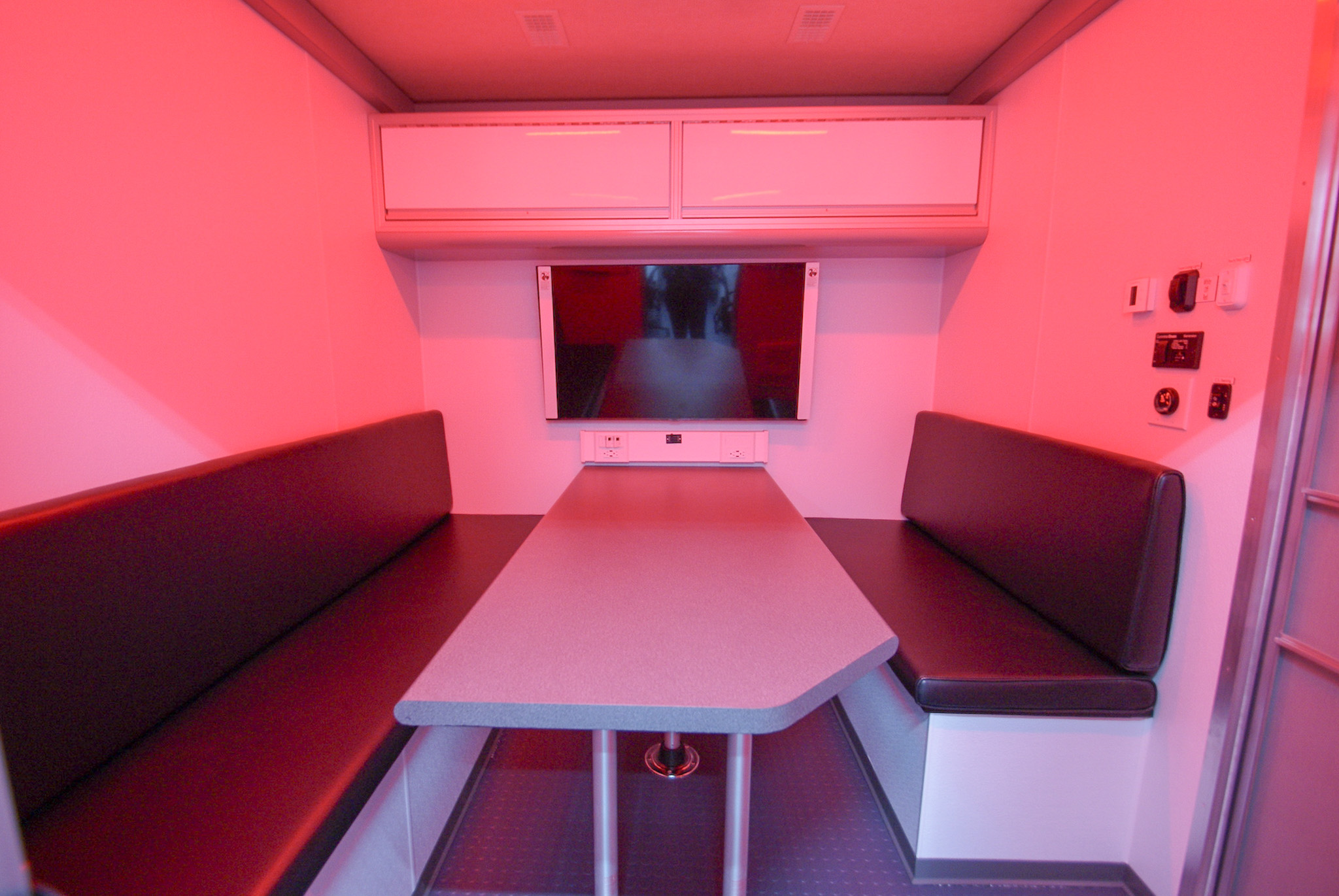

The conference area inside the unit for Jacksonville, AL. The lighting is red.

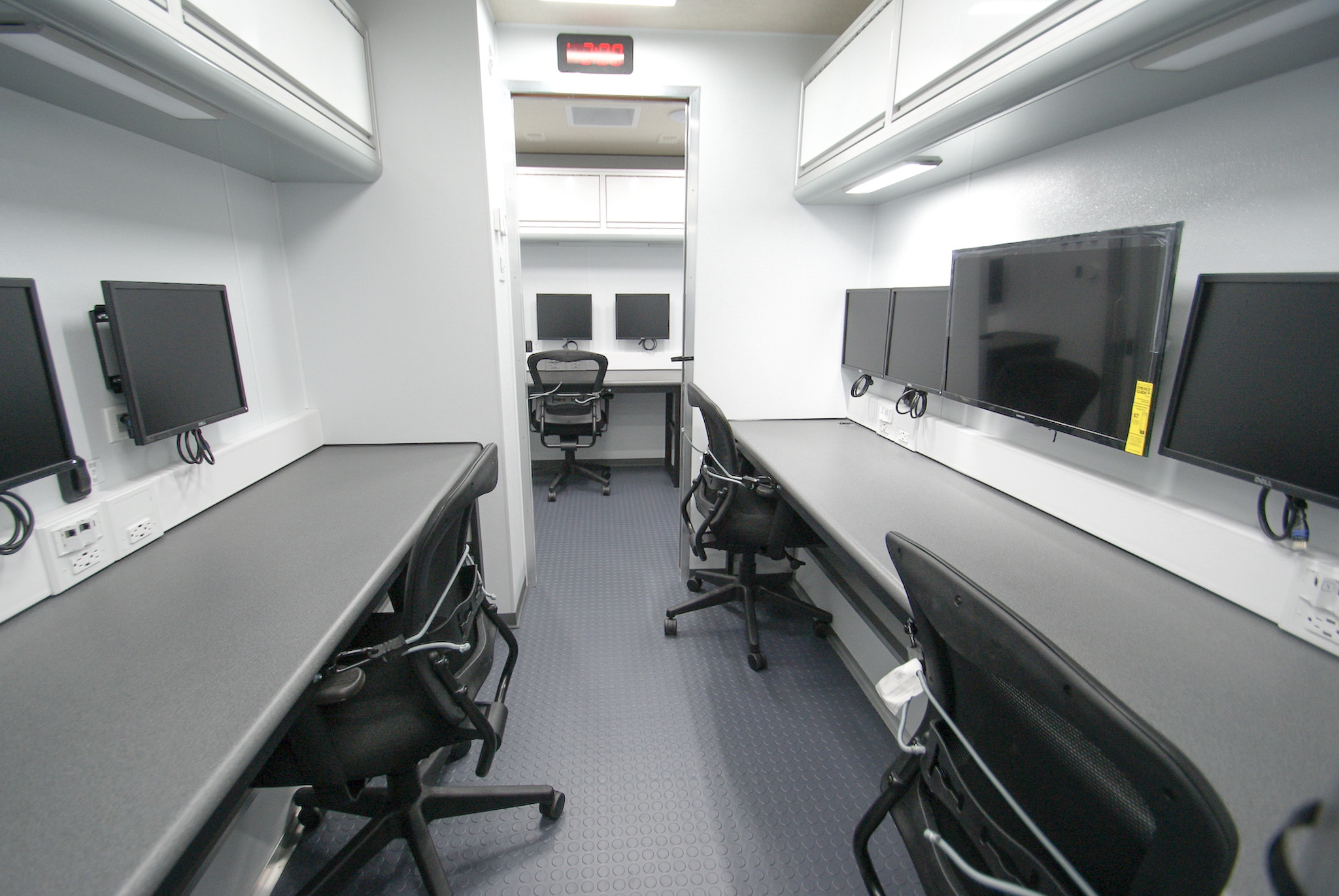

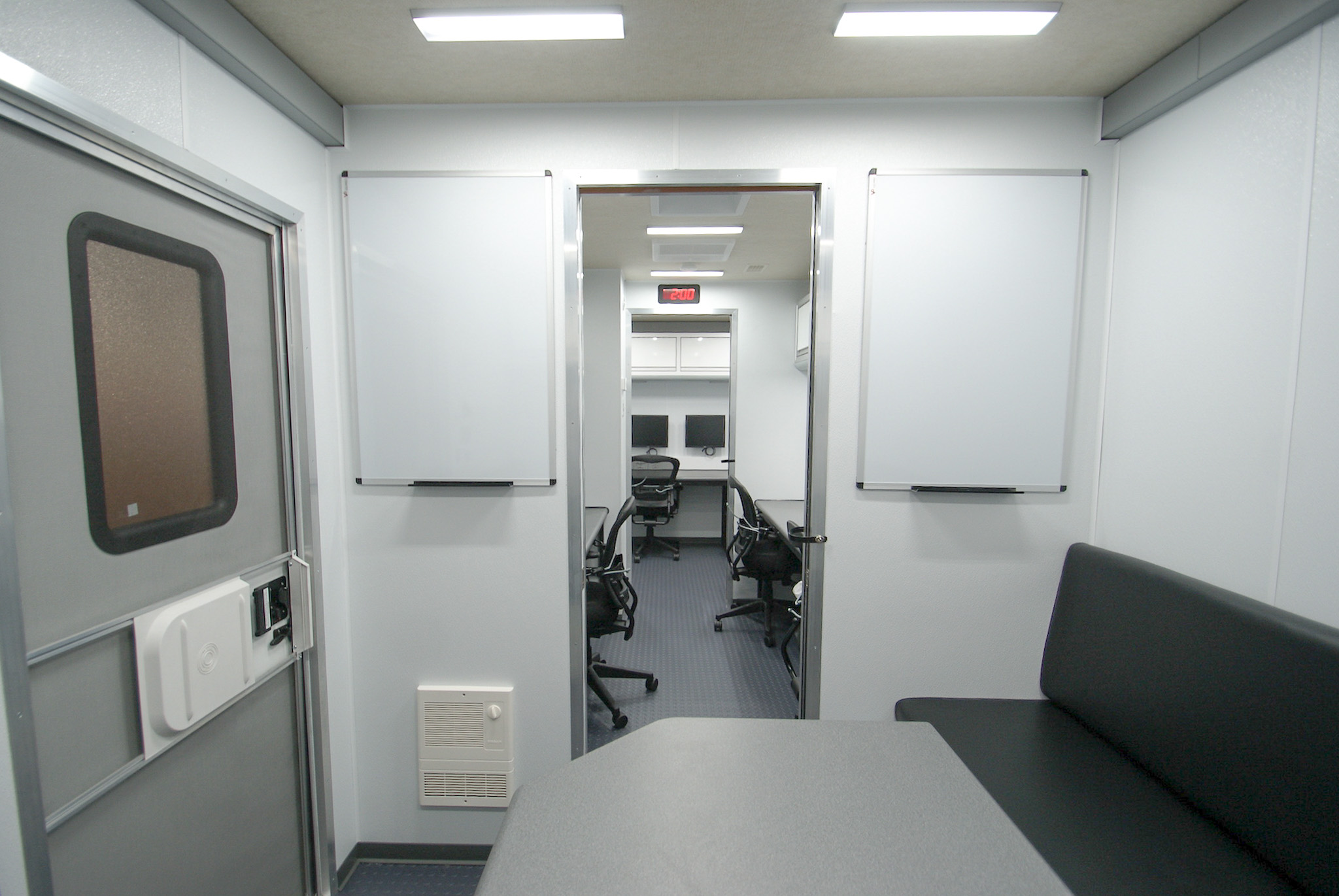

A back-to-front view inside the unit for Jacksonville, AL.
A back-to-front view inside the unit for Jacksonville, AL.
A side view of the unit for Jacksonville, AL.
An exterior view of the unit for Jacksonville, AL.

Command 31-4WS

This Command 31-4WS was custom-built for the Calhoun County Emergency Management Agency in AL, to serve as a mobile communications base during emergency events. To maximize efficiency, this unit is equipped with four workstations, a dedicated conference area for briefings, one electronics rack to host a 20-amp receptacle and eight outlet strip, nine 17″ monitors, one 50″ LED TV with BluRay, one 32″ LED TV, six FRC LED flush-mount scene lights, a four camera security system, two wireless access points, two cell booster antennas, and a Cradlepoint WiFi router with two antennas to ensure coordination and visibility while responding to urgent emergencies. Additionally, their trailer features a kitchenette with a refrigerator, microwave, and Keurig for convenience during lengthy deployments.

Categories: ,

Description

Specs

Exterior

  • 31′ trailer with hitch
  • Safety & Visibility:
    • Two 21′ electric awnings
    • LED step, porch, and baggage compartment lights
    • Six FRC LED flush mount scene lights
  • Connectivity:
    • Two cell booster antennas
    • Two Ubiquiti Networks wireless access points
  • Power outlets: Two exterior 110v duplex GFI protected receptacles
  • Ventilation: Two roof vents
  • Graphics: Custom graphics

Electronics

  • Generator: Onan 8kW generator with ATS and remote start
  • Power management:
    • One 30′ long 50 amp removable shoreline
    • A 30 gallon fuel tank and fuel gauge
    • One Paneltronics electric panel with two 80-amp converters
  • Wiring: Pre-wired for 110v, CAT6, and 12v outlets
    • Two 13,500 BTU rooftop AC/Heat pumps
    • Two 1,000w wall heaters

Interior

  • Workstations: Four workstations with task chairs
    • Two 110v/USB, two CAT6 outlets, and one 12v outlet per workstation
  • Conference area: One removable table and two hinged, padded benches in the conference room
  • Electronics rack: One 26″ electronics rack with a dedicated 20-amp receptacle and eight outlet strip
  • Appliances:
    • Nine 17″ monitors with HDMI connectivity (two monitors per workstation except for the one on the rear wall; there are three)
    • One 50″ LED TV with a BluRay player
    • One 32″ LED TV
    • Kitchenette with one refrigerator, microwave, and Keurig
    • Two 24×46″ white boards
  • Storage & Surfaces: Overhead aluminum cabinets
