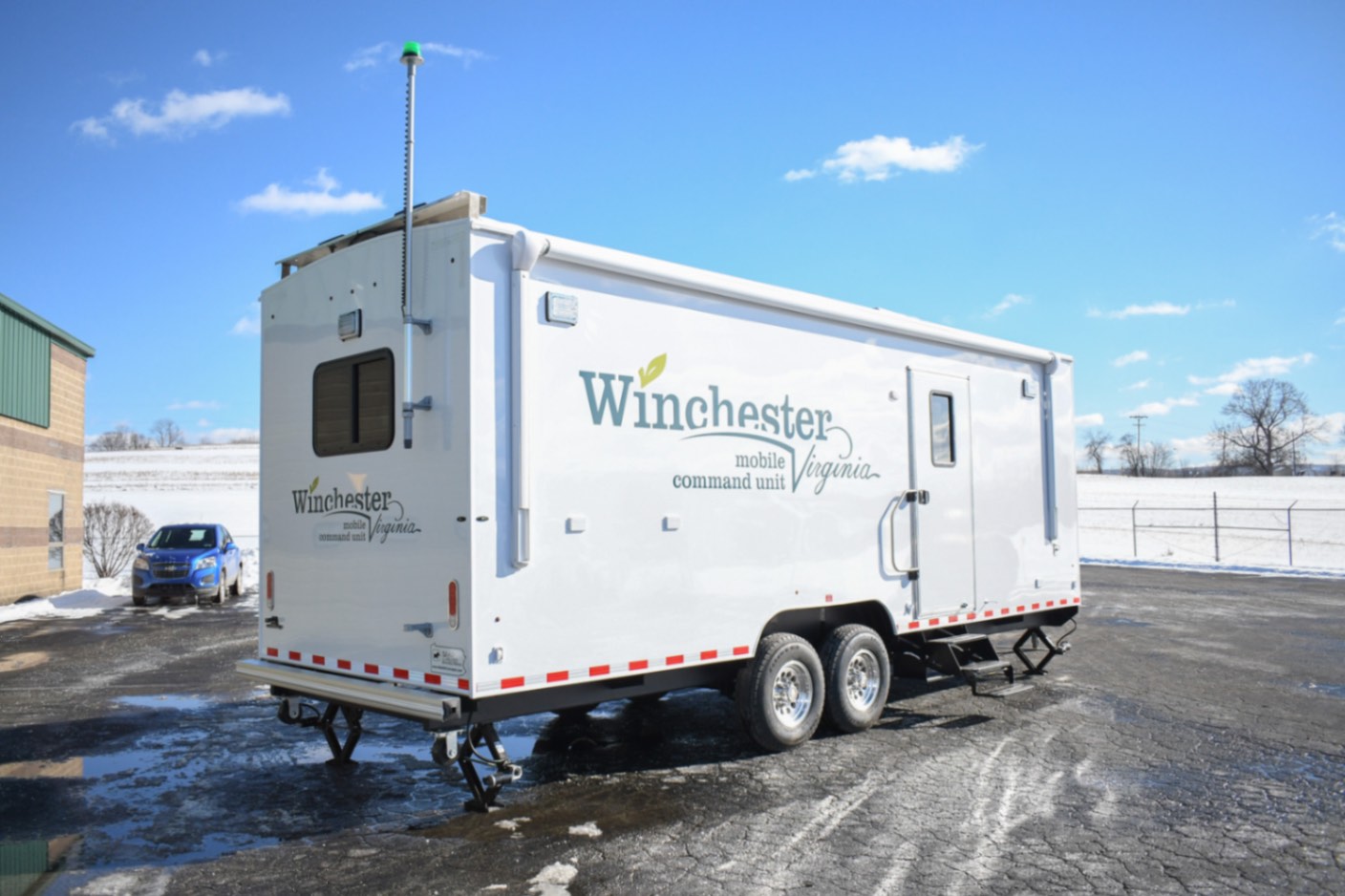

An exterior view of the unit for Winchester, VA.

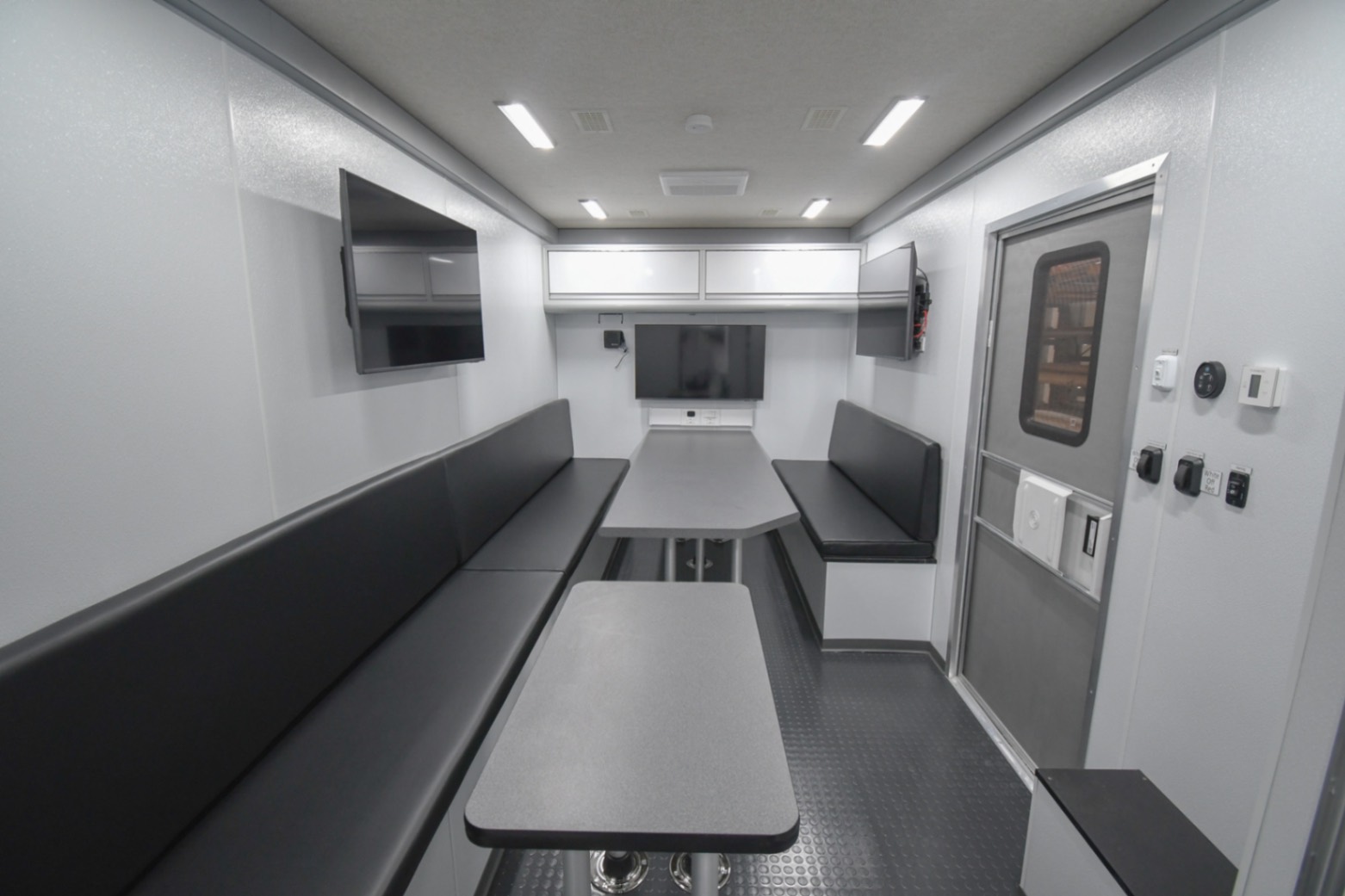

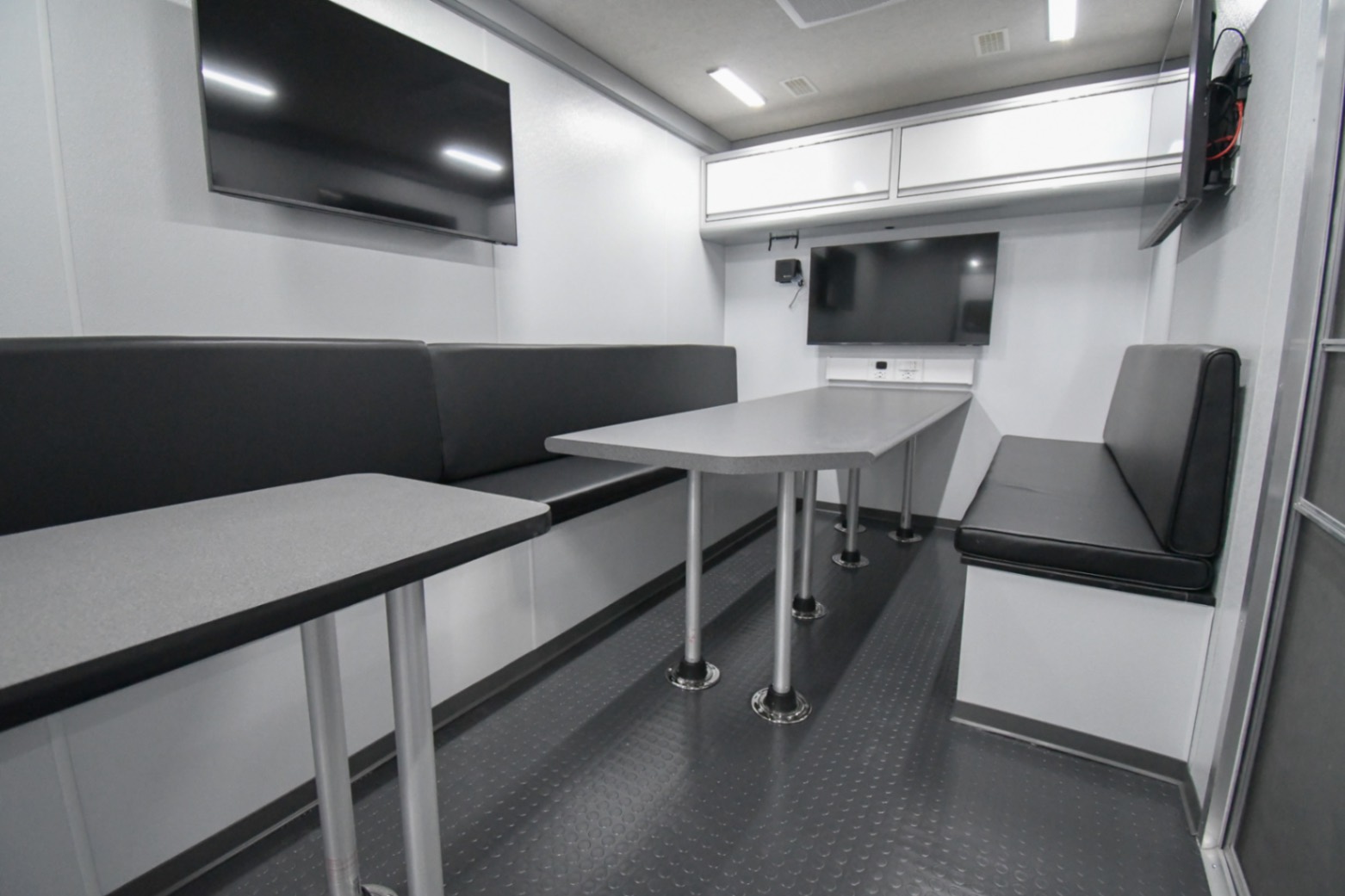

A view of the conference/communications area inside the unit for Winchester, VA.

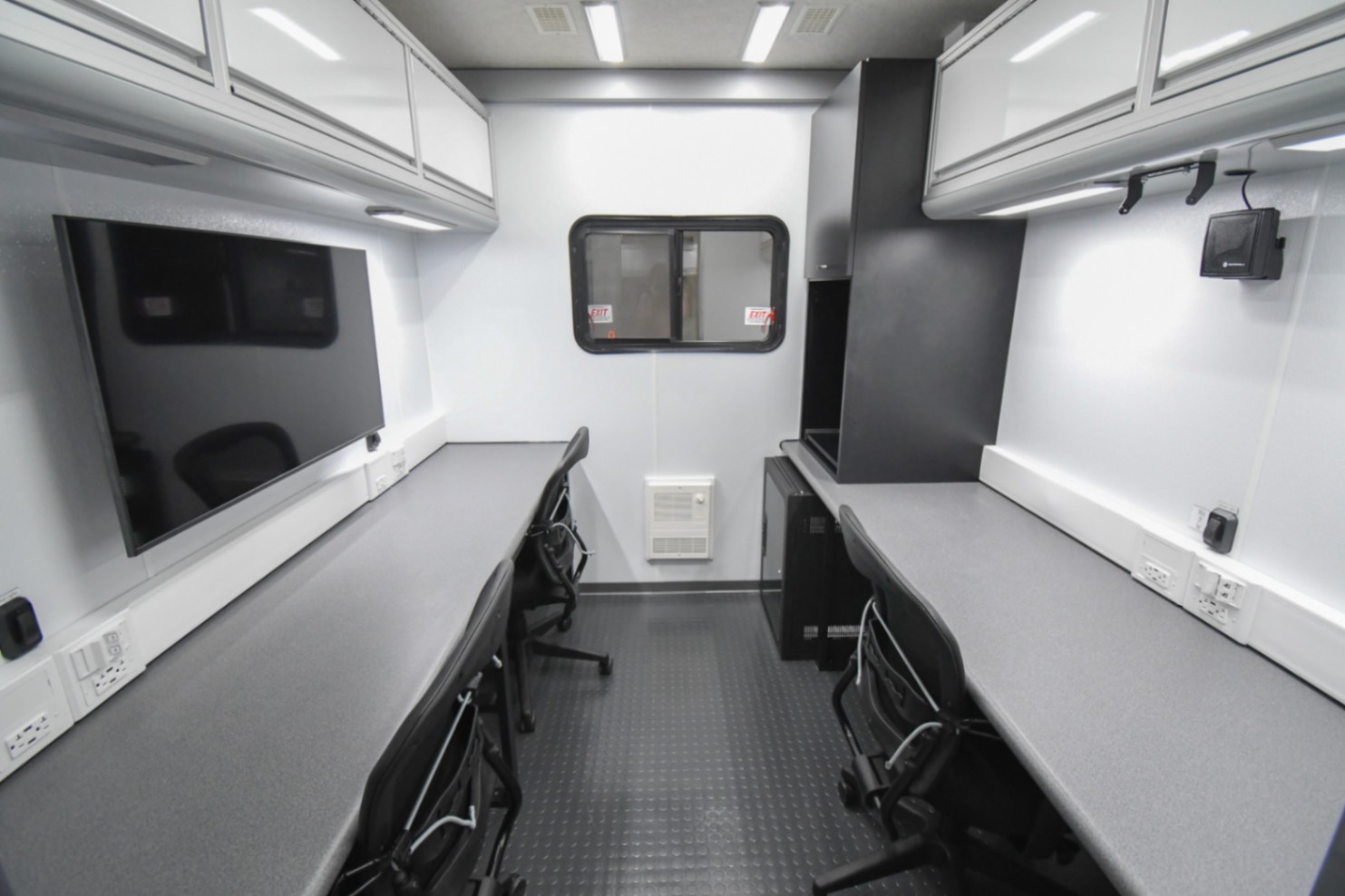

A front-to-back view inside the unit for Winchester, VA.
Three workstations inside the unit for Winchester, VA.

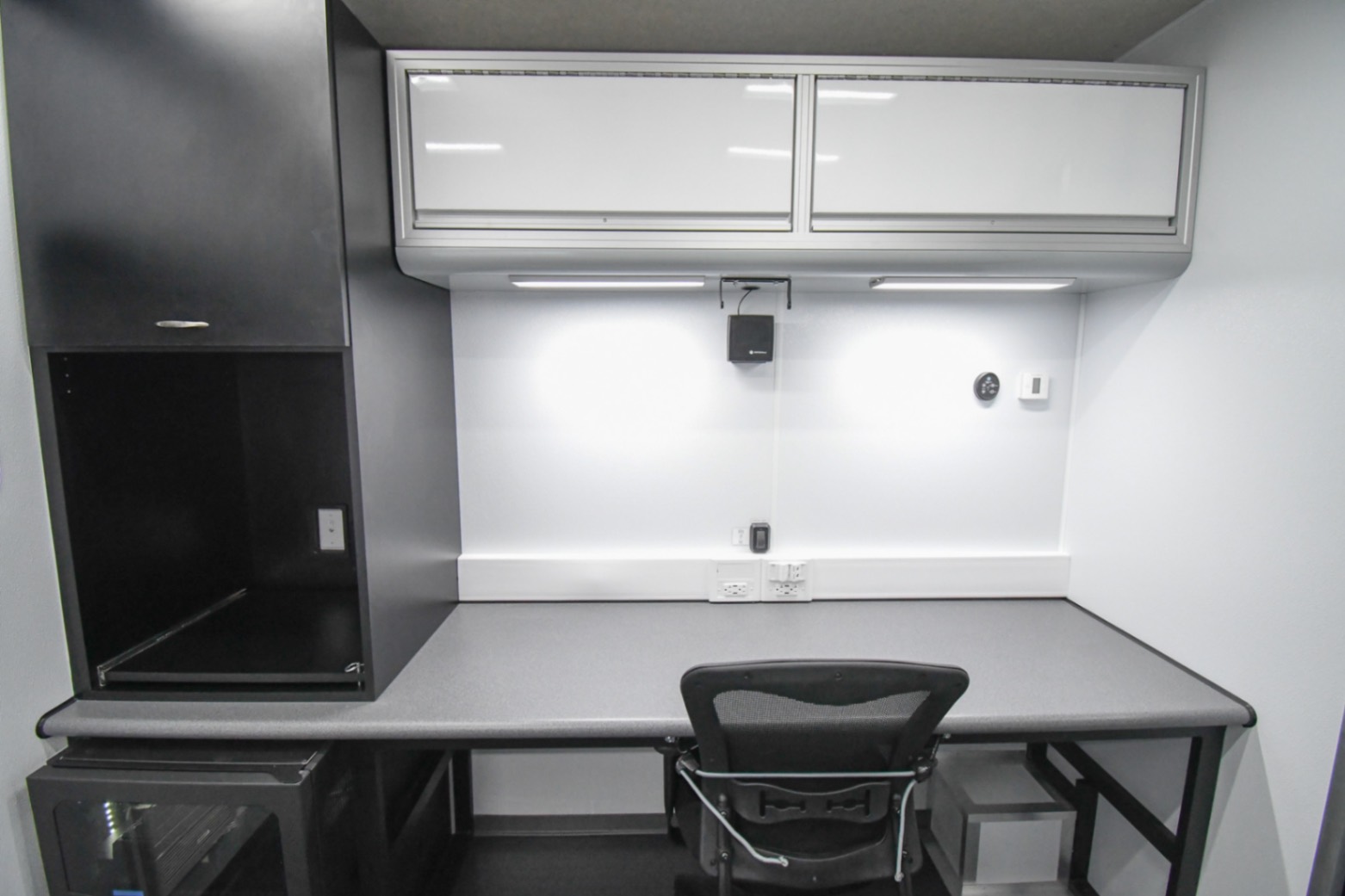

A workstation, electronics rack, and a custom storage cabinet inside the unit for Winchester, VA.

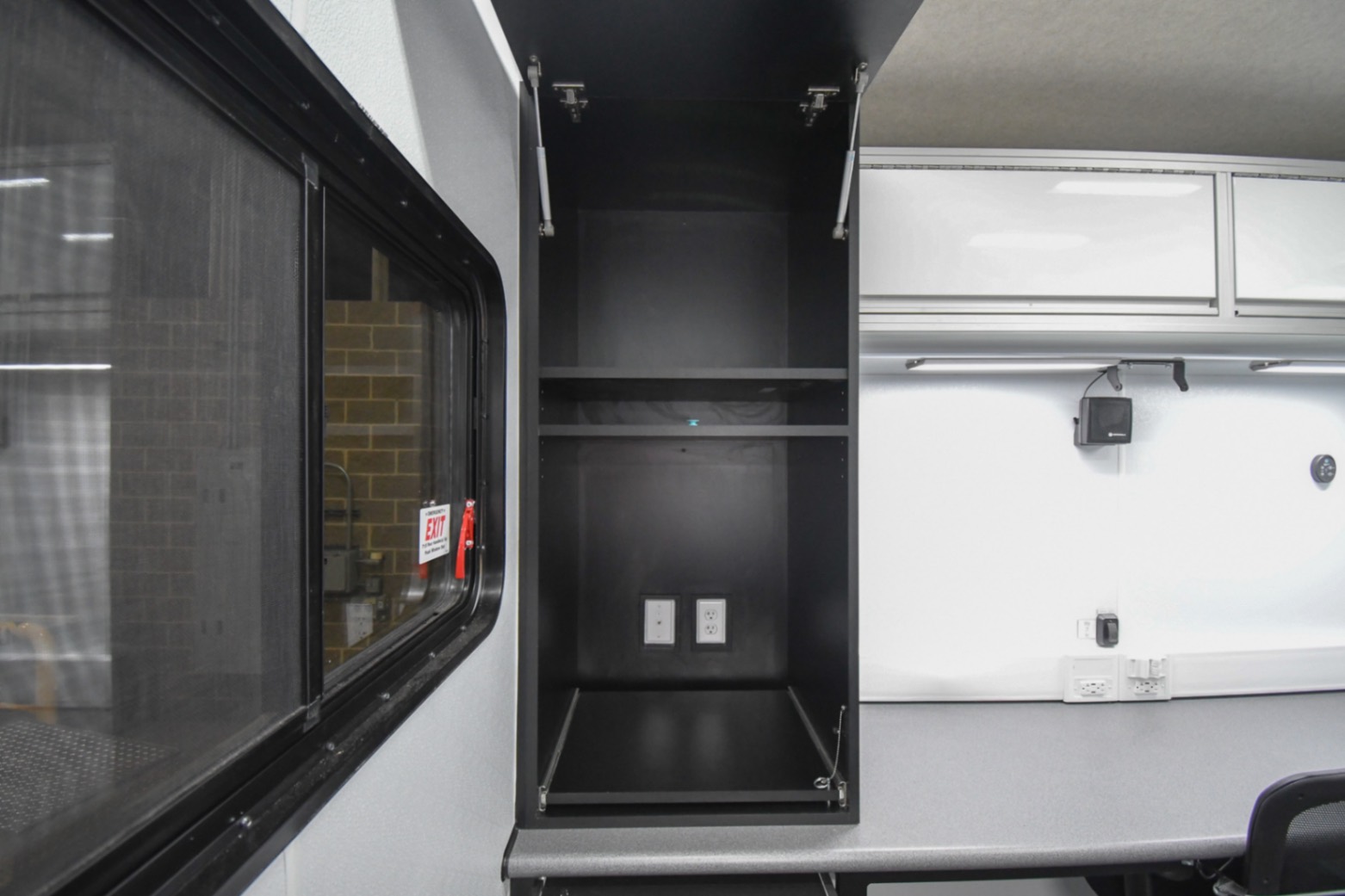

A closer look at the custom storage cabinet inside the unit for Winchester, VA. It's meant to hold a printer.

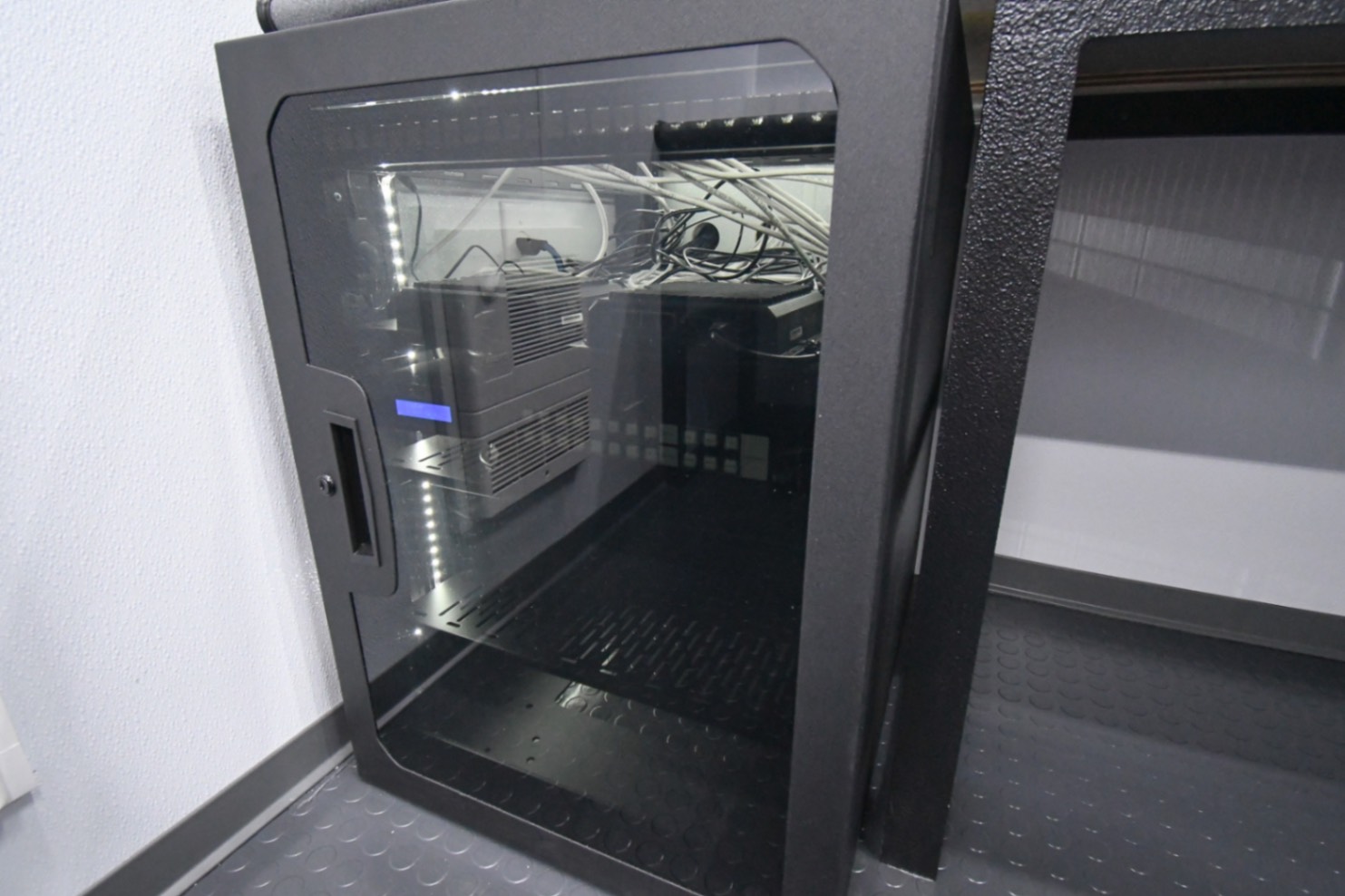

A closer view of the electronics rack inside the unit for Winchester, VA.

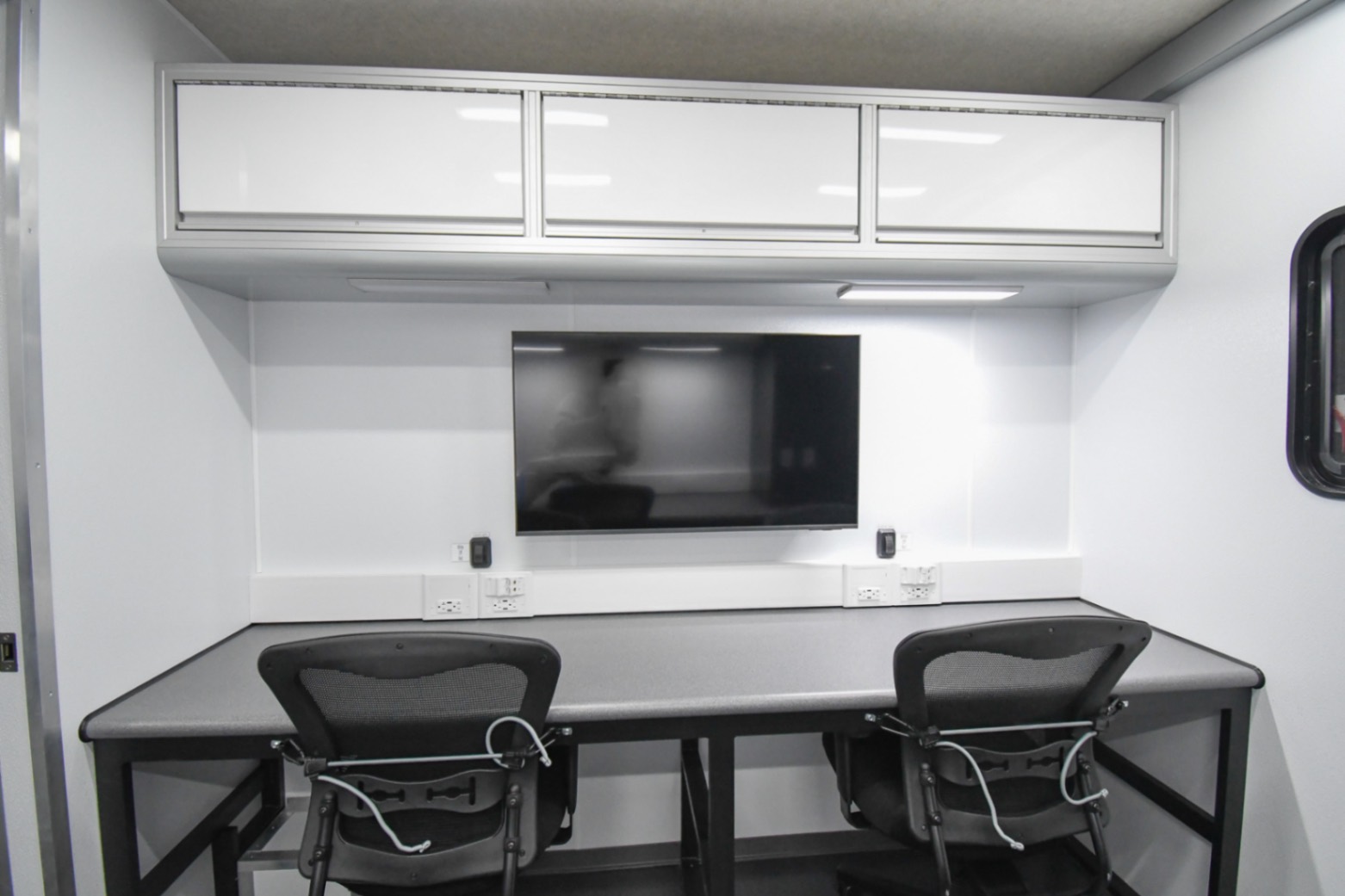

Two of the four workstations inside the unit for Winchester, VA.

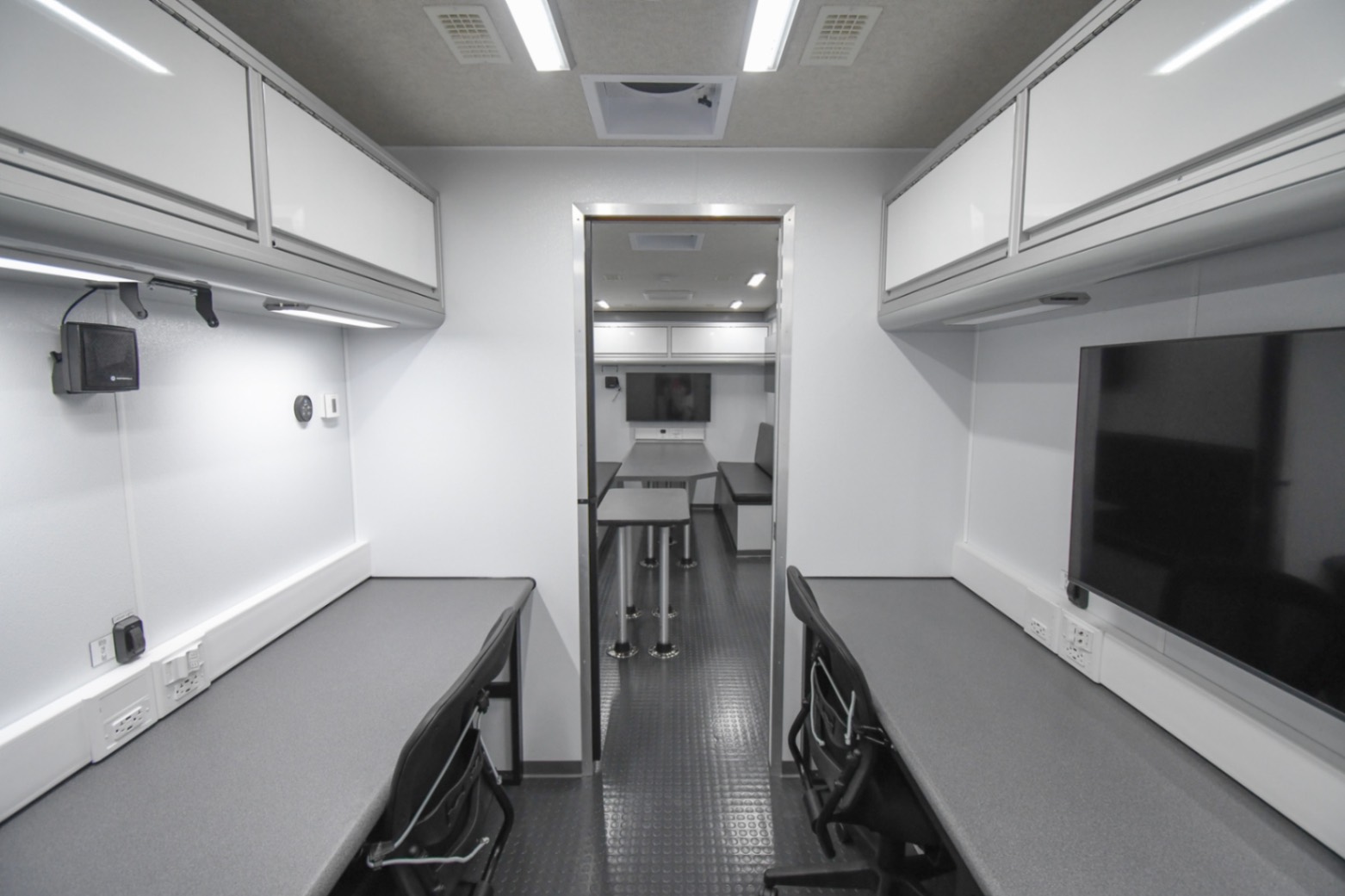

A back-to-front view inside the unit for Winchester, VA.
A back-to-front view inside the unit for Winchester, VA.

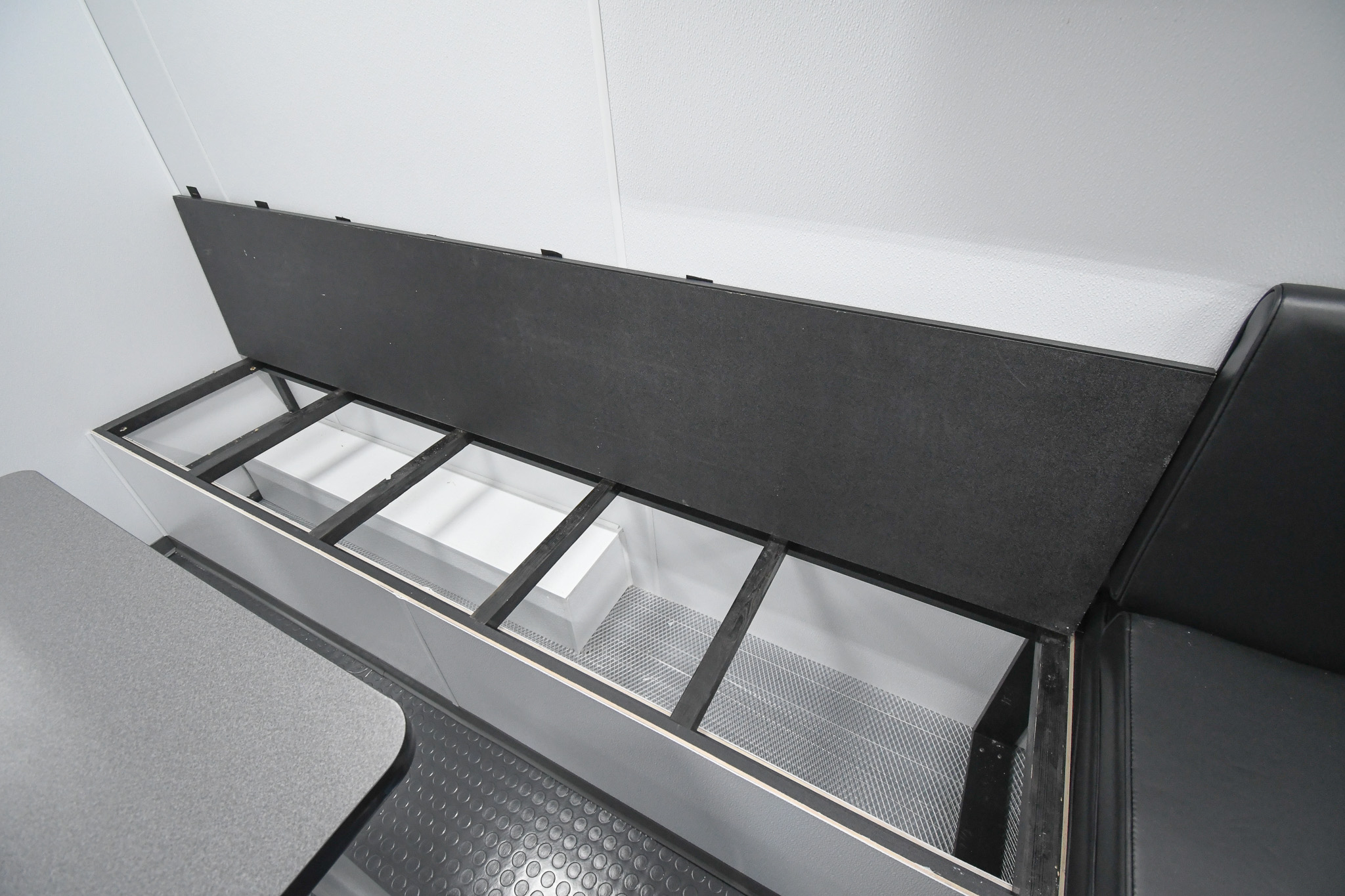

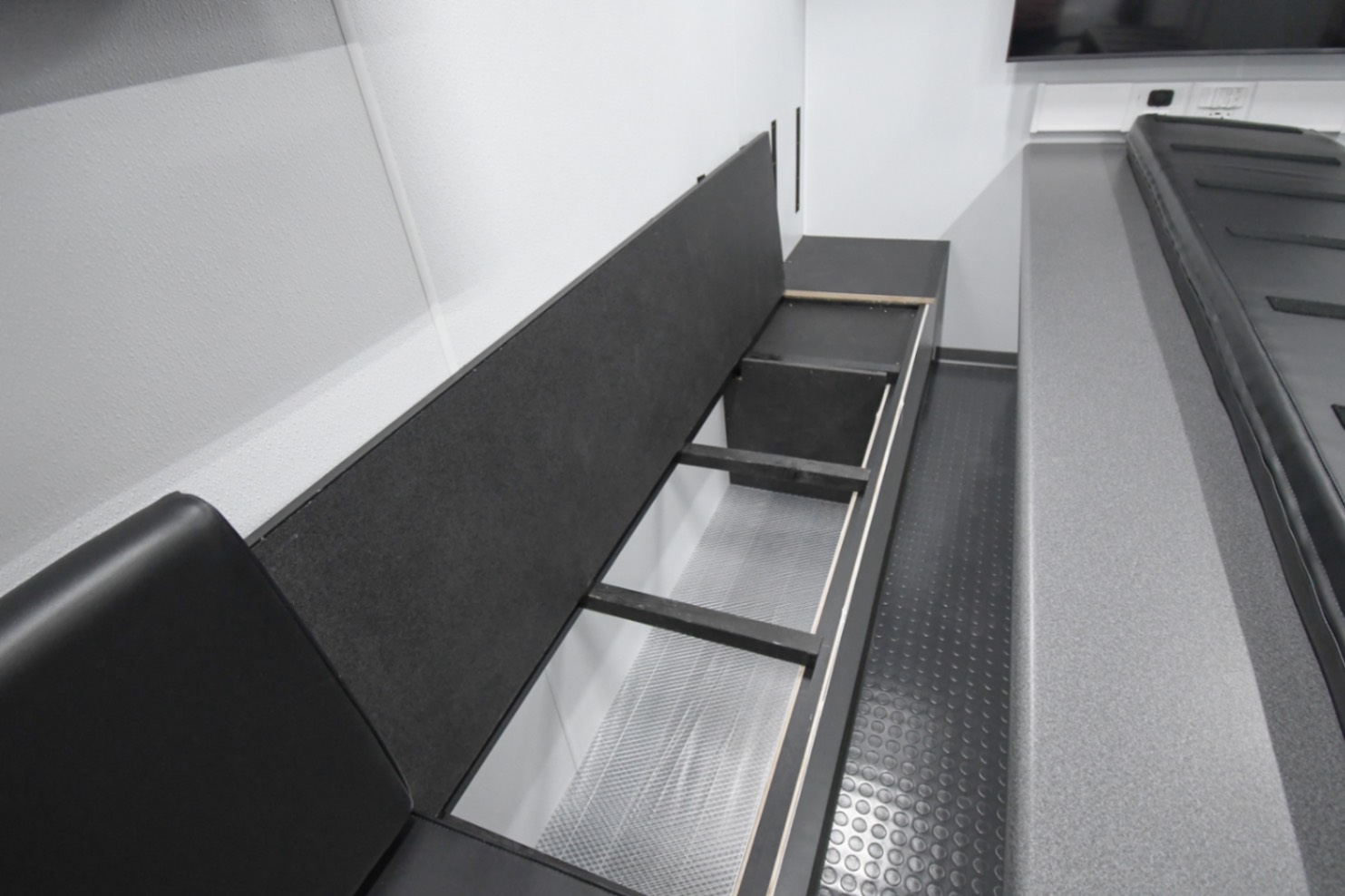

Storage space underneath a bench inside the unit for Winchester, VA.
Storage space underneath a bench inside the unit for Winchester, VA.

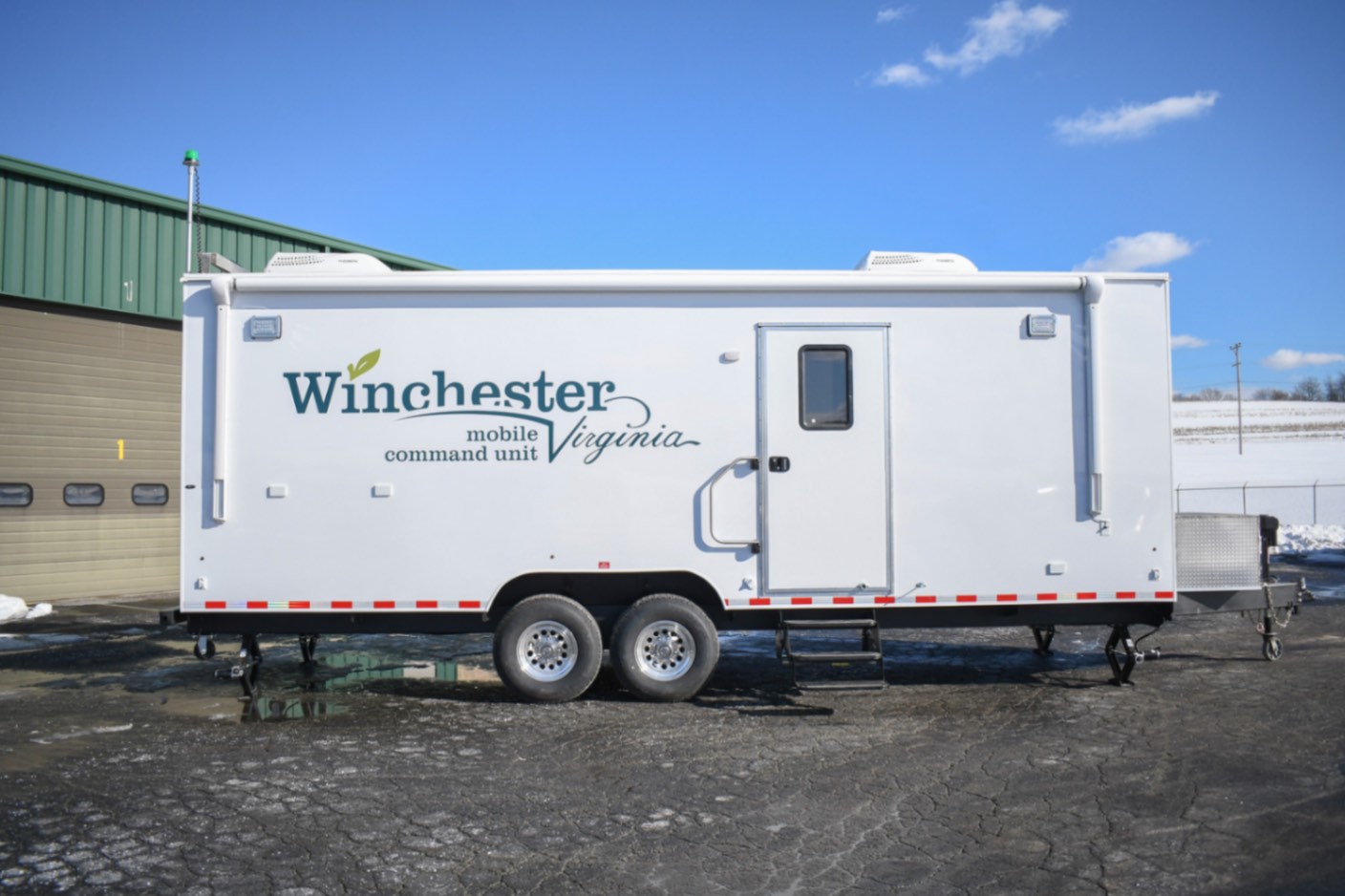

A side view of the unit for Winchester, VA.

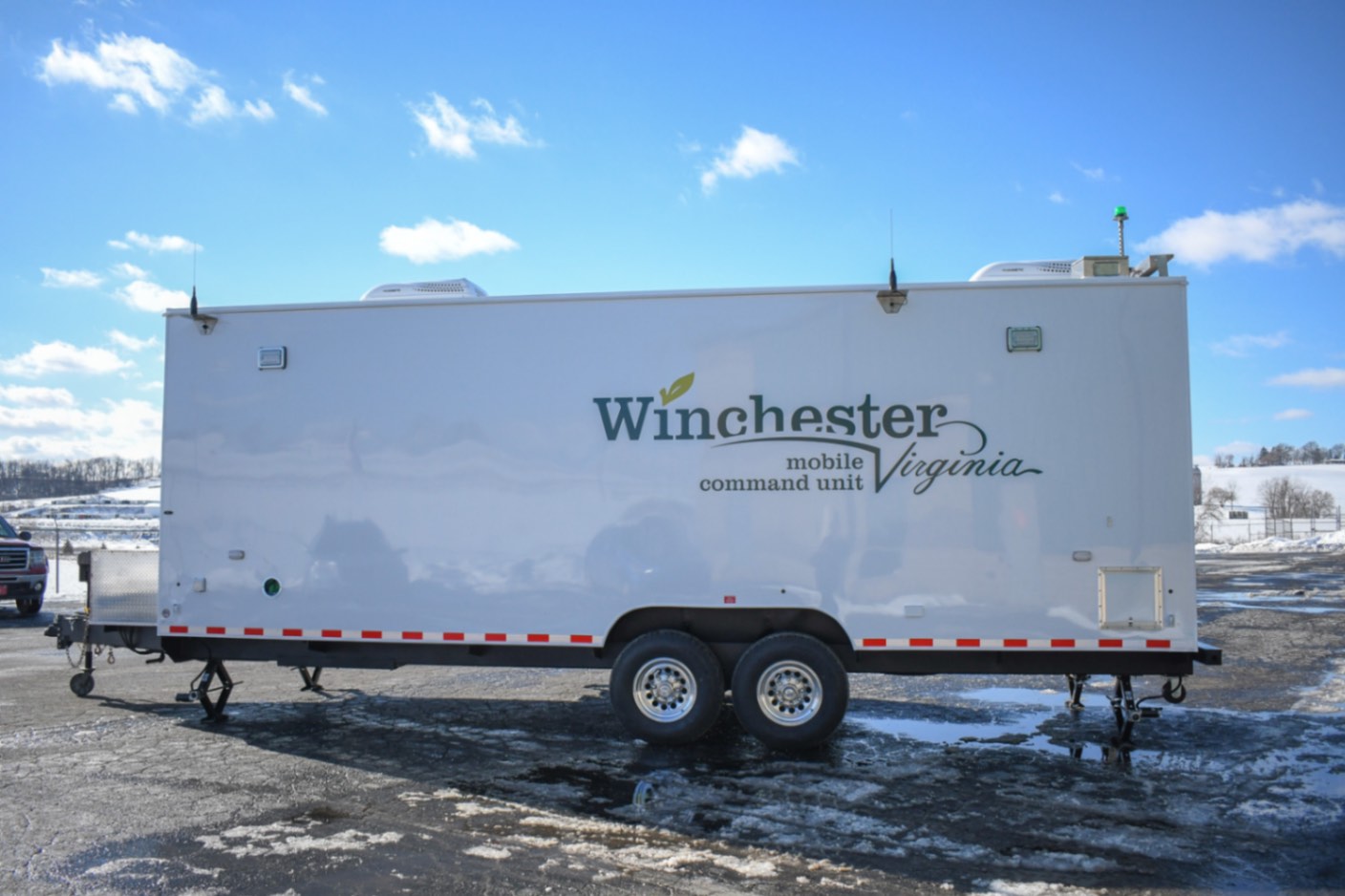

An alternate side view of the unit for Winchester, VA.
An exterior view of the unit for Winchester, VA.

Command 31-4WS MOD

This Command 31-4WS was custom-built for the City of Winchester’s Department of Emergency Management in Winchester, VA, to serve as a mobile command center during active emergencies. The trailer features four workstations, a dedicated conference room with two removable tables for meetings, an extended communications area equipped with four Vanco transmitters and receivers, two antennas and microphones for customer-installed radios, four 43″ monitors, two Cradlepoint WiFi routers and antennas, and an electronics rack hosting a 24-port patch panel and an eight outlet strip. Additionally, it features ample storage space in the form of full-length padded benches with hinged tops, overhead aluminum cabinets, and one custom storage cabinet with printer slideout shelf.

Categories: ,

Description

Specs

Exterior

  • 31′ trailer with hitch
  • Power outlets: Two exterior 110v duplex GFI protected receptacles
  • Safety & Visibility:
    • Six FRC LED flush mount scene lights
    • One green strobe light on a push-up pole
    • One 21′ Fiamma electric awning
    • One 36×22″ escape window
  • Graphics: Custom graphics

Interior

  • Workstations: Four workstations with task chairs
  • Conference area: One conference room with full-length padded bench seating with hinged tops, and two removable conference tables
  • Electronics rack: One 26″ Legrand AV rack with a 24 port patch panel and eight outlet strip
  • Appliances:
    • Four 43″ monitors
    • One storage cabinet with printer slideout shelf
  • Storage & Surfaces: Overhead ACE aluminum cabinets
  • Additional feature: One 14½” x 14 ½” access door

Electronics & Power

  • Generator: Onan 8kW generator with ATS and remote start
  • Power management:
    • 30 gallon fuel tank and fuel gauge
    • A 25′ long, 50-amp removable shoreline
    • One Paneltronics panel with two 80-amp converters
  • Wiring: Pre-wired for 110v, USB, CAT6 networking, HDMI, and 20-amp outlets
  • Connectivity:
    • Two Cradlepoint WiFi antennas and routers
    • Two antennas and microphones for customer supplied radios
    • Four Vanco transmitters and receivers
  • Climate control:
    • Two low-profile BTU AC/heat pumps with single zone thermostats
    • Two 1,000w wall heaters
