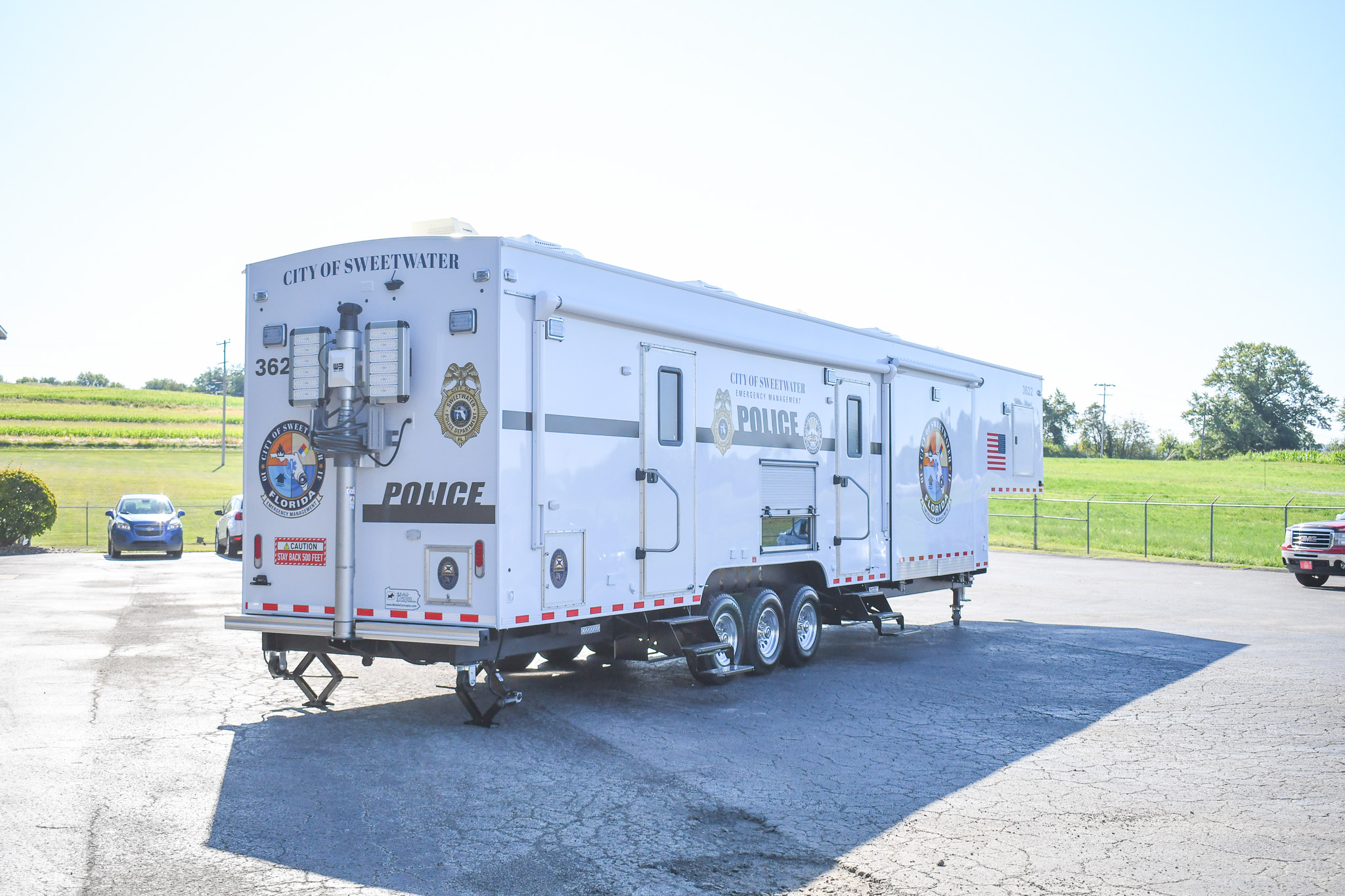

An exterior view of the unit for Sweetwater, FL.

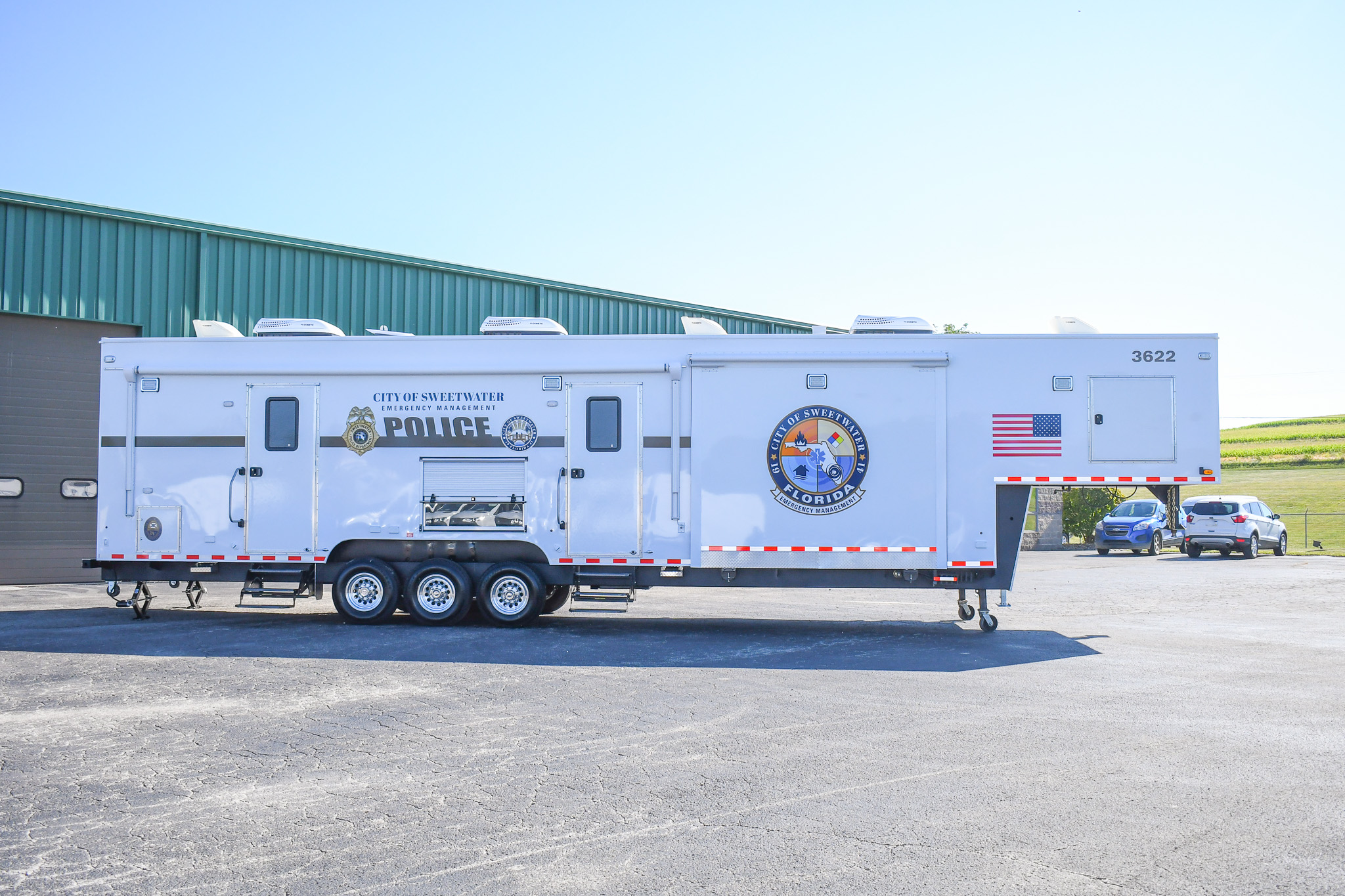

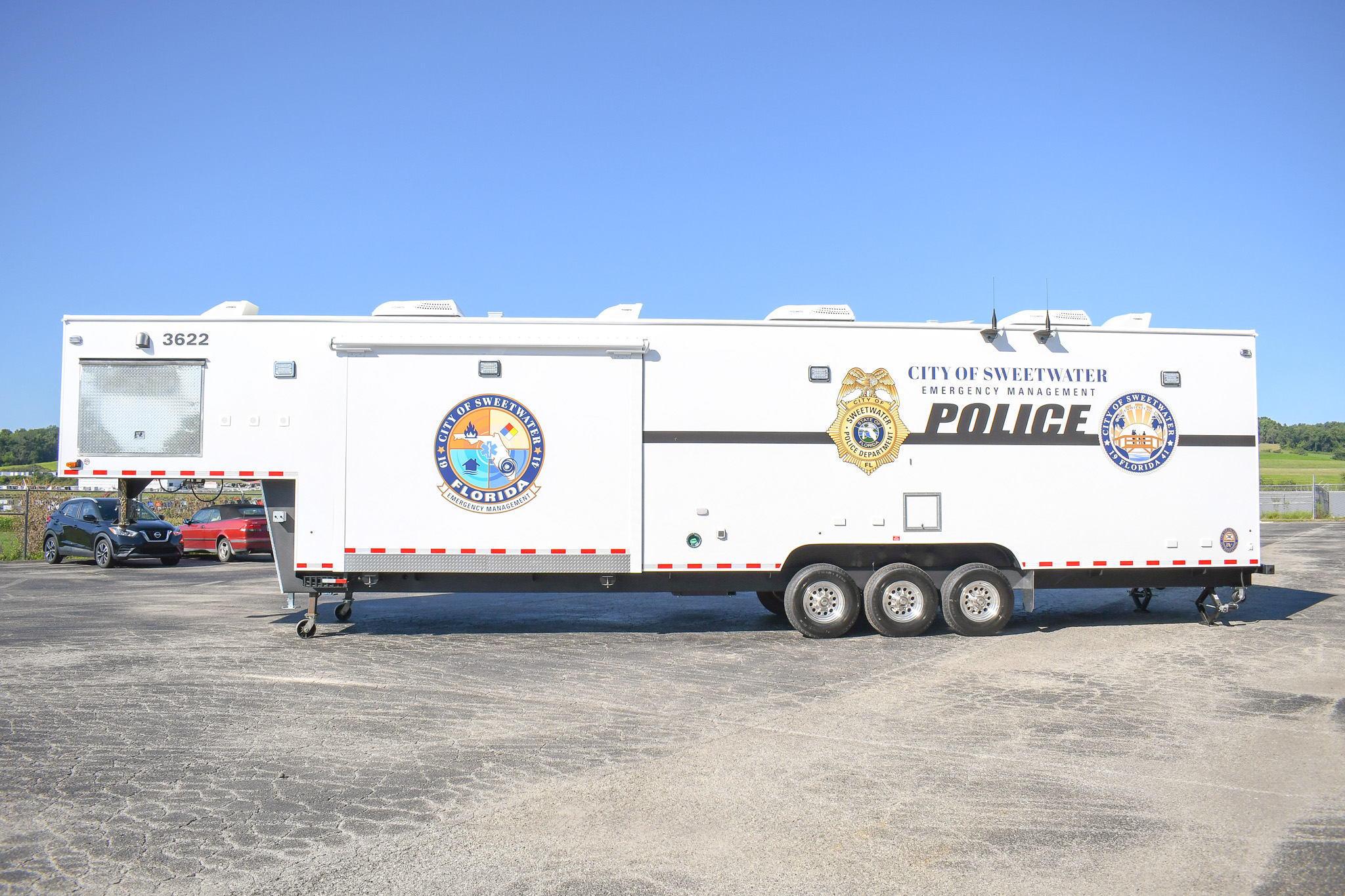

A side view of the unit for Sweetwater, FL.

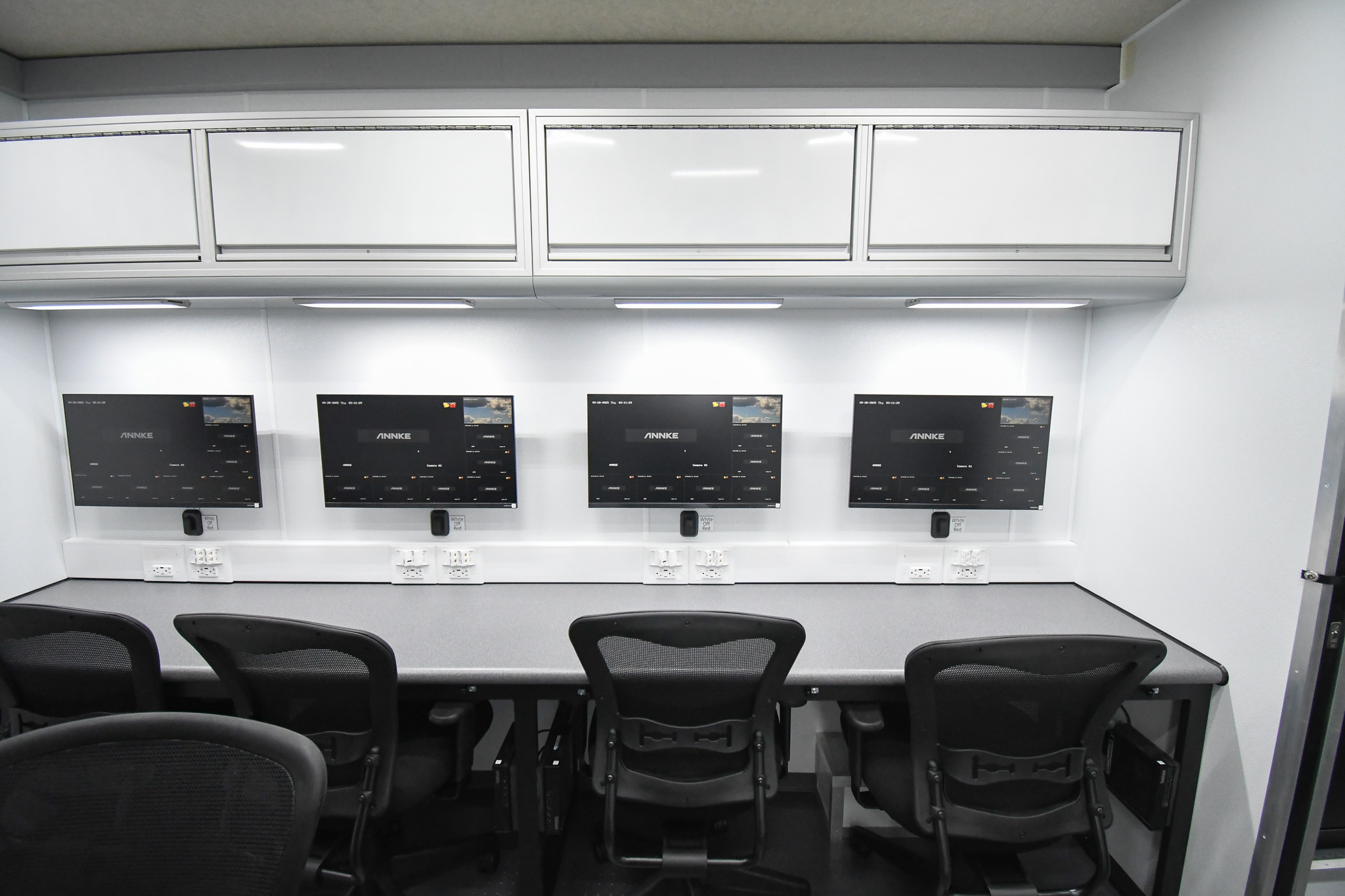

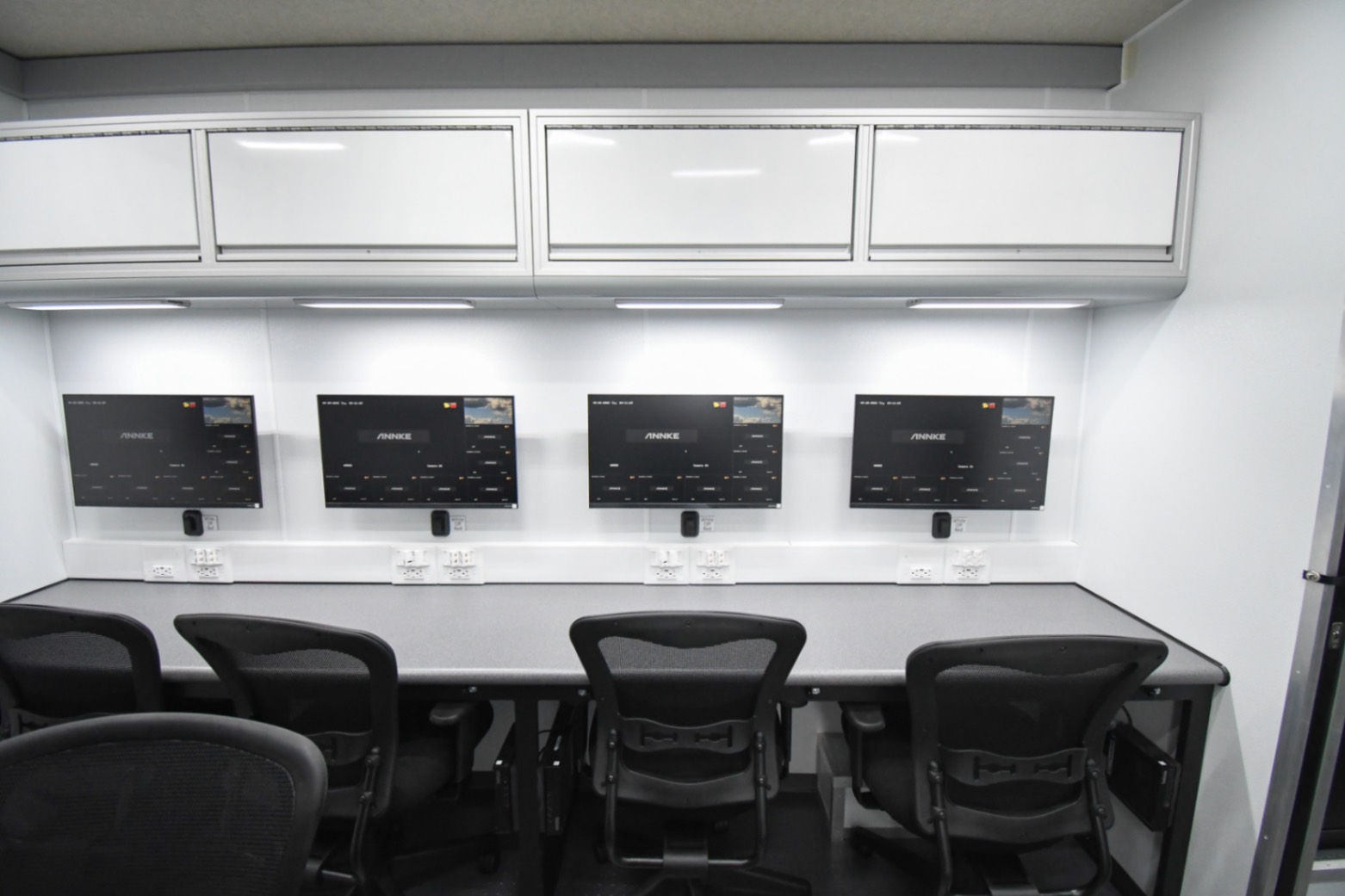

Five of eleven workstations inside the unit for Sweetwater, FL.

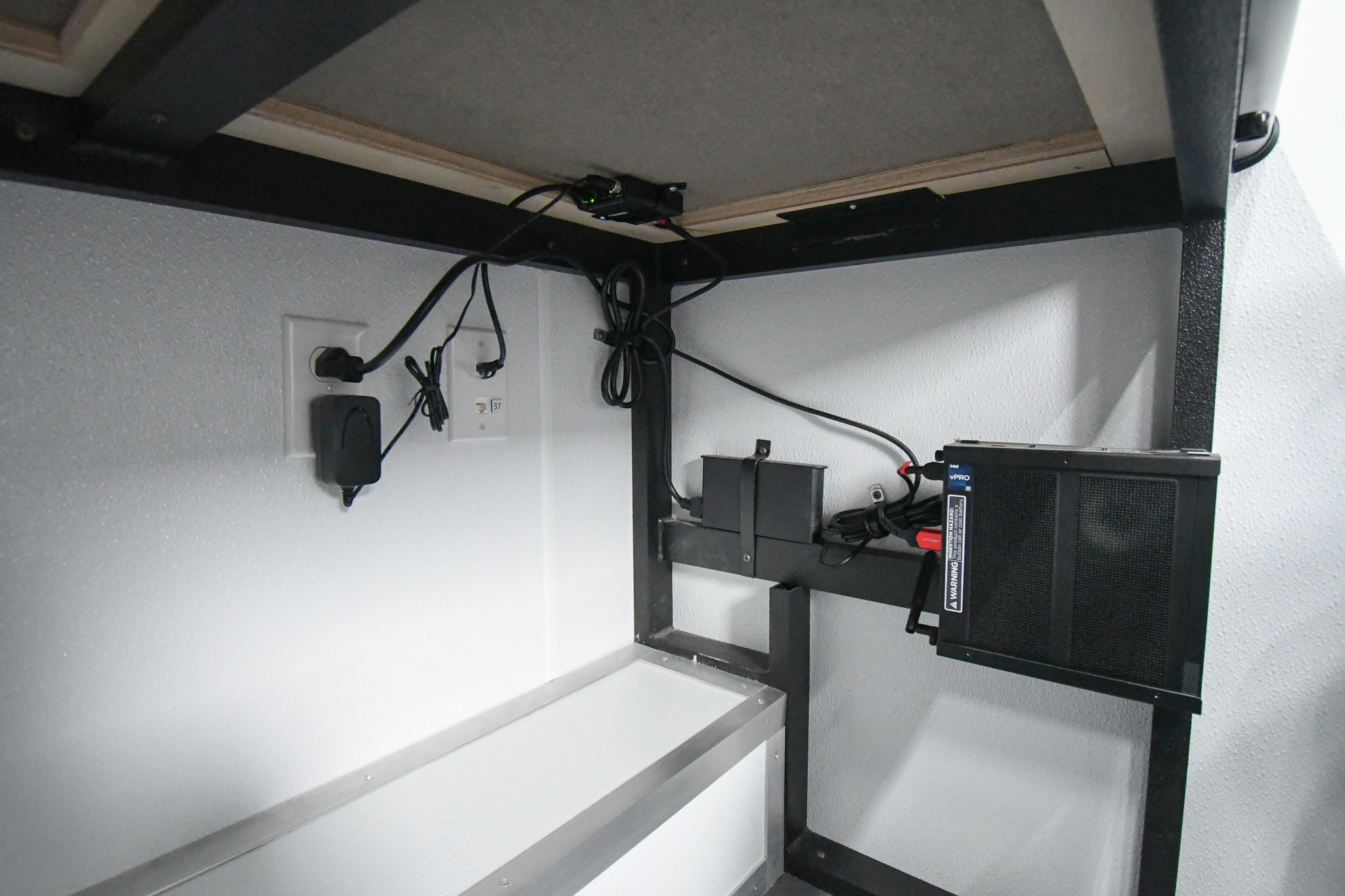

An example of what's underneath each workstation inside the unit for Sweetwater, FL.

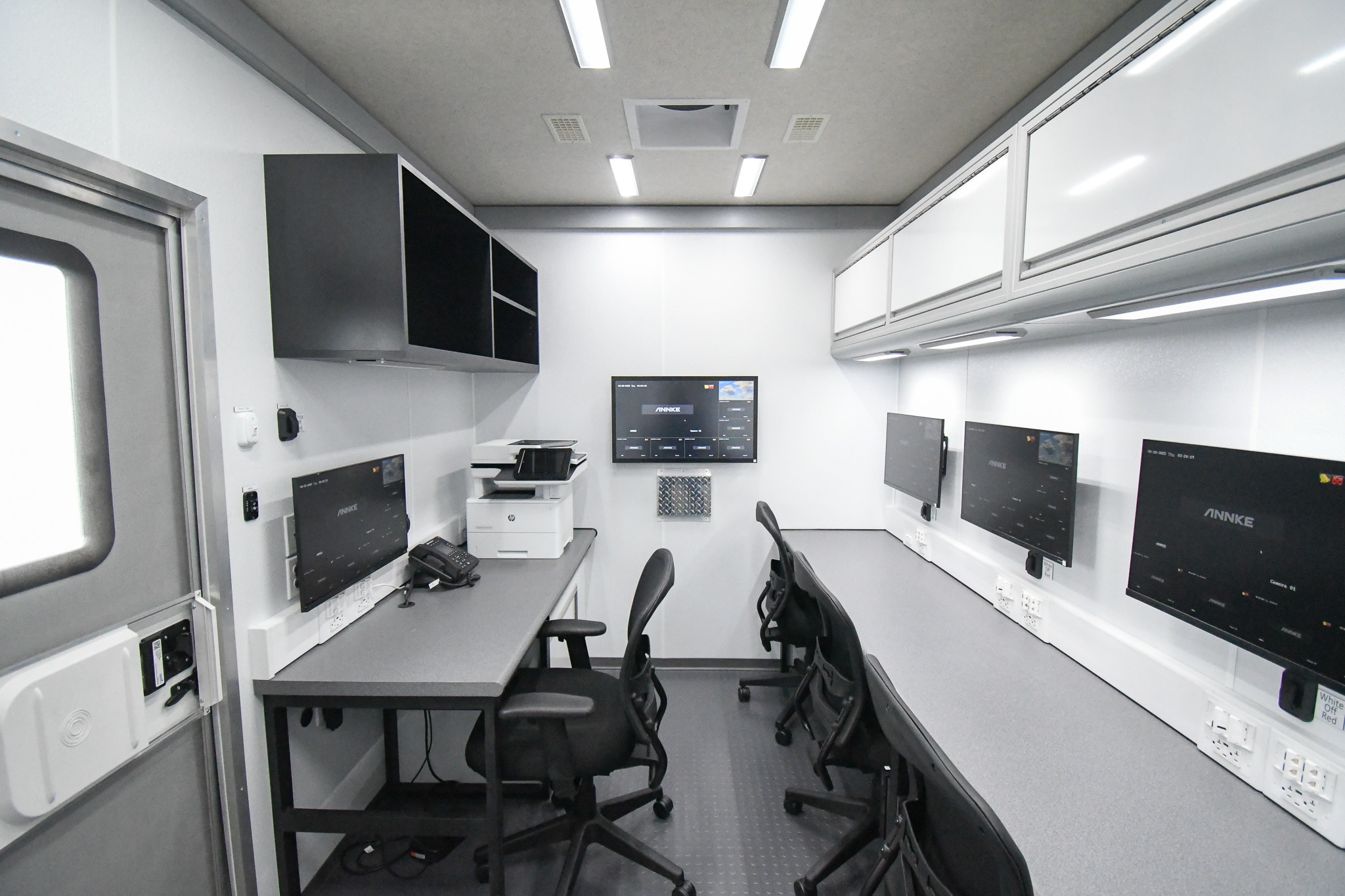

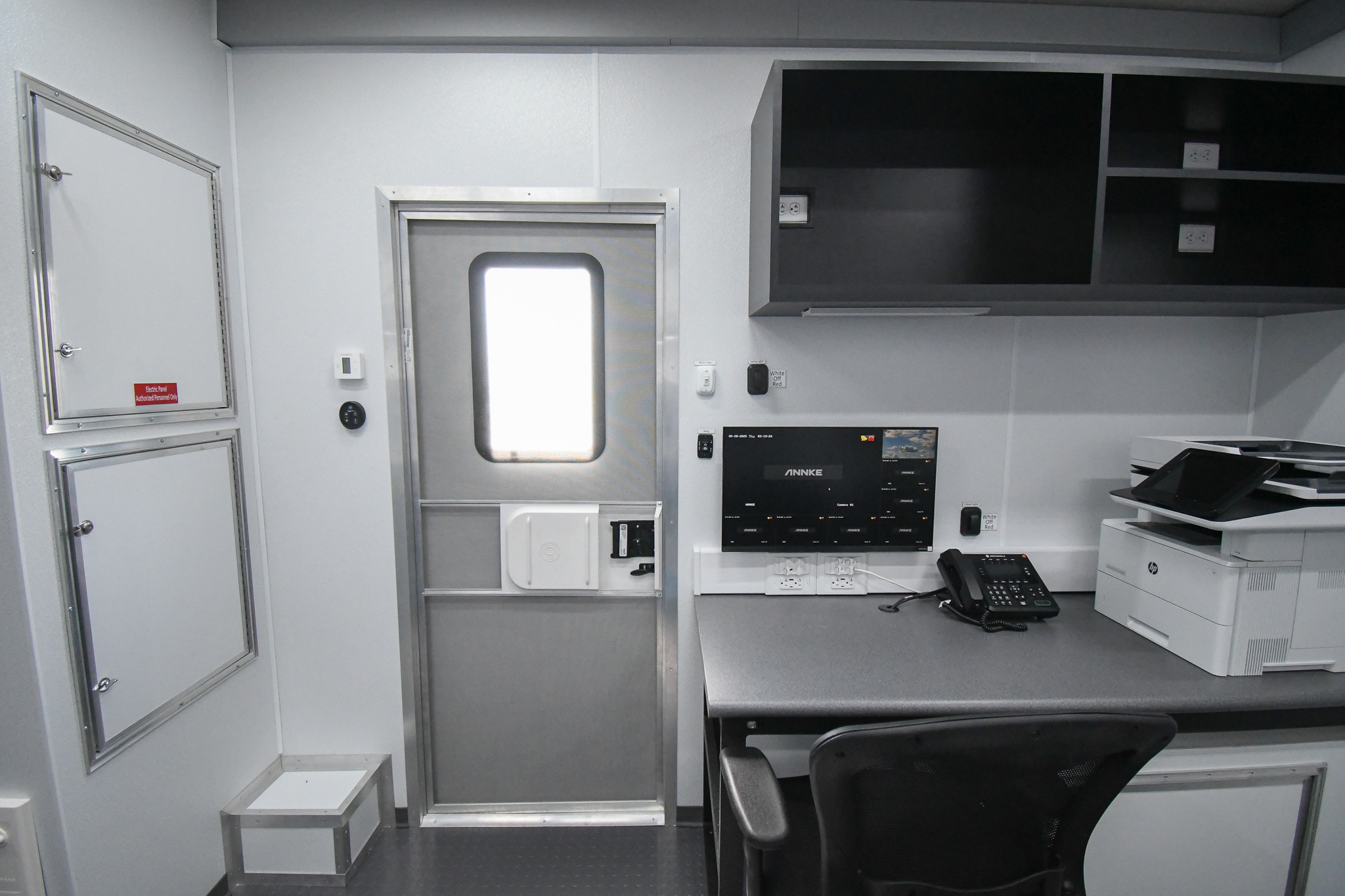

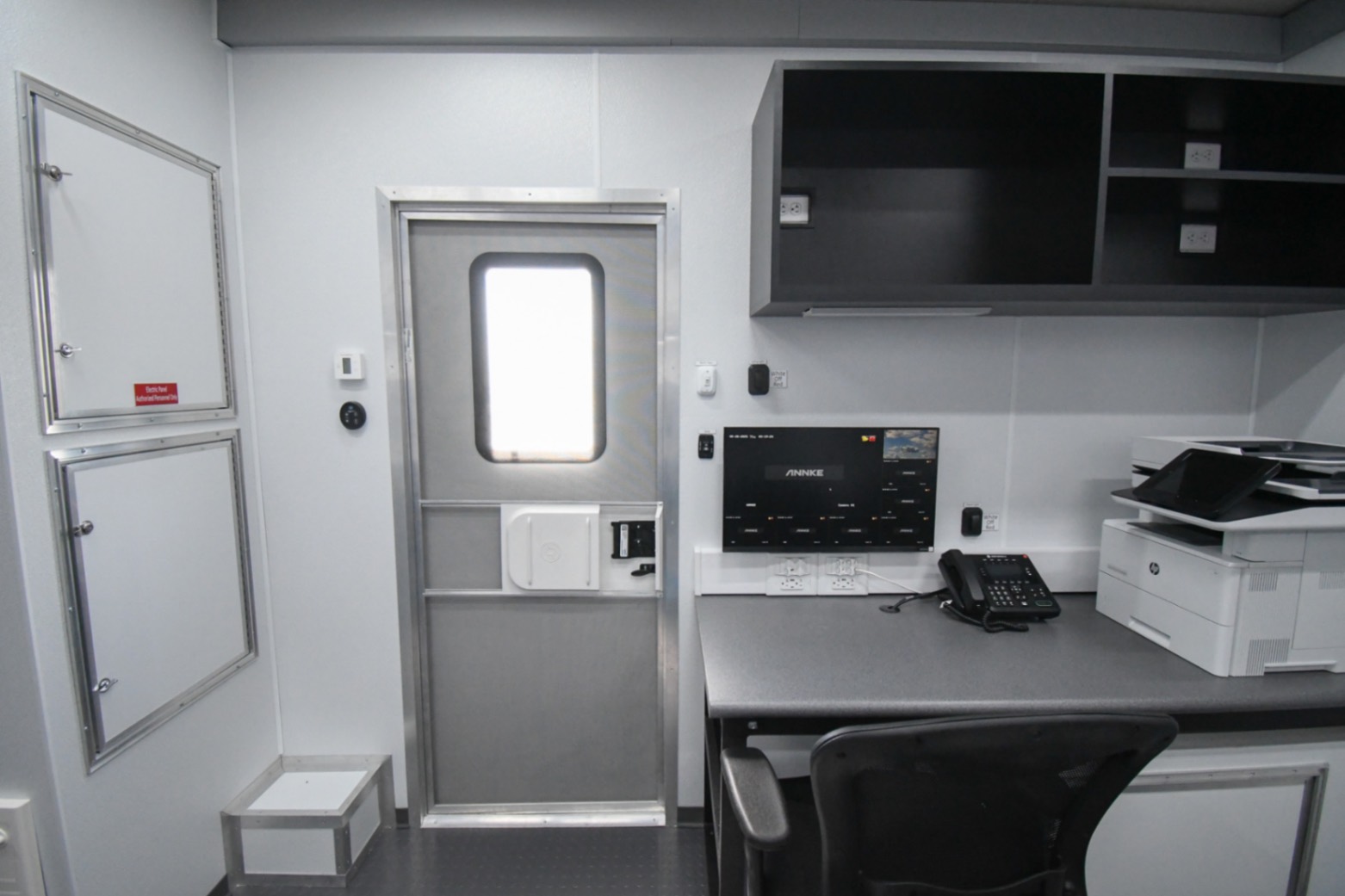

The fifth workstation with overhead shelving and a printer.

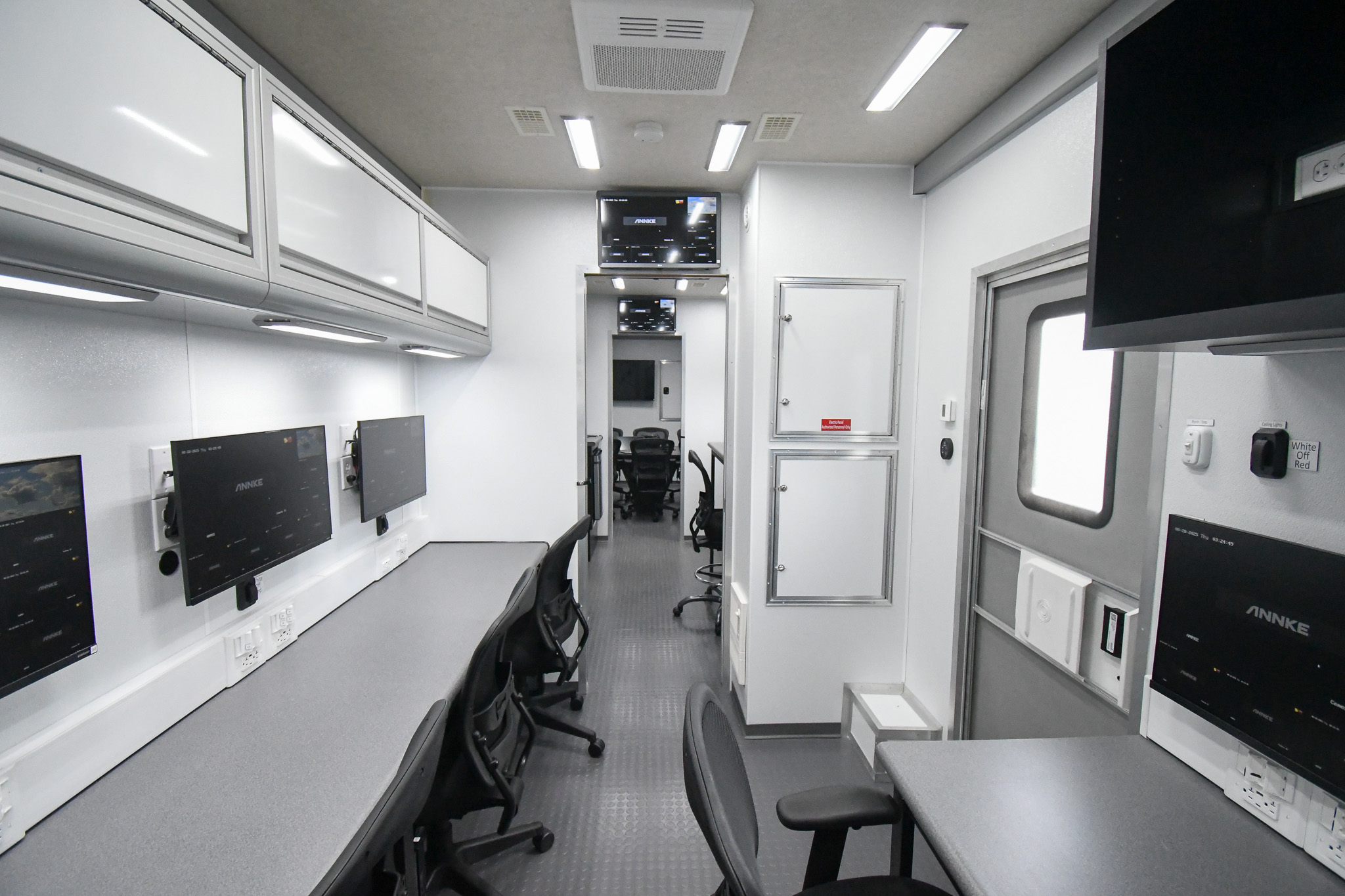

A back-to-front view inside the unit for Sweetwater, FL.
A back-to-front view inside the unit for Sweetwater, Fl.

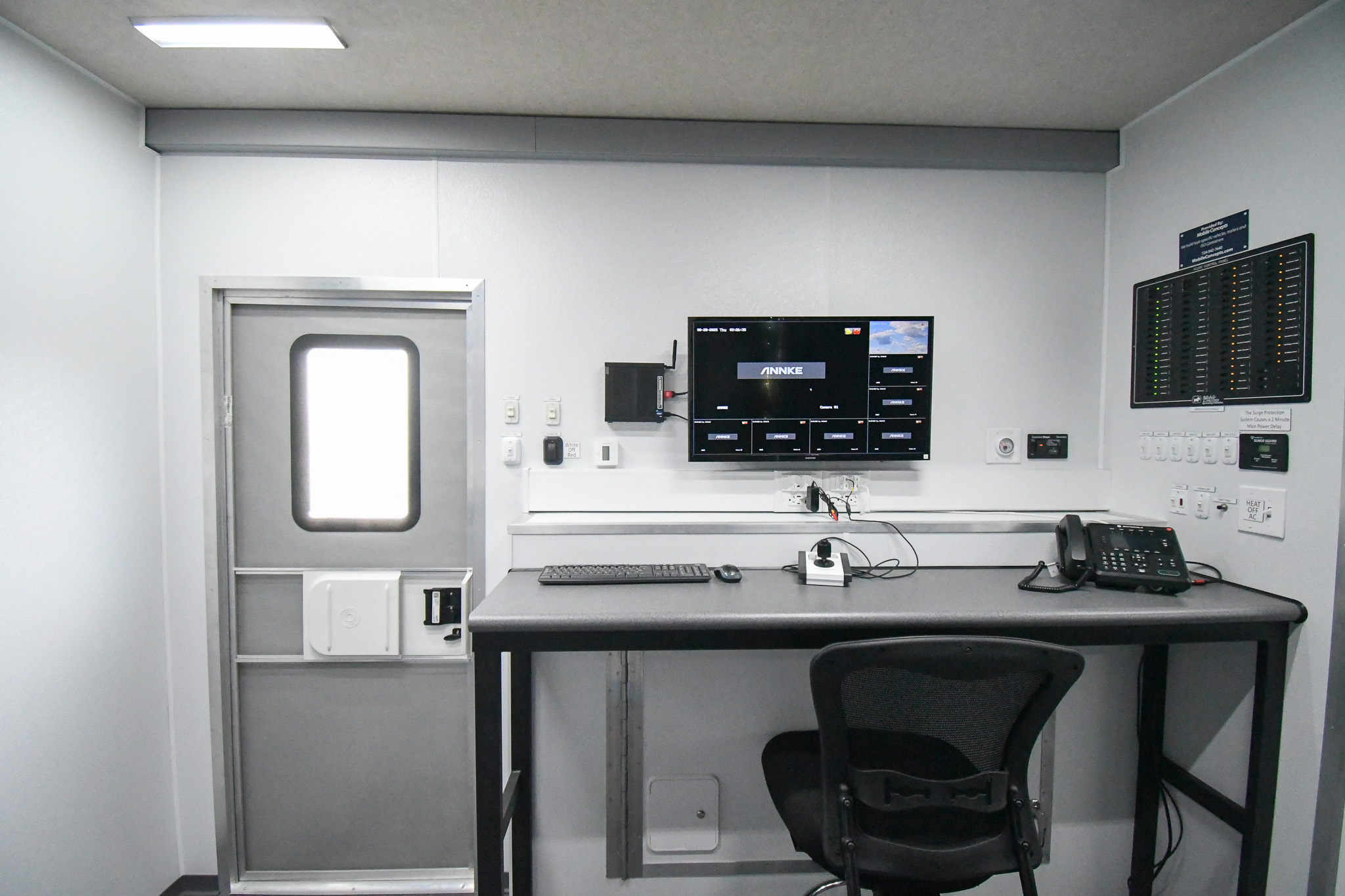

The sixth workstation inside the unit for Sweetwater, FL.

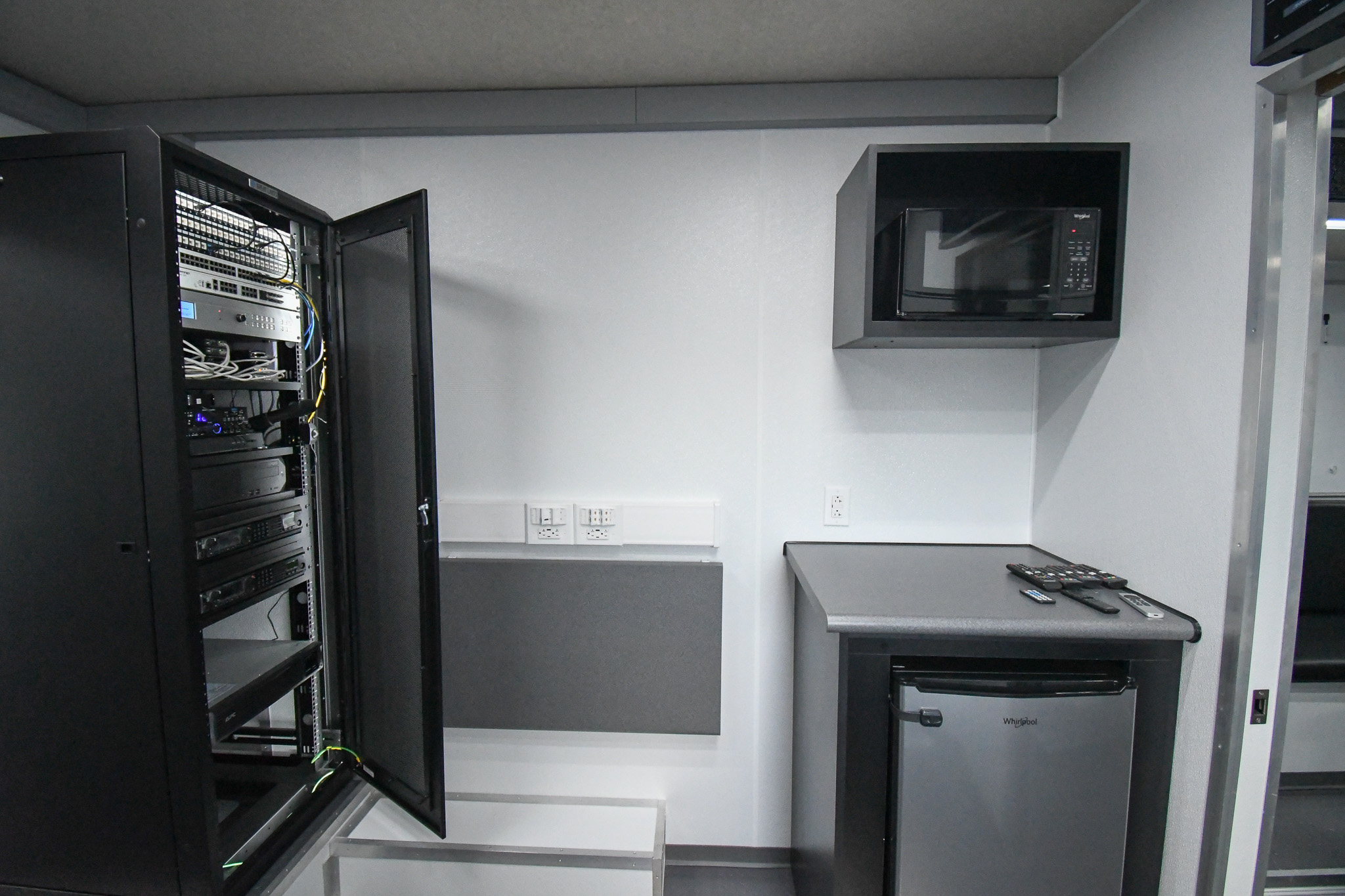

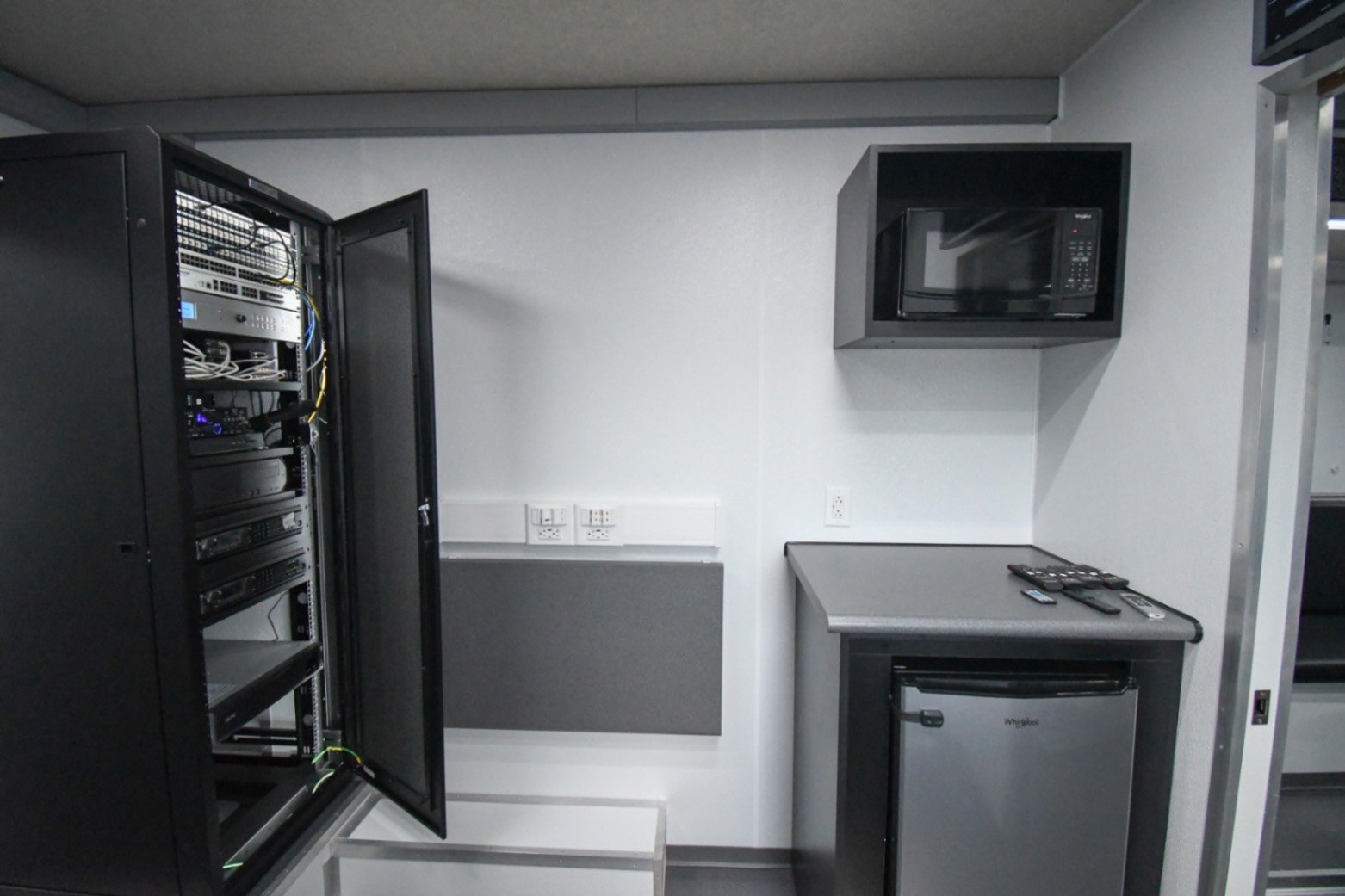

The kitchenette and server rack inside the unit for Sweetwater, FL.

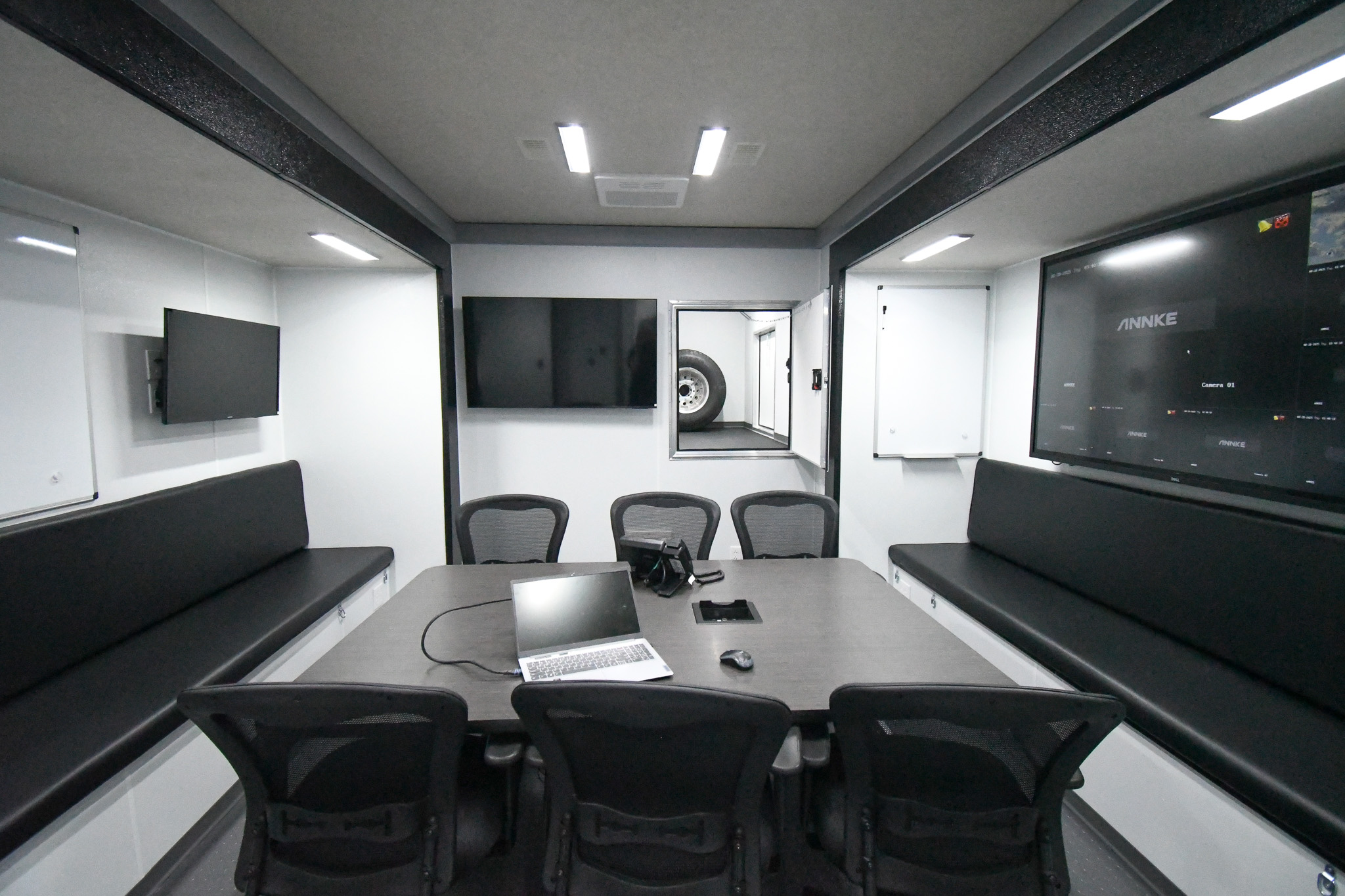

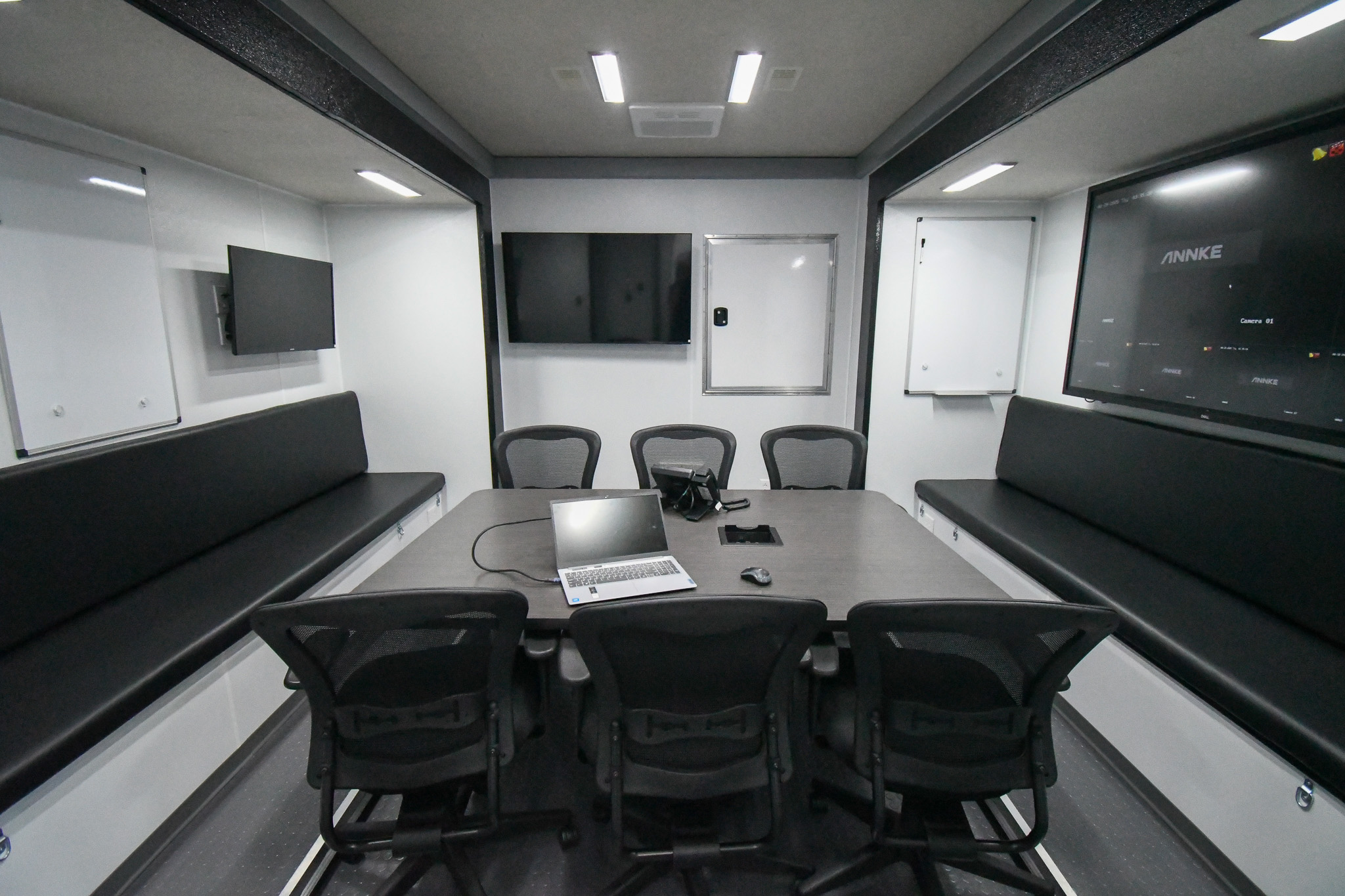

The conference area inside the unit for Sweetwater, FL. The door to the fifth wheel storage area is open.

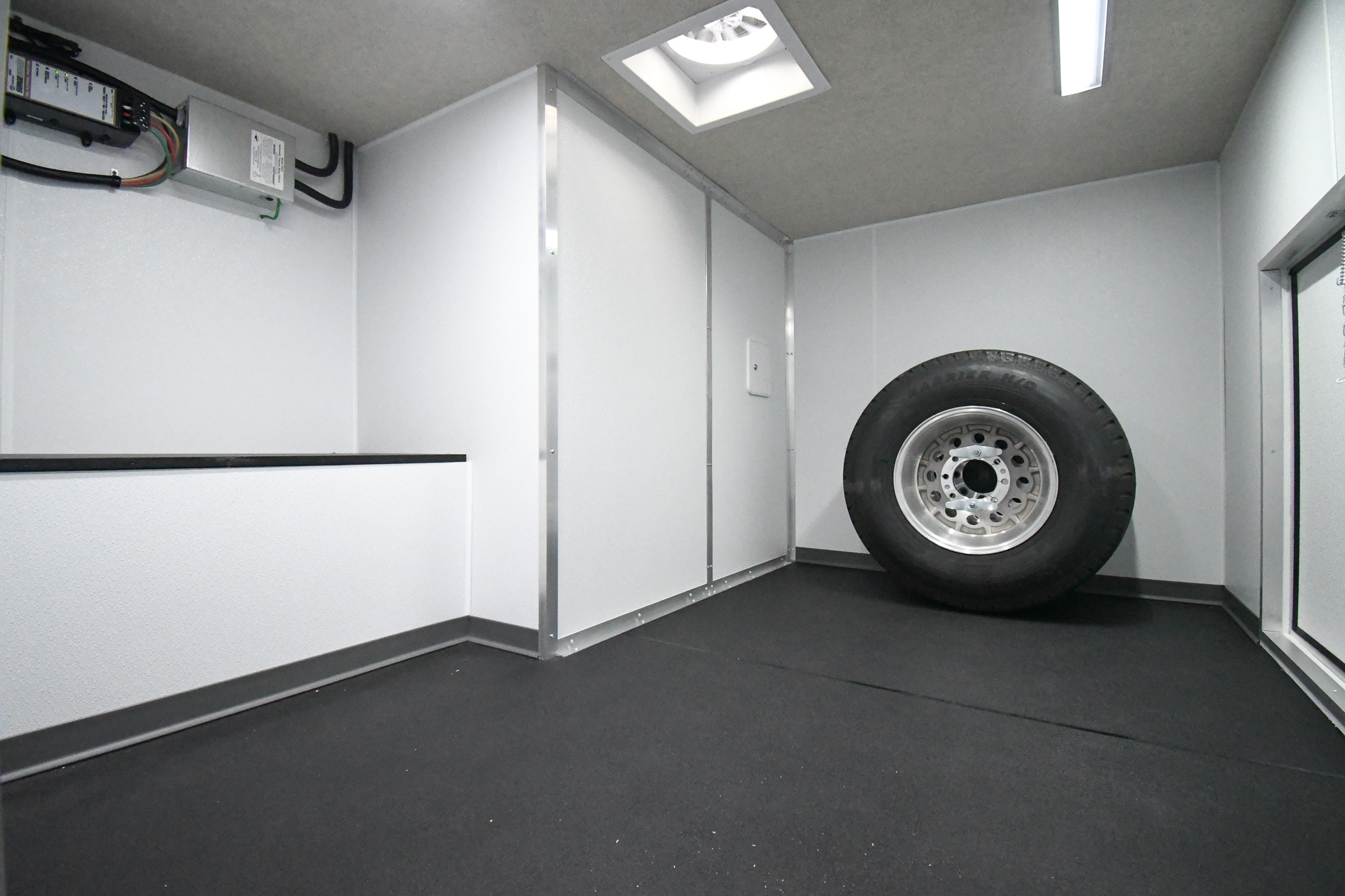

A view of the fifth wheel storage area inside the unit for Sweetwater, FL.

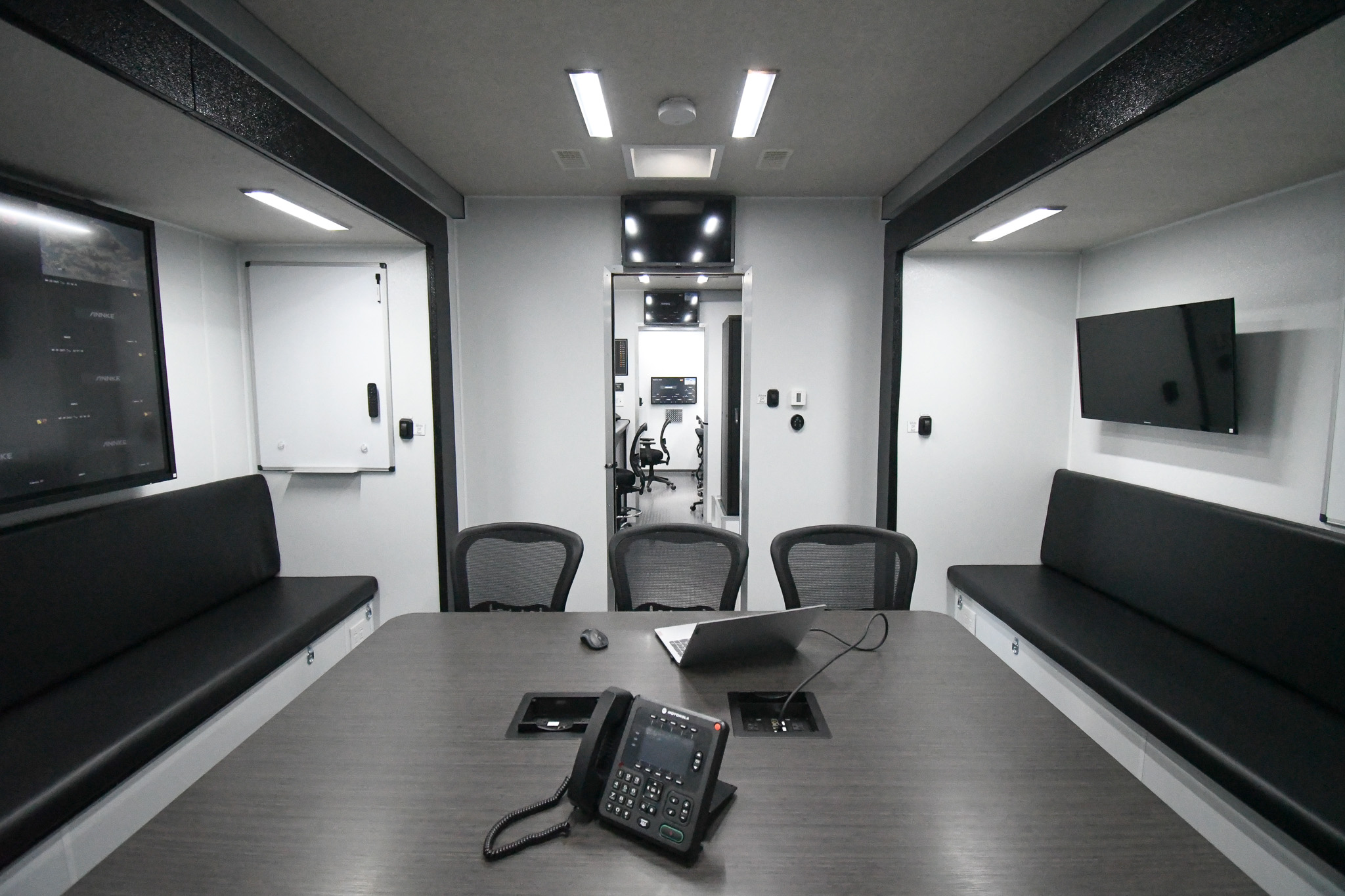

The conference area inside the unit for Sweetwater, FL. The door to the fifth wheel storage area is closed.

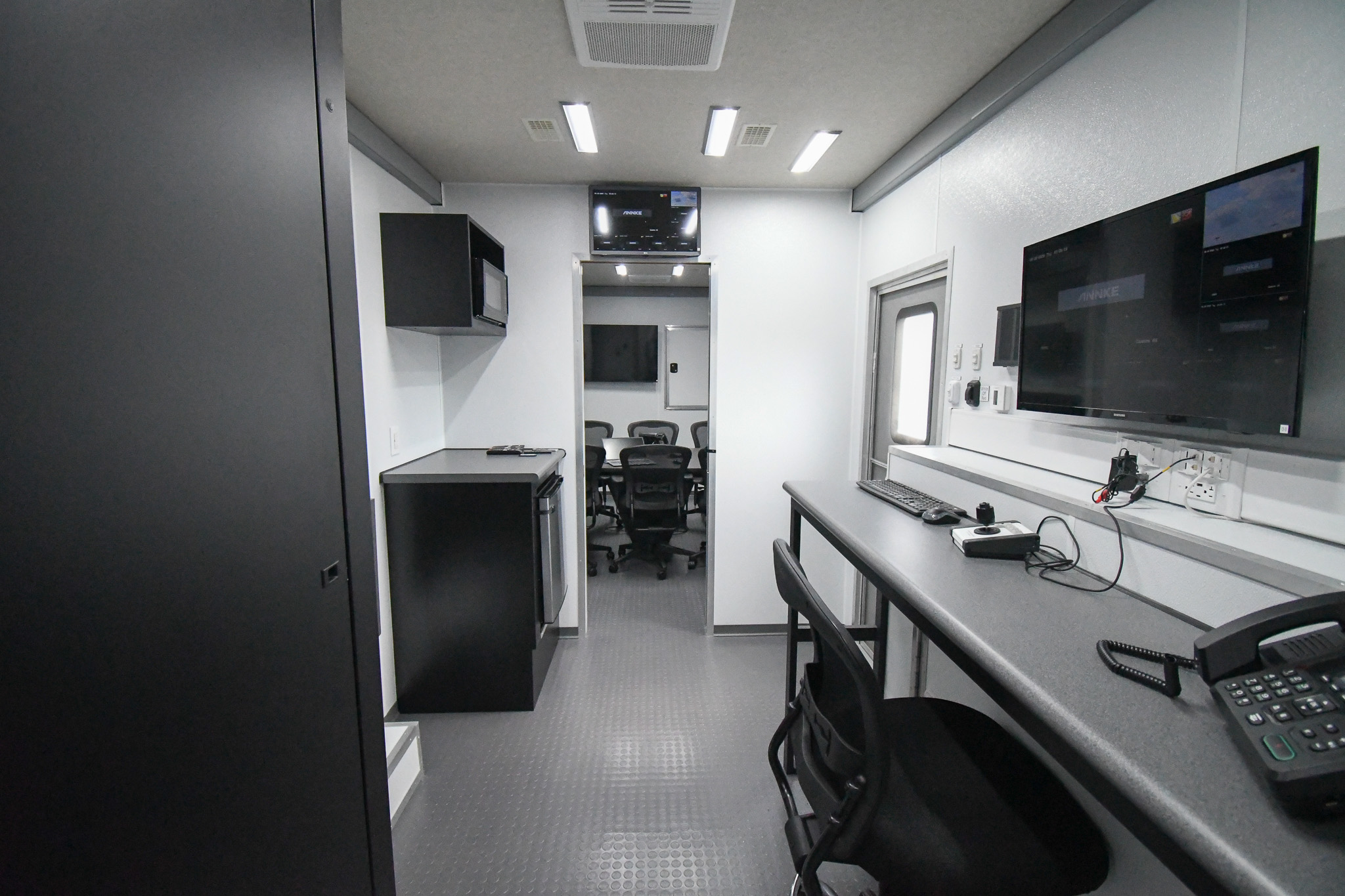

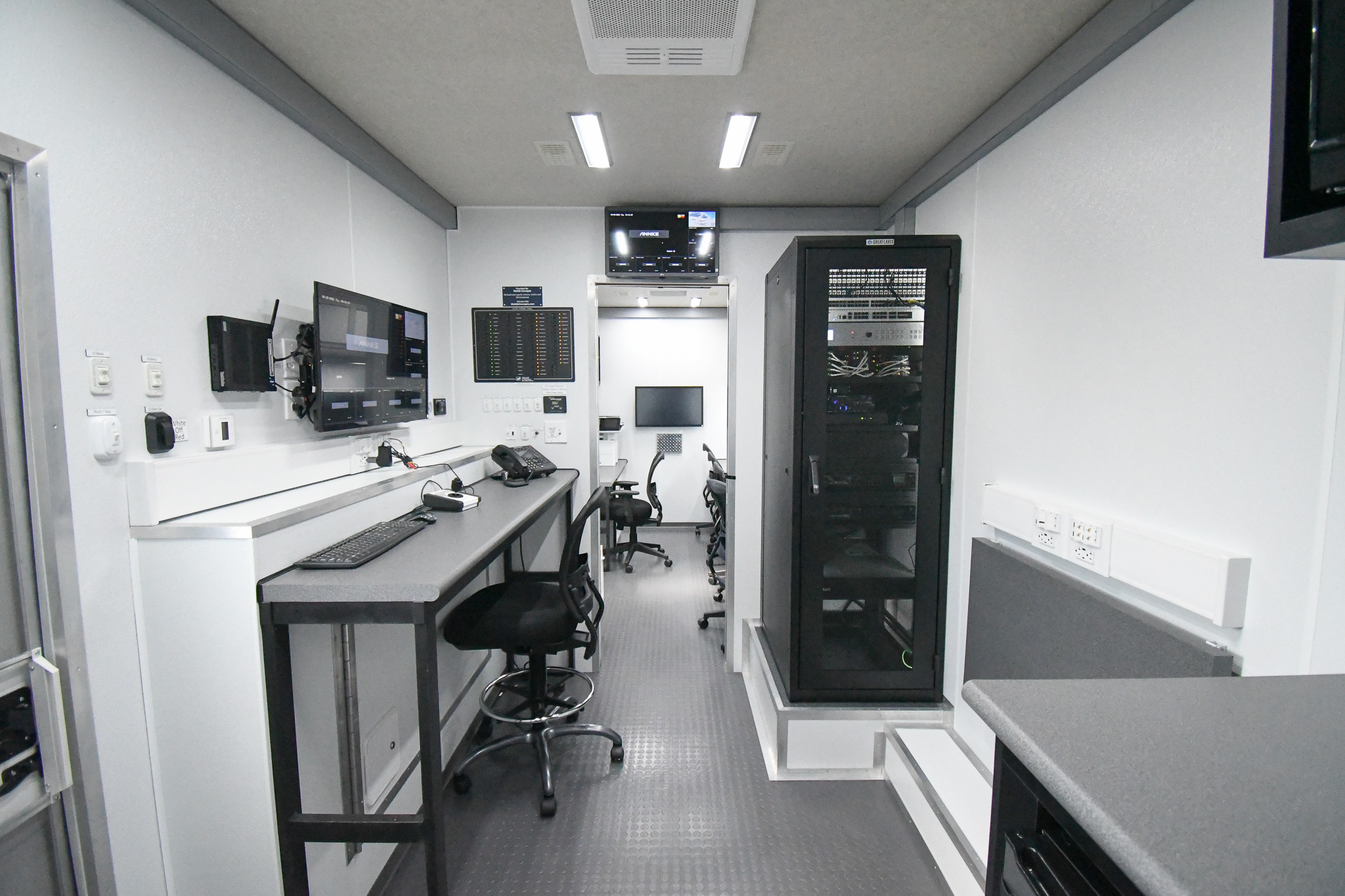

A front-to-back view inside the unit for Sweetwater, FL.
A front-to-back view inside the unit for Sweetwater, FL.
A front-to-back view inside the unit for Sweetwater, FL.
An alternate side view of the unit for Sweetwater, FL.
An exterior view of the unit for Sweetwater, FL.

Command 42-5WS FW 2SO

This Command 42-5WS FW 2SO was custom-built for the Sweetwater Police Department in Sweetwater, FL, to serve as a command center during emergencies. Their unit features a total of eleven workstations, one HP LaserJet printer, sixteen TVs and monitors, one 37u equipment rack with three shelves, one wormhole, two 48-port patch panels, and two Motorola radio consolettes, one Starlink antenna, two Vanco transmitters, a conference room with ample seating, a kitchenette, fifth-wheel storage space, and two electric slideouts. For added security and visibility, the trailer was equipped with one Night Scan vertical light tower with a Wonwoo camera, a 3-camera Furrion wireless observation system, twelve LED FRC 12v scene lights, and eight Whelen red/blue emergency lights.

Contact us today to learn more about the benefits of our custom-built Mobile Command Trailers!

Categories: ,

Description

Specs

Exterior

  • 42′ fifth wheel trailer with Kingpin hitch, two electric slideouts, and tow
  • Stability & Support: Electric leveling jacks with auxiliary battery-powered electric landing gear
  • Safety & Visibility:
    • Three awnings (one 8×21′ electric, and two awning toppers)
    • Twelve LED FRC 12v scene lights
    • Eight Whelen split red/blue emergency lights
    • LED step, porch, and baggage compartment lights
  • Power outlets:
    • Five exterior 110v duplex GFI protected receptacles
    • Four exterior CAT6 ports and two HDMI ports
  • Additional features:
    • Three spare 16″ wheels/tires
    • One 48×36″ roll-up door
    • A back-up alarm
  • Graphics: Custom graphics

Electronics & Power

  • Generator: Onan 12kW generator with remote start and ATS
  • Wiring: Pre-wired for 110v duplex, CAT6 networking, and HDMI outlets
  • Power management:
    • 50 gallon fuel tank with fuel gauge
    • 25′ long, 50-amp shoreline
    • One Paneltronics electric panel with two 100-amp converters, and three batteries
  • Climate control:
    • Three heat pumps with single zone thermostats
    • Two 1,000w wall heaters
    • Two roof vents
  • Surveillance & Connectivity:
    • One Furrion S Wireless vehicle observation system with a 7″ monitor and three cameras
    • One Wonwoo camera with 20x optical zoom, IP, and IR illumination attached to a Night Scan vertical light tower
    • One high-performance Starlink satellite and antenna
    • Two Vanco transmitters
    • One Fortinet 43IF wireless access point

Interior

  • Workstations: Five workstations with task chairs, and one stand-up counter workspace with a bar height stool
    • Each workstation (except the stand-up counter workspace) features three 110v duplex, and five CAT6 networking outlets
    • The stand-up counter workspace features an HDMI outlet
  • Conference area: A conference room with seating for six
  • Equipment rack: A 37u equipment rack with three shelves, two 16-outlet electrical strips, LED lighting, a dedicated 20-amp receptacle, two 48-port patch panels, a 16×16 matrix switch, and a wormhole for additional wiring
  • Appliances:
    • One HP LaserJet printer
    • Two Motorola radio consolettes connected to three desk sets
    • Samsung televisions
      • One exterior 50″ Smart LED TV connected to a PA amp and speakers
      • One 50″ TV
      • Three 32″ TVs
      • One portable 32″ TV
      • Four 24″ TVs
    • Five 27″ monitors
    • One Dell 55″ 4K Interactive Touch Monitor
    • One Samsung 32″ all-in-one touch solution
    • Two Apple TV 4K WiFi with 64GB storage
    • One kitchenette with a refrigerator, microwave, and Keurig
  • Storage & Surfaces:
    • Fifth wheel storage space
    • Hinged bench seating with storage space underneath
    • Two 36×36″ access doors for fifth wheel storage area
    • Overhead ACE aluminum cabinets
  • Additional features: HDMI extender cables
