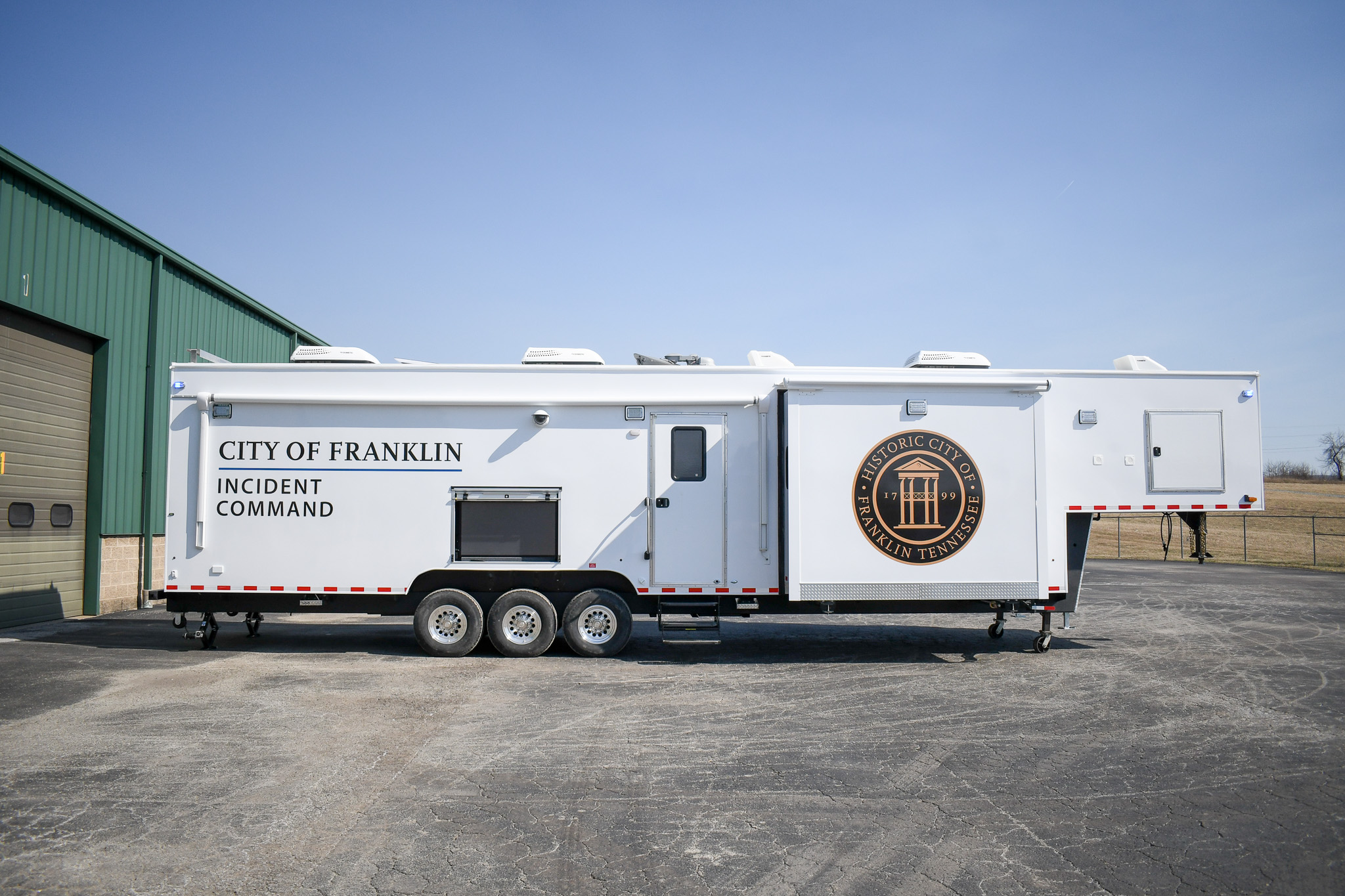

An exterior view of the unit for Franklin, TN.
An exterior view of the unit for Franklin, TN. The slide outs are out.
Three of seven workstations inside the unit for Franklin, TN.
The electronics rack and third workstation inside the unit for Franklin, TN.
An interior view of the unit for Franklin, TN. The door to the electronics rack is open.
A back-to-front view from the first section inside the unit for Franklin, TN.
A back-to-front view from the second section inside the unit for Franklin, TN.
Three workstations inside the unit for Franklin, TN.
A standing workstation inside the unit for Franklin, TN.
The conference room inside the unit for Franklin, TN.
The fifth wheel storage area inside the unit for Franklin, TN. The door is open.
A view of the fifth wheel storage area inside the unit for Franklin, TN.
A view of the fifth wheel storage area inside the unit for Franklin, TN.
A front-to-back view inside the unit for Franklinville, TN.
A side view of the unit for Franklin, TN. The slide outs are out.

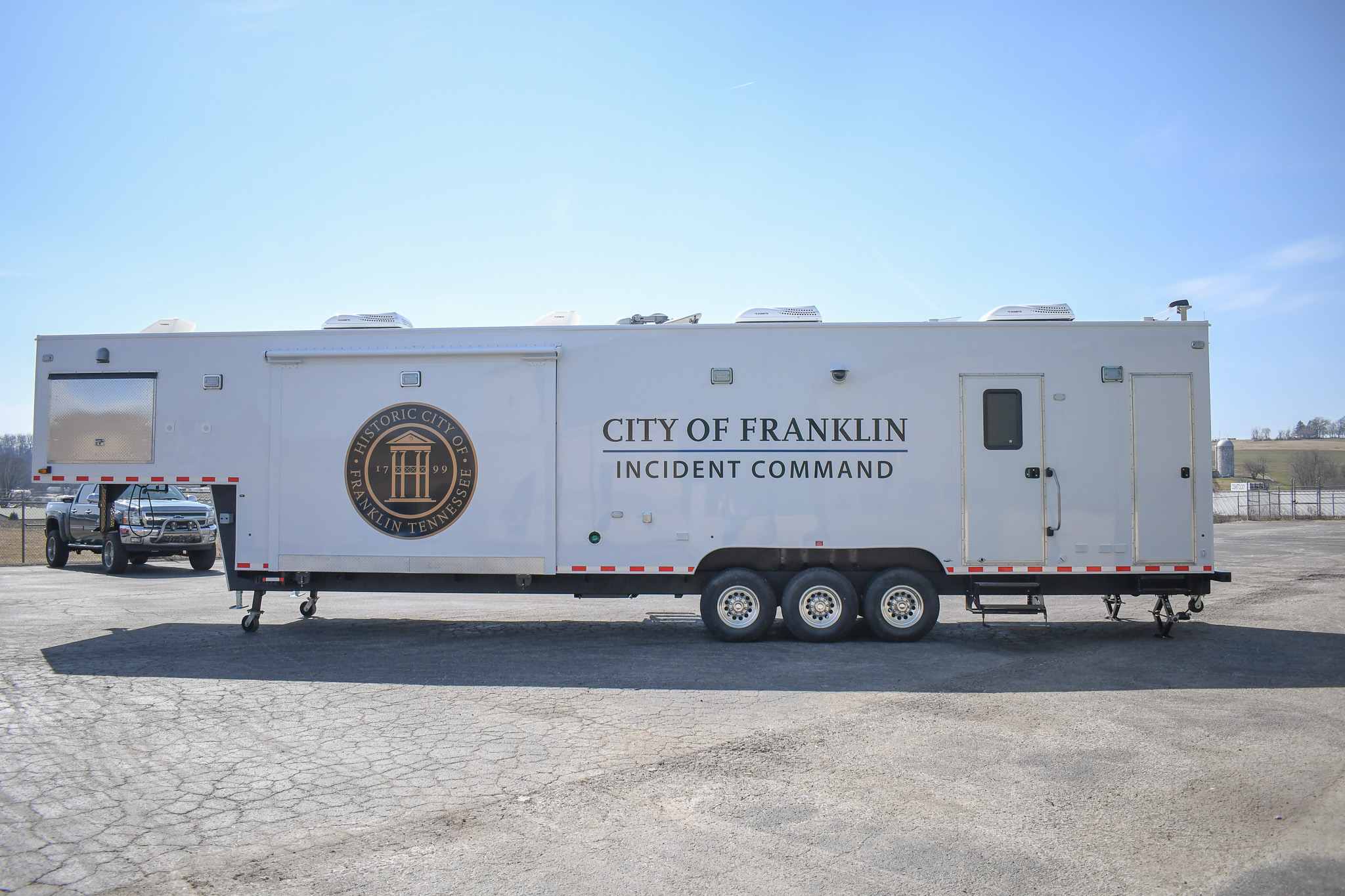

A side view of the unit for Franklin, TN.
An exterior view of the unit for Franklin, TN.

Command 42-7WS FW 2SO

This Command 42-7WS FW 2SO was custom-built for the City of Franklin, TN, to serve as a mobile Incident Command Center for their emergency response personnel. Designed to prioritize operational efficiency and connectivity during a crisis, the unit is divided into four segments: two dedicated work areas consisting of seven workstations, one spacious conference room, and one fifth wheel storage area.

In order to ensure connectivity, coordination, and visibility during emergencies, their trailer has been equipped with thirteen 24″ monitors, two 65″ TVs, a Cisco meeting bar, one 50″ touchscreen LED TV, one Vanco transmitter and receiver, a 44u electronics rack with two 16-outlet electrical strips, two 48-port patch panels, three radios with antenna brackets, a set of Cradlepoint and Starlink WiFi routers and antennas, one DirectTV satellite, one wireless access point, a wireless three-camera vehicle observation system, and four exterior dome cameras. Additionally, their command center features a kitchenette outfitted with a refrigerator, microwave, and Keurig for convenience.

Categories: ,

Description

Specs

Exterior

  • 42′ fifth wheel trailer with two slide outs and hitch
  • Stability & Support: Electric leveling jacks with auxiliary battery and electric landing gear
  • Safety & Visibility:
    • One electric awning and two awning toppers
    • Twelve LED FRC 12v scene lights
    • Eight Whelen split red/blue emergency lights
    • One back-up alarm
  • Satellites & Surveillance:
    • One Furrion Vision S Wireless Observation System with three cameras connected to a 7″ monitor
    • One Winegard DirectTV SWM slimline automatic multi satellite and TV antenna and receiver
    • Four Axis exterior dome cameras connected to a 48-port POE switch
  • Power outlets: Four exterior 110v duplex GFI protected receptacles
  • Additional features:
    • One 48×36″ roll-up door
    • One exterior access door to the electronics rack
  • Graphics: Custom graphics

Electronics & Power

  • Generator: Onan 12kW generator with remote start and ATS
  • Power management:
    • 50 gallon fuel tank with fuel gauge
    • A 50-amp, 25′ removable shoreline
    • One Paneltronics electric panel with 100-amp converters and three batteries
    • Two APX battery chargers
  • Wiring: Pre-wired for 110v, 12v, HDMI, CAT6, and duplex outlets
  • Connectivity:
    • One Vanco transmitter and receiver
    • One Cradlepoint WiFi router and antenna
    • One Starlink router and antenna
    • One wireless access point
  • Climate control:
    • Three low profile heat pumps with single-zone thermostats
    • Two 1,000w wall heaters

Interior

  • Workstations: Six workstations with task chairs and one standing workstation
  • Conference room: With a conference table, six task chairs, and hinged, cushioned bench seating
    • The conference table features four 110v duplex, four CAT6, and two HDMI outlets above; two 110v duplex outlets and one 12v block underneath
  • Electronics rack: One 44u electronics rack with three shelves, two 16-outlet electrical strips, two 48-port patch panels, one 16×16 matrix switch, one UPS system, and a dedicated 20-amp receptacle
  • Appliances:
    • A galley with a refrigerator, microwave, and Keurig
    • Eleven 24″ ViewSonic monitors
    • Two 65″ TVs in conference room slide outs with a Cisco Meeting Bar
    • One exterior 50″ Touch Smart LED TV with one PA amp and exterior speakers
    • Three radios with antenna brackets
    • One HP Ink Jet all-in-one printer
  • Storage:
    • A fifth wheel storage area with two 36×36″ access doors
    • Overhead ACE aluminum cabinets

Customer-supplied elements

  • Satellites & Surveillance:
    • Four Axis exterior dome cameras
  • Power management:
    • Two APX battery chargers
  • Connectivity:
    • One Cradlepoint WiFi antenna and router
    • One Starlink router and roof antenna
  •  Appliances:
    • One 50″ Touch Smart LED TV
    • Thirteen 24″ ViewSonic monitors
    • Two 65″ TVs
    • Three radios with antenna brackets
    • One UPS (uninterruptible power supply) in the electronics rack
