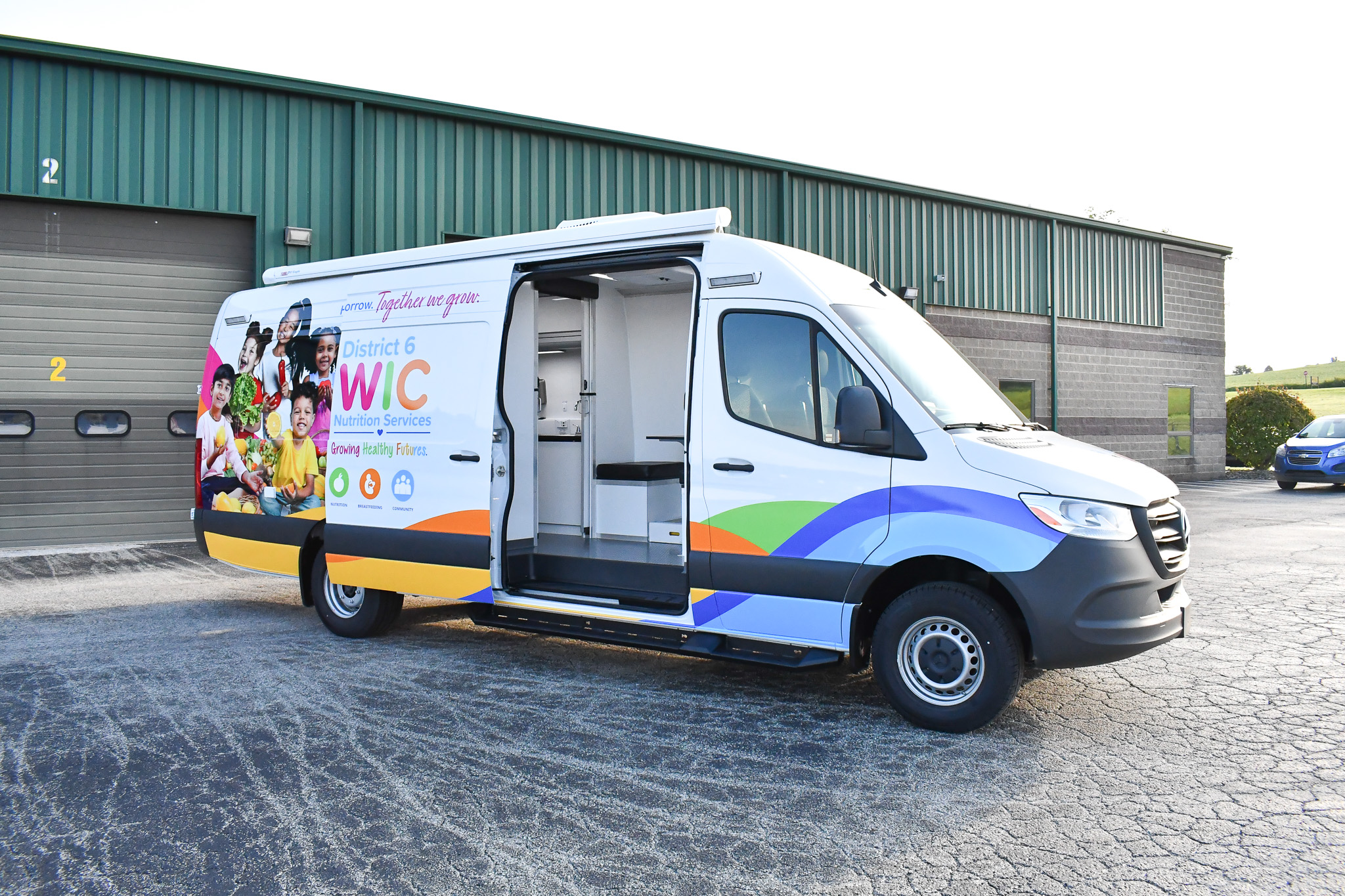

An exterior view of the Medical Exam sprinter made for Augusta, GA. The side door is open.

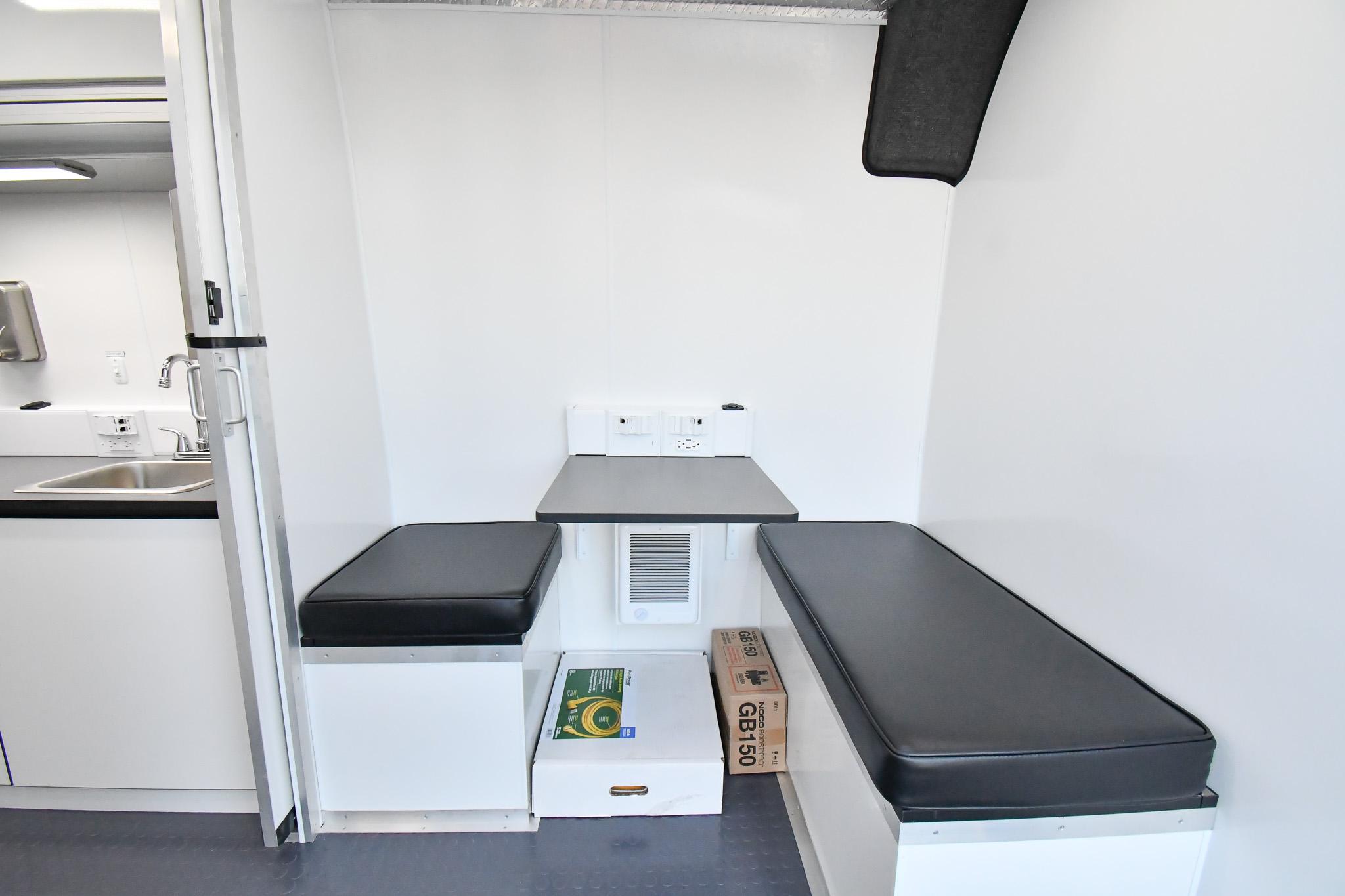

The waiting room inside the Medical Exam sprinter made for Augusta, GA.

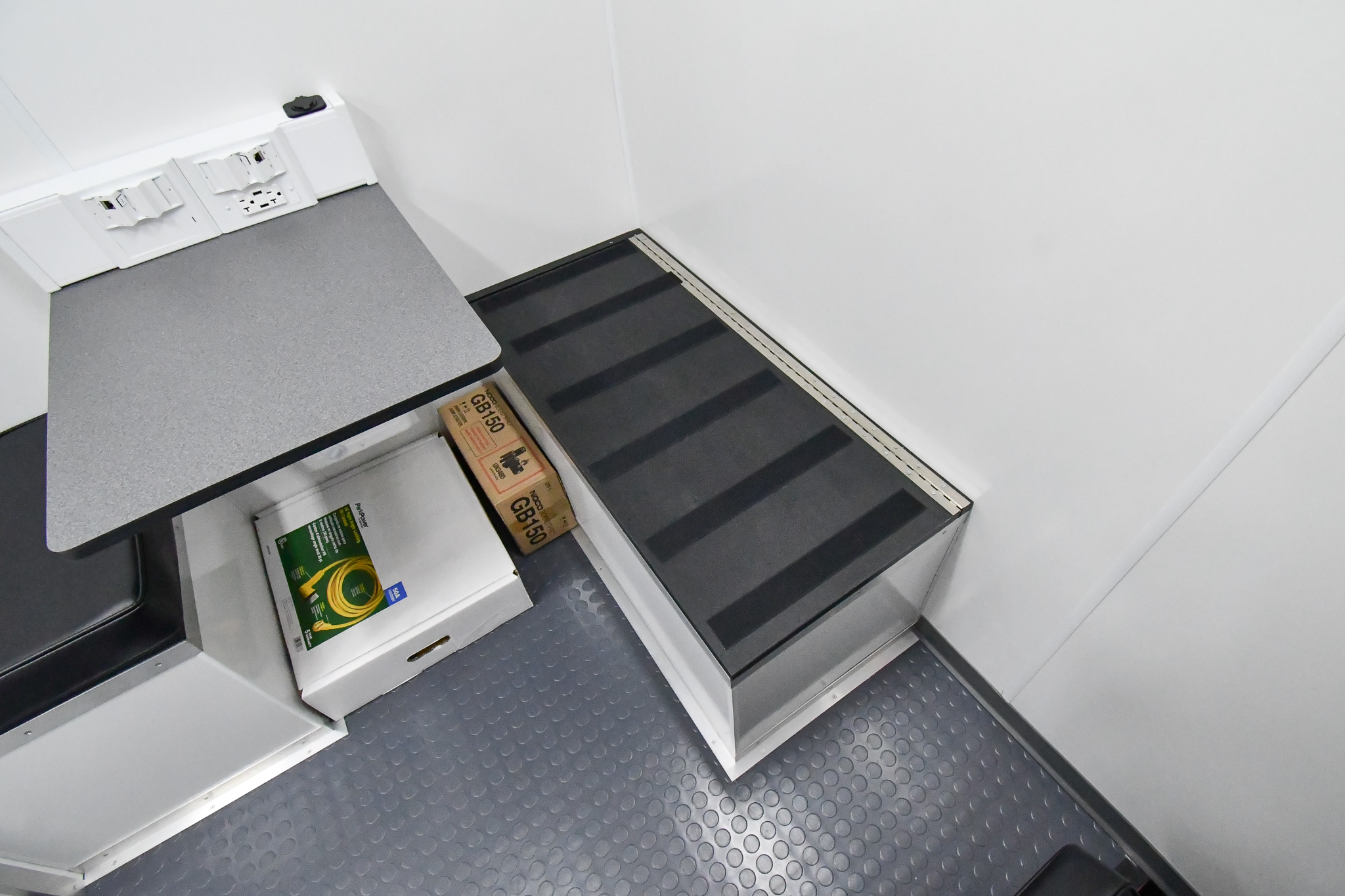

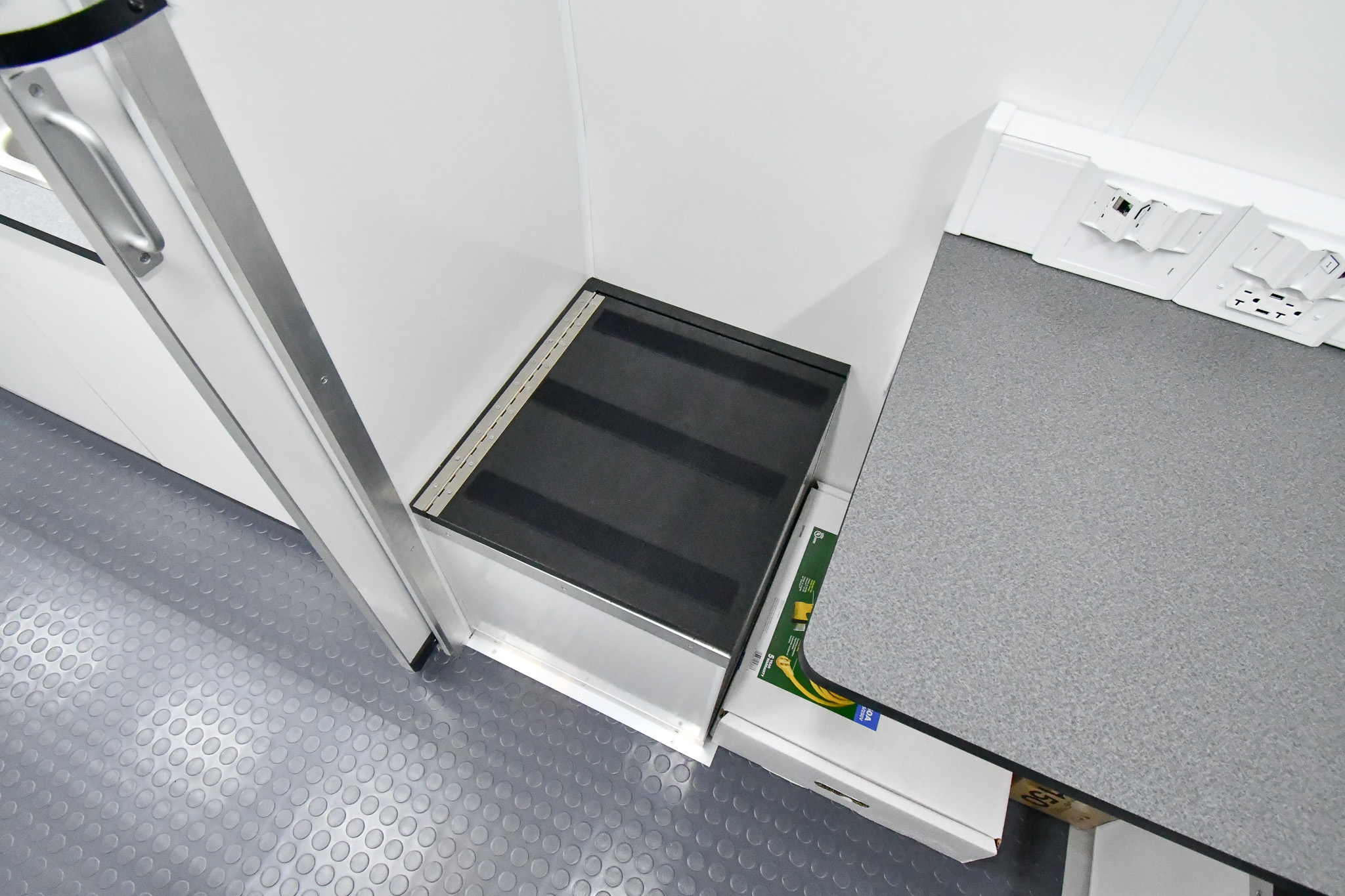

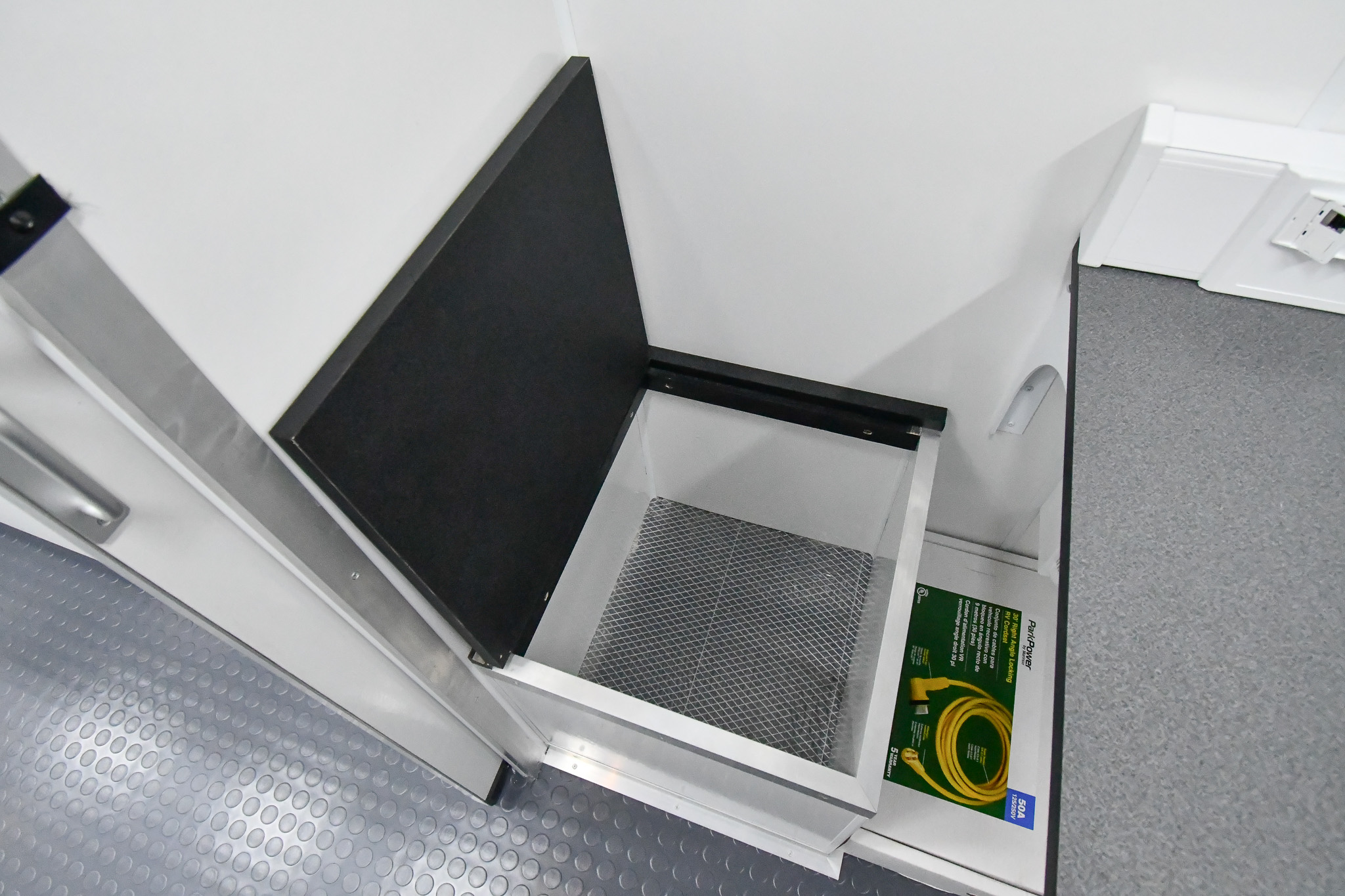

The padded bench storage space inside the Medical Exam sprinter made for Augusta, GA.

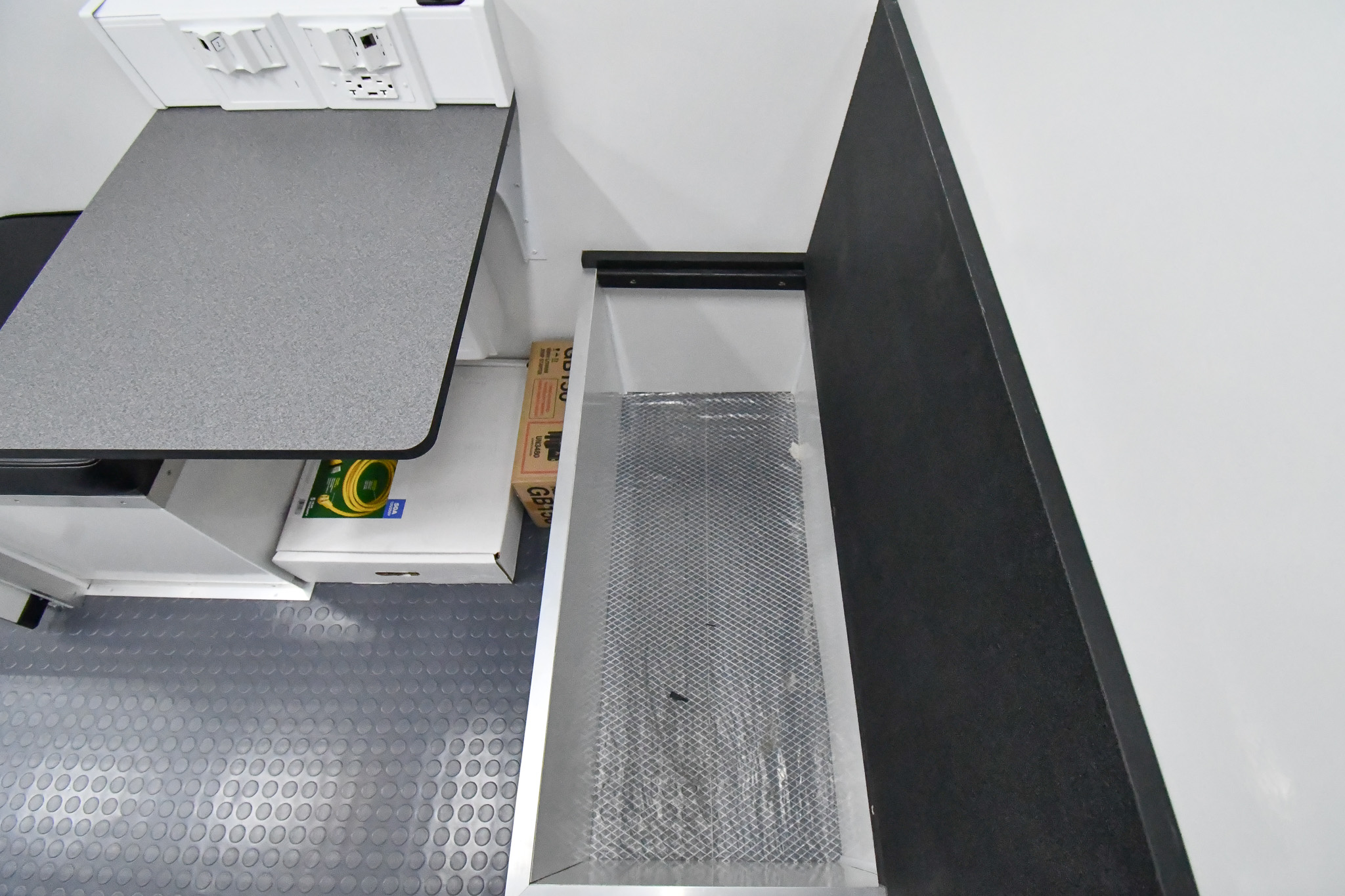

The padded bench storage space inside the Medical Exam sprinter made for Augusta, GA.
The padded bench storage space inside the Medical Exam sprinter made for Augusta, GA.
The padded bench storage space inside the Medical Exam sprinter made for Augusta, GA.

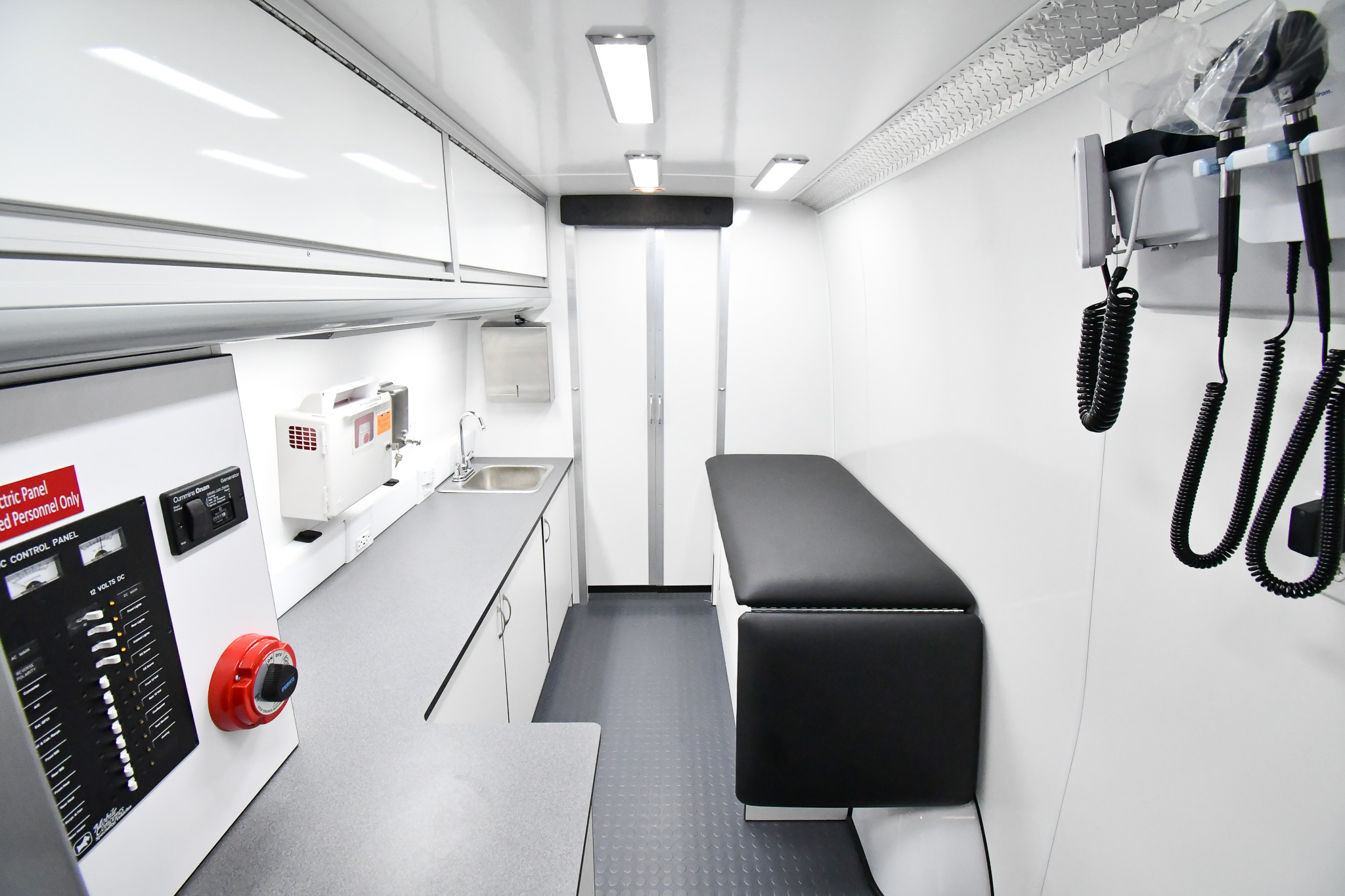

A front-to-back view inside the Medical Exam sprinter made for Augusta, GA.

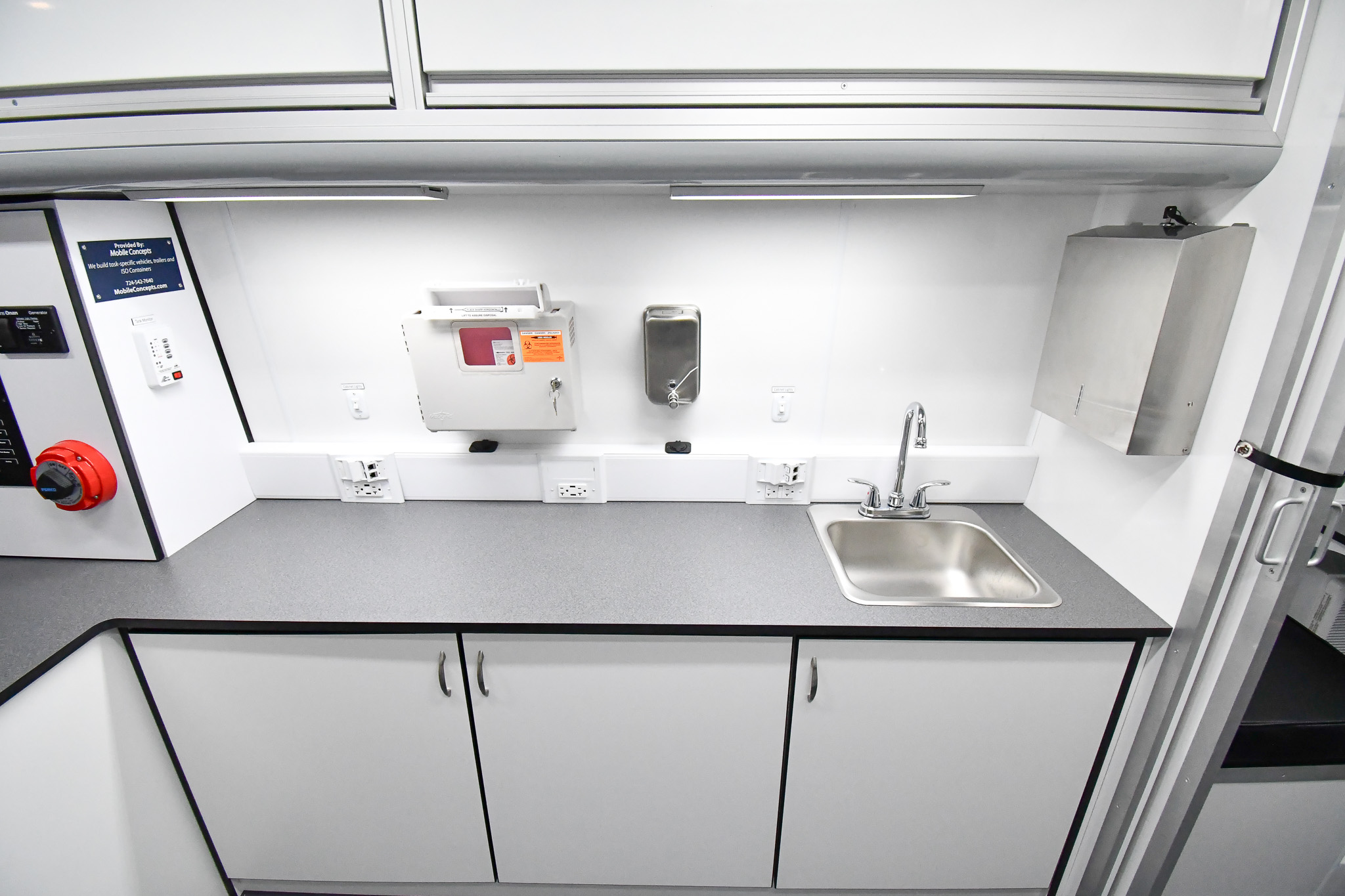

An interior view of the Medical Exam sprinter made for Augusta, GA.

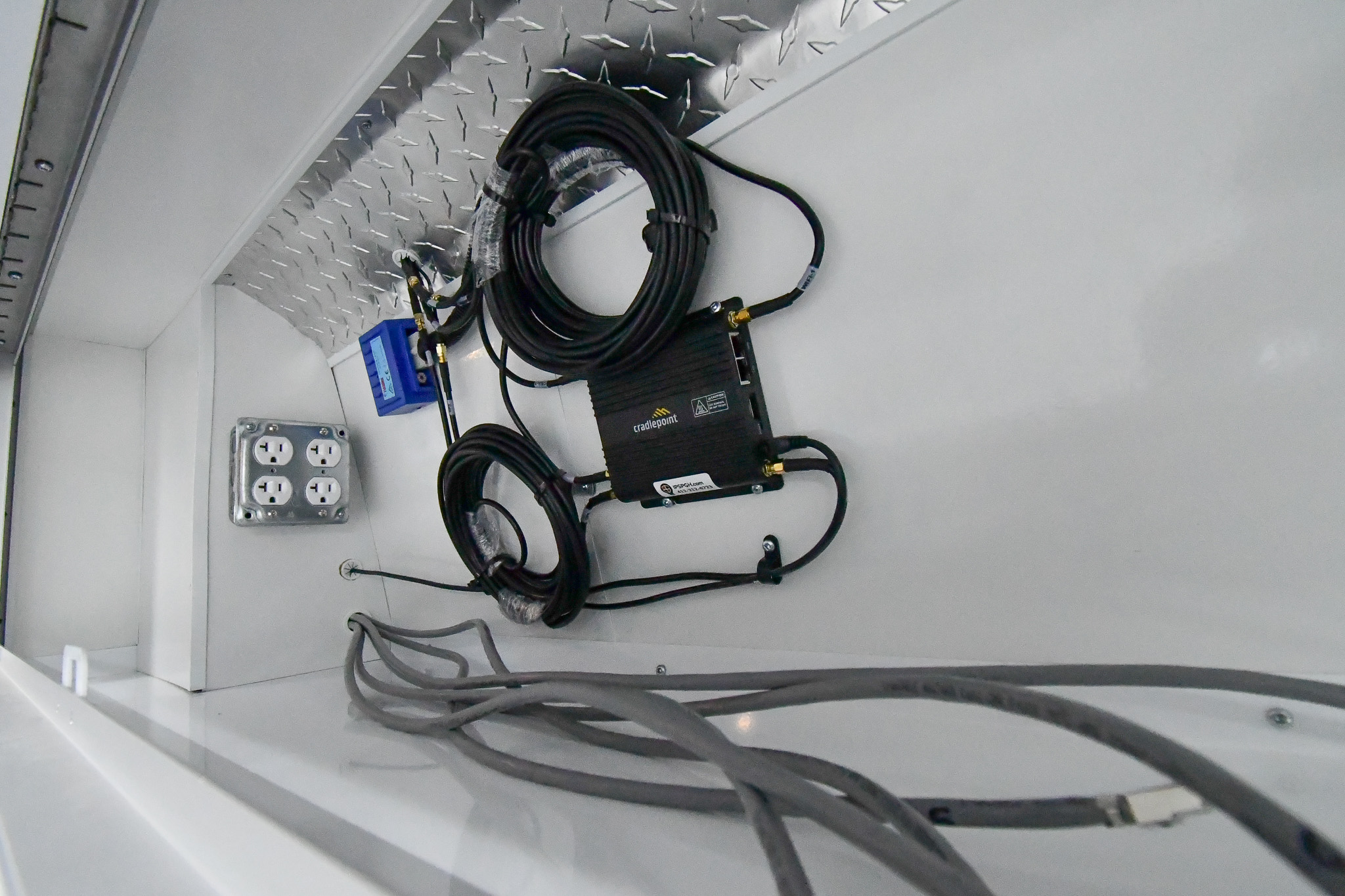

The Cradlepoint WiFi router & antenna inside the Medical Exam sprinter made for Augusta, GA.
An interior view of the Medical Exam sprinter made for Augusta, GA.

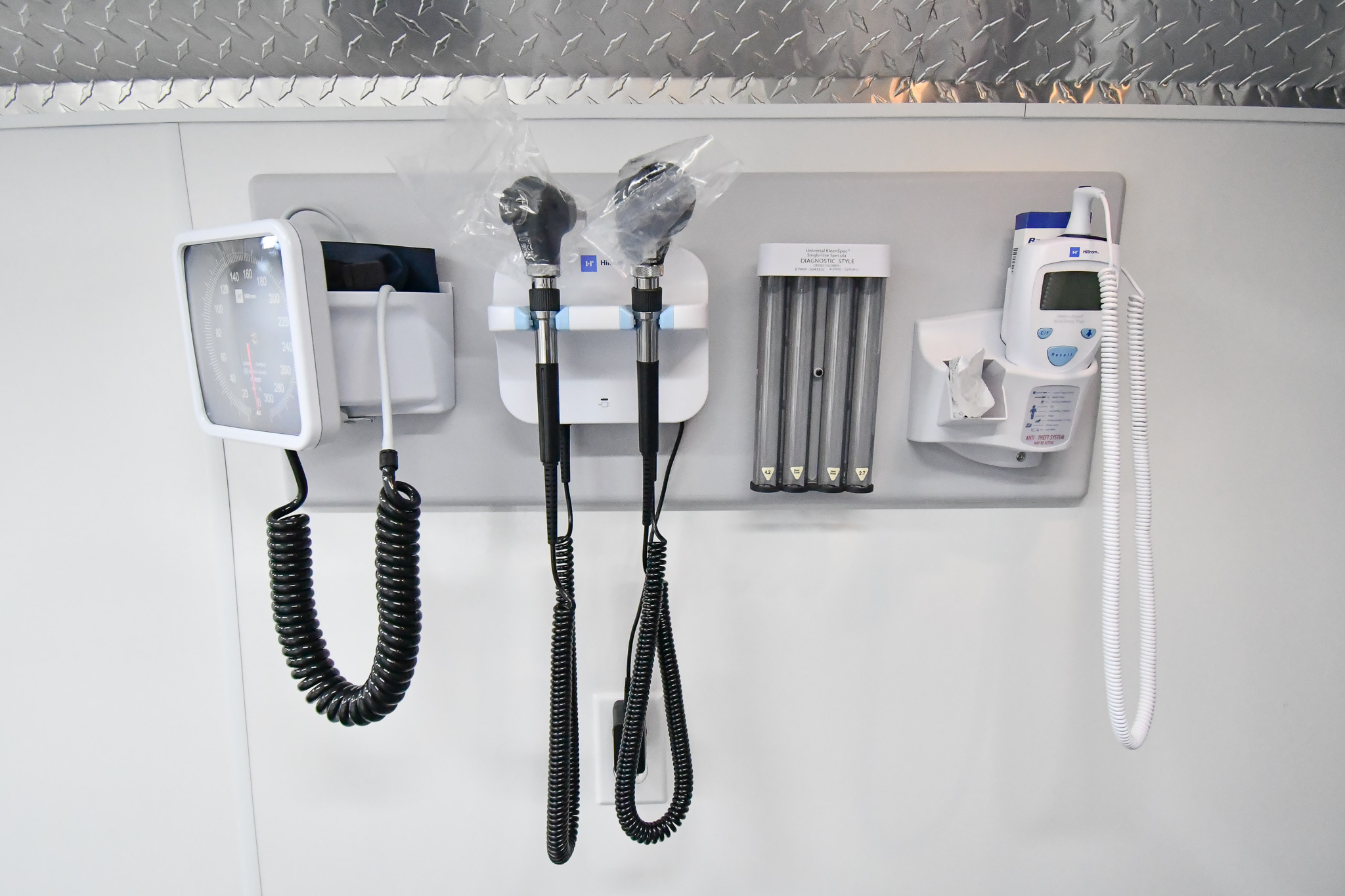

The Welch Allyn Integrated ENT Diagnostics system inside the Medical Exam sprinter made for Augusta, GA.

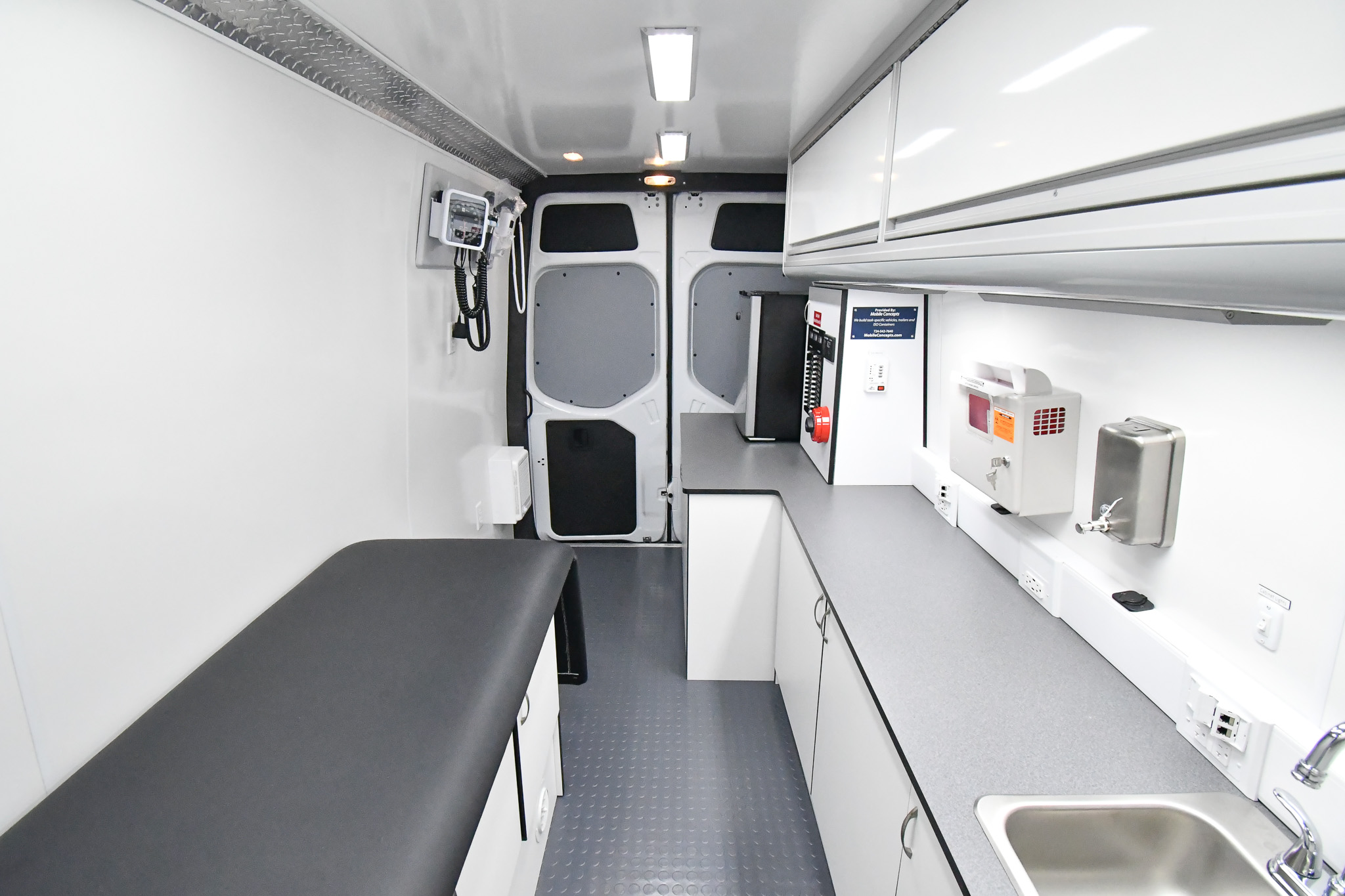

A back-to-front view inside the Medical Exam sprinter made for Augusta, GA. The door to the waiting room is closed.

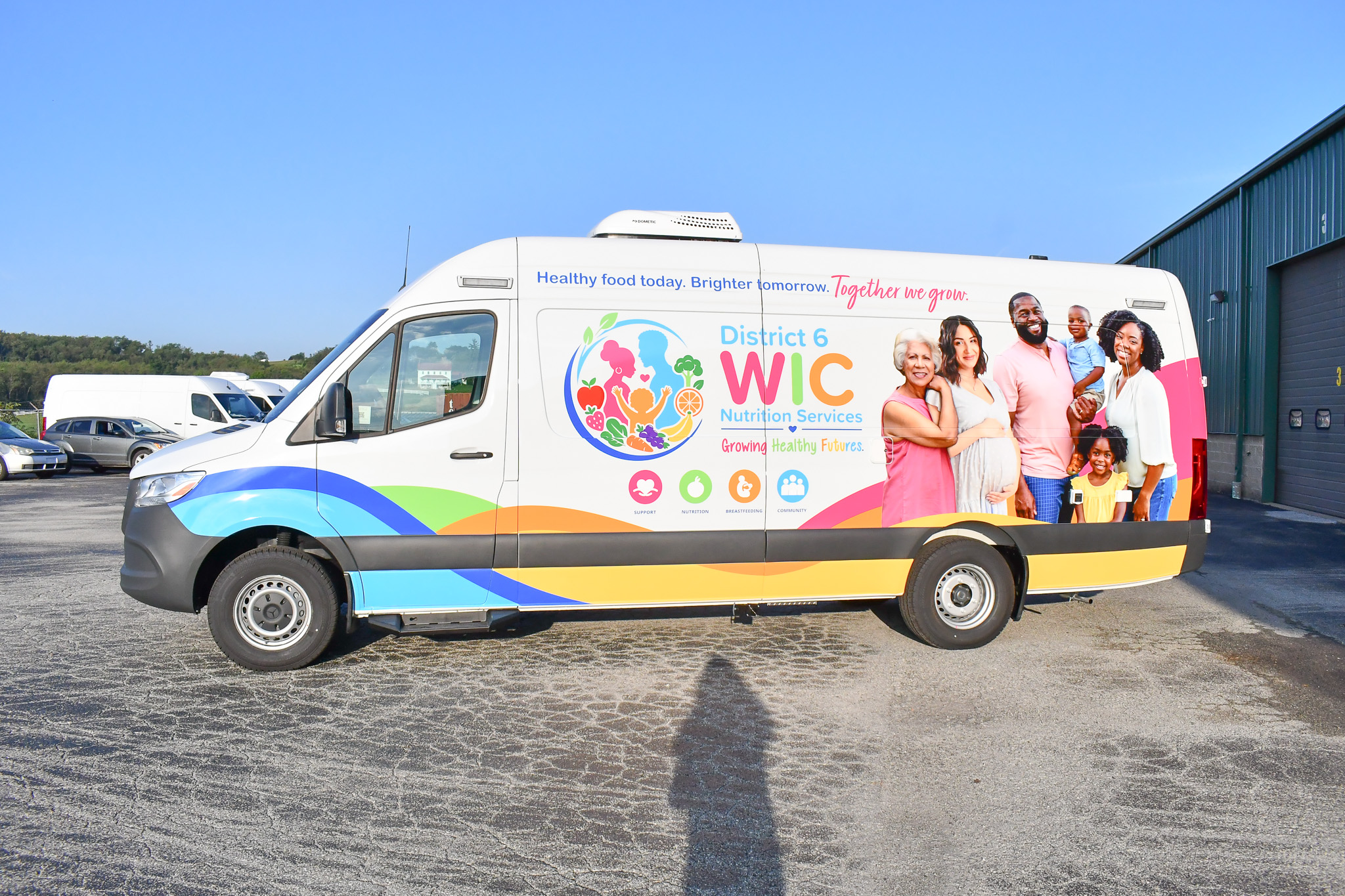

A side view of the Medical Exam sprinter made for Augusta, GA.

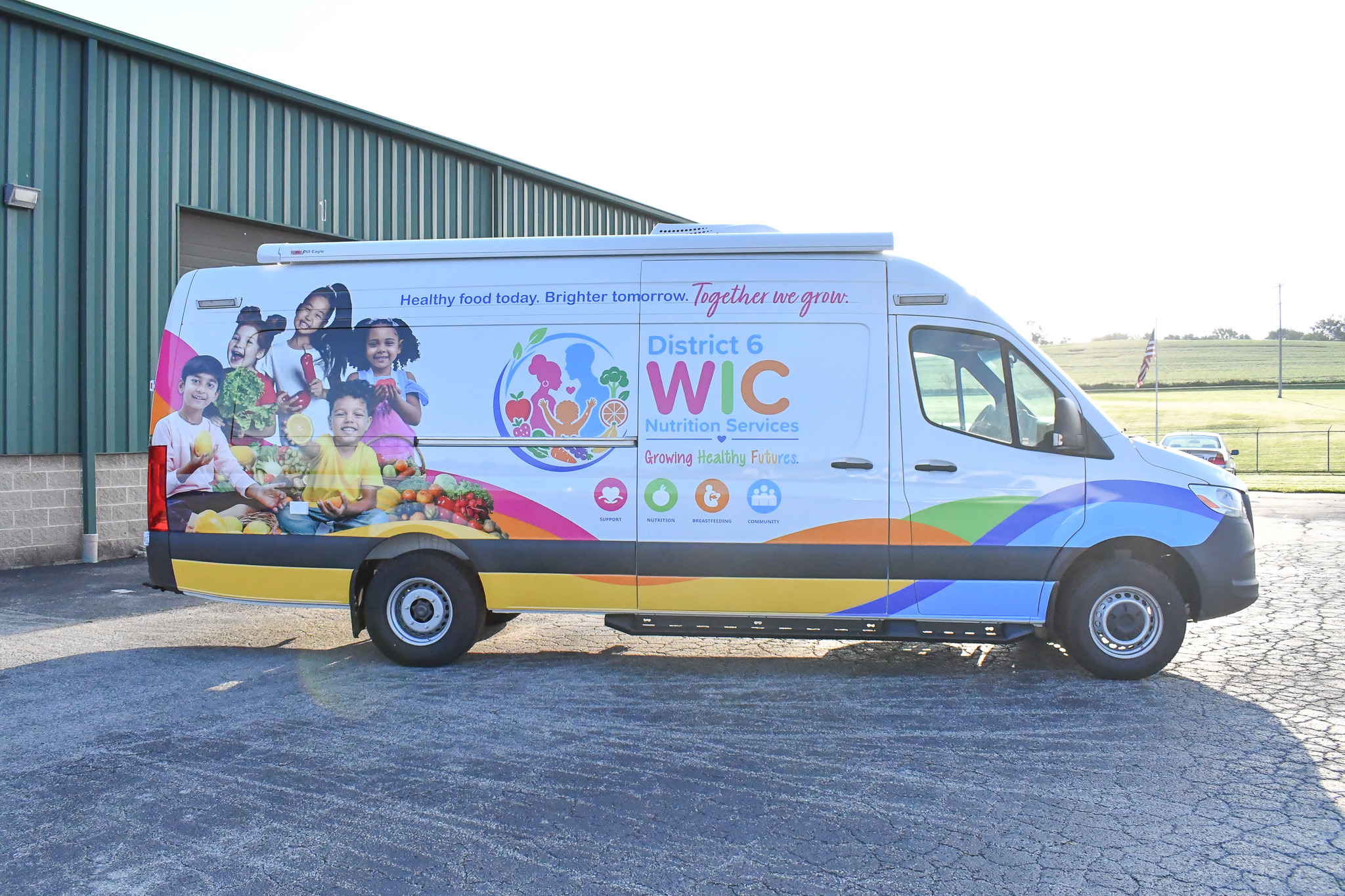

An alternate side view of the Medical Exam sprinter made for Augusta, GA.

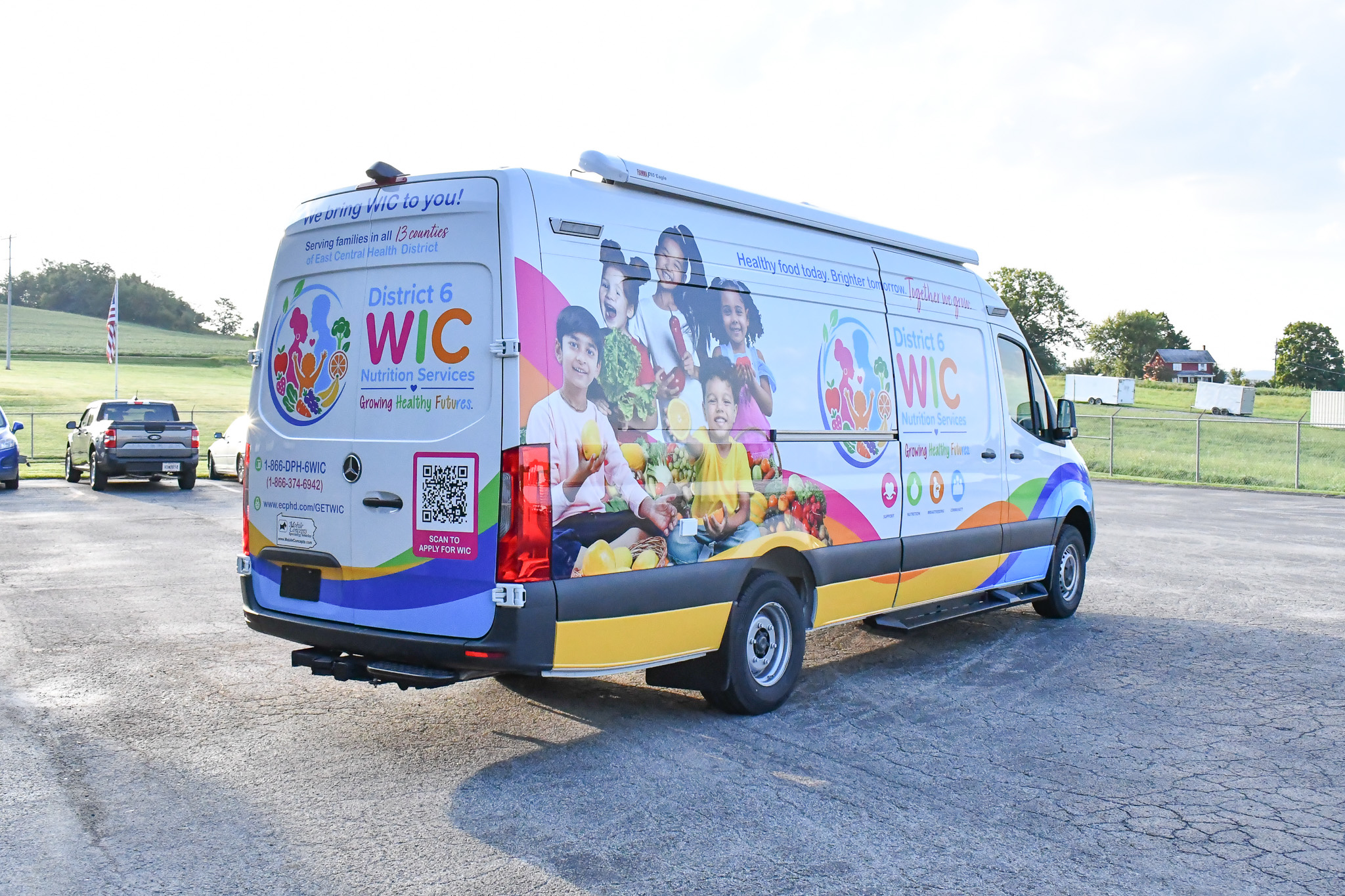

An exterior view of the Medical Exam sprinter made for Augusta, GA.

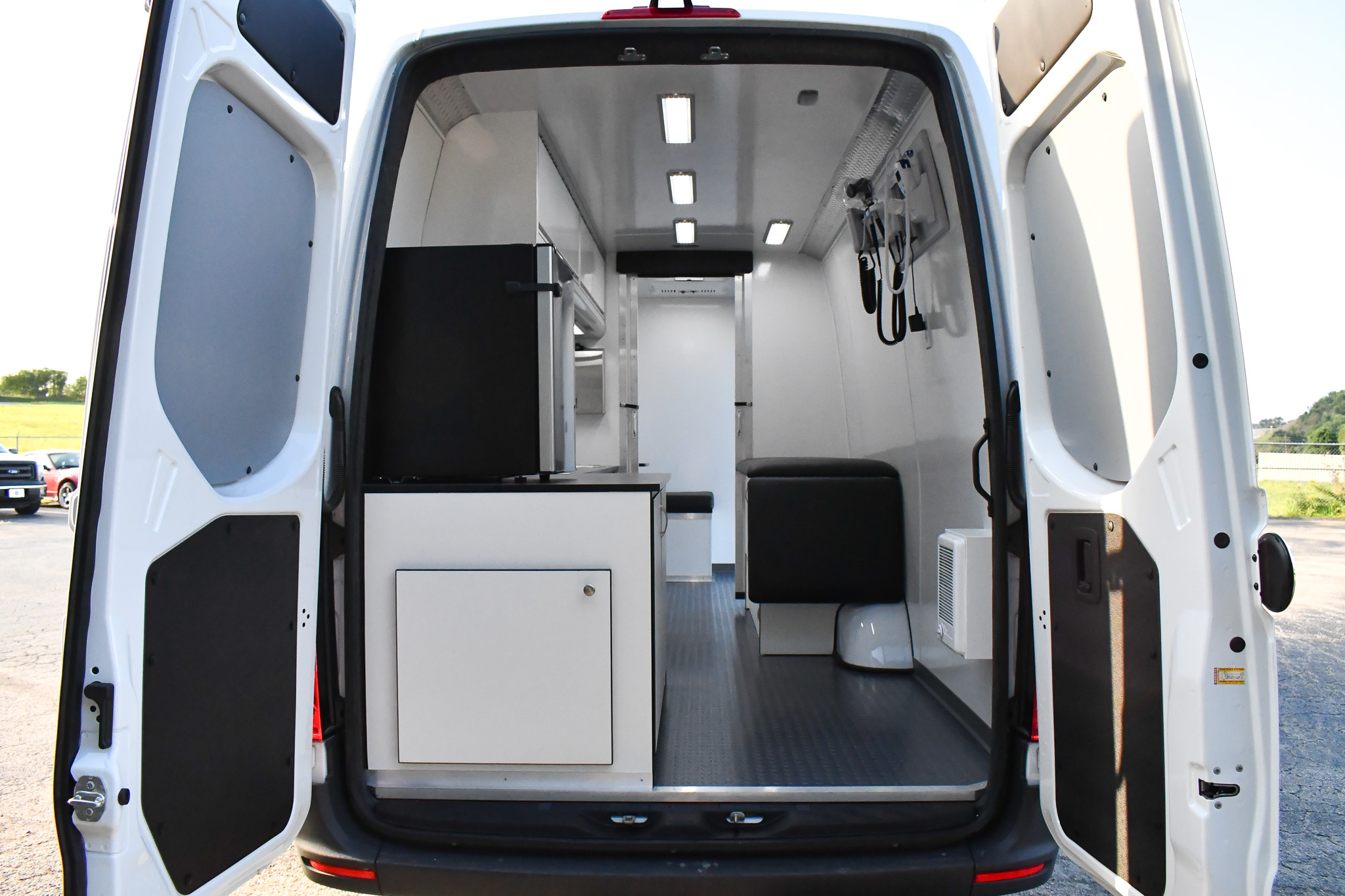

An exterior view of the Medical Exam sprinter made for Augusta, GA. The rear doors are open.

Medical Exam Sprinter

This Medical Exam sprinter van was made for the Georgia Department of Public Health WIC in Augusta, GA, to extend the program’s outreach efforts by providing nutritional, healthcare, and maternal support throughout the district. It consists of one waiting room with padded bench seating, and an exam room with one padded exam table, a sharps disposal container, a refrigerator, one Cradlepoint WiFi router & antenna, and a Welch Allyn Integrated ENT Diagnostics system. Having kept their broad range of services in mind, both the waiting and exam rooms contain plenty of storage for educational material, supplies, and medical tools. If both overhead and floor-level cabinets in the exam room are full, the padded bench seating can serve as additional storage space when the need arises.

Categories: ,

Description

Specs

Vehicle

  • Chassis: Mercedes 3500 170WB extended cargo van (2WD)
  • Roof: High roof
  • Engine: Turbocharged 4-cylinder diesel engine with 5-speed automatic transmission
  • Doors: Two rear swing-out doors and one sliding door on the passenger side
  • Accessibility:
    • Rear door assist handle
    • Aluminess running boards on passenger side
    • Step underneath driver door

Electronics & Power

  • Generator: Onan 8kW generator with remote start and ATS
  • Wiring: Pre-wired for 110v, 110v/USB duplex, CAT6, and 12 VDC outlets
  • Power management:
    • One battery charger and 50-amp shoreline

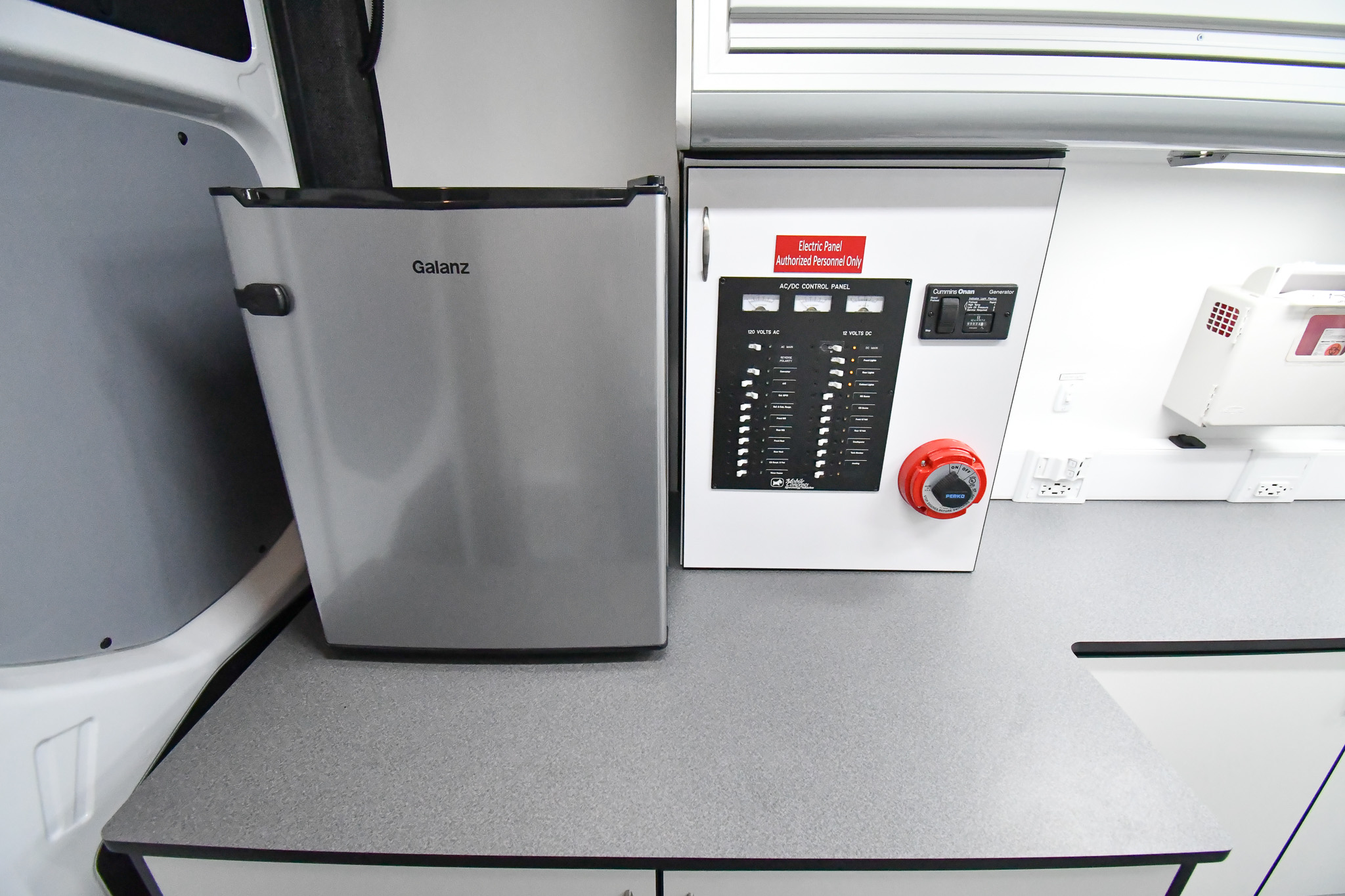

    • One Paneltronics electric panel
    • Enhanced electrical system with auxiliary battery and high-output 220-amp alternator with isolator
  • Climate control:
    • One 13,500 BTU AC/Heat pump
    • Two electric wall heaters
  • Connectivity: One Cradlepoint WiFi router and antenna

Interior

  • Waiting area: Padded bench seating with hinged tops for additional storage purposes
  • Exam area: Padded exam table with a fold-down footrest
  • Appliances: One sink and refrigerator
  • Medical equipment:
    • One Welch Allyn Integrated ENT Diagnostics system
    • One sharps disposal container
  • Storage & Surfaces:
    • Overhead ACE Aluminum cabinets
    • Solid surface countertops

Exterior

  • Safety & Visibility:
    • Four exterior scene lights
    • One 13′ x 9″ Fiamma electric awning
  • Power outlets: Two exterior GFI outlets
  • Graphics: Custom graphics
