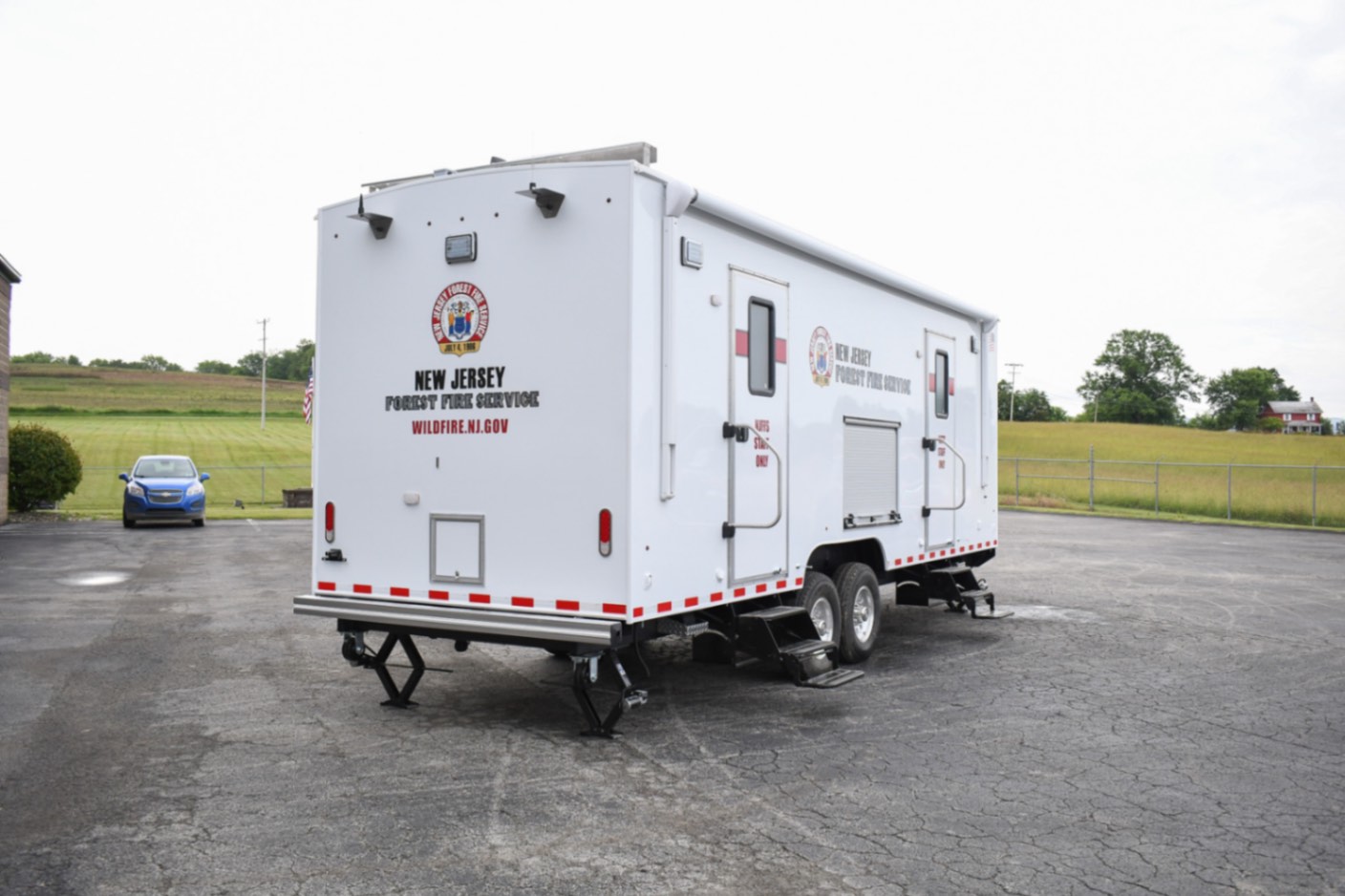

An exterior view of the unit for Trenton, NJ.

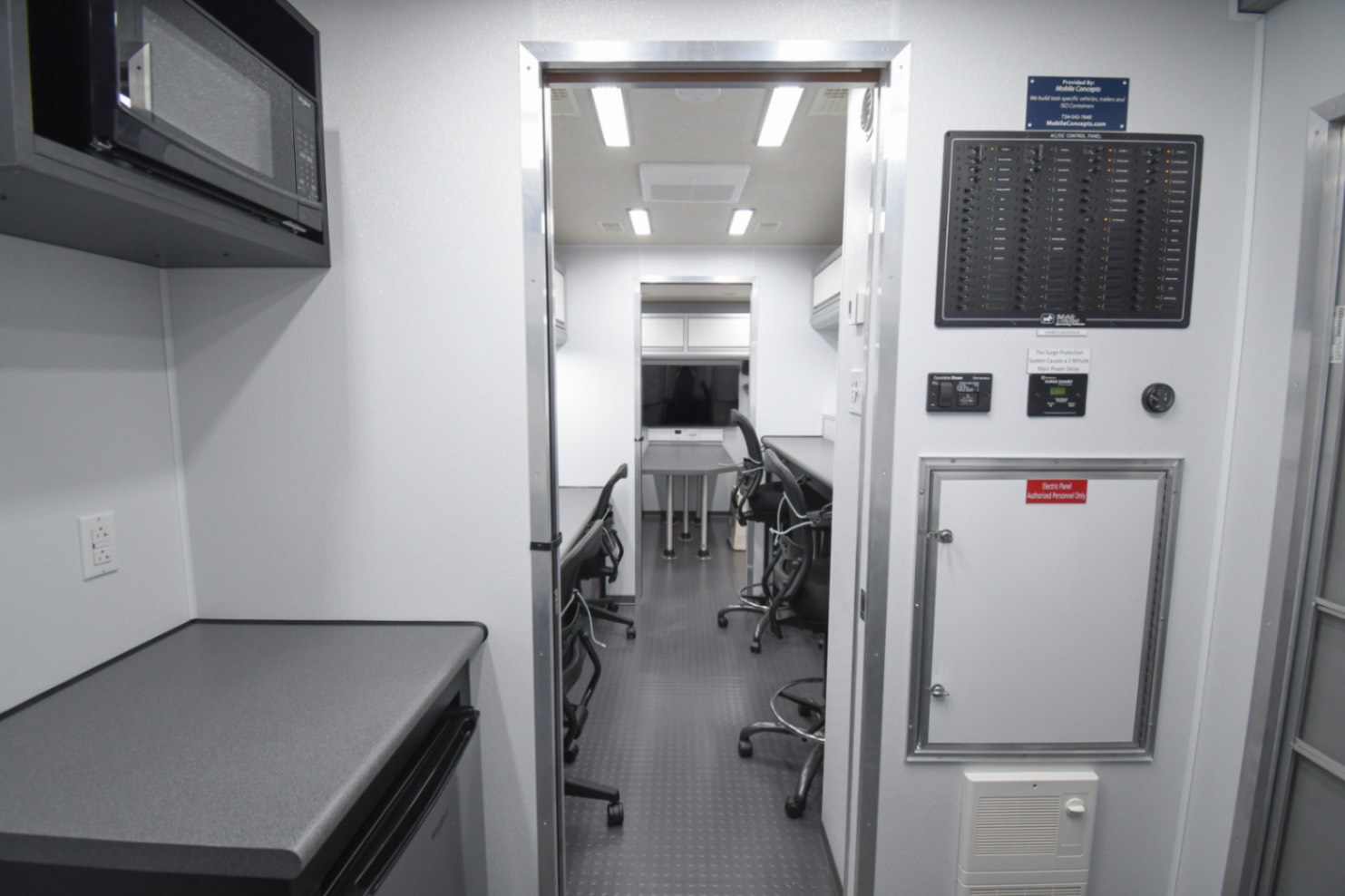

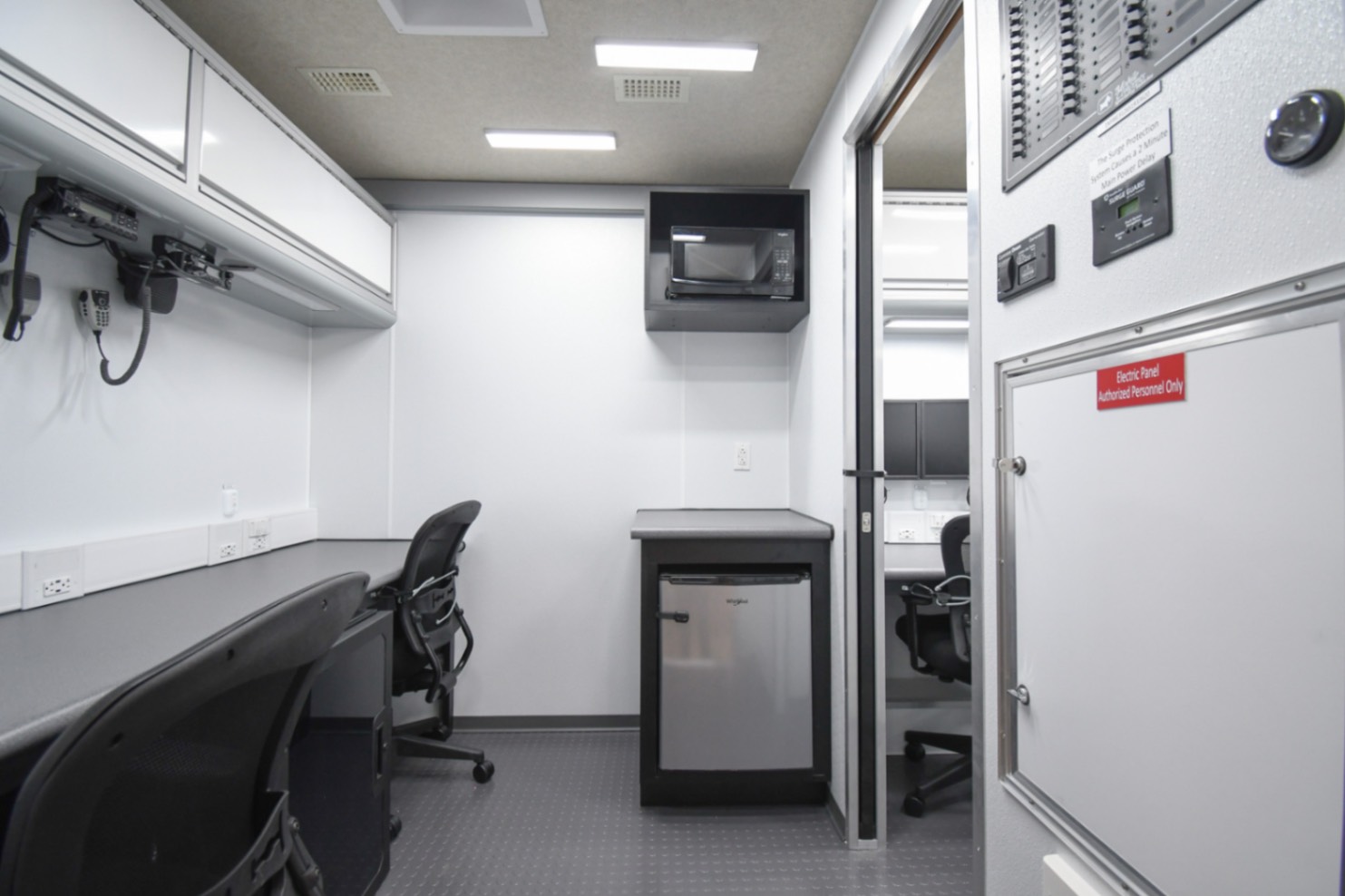

Two workstations and the kitchenette inside the unit for Trenton, NJ.

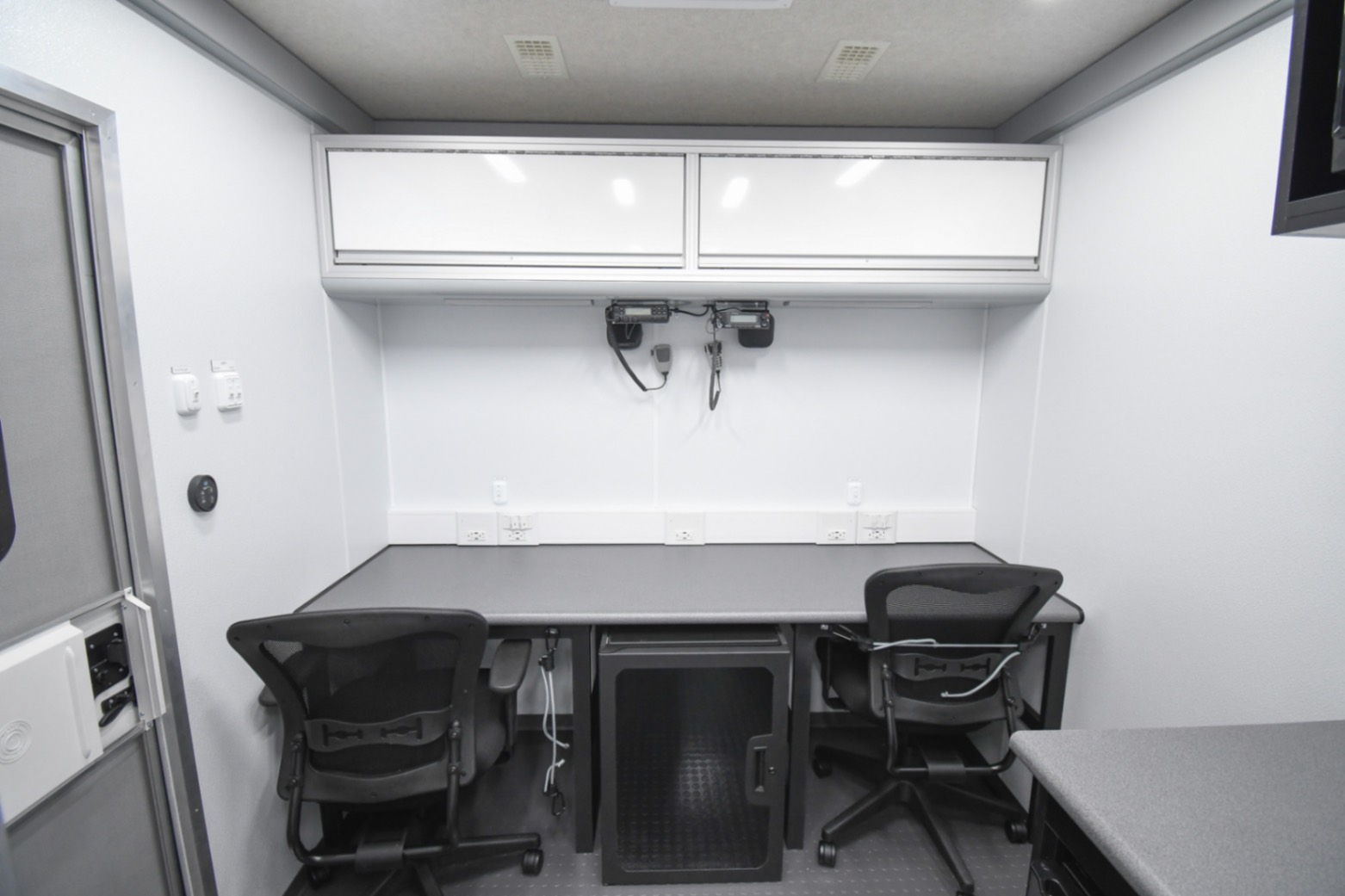

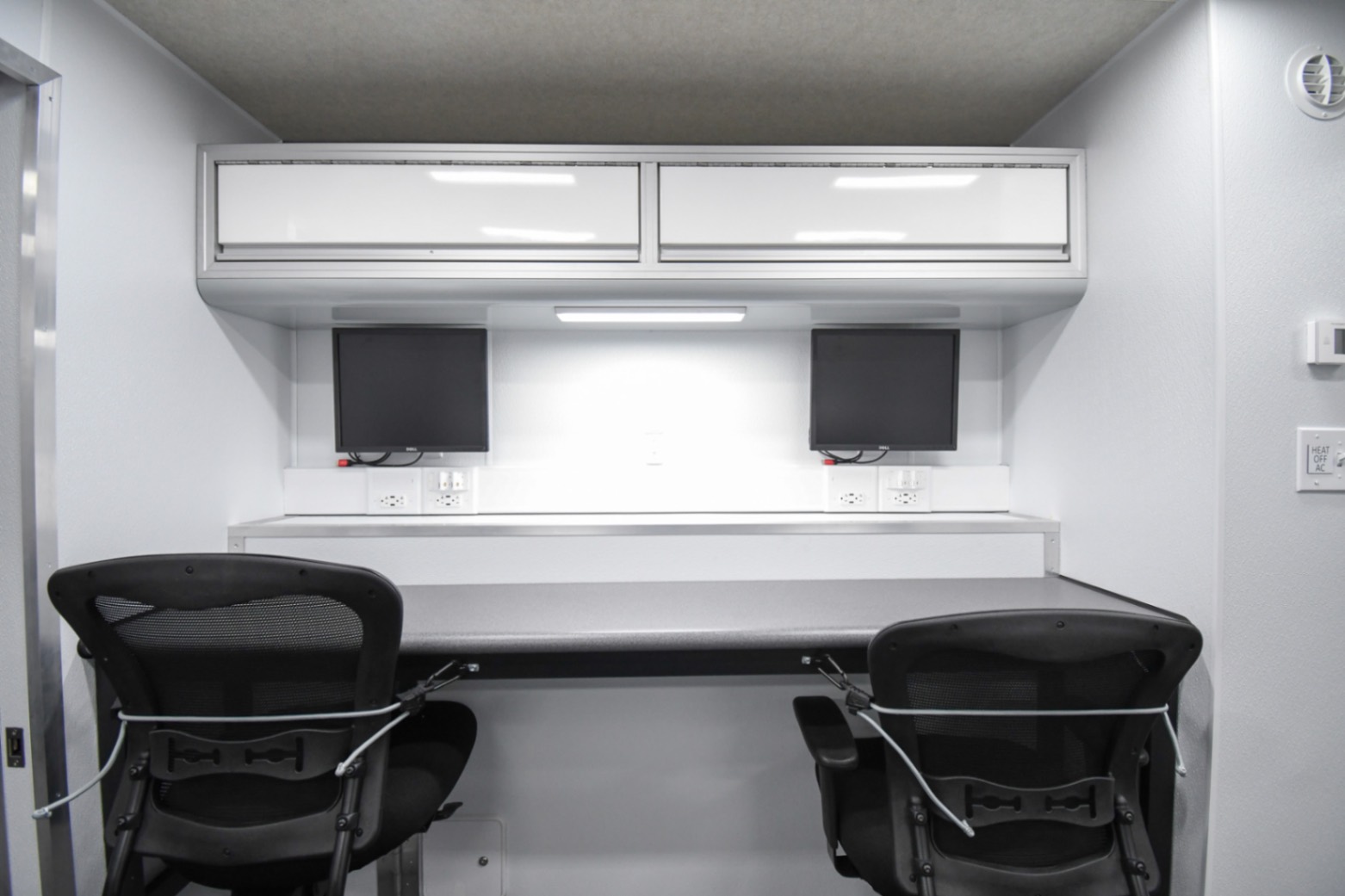

Two workstations inside the unit for Trenton, NJ.

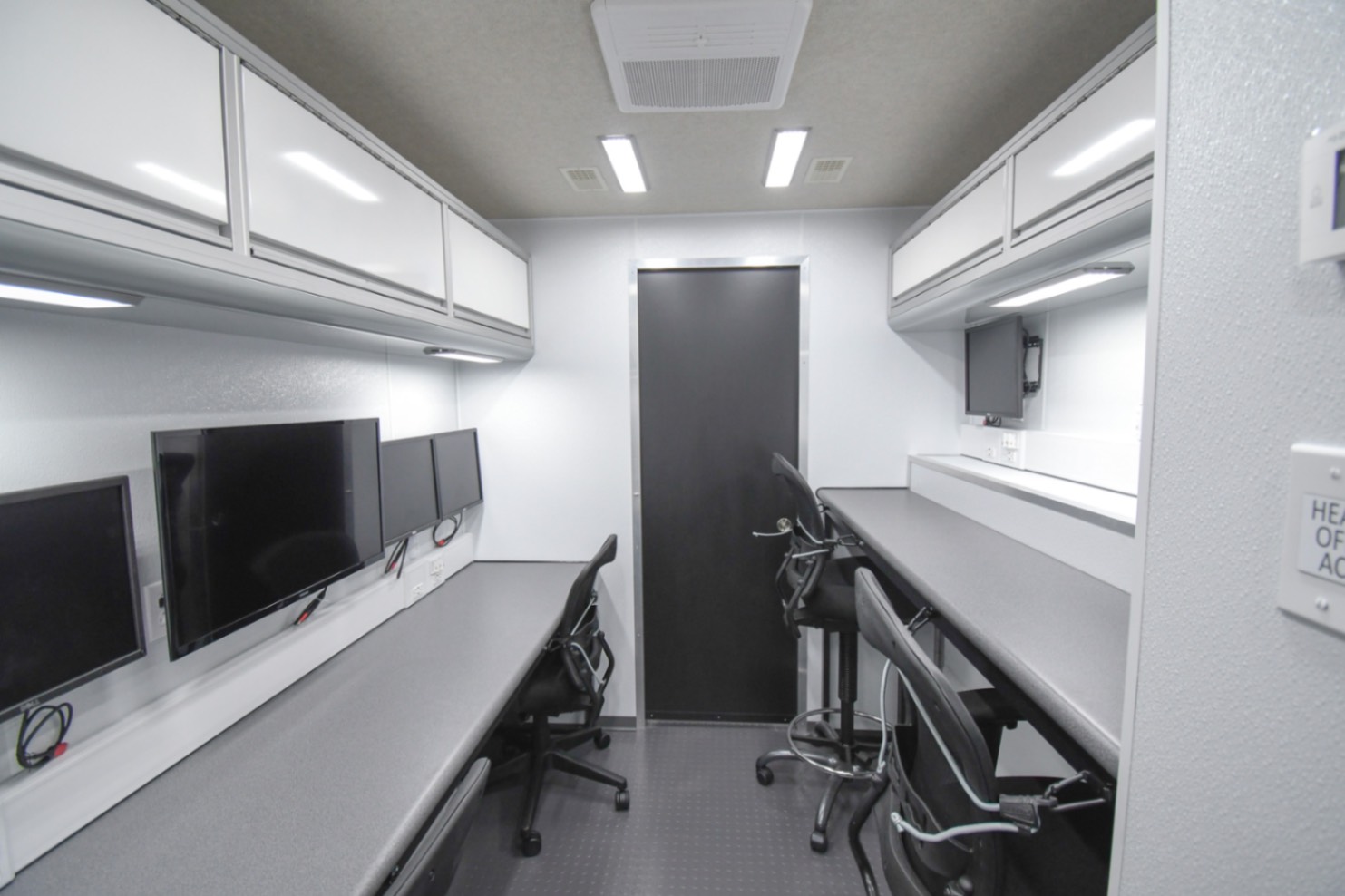

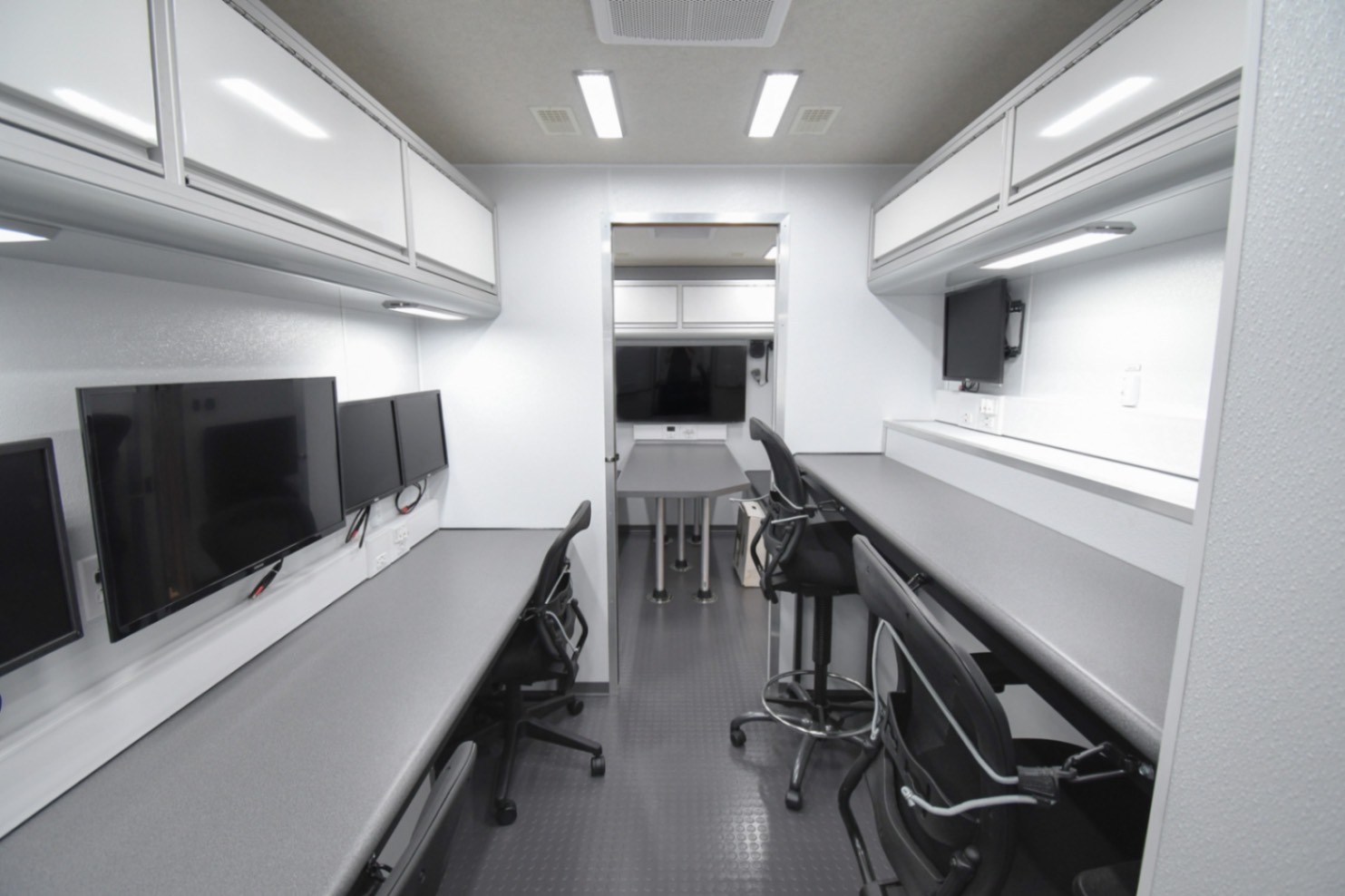

A back-to-front view inside the unit for Trenton, NJ.
A back-to-front view inside the middle section of the unit for Trenton, NJ.

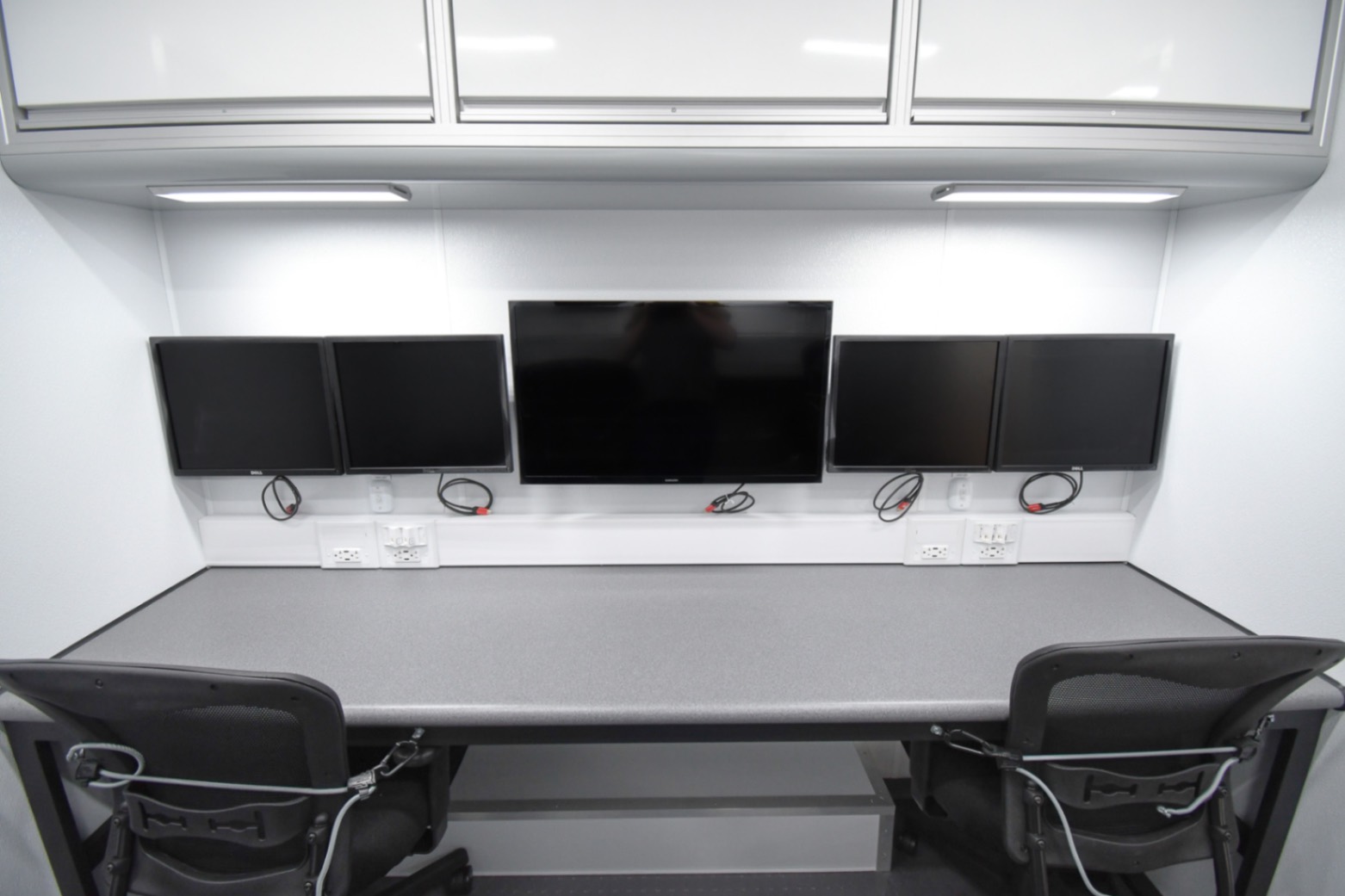

Two workstations inside the unit for Trenton, NJ.
Two workstations inside the unit for Trenton, NJ.
A back-to-front view inside the middle section of the unit for Trenton, NJ. The door to the conference room is closed.

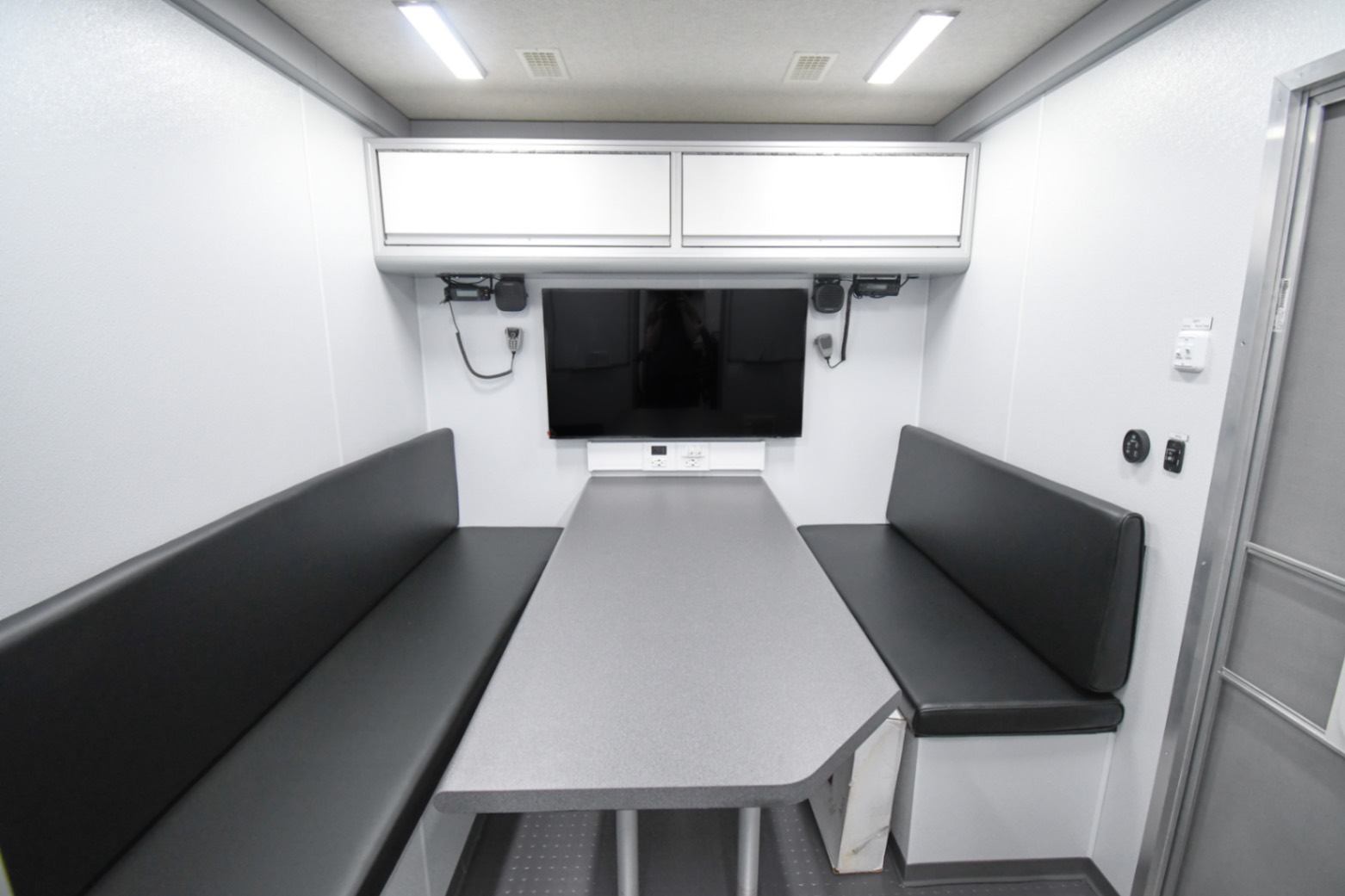

The conference room inside the unit for Trenton, NJ.

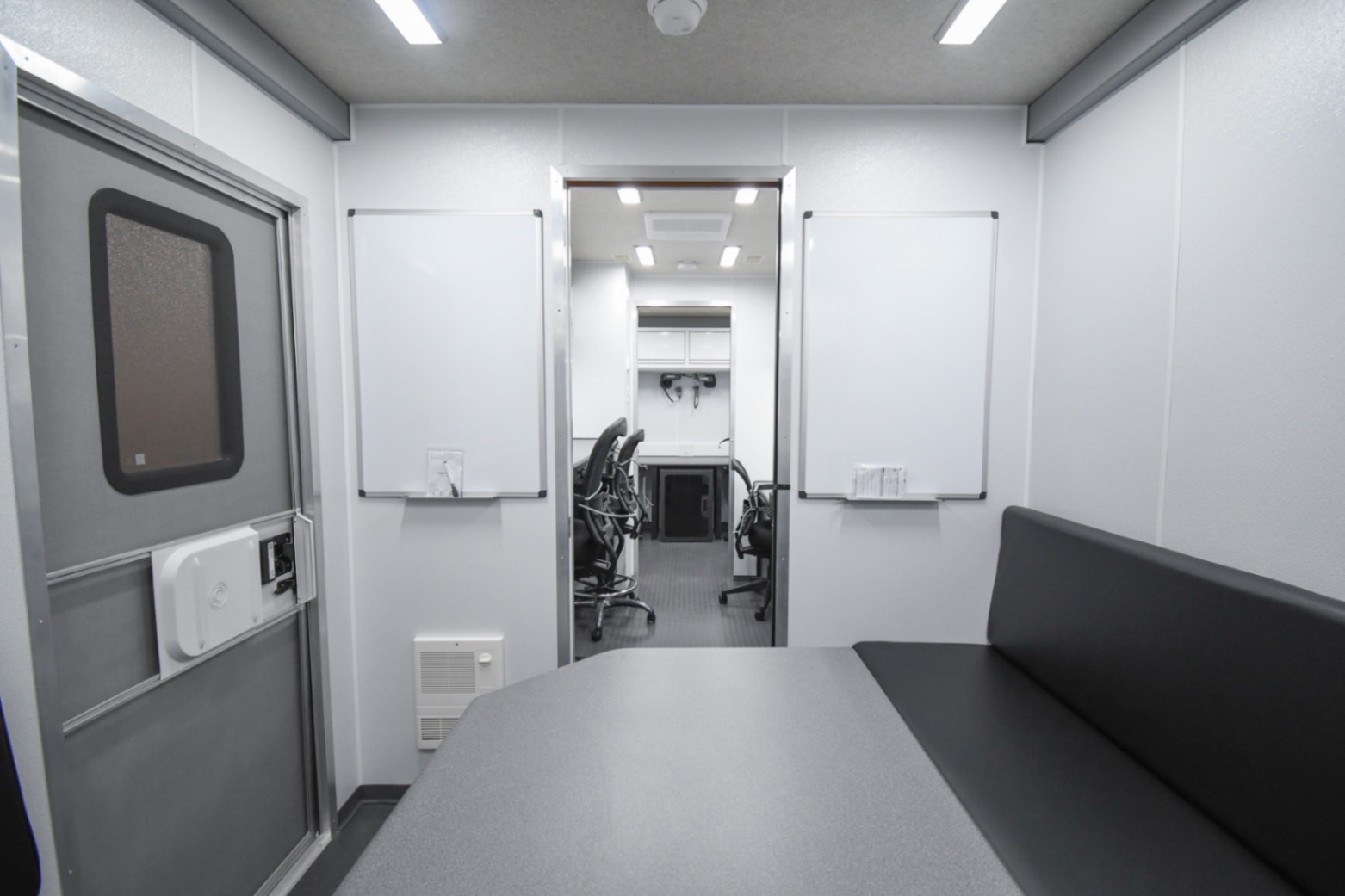

A front-to-back view inside the unit for Trenton, NJ.

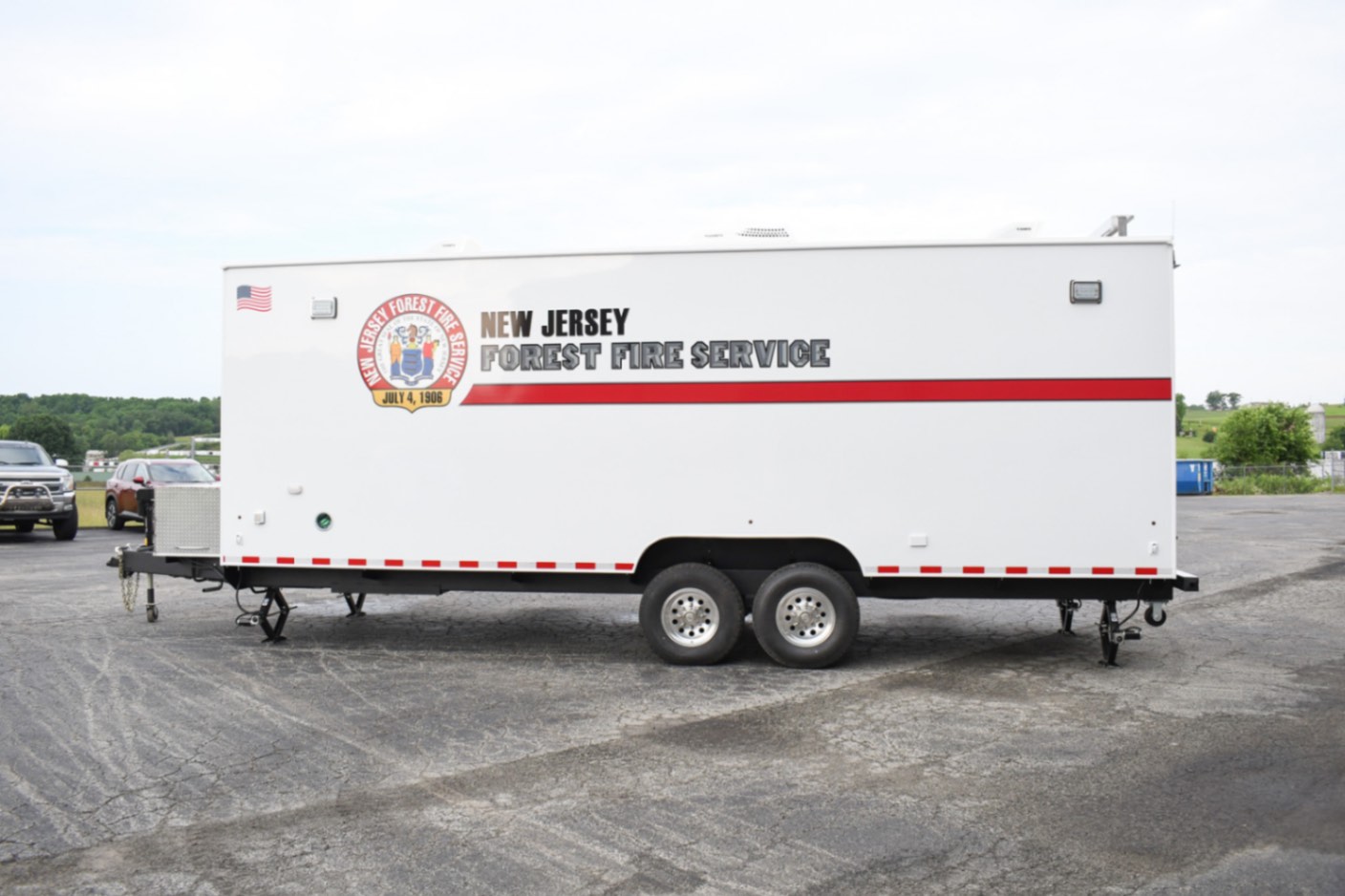

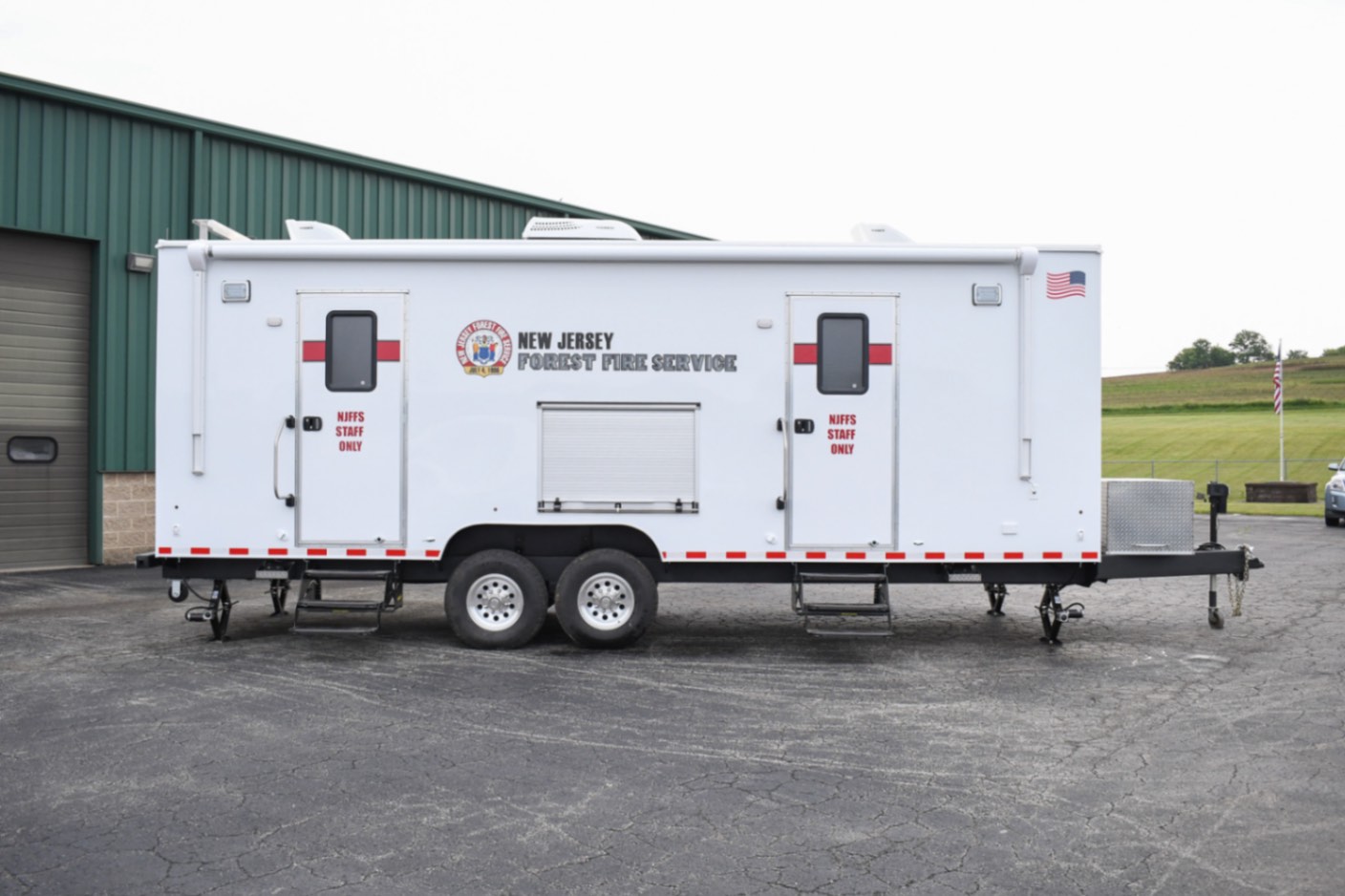

A side view of the unit for Trenton, NJ.
An alternate side view of the unit for Trenton, NJ.
An exterior view of the unit for Trenton, NJ.

Command 31-6WS

This Command 31-6WS was custom-built for the New Jersey Forest Fire Service in Trenton, NJ, to serve as a command outpost in which personnel can help firefighters monitor, contain, extinguish, and prevent forest fires. To aid in their efforts to protect their community and the environment, we’ve equipped their unit with six workstations, blocking for six TVs, a conference room, one 14u electronics rack with three shelves, an eight-outlet strip, and a 20×25″ access door, one 32″ monitor, six 19″ monitors, one 43″ Samsung Smart LED TV, two sets of dual-band radios, six FRC LED flush-mount scene lights, one Cradlepoint WiFi router and antenna, and four exterior Vivotek dome cameras.

Categories: ,

Description

Specs

Exterior

  • 31′ trailer with hitch
  • Stability & Support: Electric leveling jacks with auxiliary battery
  • Safety & Visibility:
    • Six FRC LED flush-mount scene lights
    • One 21′ electric awning
  • Additional features:
    • One 48×36″ roll-up door with safety glass
    • Two exterior 110v GFI protected receptacles
  • Graphics: Custom graphics

Electronics & Power

  • Generator: Onan 8kW generator with remote start, ATS, and a 30 gallon tank
  • Wiring: Pre-wiring for 110v, USB, HDMI, CAT6 networking, and 20-amp outlets
  • Power management:
    • 50-amp, 25′ removable shoreline
    • One Paneltronics electric panel with two 80-amp converters
  • Climate control:
    • One 13,500 BTU AC/Heat pump with single zone thermostat
    • Two 1,000w wall heaters
    • Two roof vents
  • Surveillance & Connectivity:
    • One Cradlepoint WiFi router and antenna
    • Four exterior Vivotek dome cameras connected to an NVR

Interior

  • Workstations: Six workstations with task chairs
    • Three CAT6 networking and three 110v/USB outlets per workstation
  • Conference area: Two padded bench seats with a removable conference table and one 50″ LED TV
  • Appliances:
    • One 32″ monitor
    • Six 19″ monitors
    • One Samsung 43″ Smart LED TV connected to a PA amp and exterior speakers
    • Two dual-band radios (one mobile head is located in the conference room, and the other is located at the rear workstations)
    • One 24″ kitchenette with a refrigerator, microwave, and Keurig
    • Two 24×36″ whiteboards
  • Electronics rack: A 14u electronics rack with an 8-outlet strip, three shelves, a dedicated 20-amp outlet, 12v block, and a 20×25″ access door
  • Storage & Surfaces: Overhead ACE aluminum cabinets

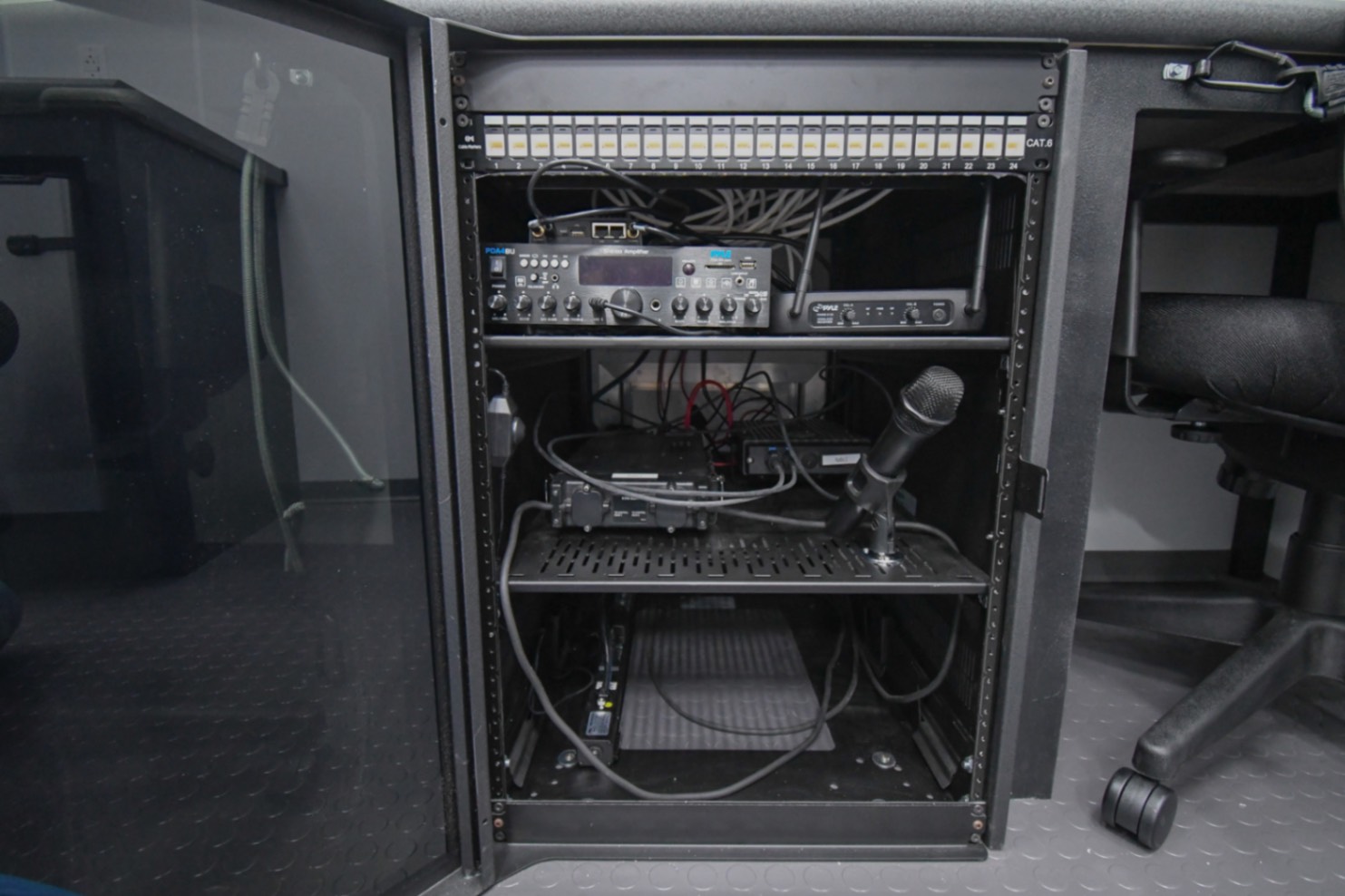

The open electronics rack inside the unit for Trenton, NJ.
