Command 35-8WS SO
This Command 35-8WS SO was custom-built for the Department of Juvenile Justice in Tallahassee, FL. In order to accommodate large groups of personnel and hold a wide variety of tech, this trailer was customized to include one electric slideout, eight workstations, one 37u equipment rack with a 48-port patch panel, two 16-outlet electrical strips, and dedicated 20-amp receptacle, one three-camera Furrion vehicle observation system with a 7″ monitor, an eight-phone Sangoma system, two 32″ TVs, one 32″ touch screen monitor, one Cradlepoint WiFi router and antenna, one Winegard DirectTV satellite with two receivers, two battery-operated smoke/CO2 alarms, and an Axis camera with a joy stick controller.
Description
Specs
Contact us today to learn more about the benefits of our custom-built Mobile Command Centers!
Exterior

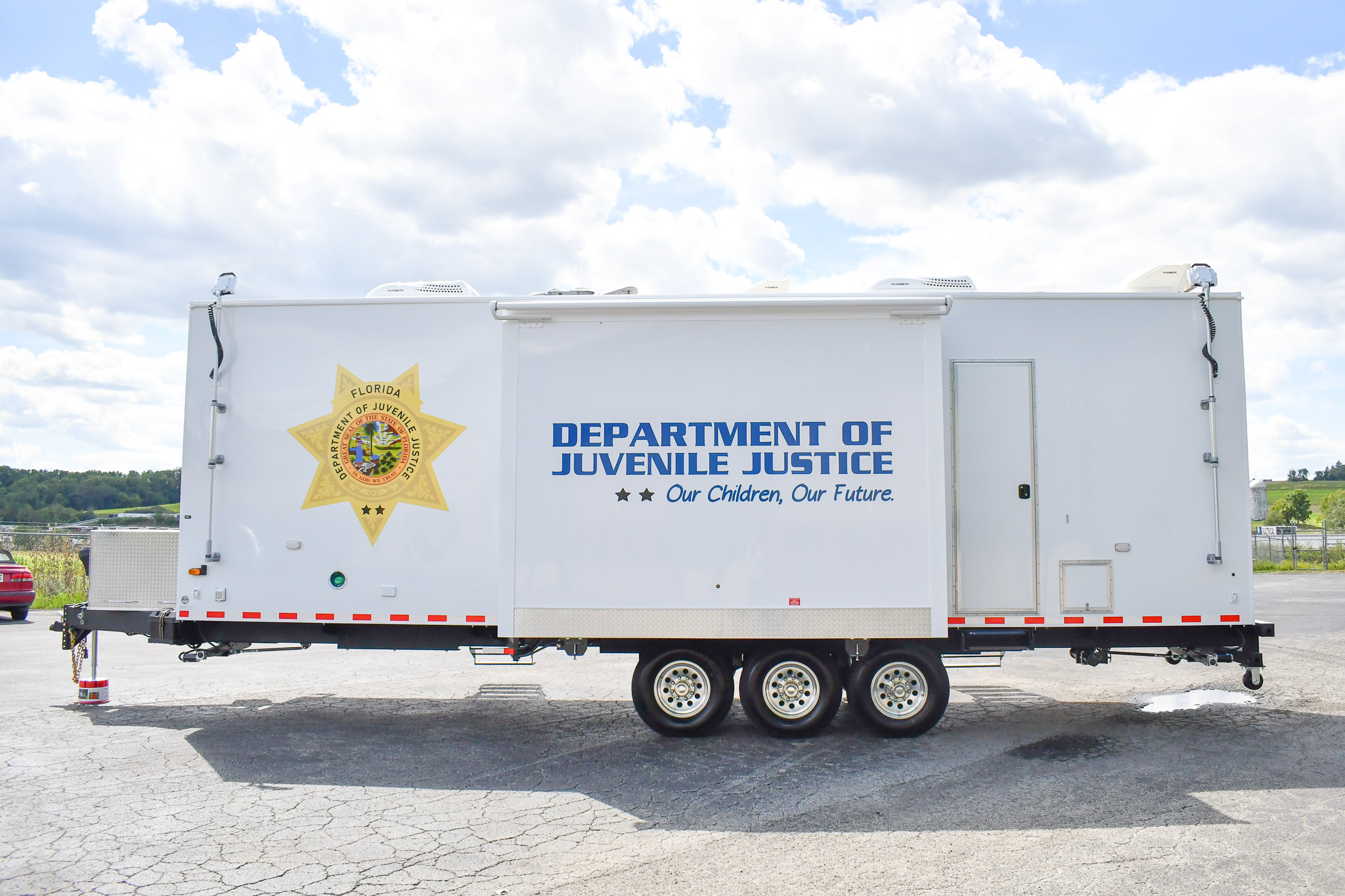

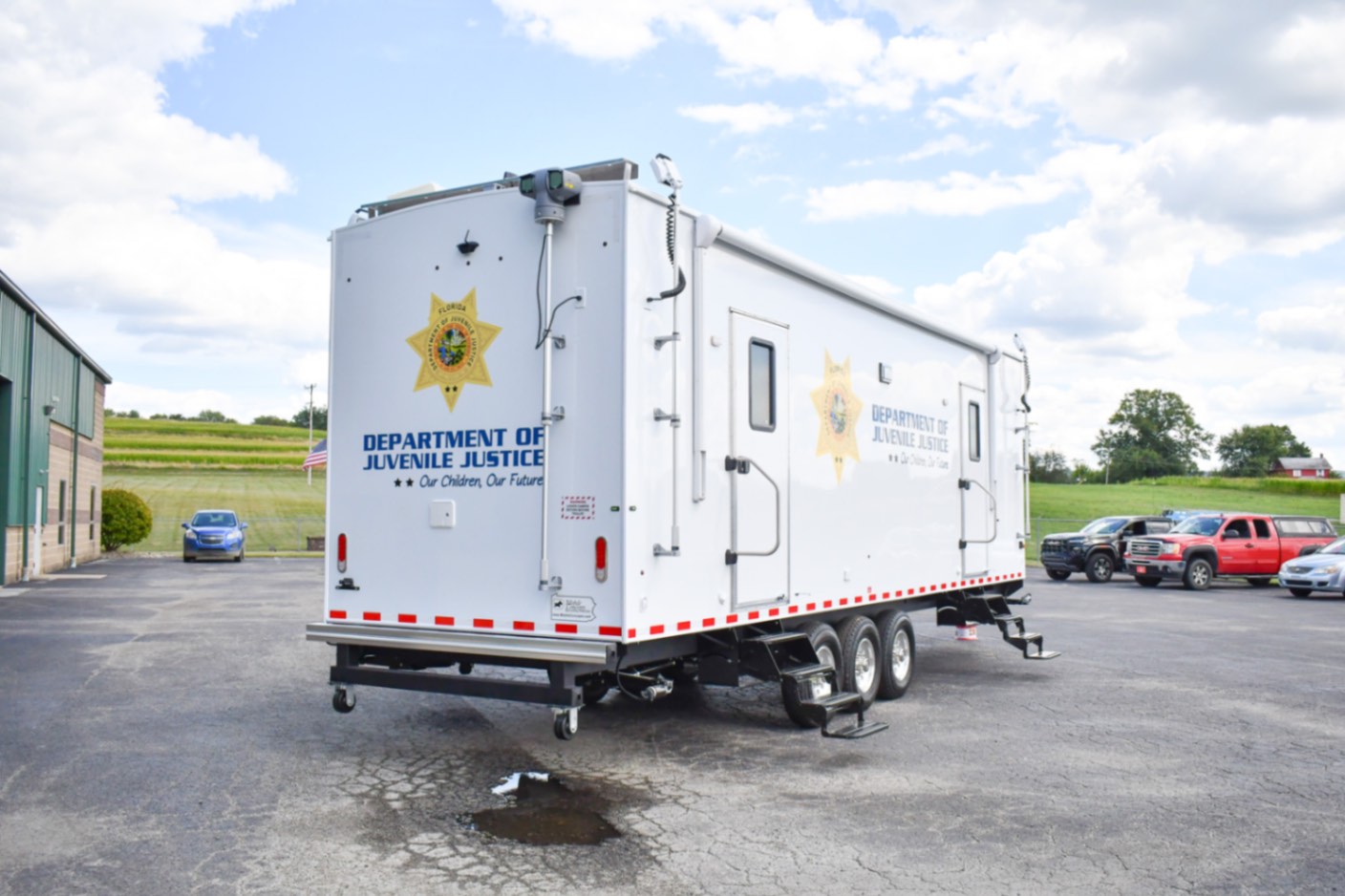

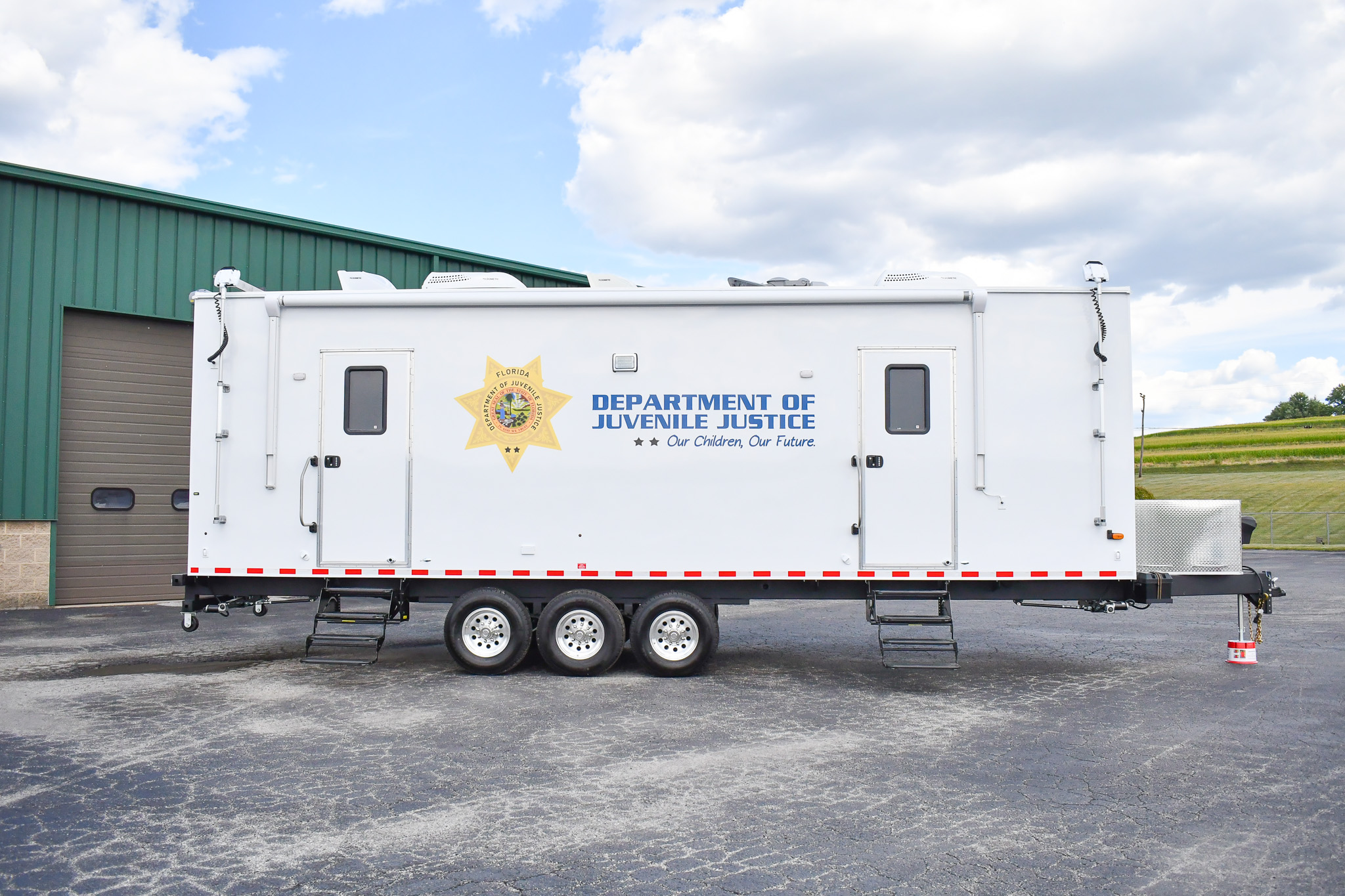

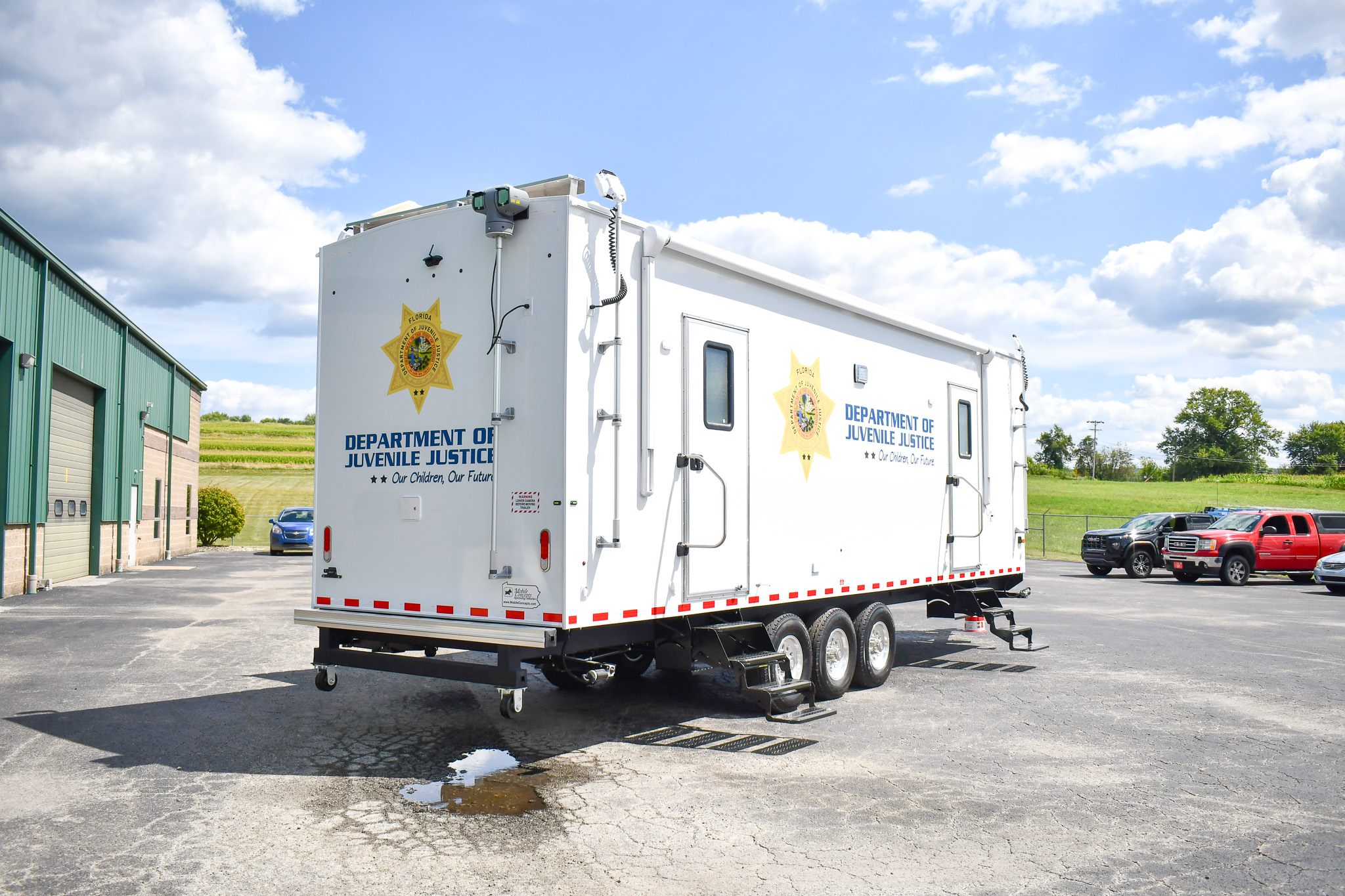

- 35′ trailer with hitch and one 120″ wide electric slideout
- Stability & Support: Electric leveling jacks, four stabilizer arms, and two rear skid wheels
- Power outlets: Two exterior 110v duplex GFI protected receptacles
- Safety & Visibility:
- Four FRC LED scene lights on aluminum push-up poles
- One 8×21′ electric awning and one 10′ awning topper
- Graphics: Custom graphics
Electronics & Power
- Generator: Onan 12kW generator with remote start and ATS
- Power management:
- One electric panel with two amp converters and a surge guard
- 50-amp, 25′ removable shoreline
- 30 gallon fuel tank
- Wiring: Pre-wired for 110v duplex, CAT6 networking, 20-amp, and 12v outlets
- Surveillance & Connectivity:
- One Cradlepoint WiFi router and antenna
- A roof-mounted Winegard DirectTV satellite antenna with two receivers
- Furrion Vision S Wireless Vehicle Observation System with one 7″ monitor and three cameras
- One Axis camera with a joystick controller connecting to the 32″ TV’s CS and NVR
- Climate control:
- Two low profile heat pumps with single zone thermostats
- Two 1,000w wall heaters

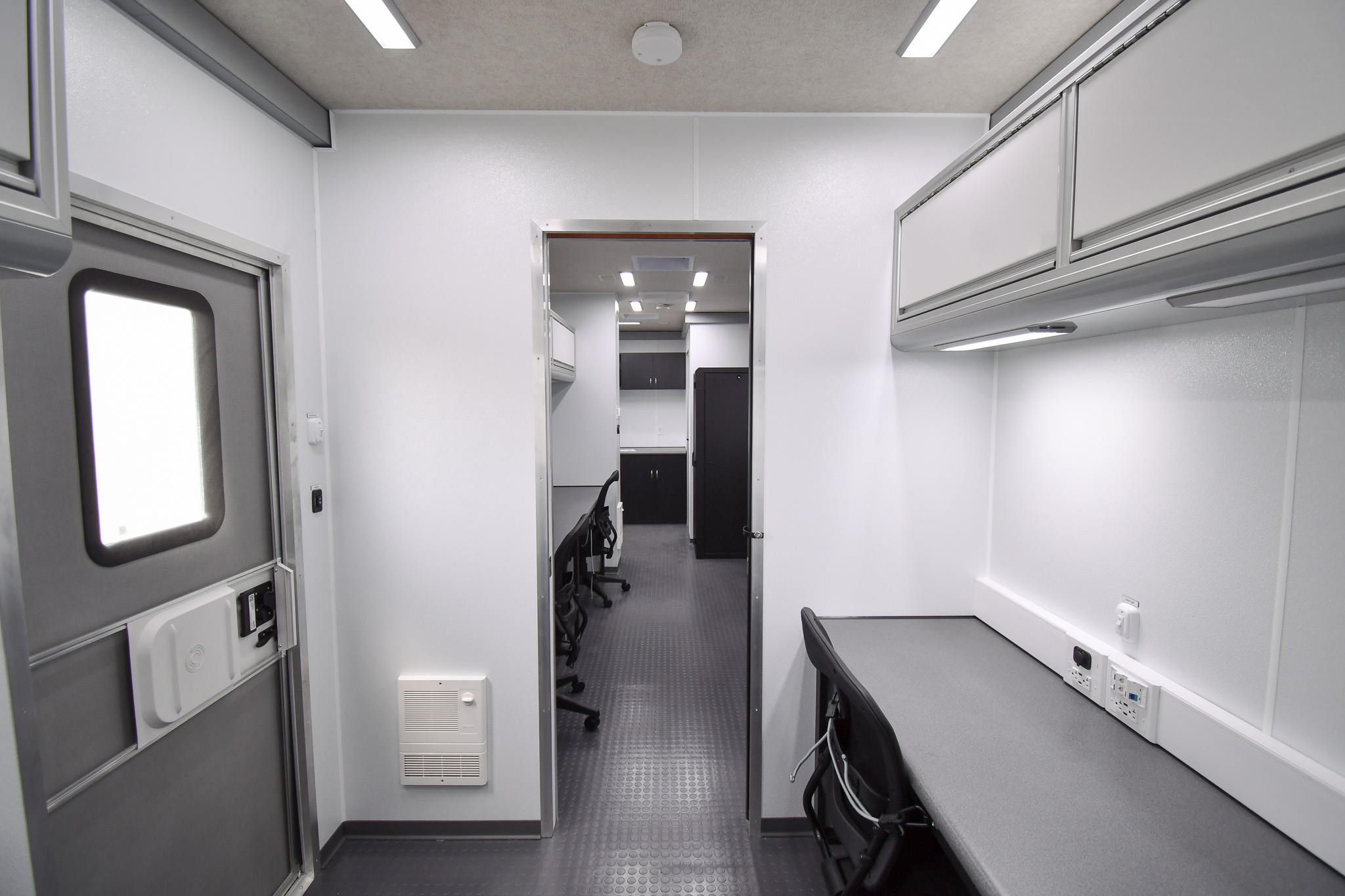

Interior

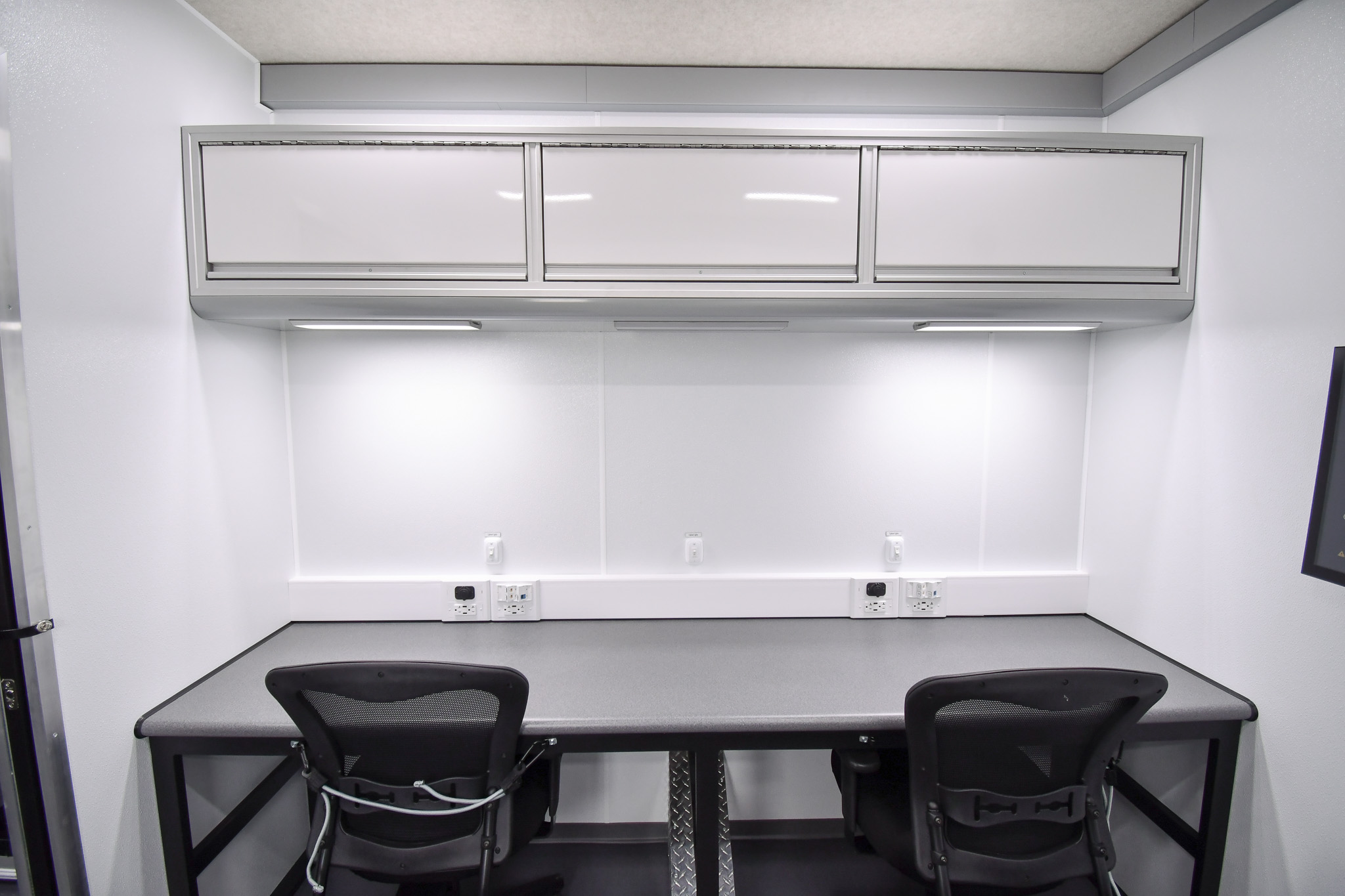

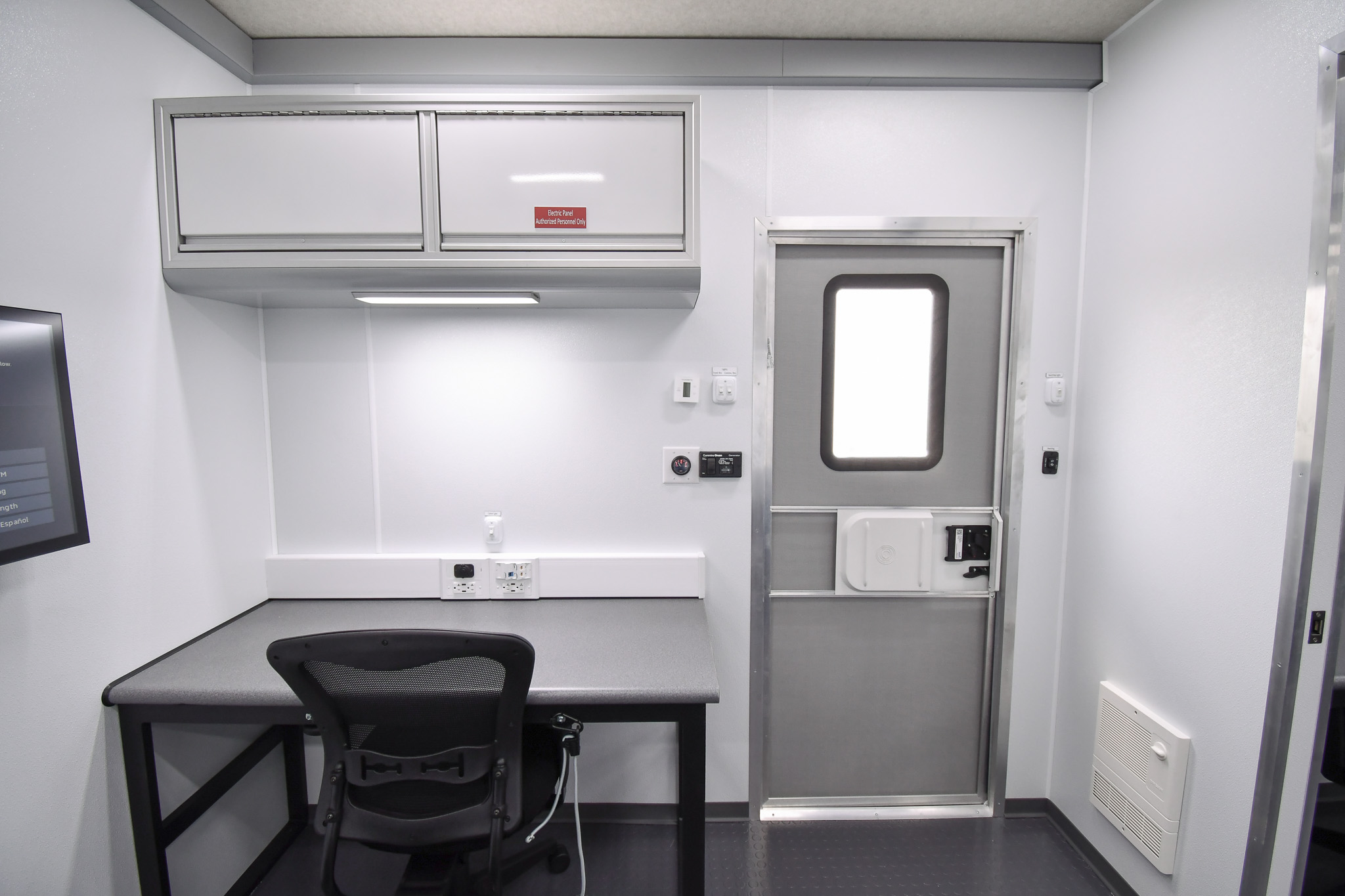

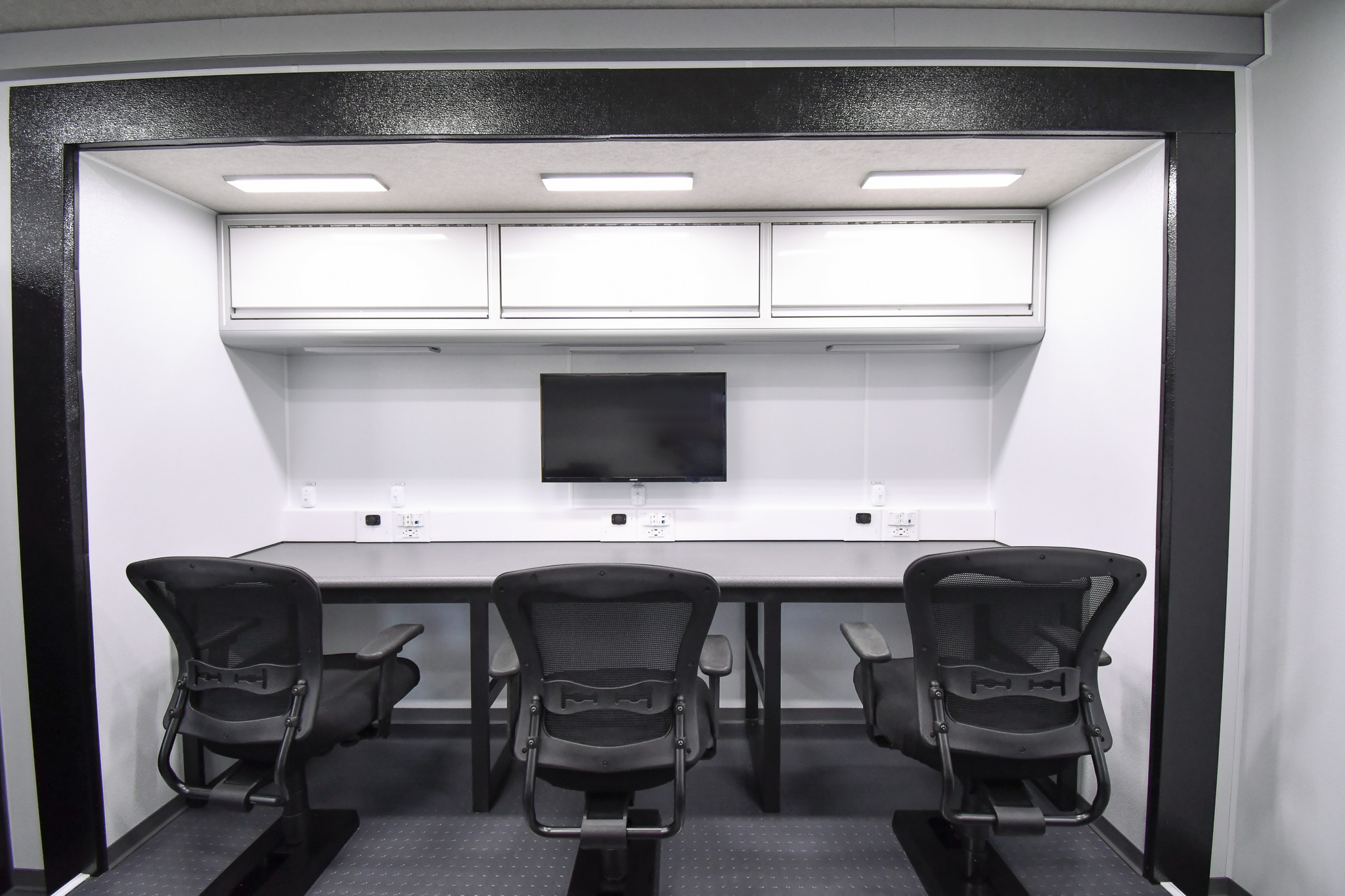

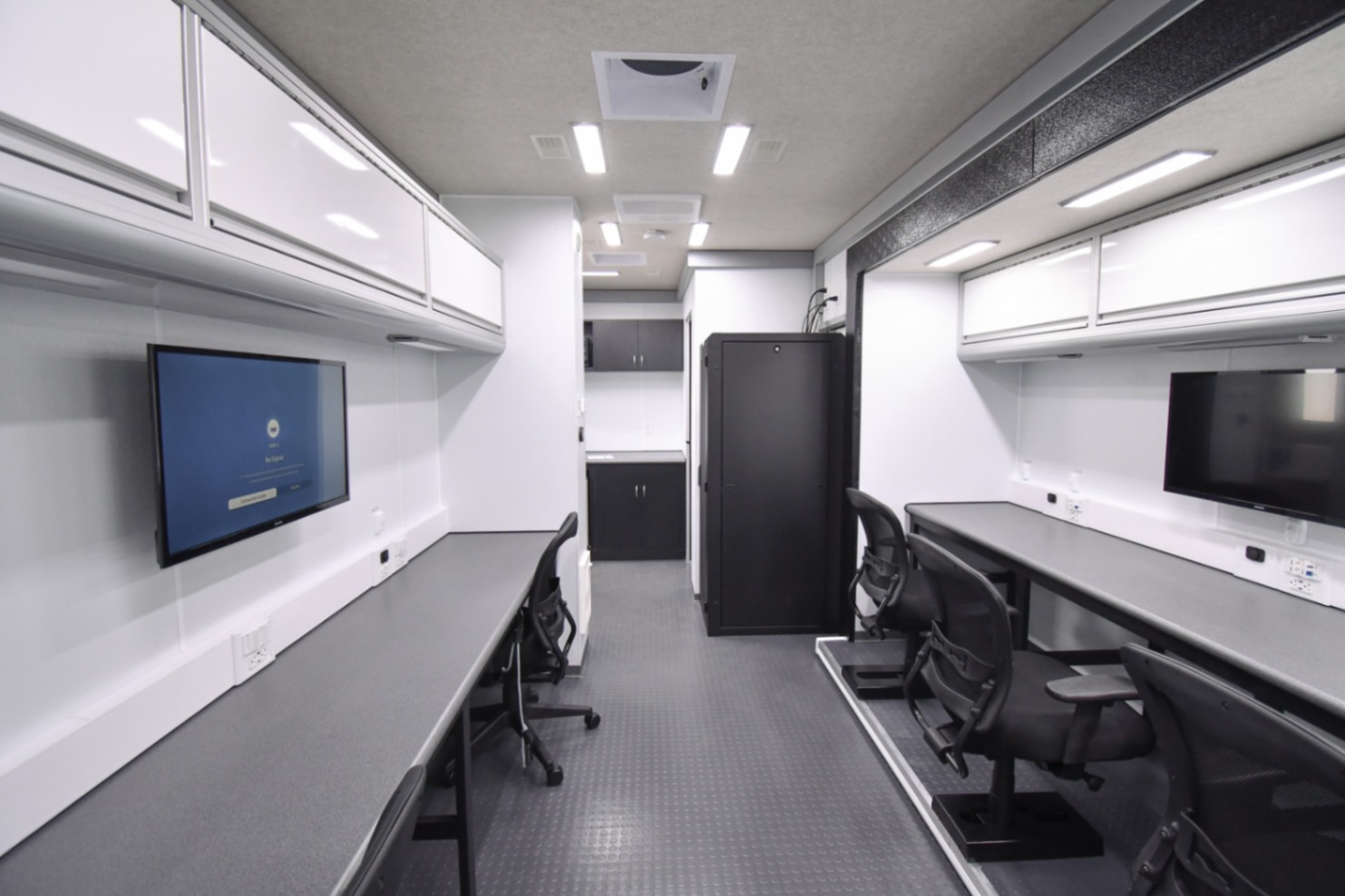

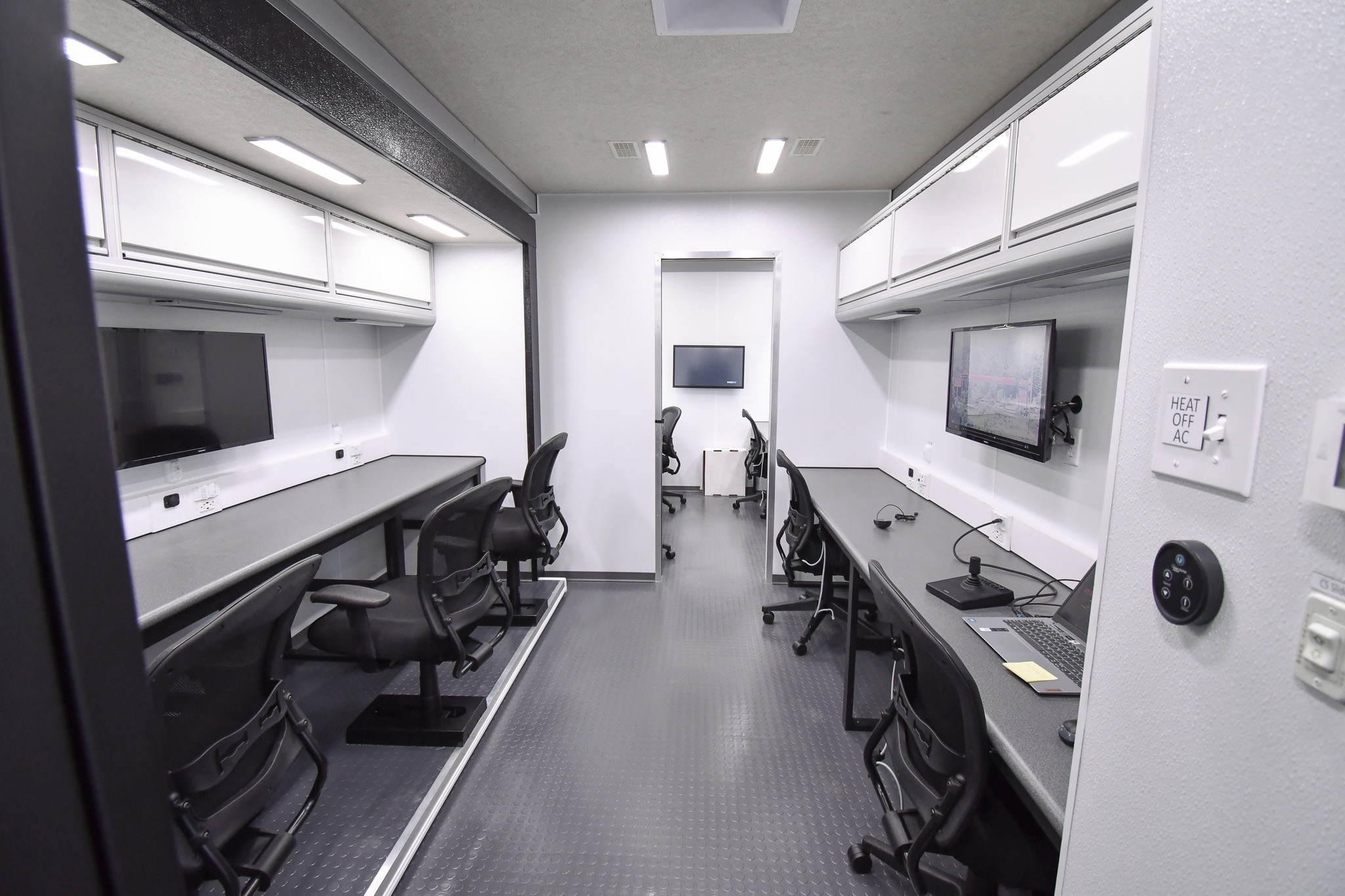

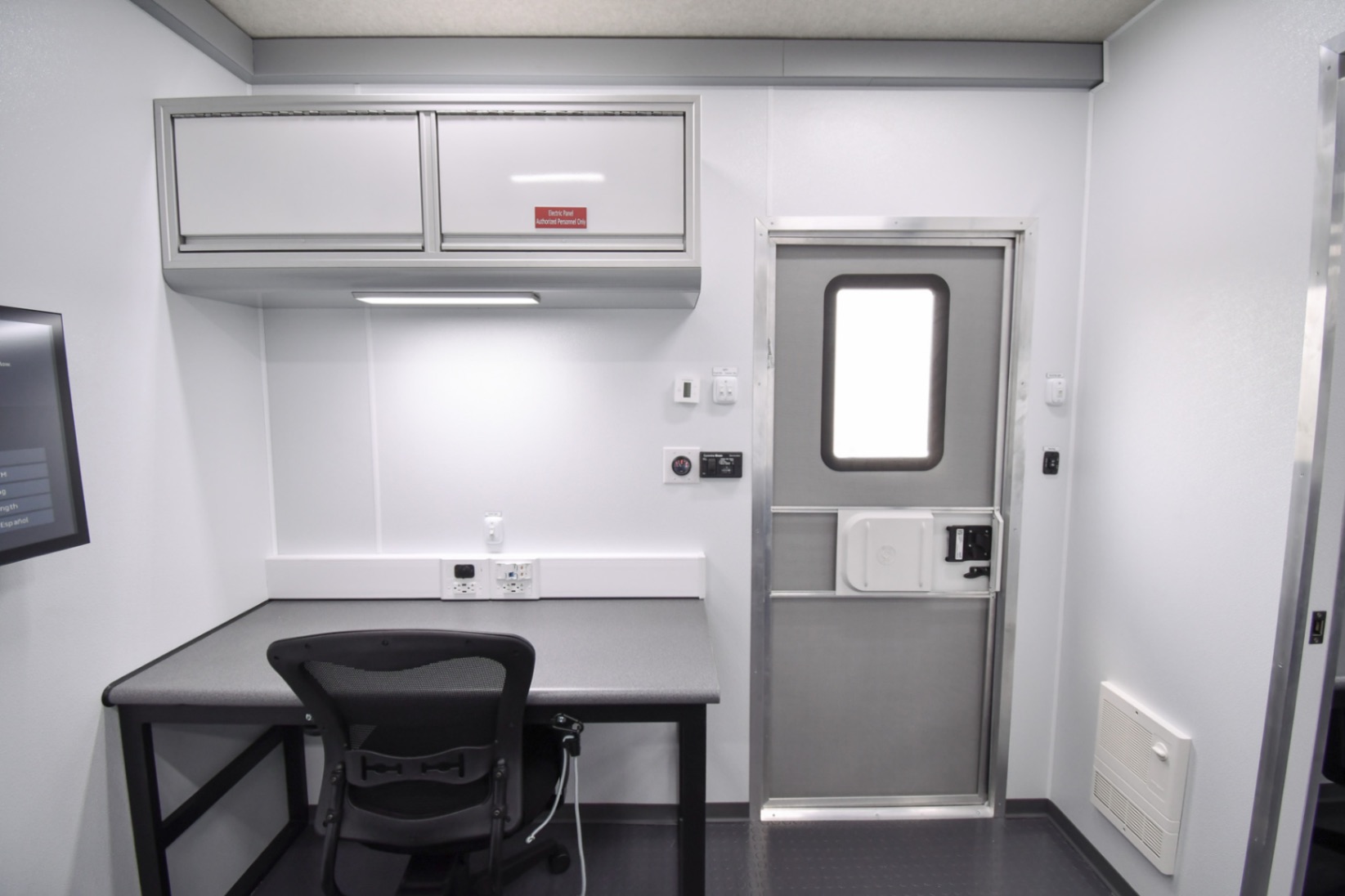

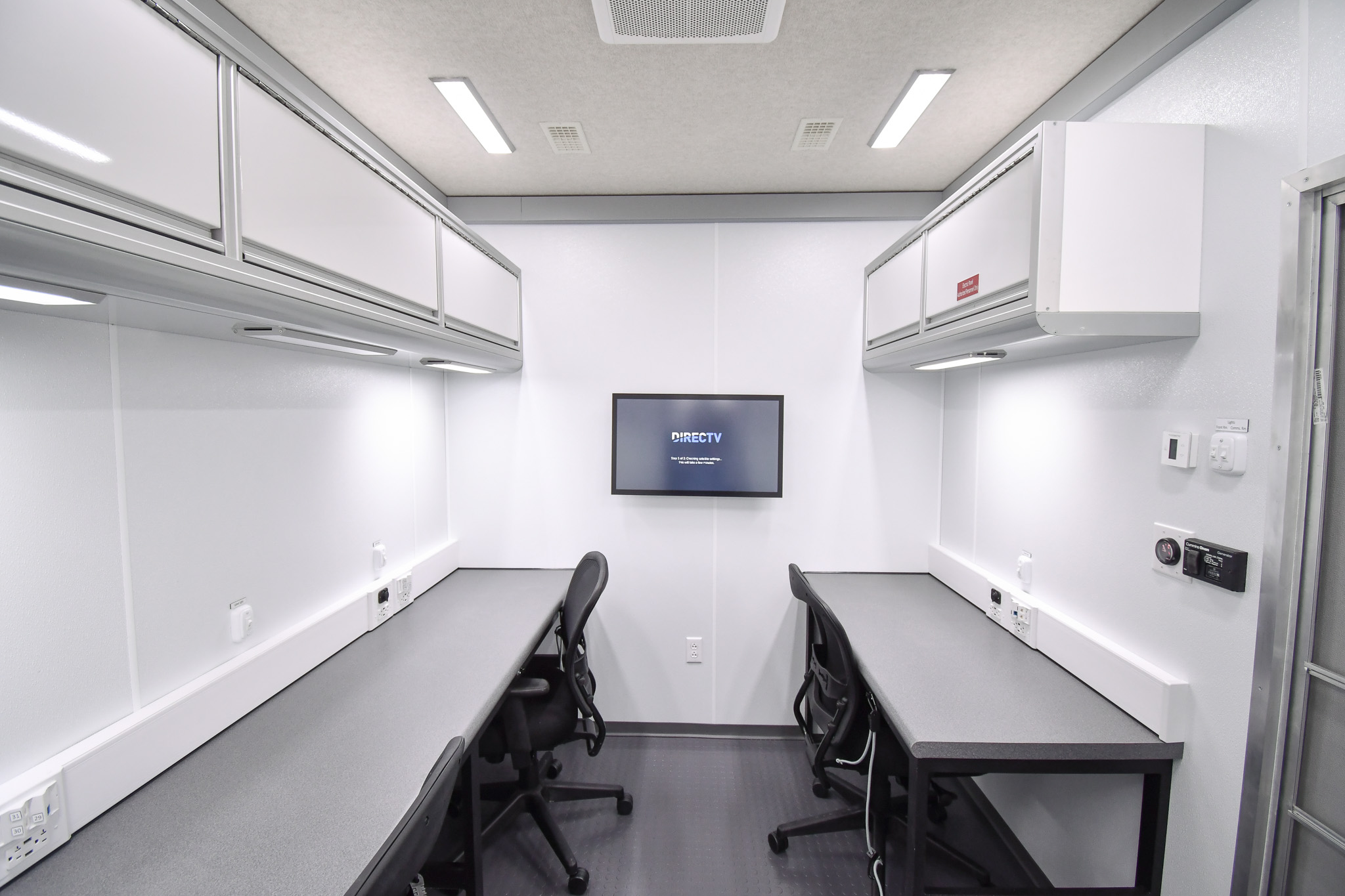

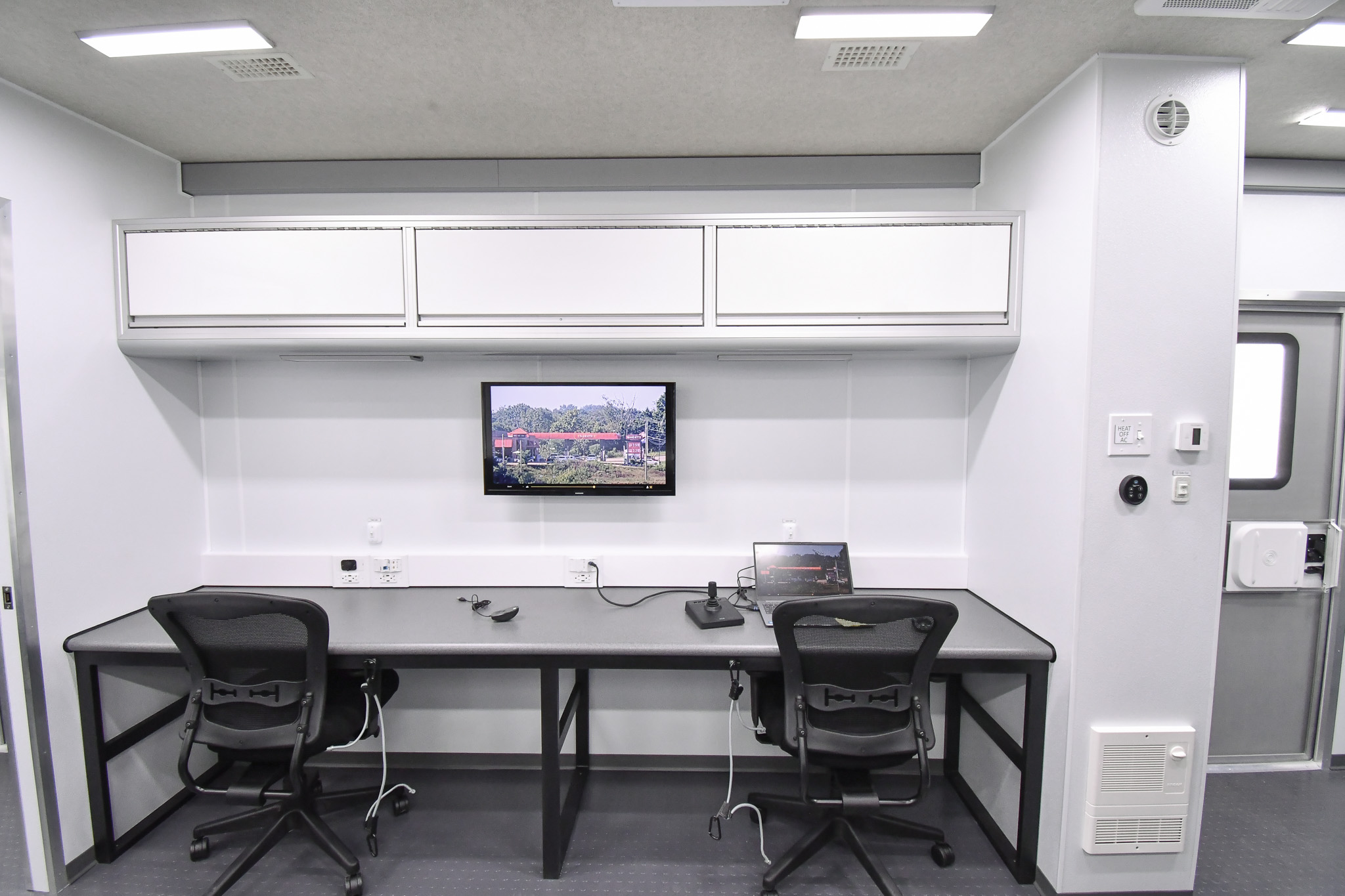

- Workstations: Eight workstations with task chairs

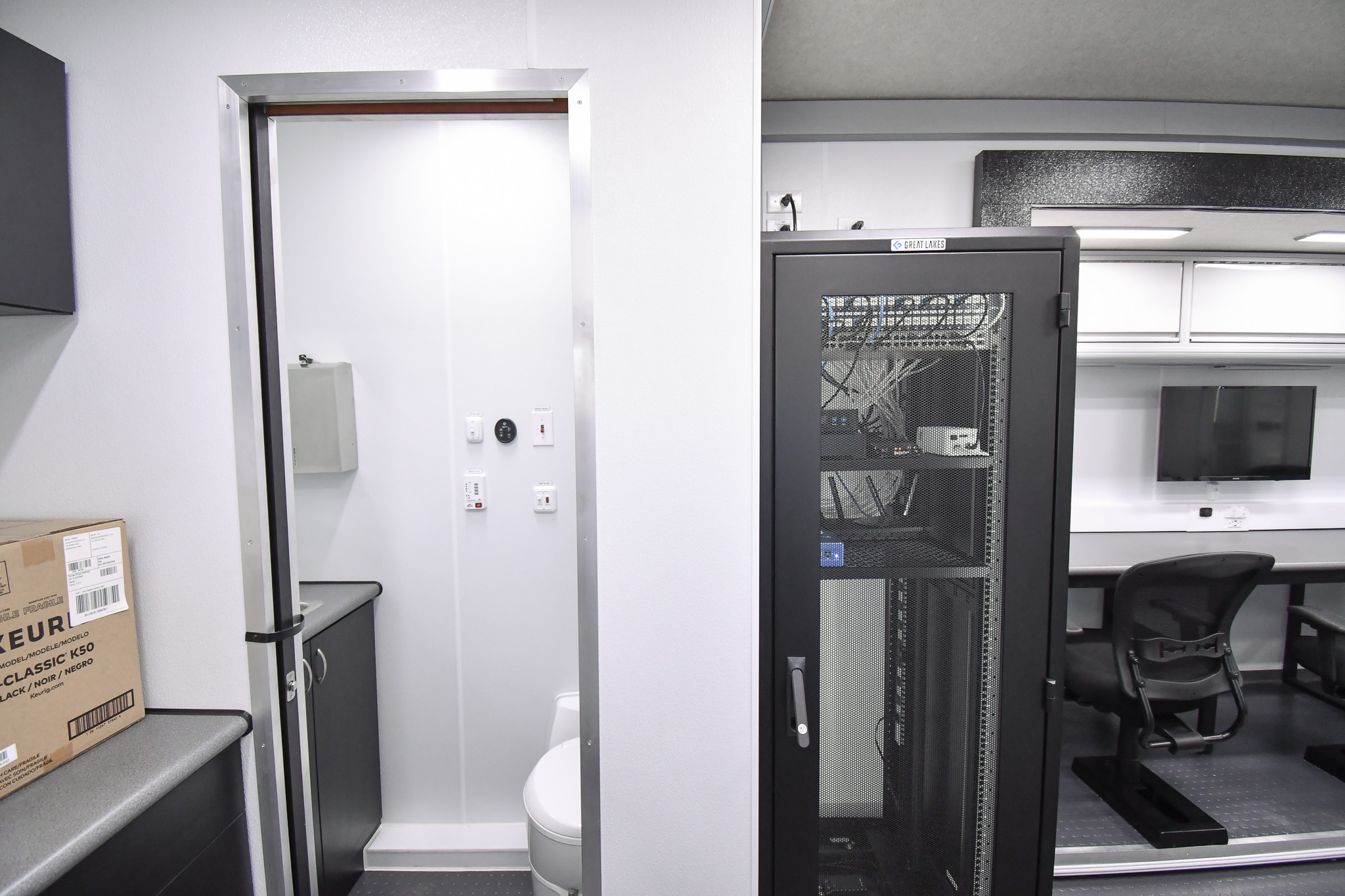

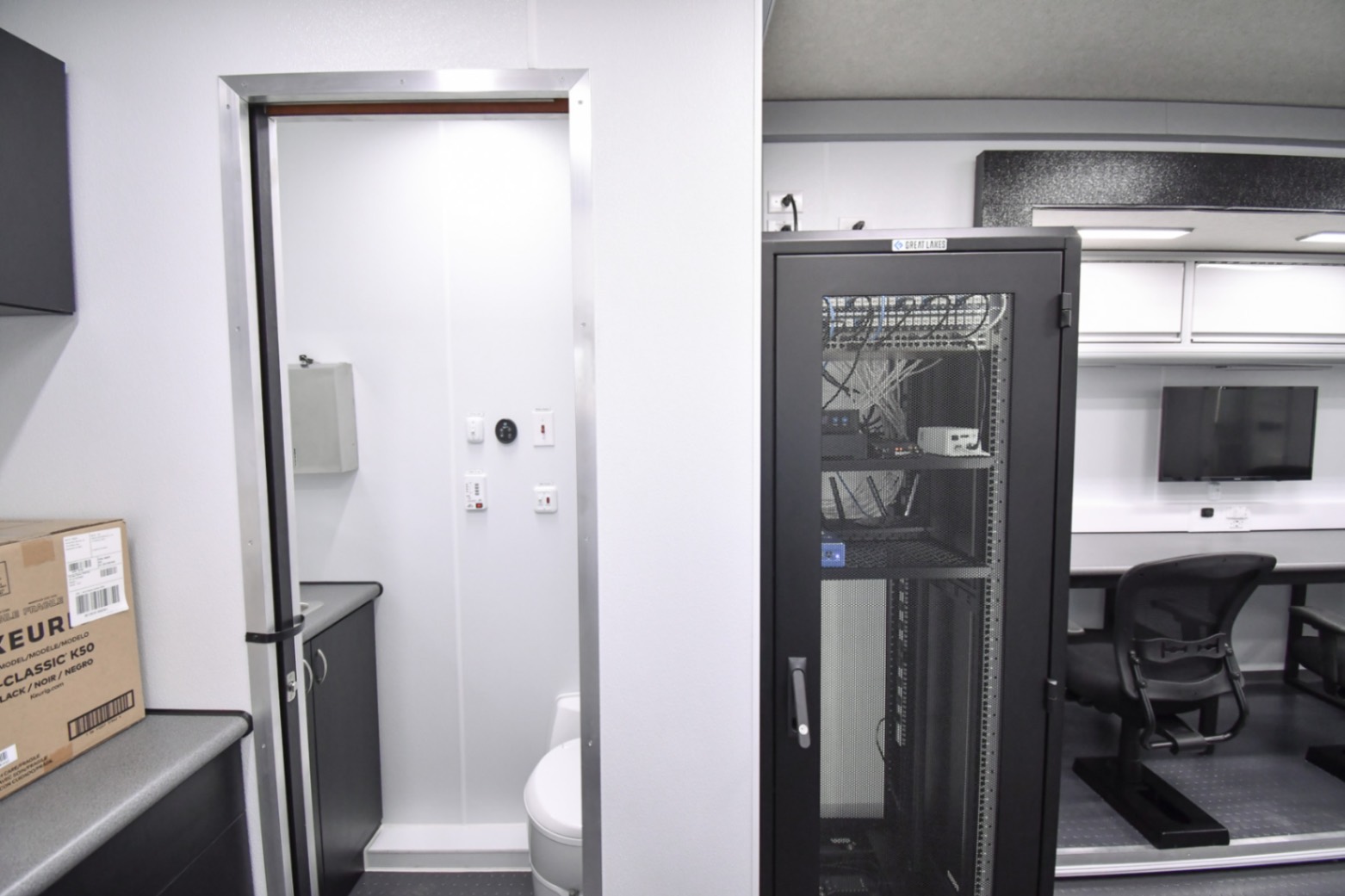

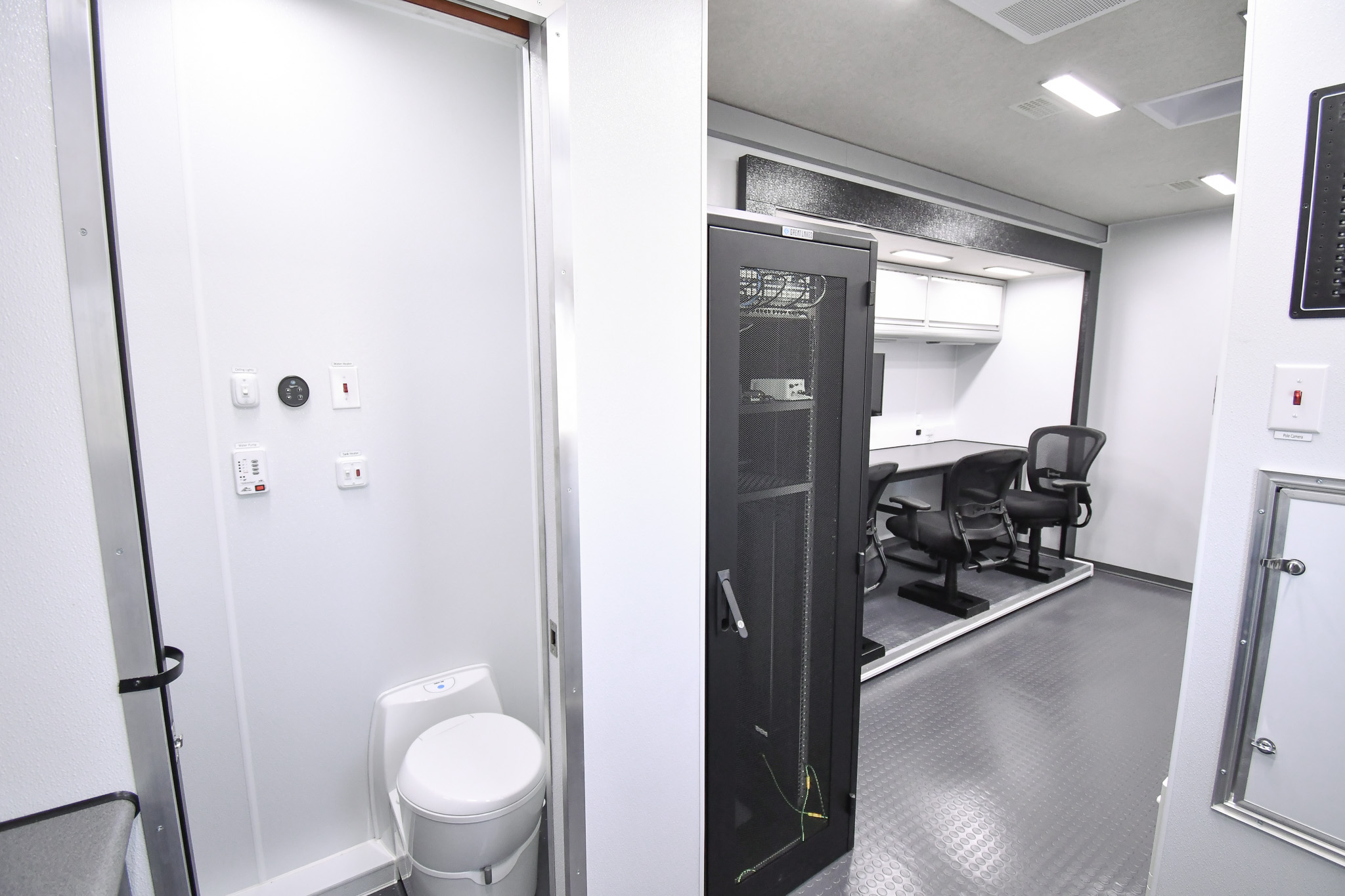

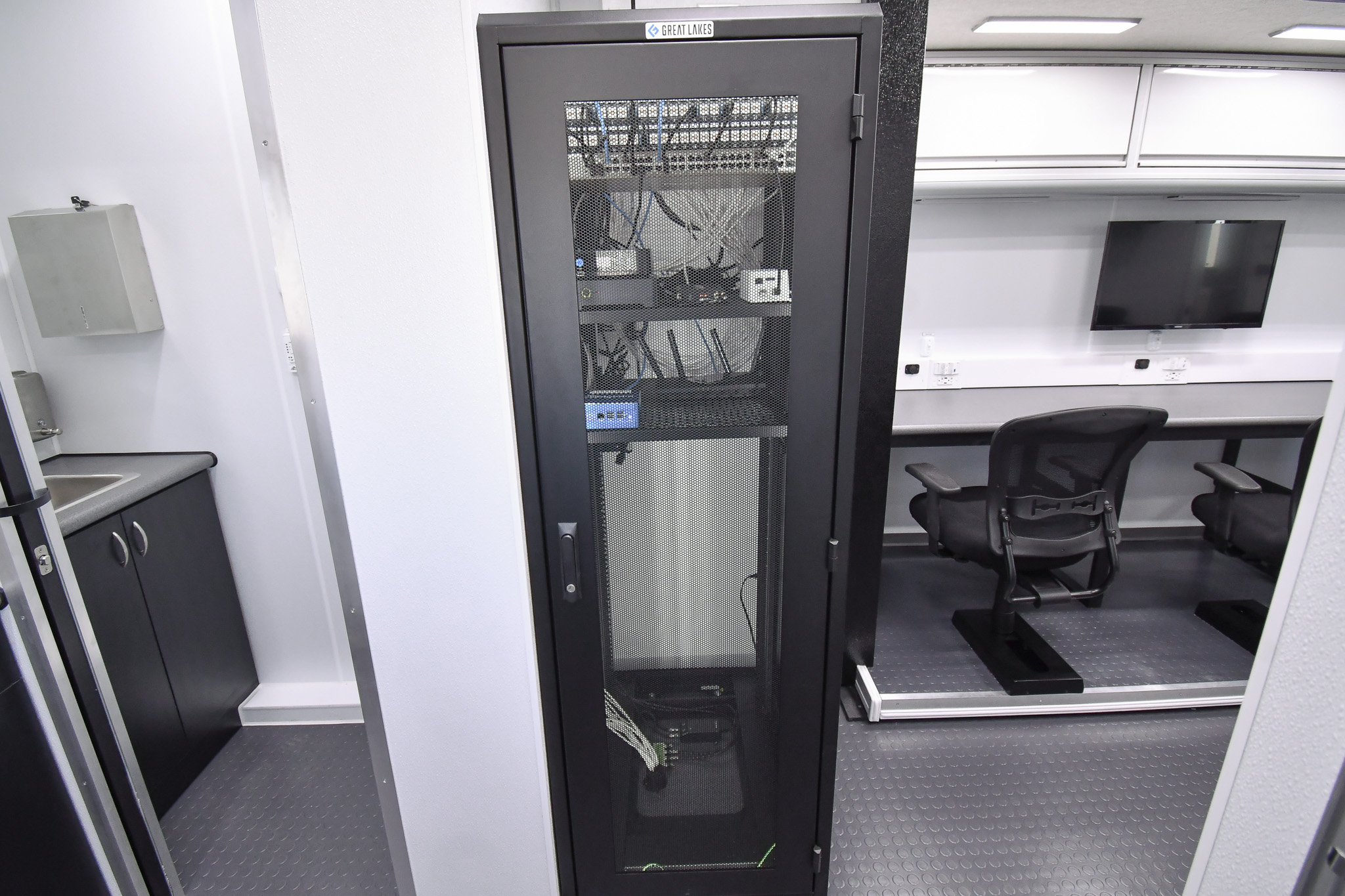

- Equipment rack: One 37u equipment rack with two shelves, two 16-outlet strips, one 48-port patch panel, one dedicated 12v block, and one dedicated 20-amp receptacle

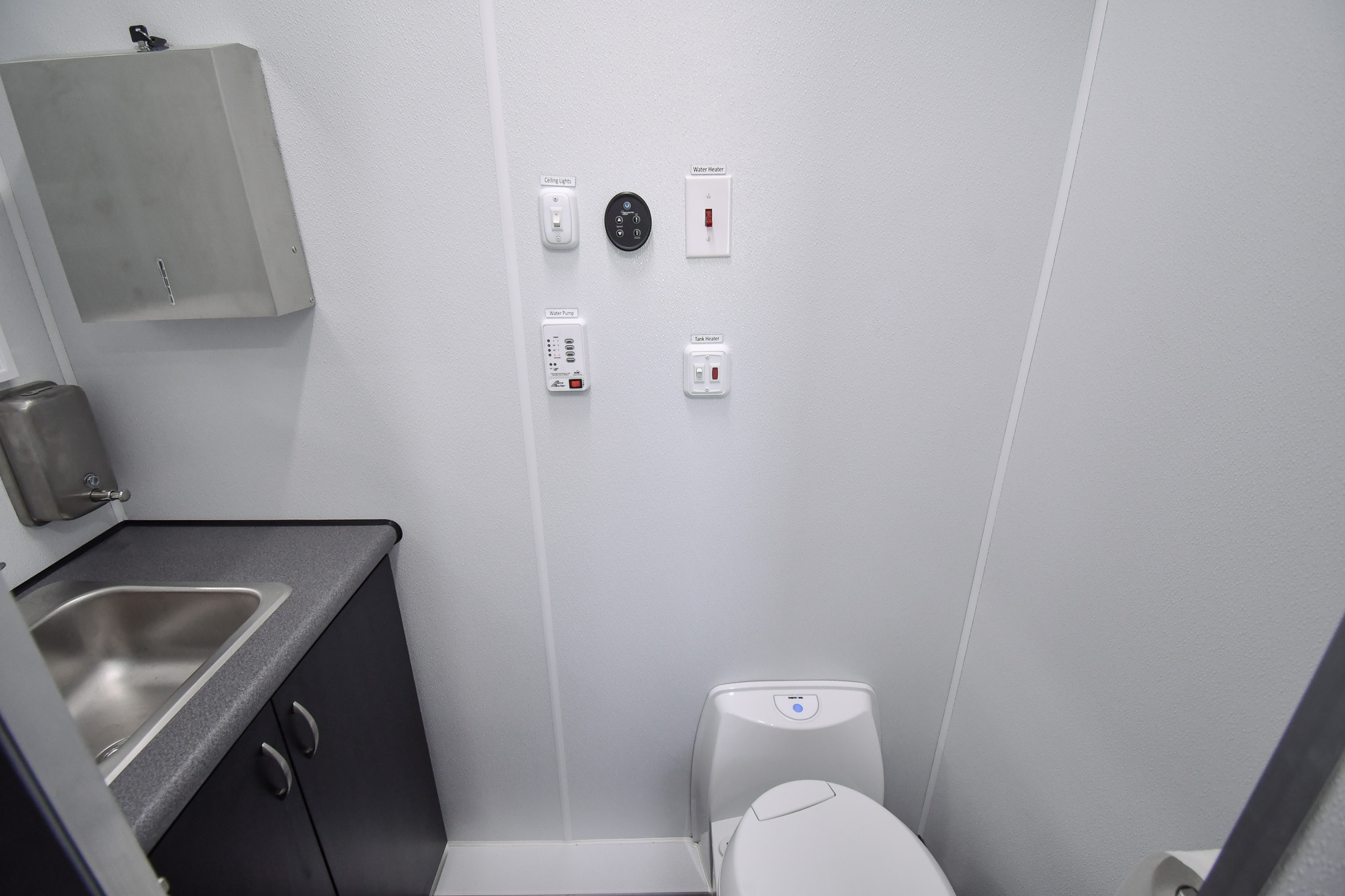

- Lavatory: With a commode, sink, two toilet cassettes, and one 14 1/2 x 14 1/2 access door
- Plumbing: One 24 gallon gray tank, a 20 gallon fresh water tank, and a tankless hot water heater
- Appliances:

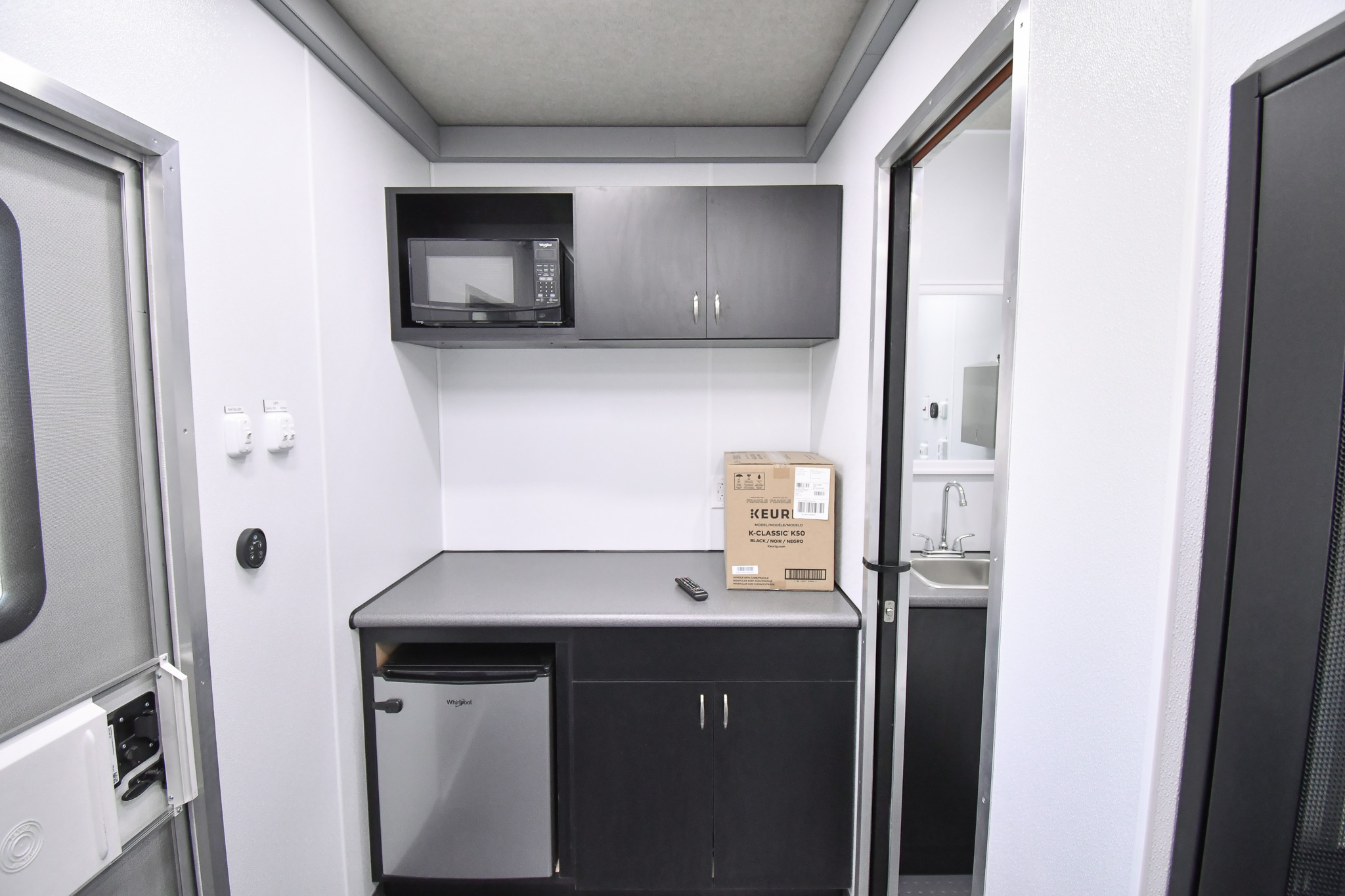

- A kitchenette with one refrigerator, microwave, and Keurig
- Sangoma phone system with eight phones
- One 7″ monitor
- Two 32″ TVs and one 32″ touchscreen TV
- Two battery operated smoke/CO alarms
