Evidence Collection Truck

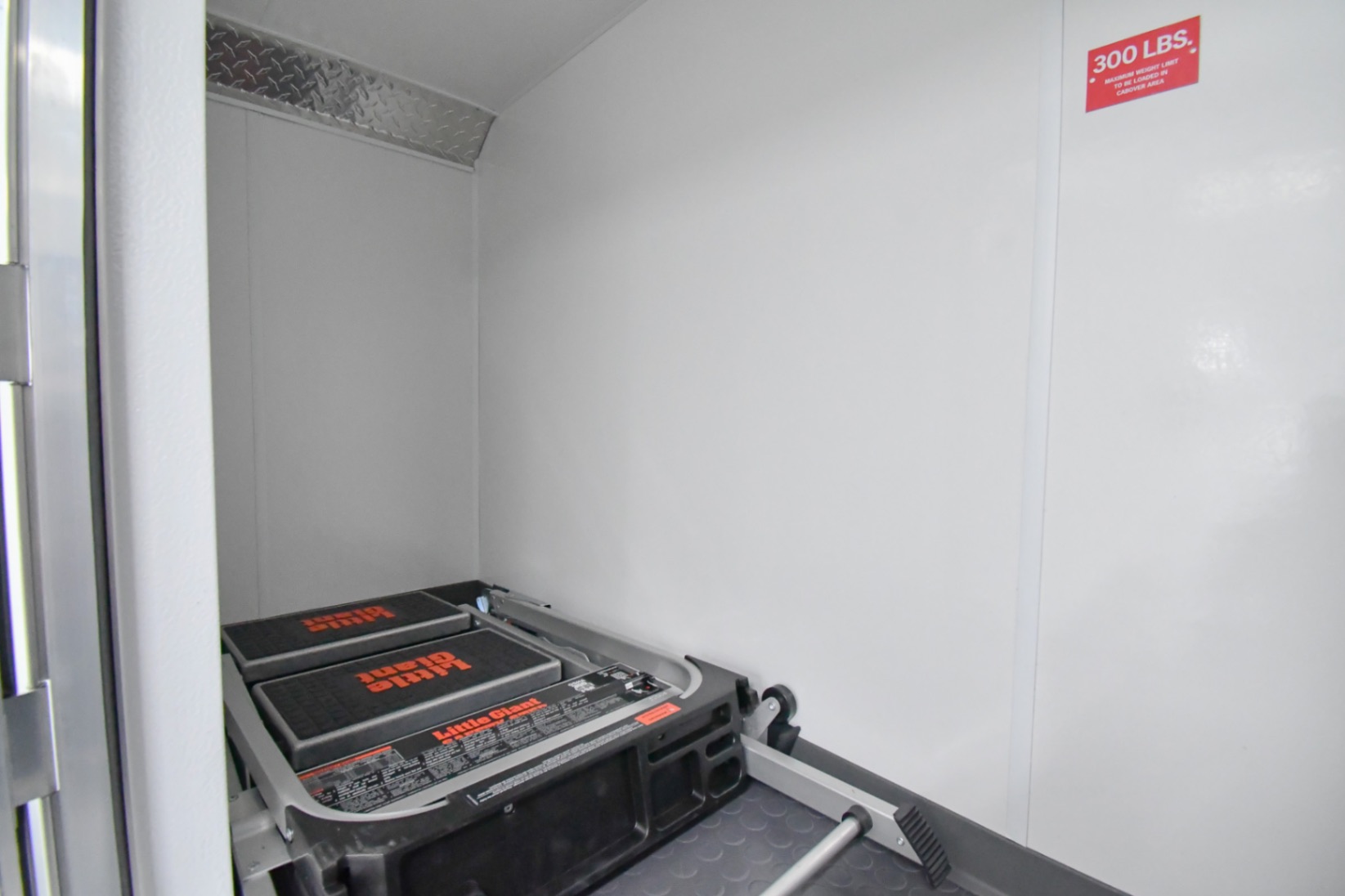

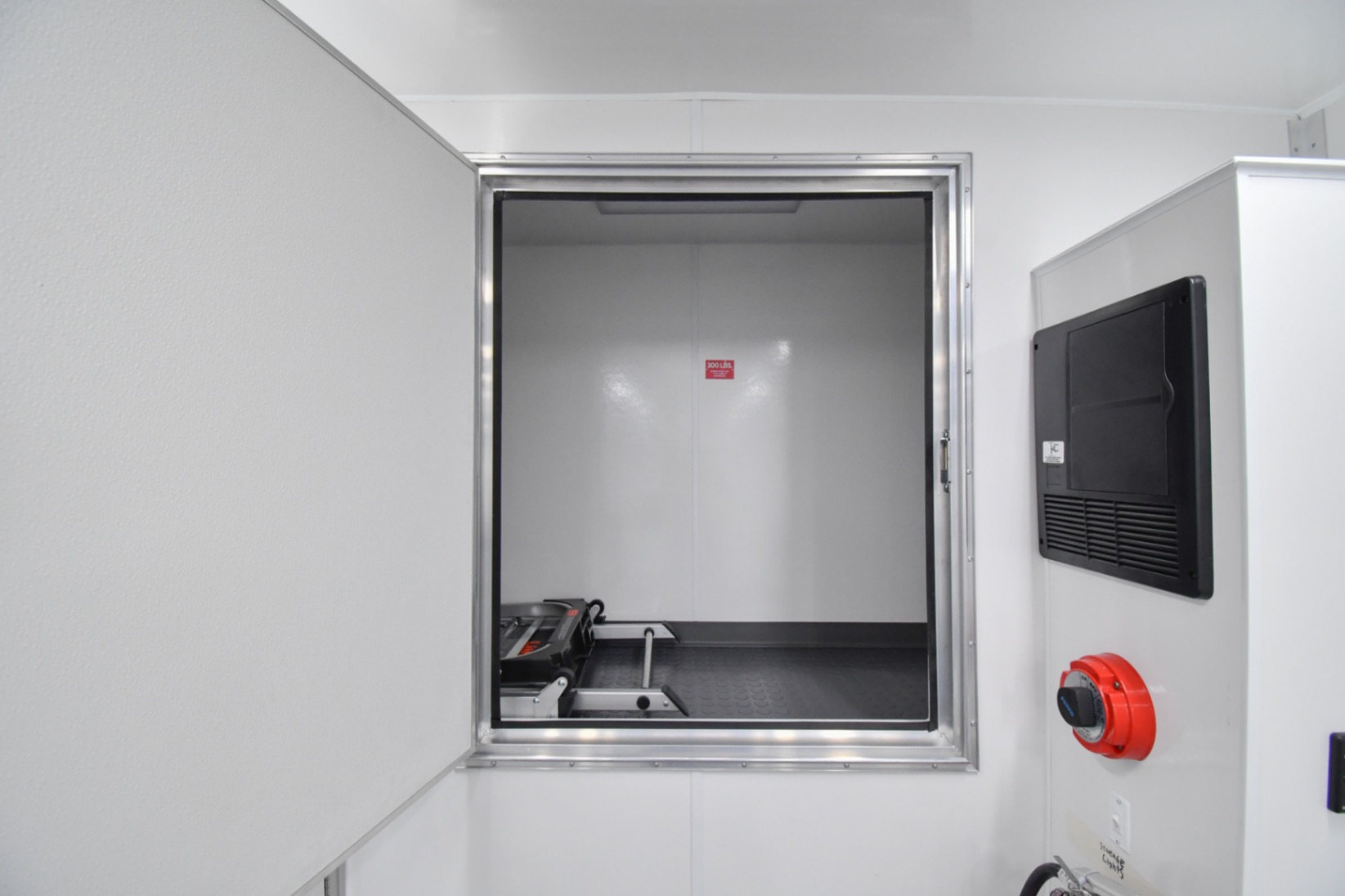

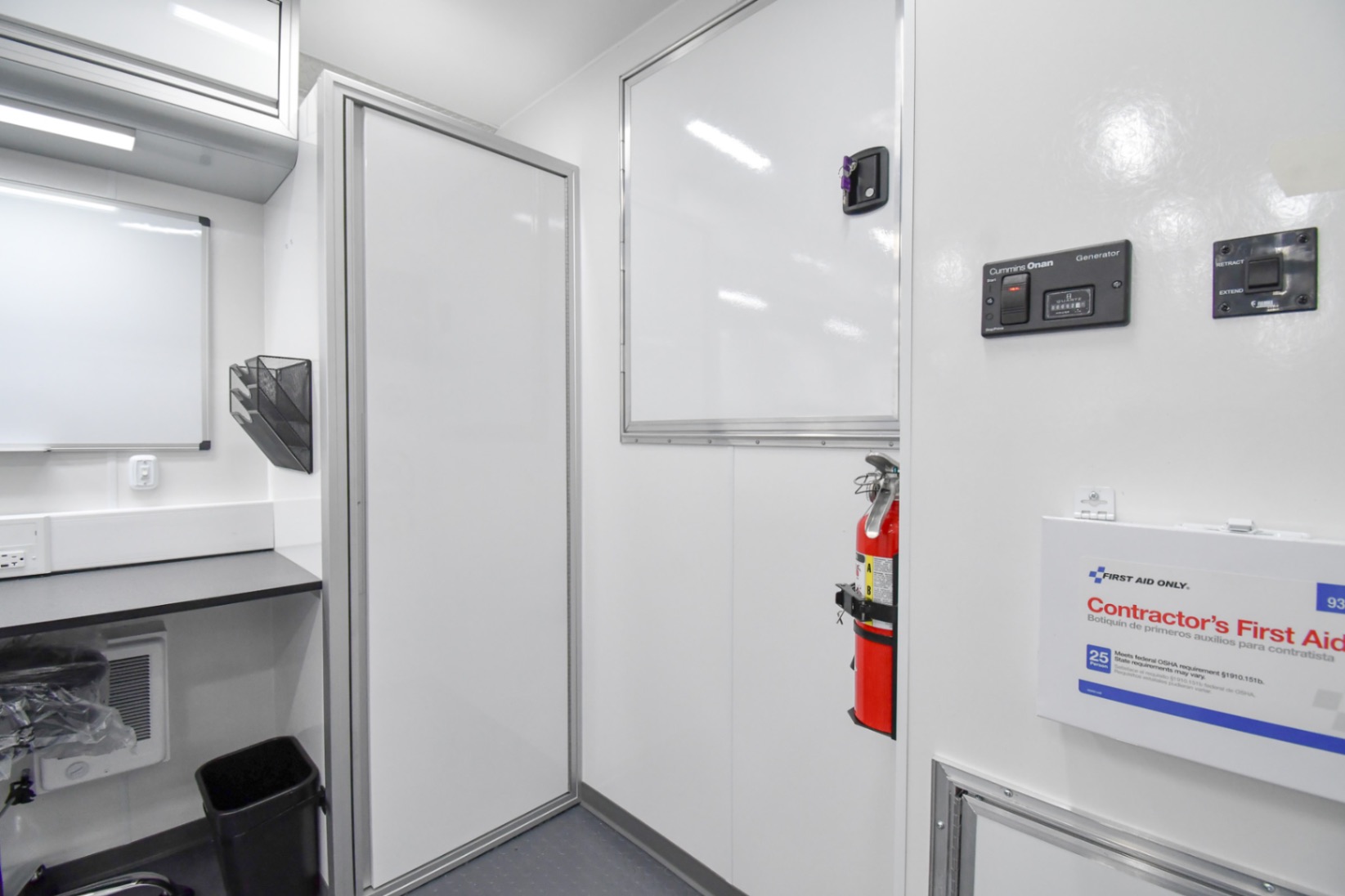

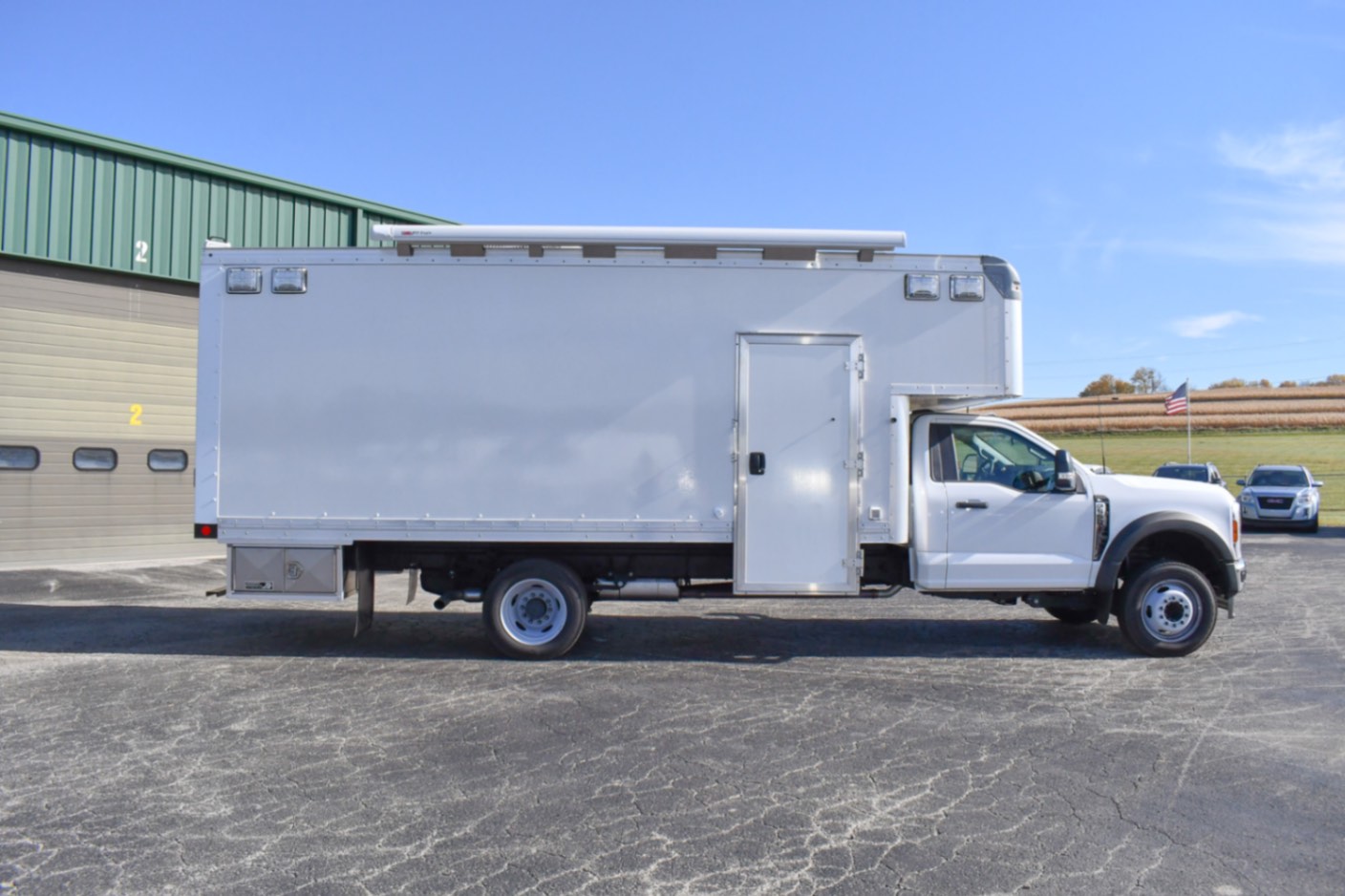

This 18′ Evidence Collection Truck, custom-built for the Kansas Bureau of Investigation, serves as an ideal location to further investigate, store, and transport evidence collected on the job. Its main features include one workstation with two stools, one wall-mounted fire extinguisher, one wall-mounted first aid kit, one eye wash station, a document holder, two portable 75′ extension cords, one folding aluminum ladder, three small LED flood lights, one antenna cable with an NMO mount for a department-supplied radio, and one roof vent. In addition to the ample amount of both overhead and ground-level storage cabinets, this unit also features two exterior aluminum storage boxes, and one cabover storage area with a 36×36″ access door and 91″ wide load space.

Description

Specs

Vehicle

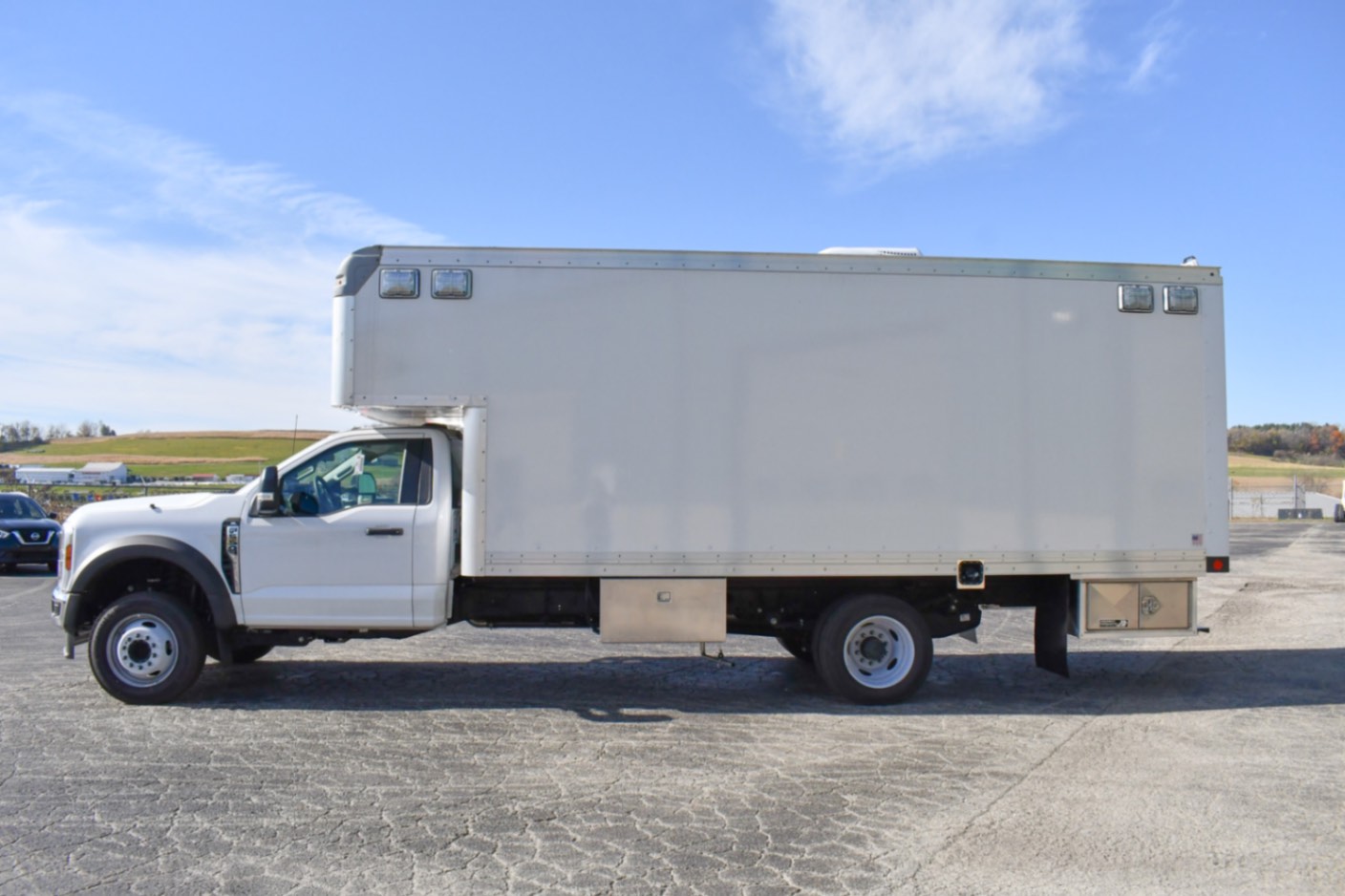

  • Model: 2025 Ford F-550 (Sirchie supplied)
  • Engine: 7.3L EFI V8 engine with 6-speed automatic transmission
  • Electrical systems:
    • One extra heavy duty 410-amp alternator
    • One heavy duty 650-amp CCA battery
    • One heavy duty amp auxiliary battery
  • Additional feature: Rearview camera and backup alarm

Electronics & Power

  • Generator: Onan 7.0 gasoline generator with remote start and ATS
  • Power management:
    • 50-amp electric panel with an 80-amp converter
  • Wiring & Connectivity:
    • Pre-wired for 110vUSB duplex and 12v outlets
    • One antenna cable with NMO mount on roof for a department-supplied radio
  • Climate control:
    • One roof vent
    • One 13,500 BTU rooftop AC/Heat pump
    • One electric wall heater

Interior

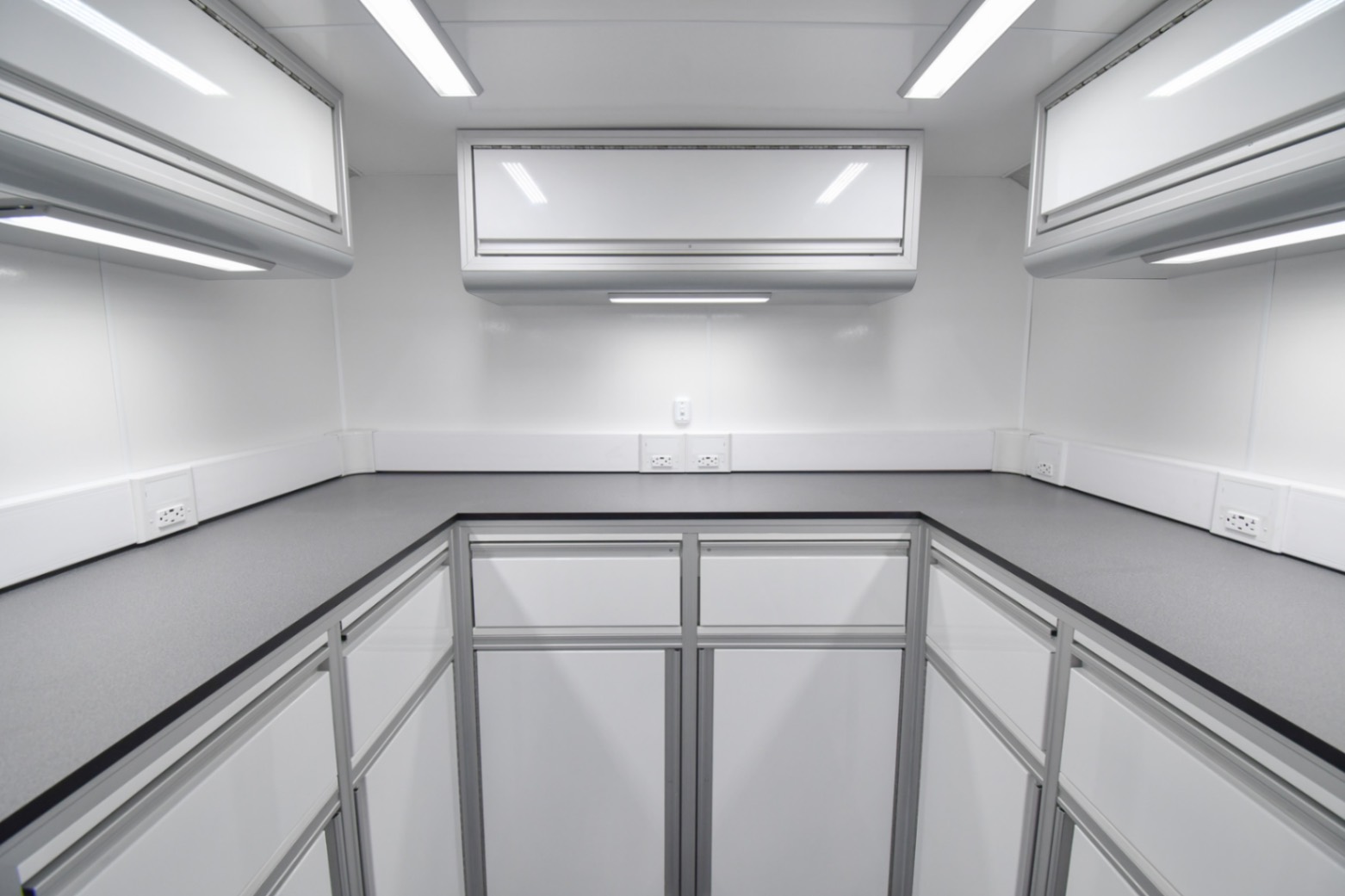

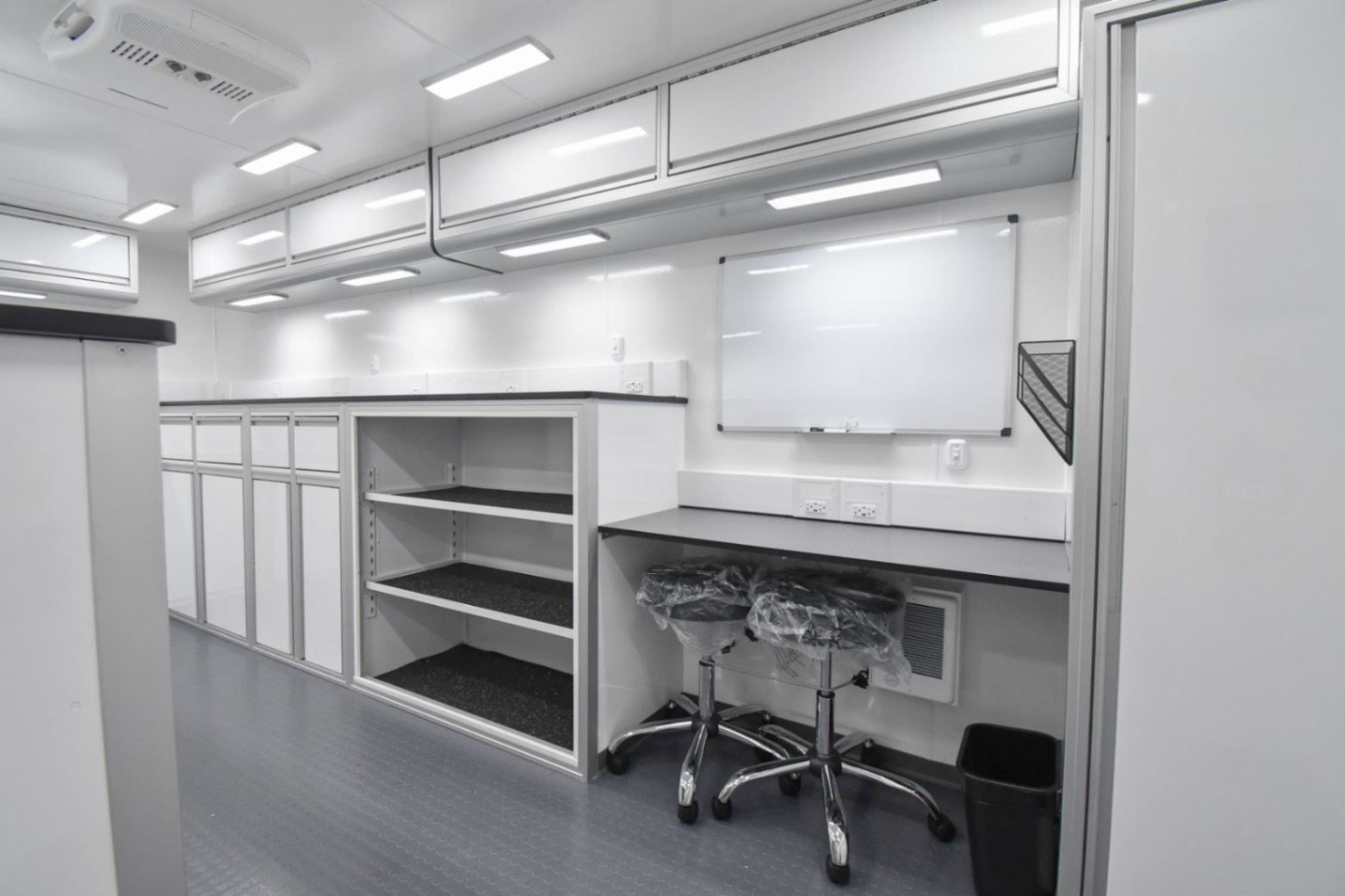

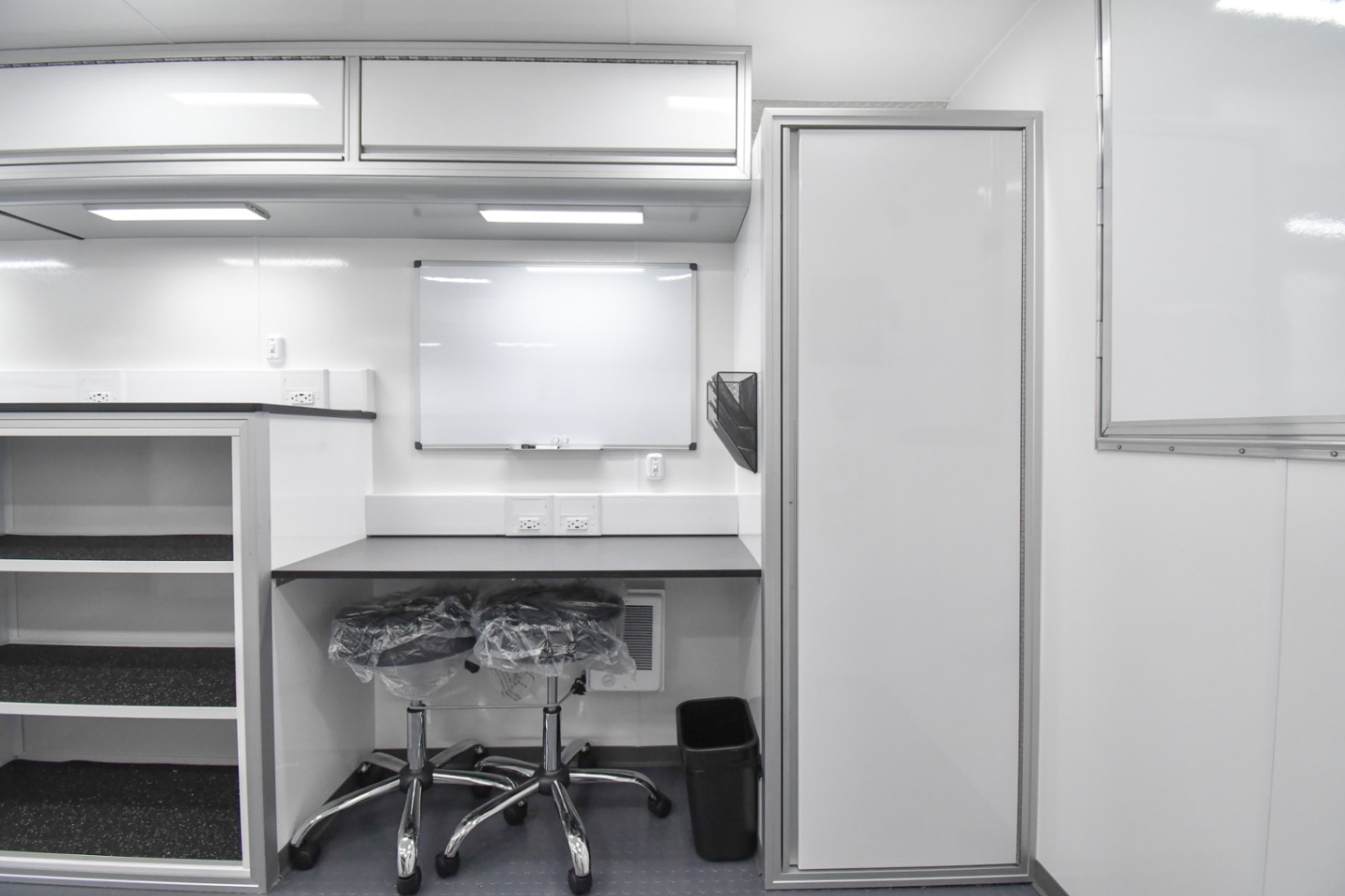

  • Workstation: One workstation with two stools
  • Storage & Surfaces:
    • 91″ wide load space

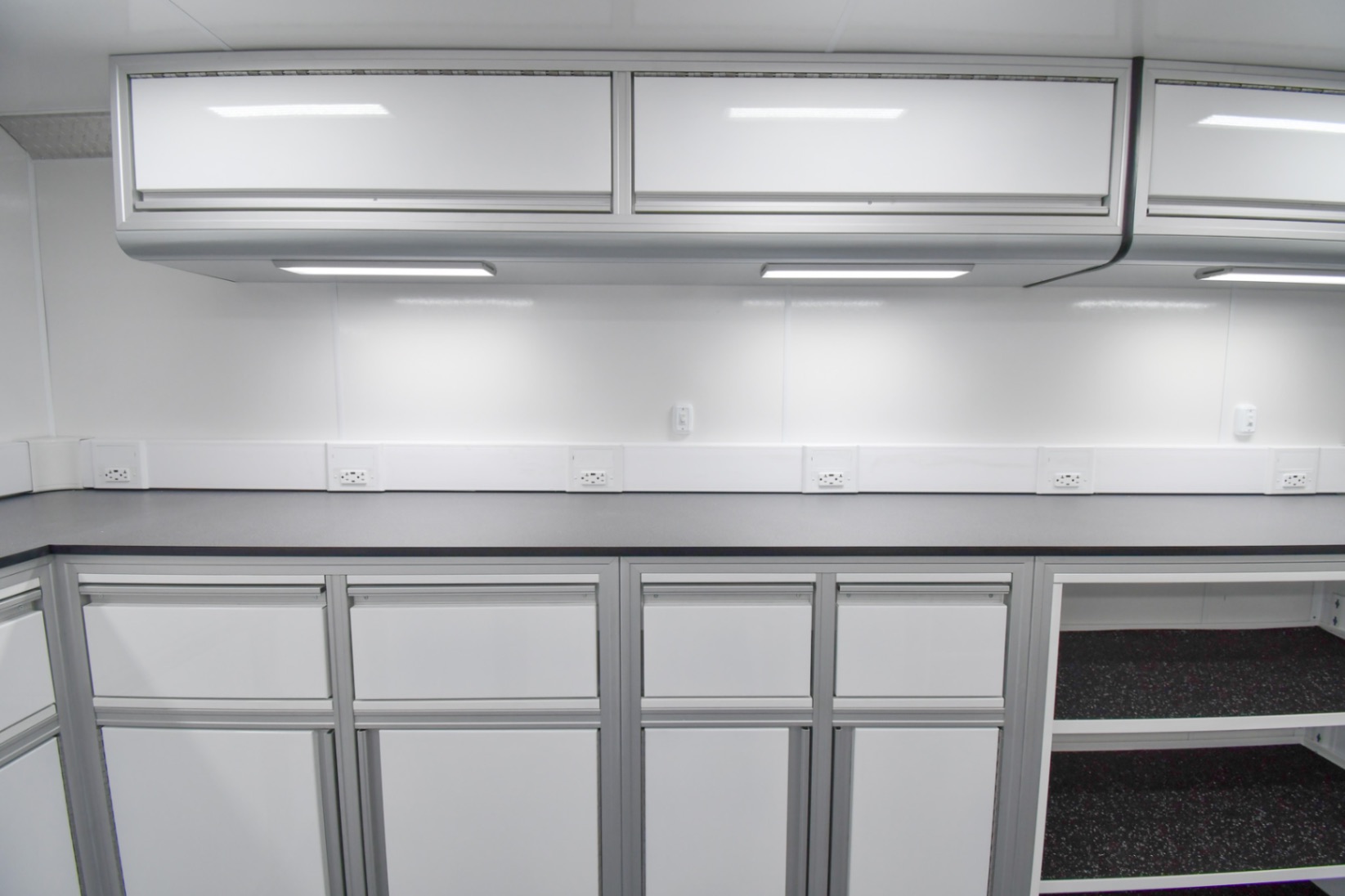

    • Laminate counter tops

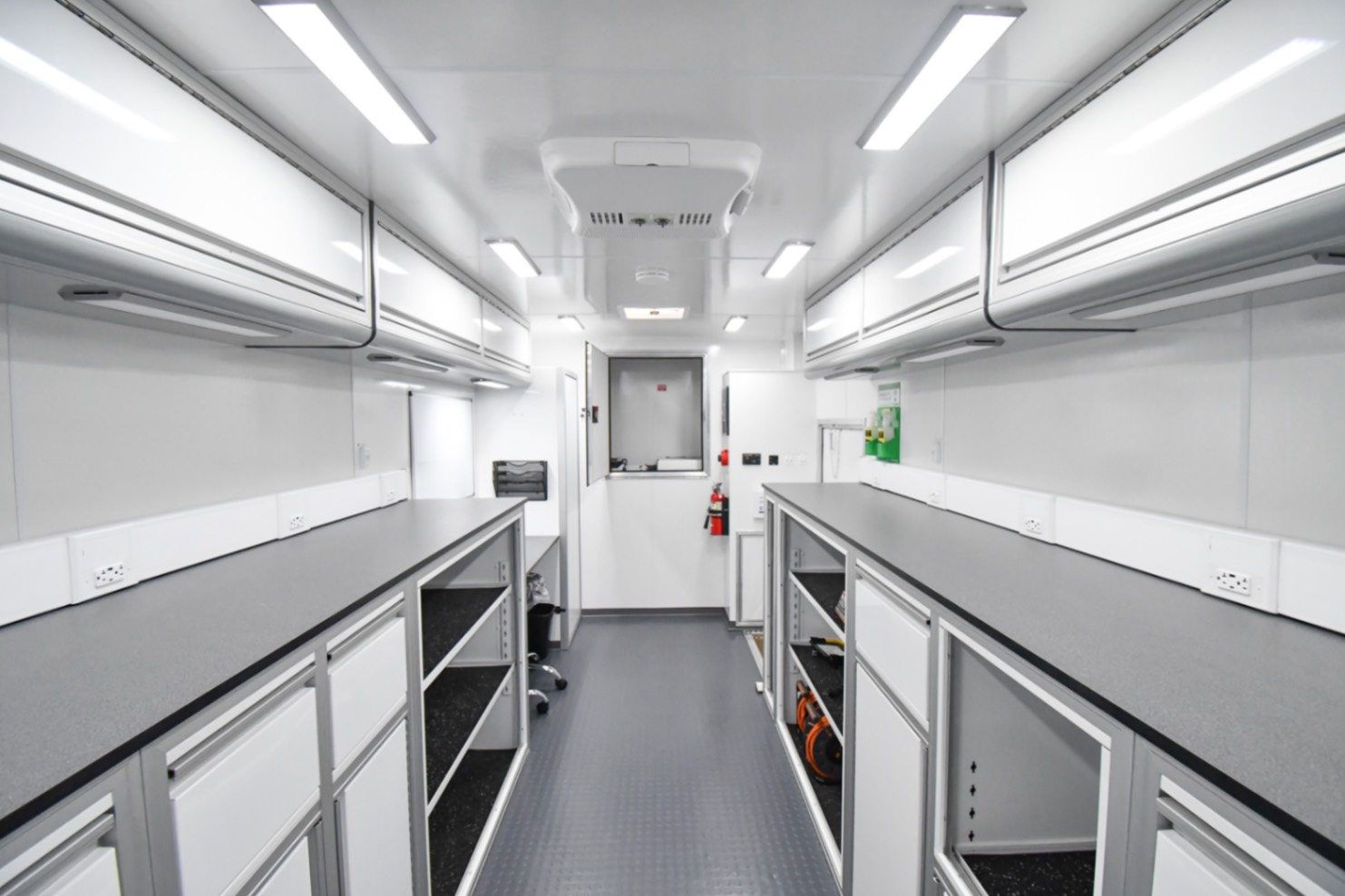

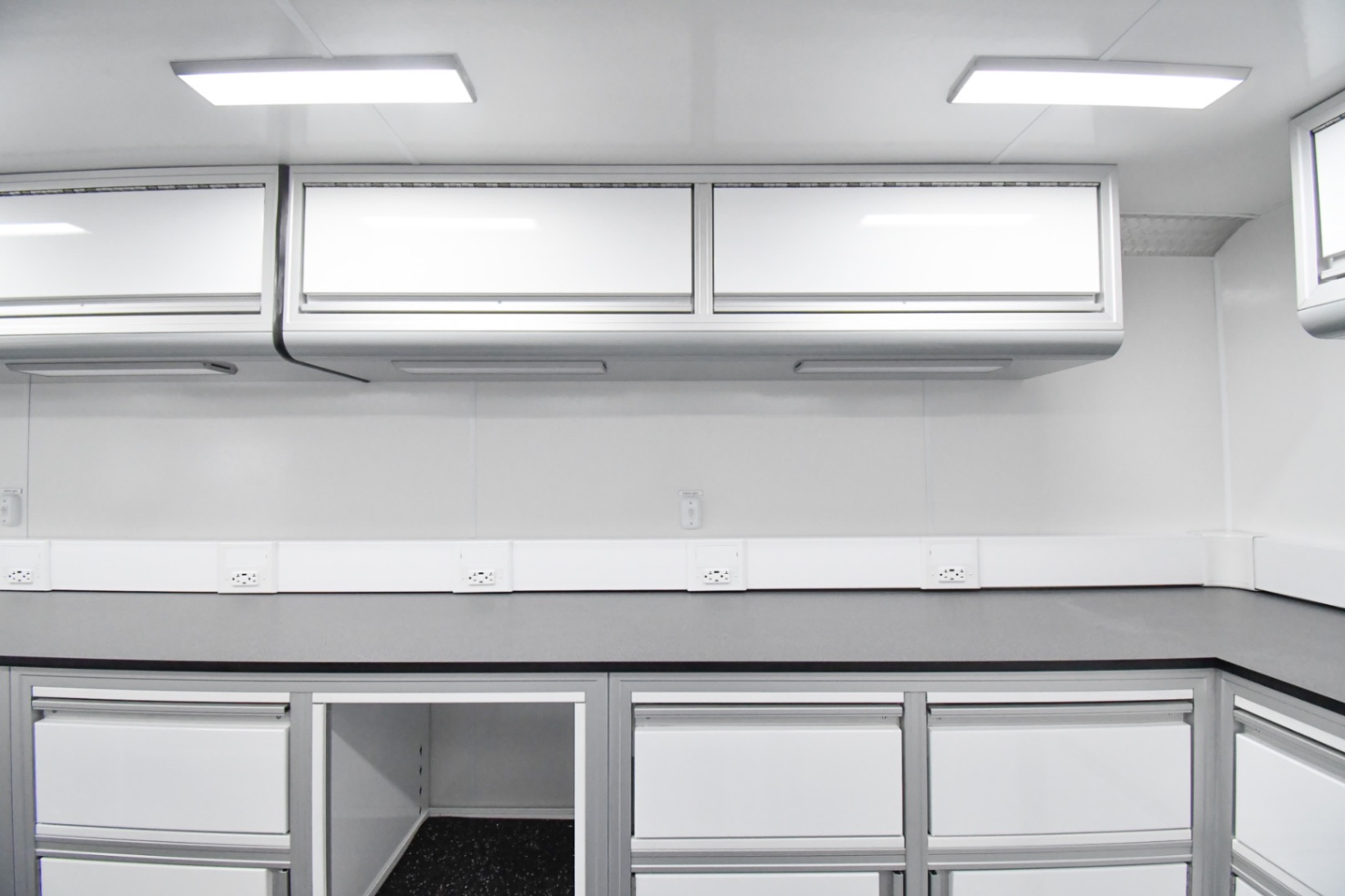

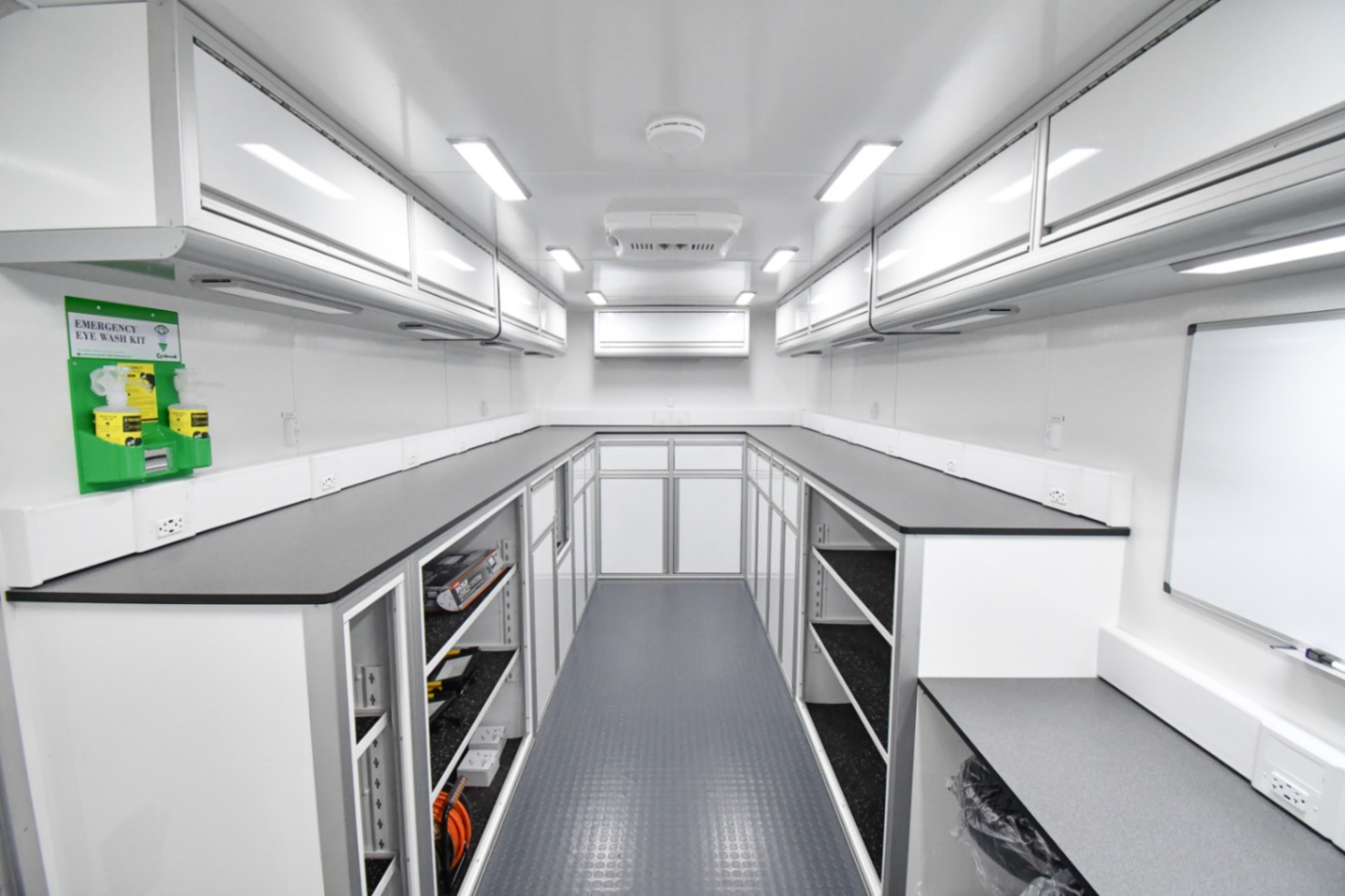

    • ACE lower and upper cabinets
  • Appliances & Equipment:

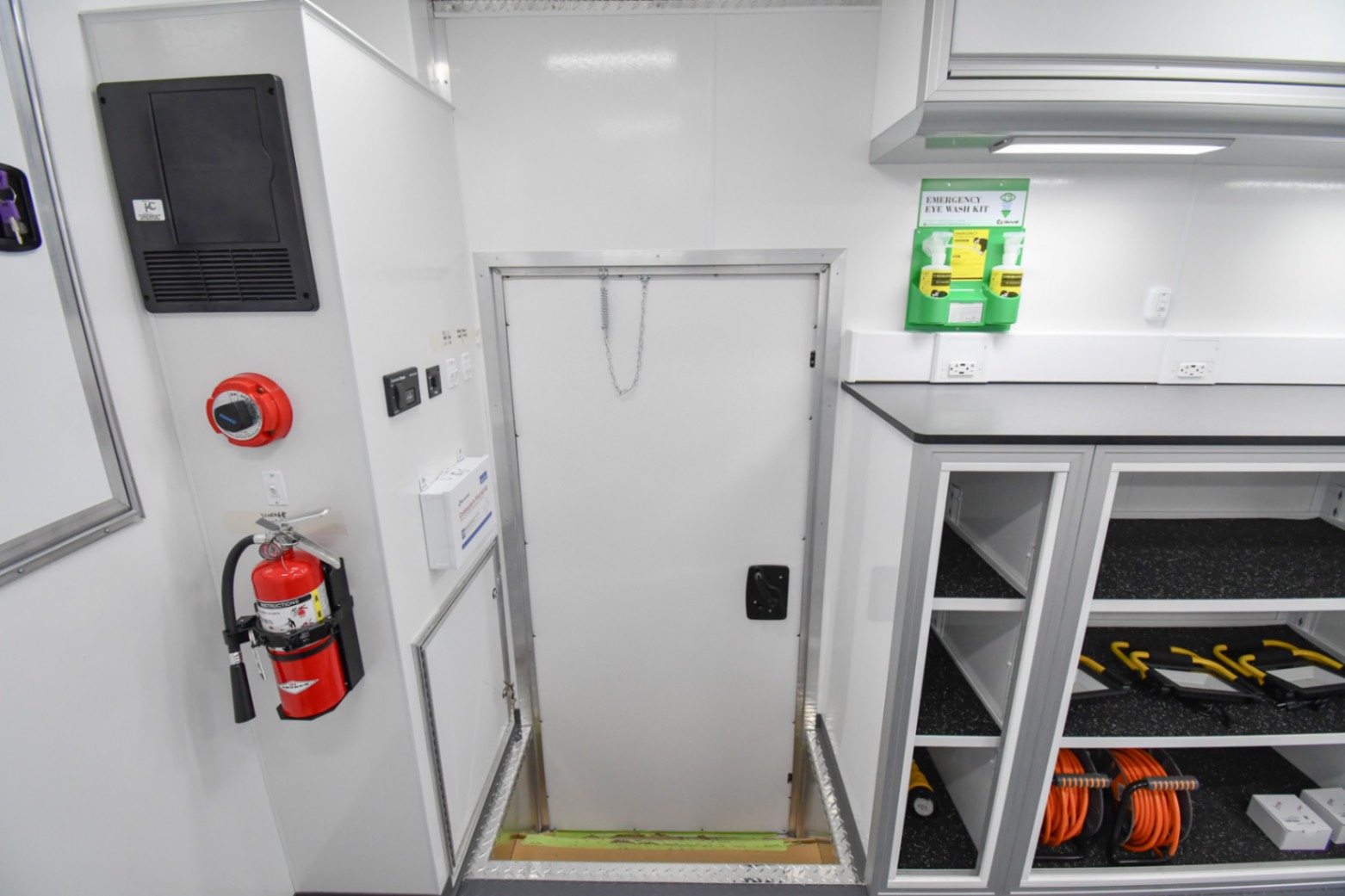

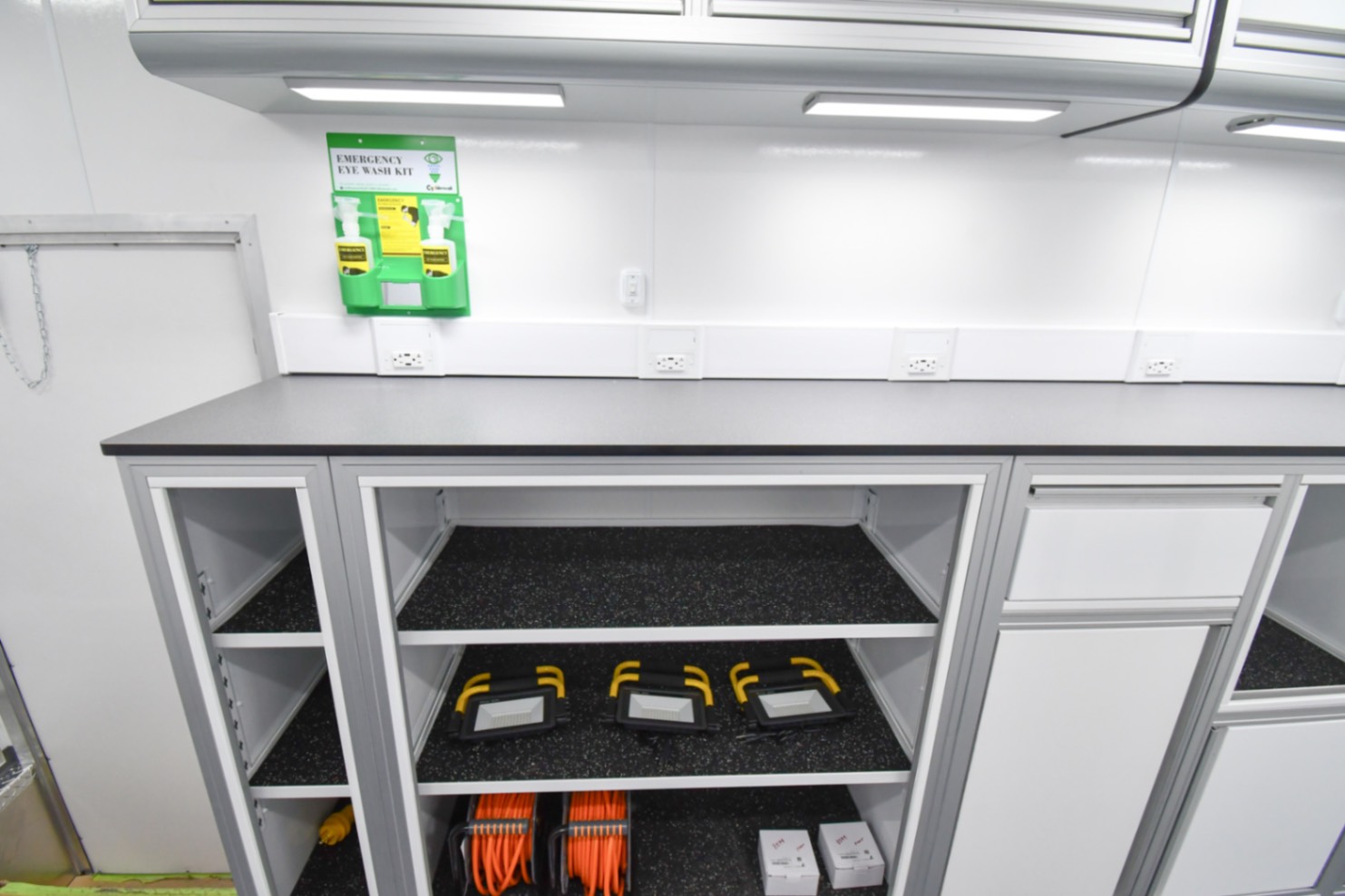

    • A wastebasket, document holder, battery combination carbon monoxide alarm & smoke detector, eye-wash station, wall-mounted first aid kit, two portable extension cord reels, and one folding aluminum ladder

Exterior

  • Durable construction:
  • Safety & Visibility:
    • Four exterior scene lights
    • Two telescoping LED lights
    • Eight red/blue emergency lights and Whelen siren
    • Two grille lights
    • A backup camera with monitor in cockpit
  • Power outlets: Two exterior GFCI protected receptacles

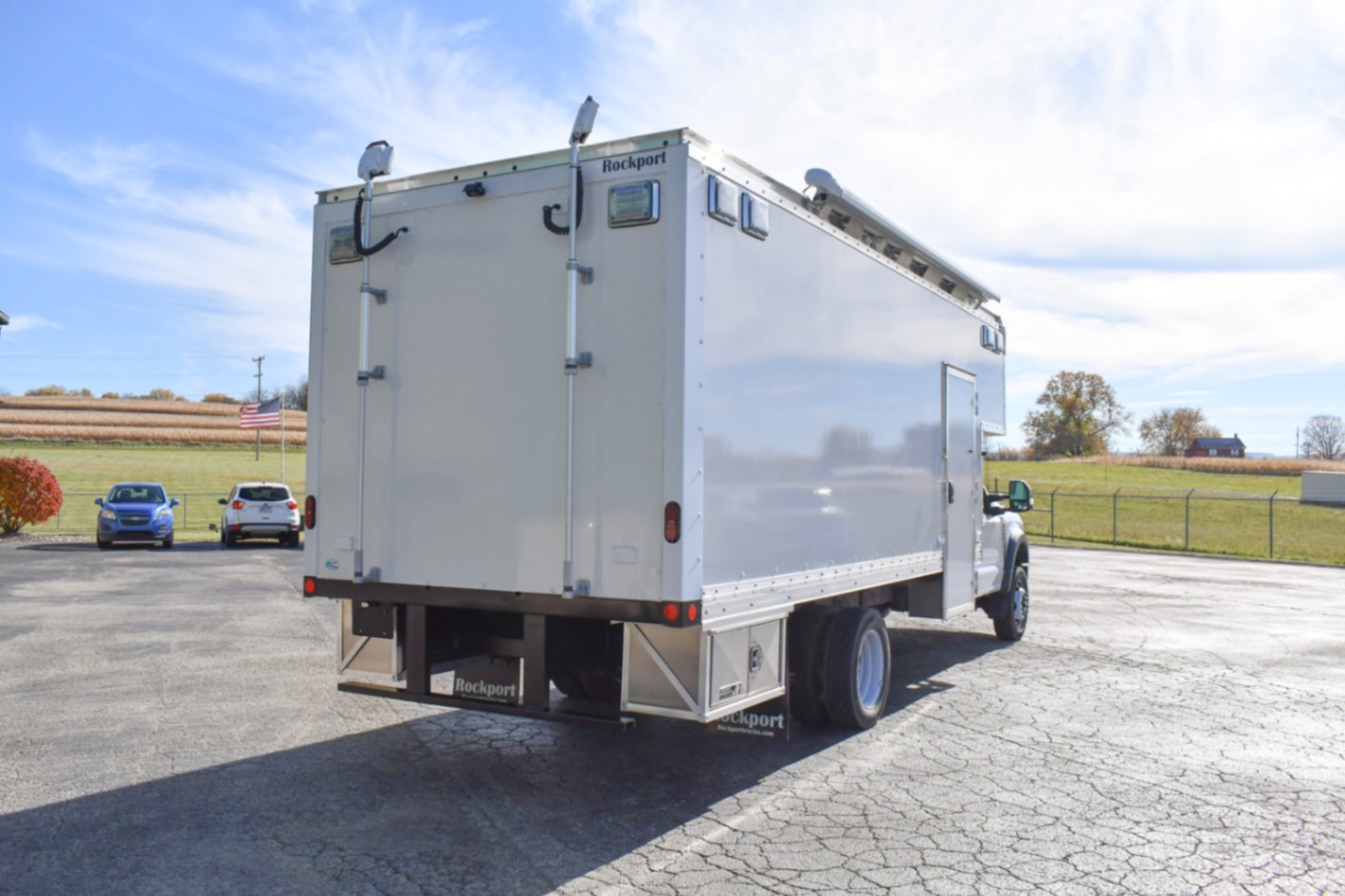

  • Exterior storage: Two aluminum storage boxes (one per side behind tires)
