Mobile Outreach Sprinter

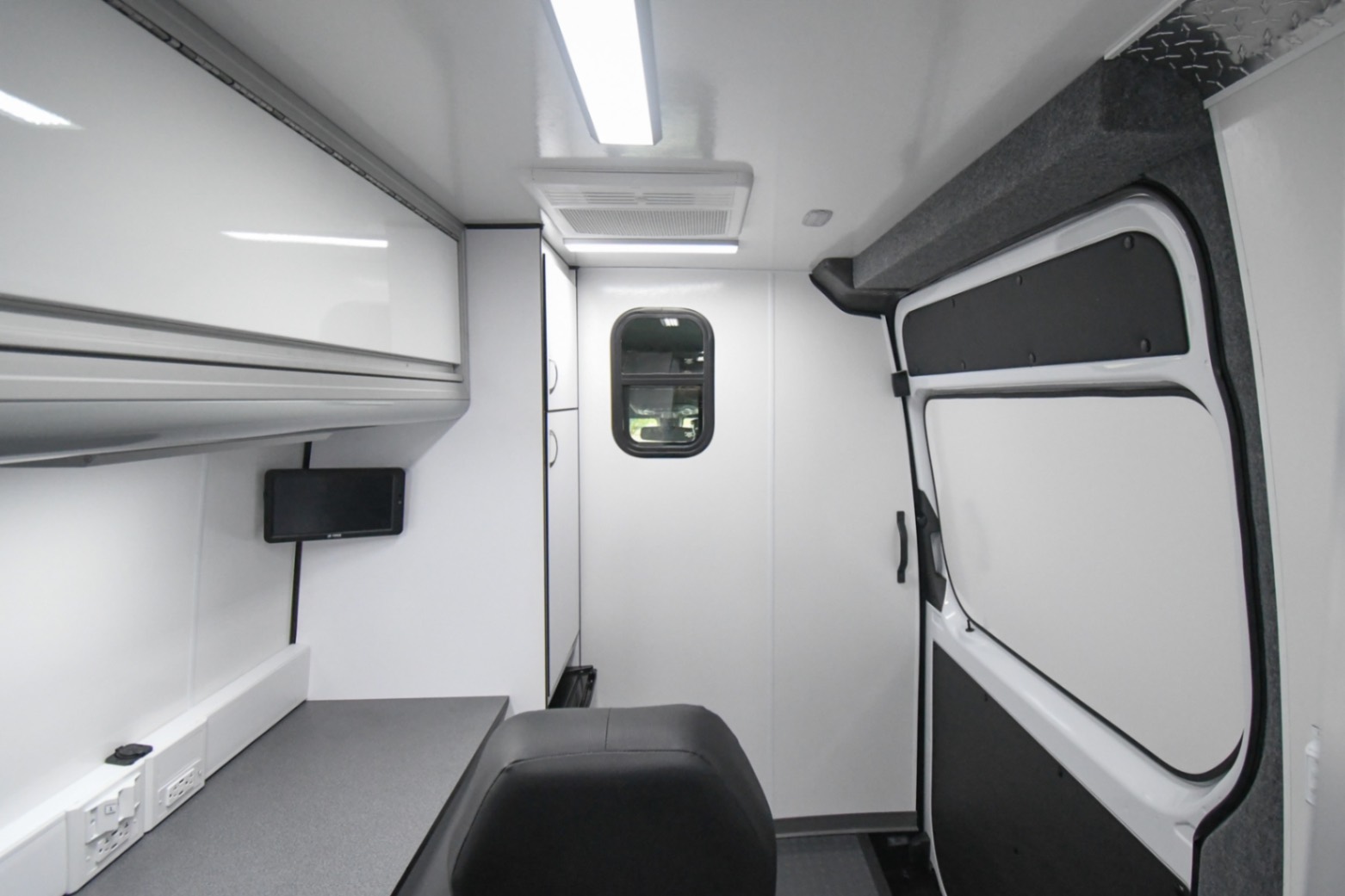

This Mobile Outreach sprinter van was custom-built for Del Norte County’s Behavioral Health Department in Crescent City, CA, to serve as a visible and mobile resource during outreach efforts, act as a primary mode of response for community crisis calls, and allow them to deliver immediate, on-site support to individuals in need. To effectively fulfill these duties, this sprinter van was customized to include two workstations, one mounted swivel chair, hinged padded bench seating for added storage space, and a 12×18″ window in the wall separating the cockpit from the work area. Additionally, it’s been outfitted with one Cradlepoint WiFi router and antenna, one 360-degree surveillance camera system, four perimeter lights, and an ample 120VAC electrical system.
Description
Vehicle

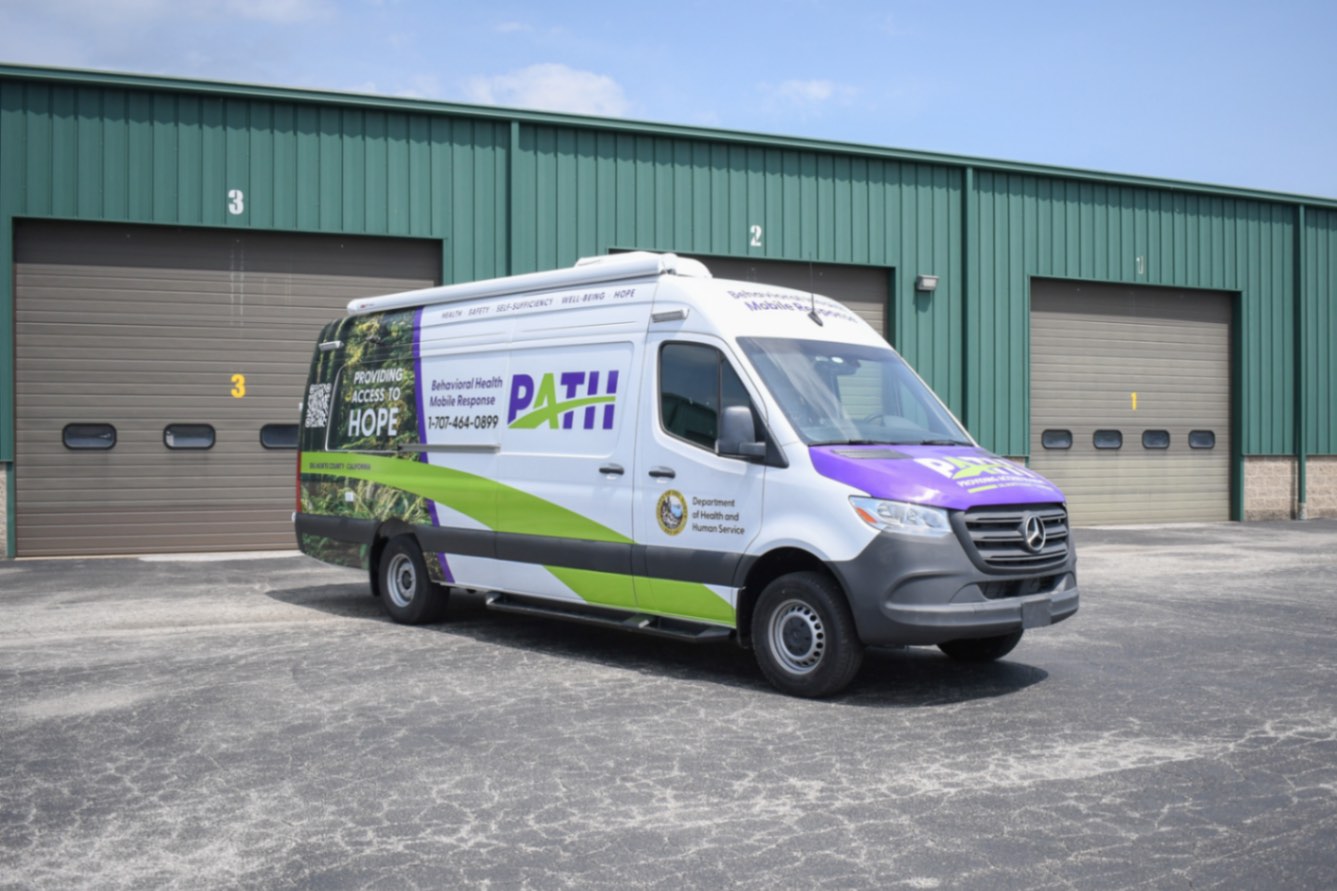

- Vehicle: Mercedes 3500 170WB extended cargo van (2WD)
- Roof: High roof
- Engine: Turbocharged 6-cylinder diesel engine

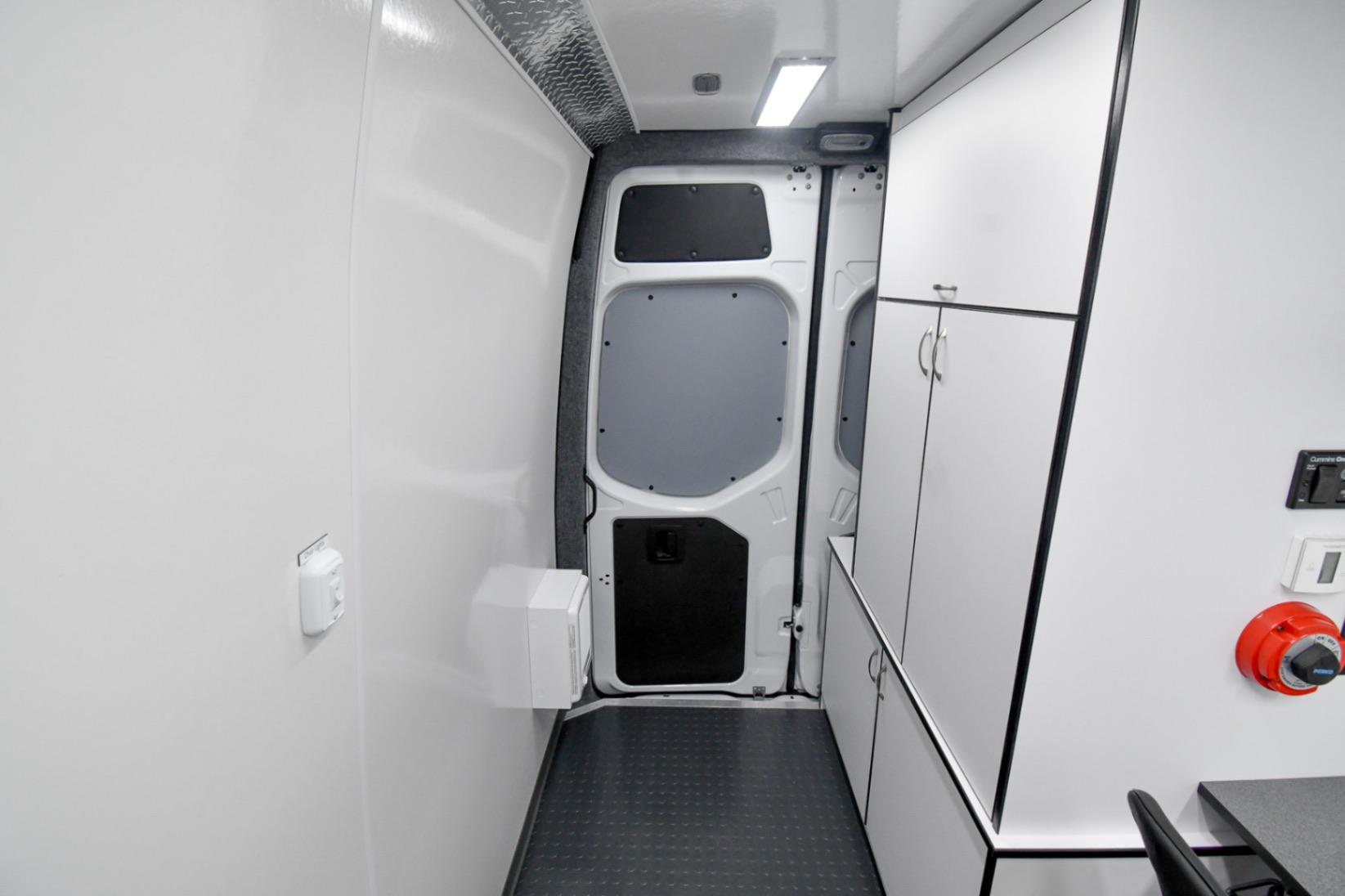

- Doors: Two rear swing-out doors and one sliding door on the passenger side
Electronics & Power

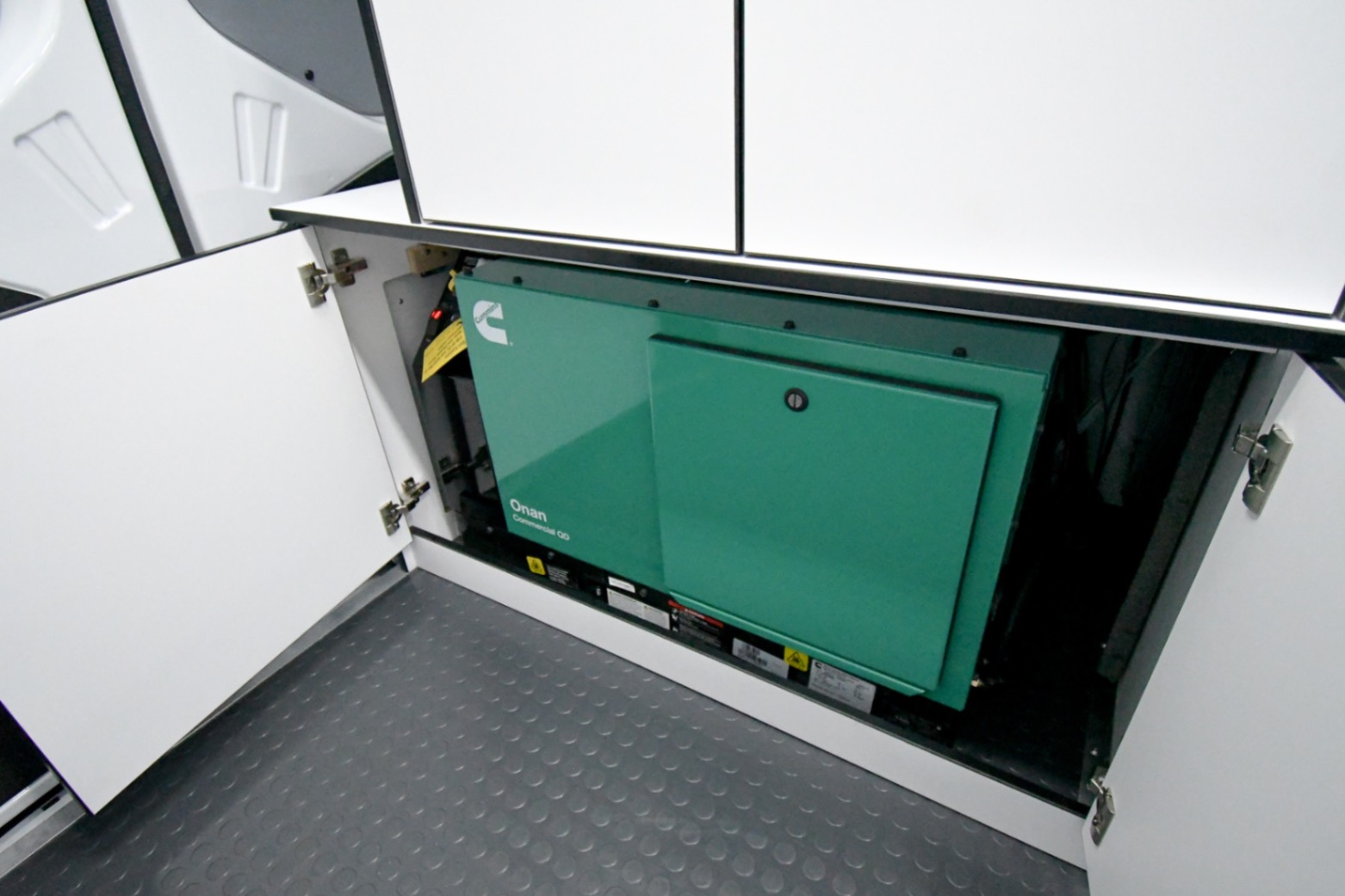

- Generator: Onan 8kW generator with remote start and ATS
- Power management:
- 25 gallon fuel tank
- One battery charger and 50-amp shore line
- One Paneltronics electric panel
- Wiring: Pre-wired for 110v/USB duplex, CAT6 networking, and 12 VDC outlets

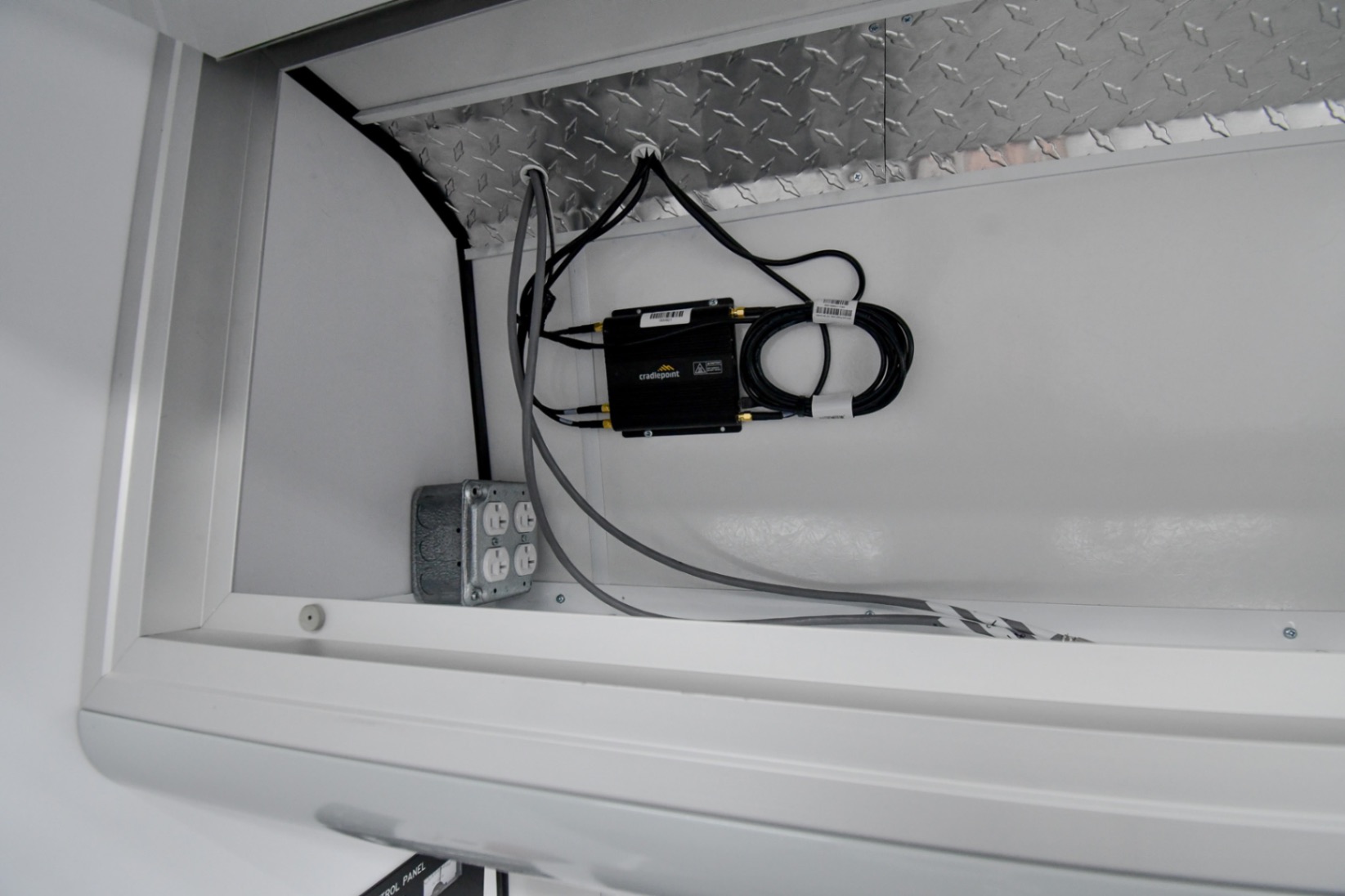

- Connectivity: One Cradlepoint WiFi router and antenna
- Climate control:
- One 13,500 BTU rooftop AC/heat pump
- Two electric wall heaters – one in each room
Interior
- Workstations & Seating:

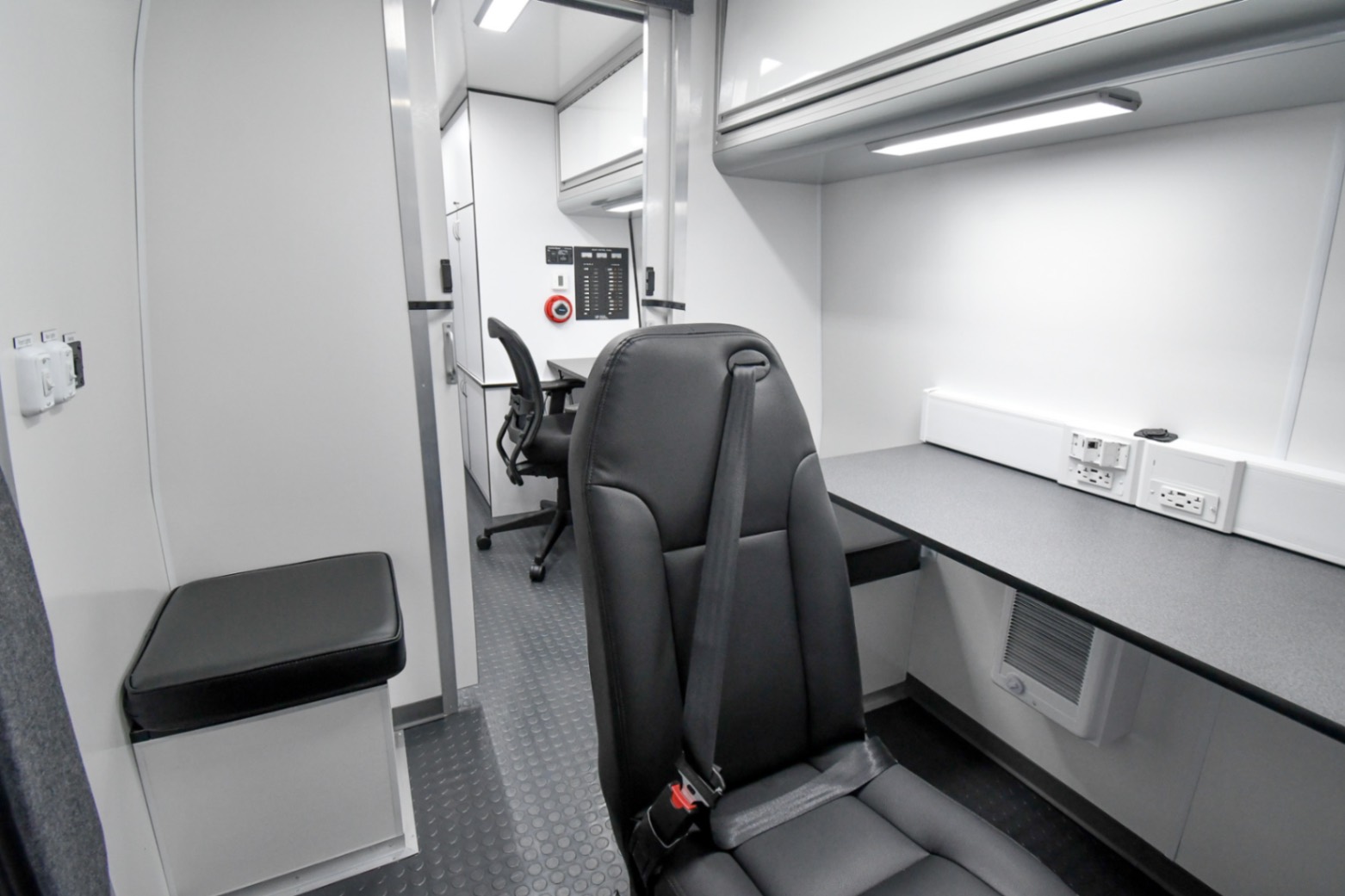

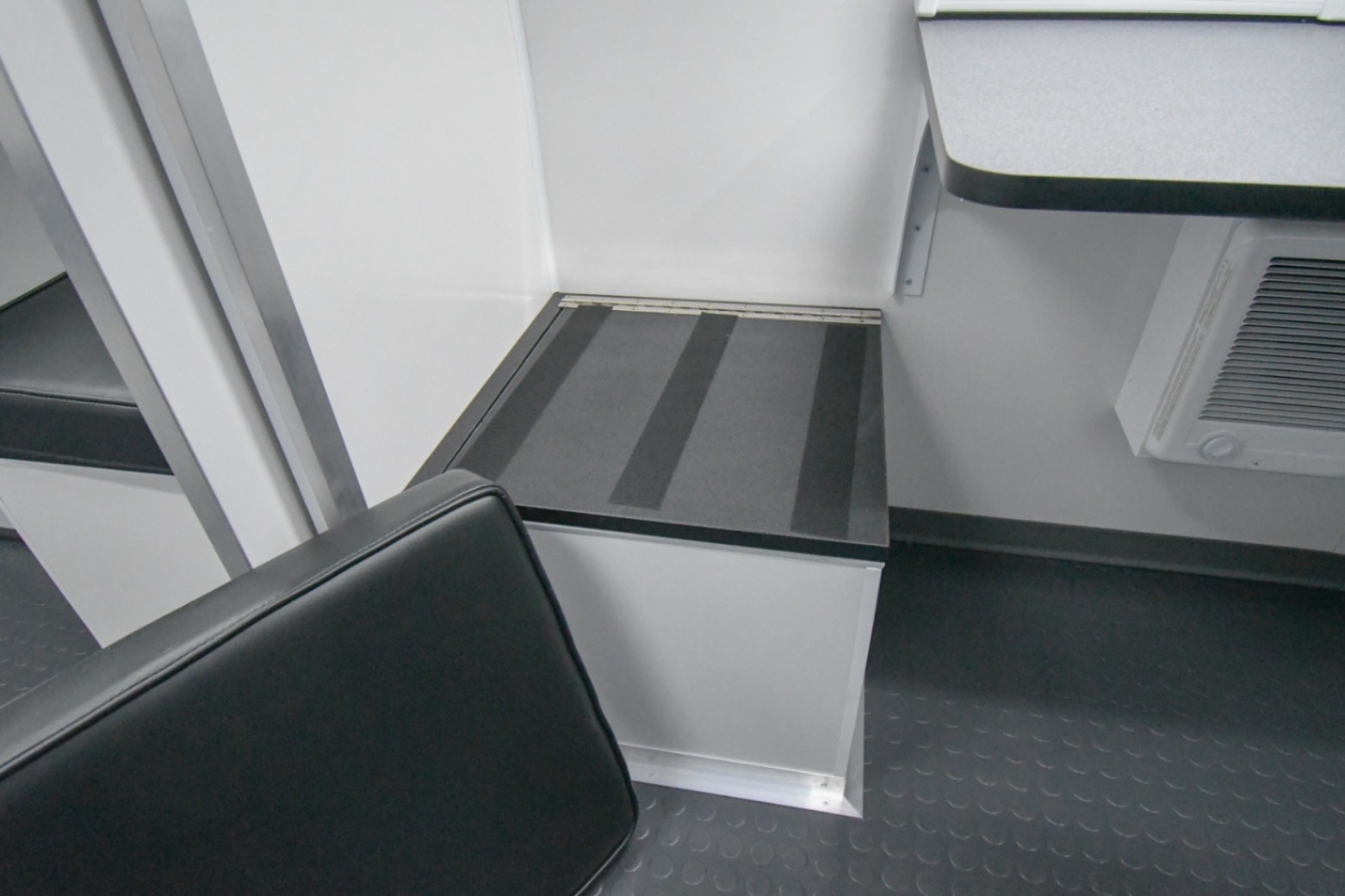

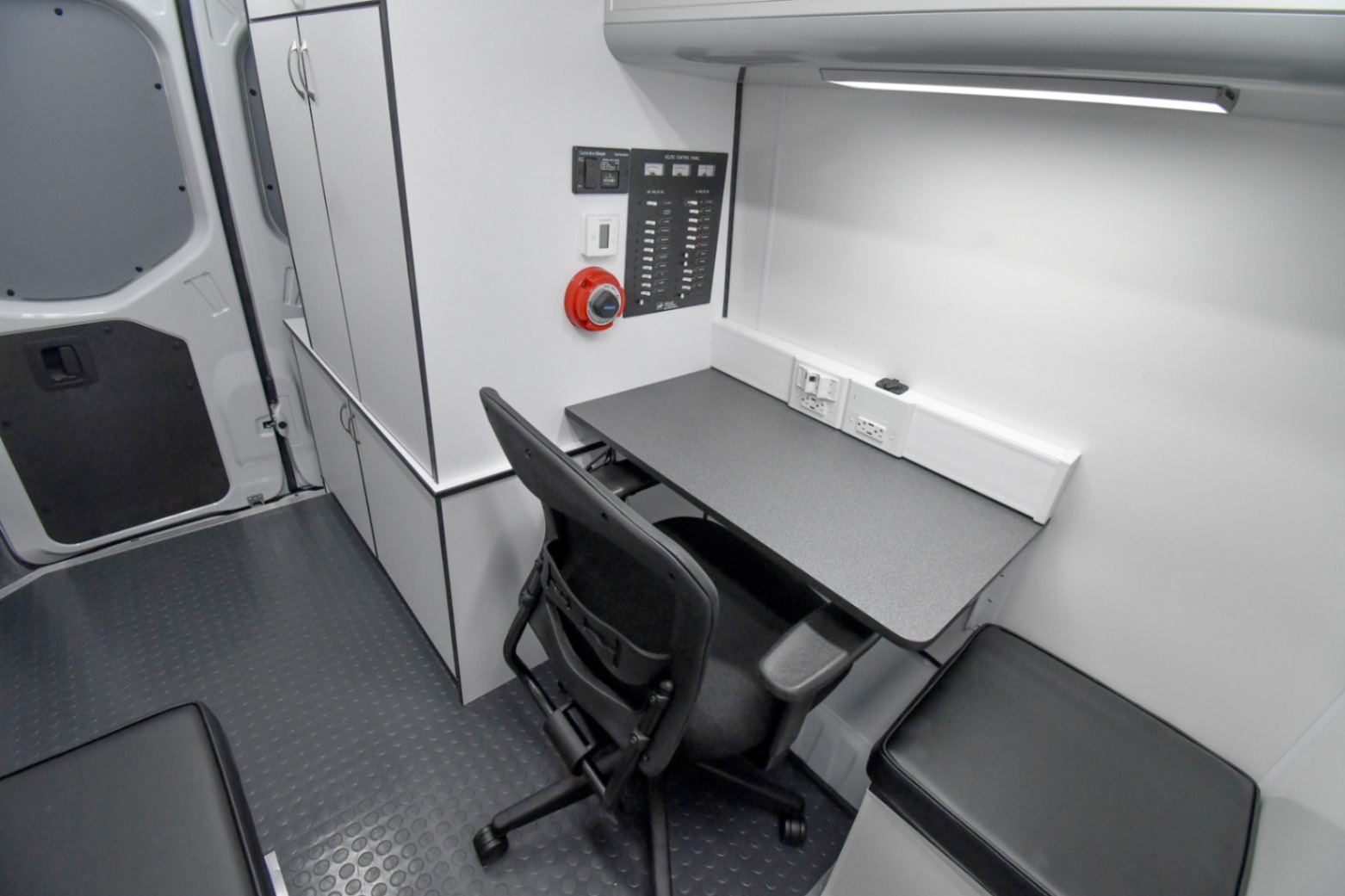

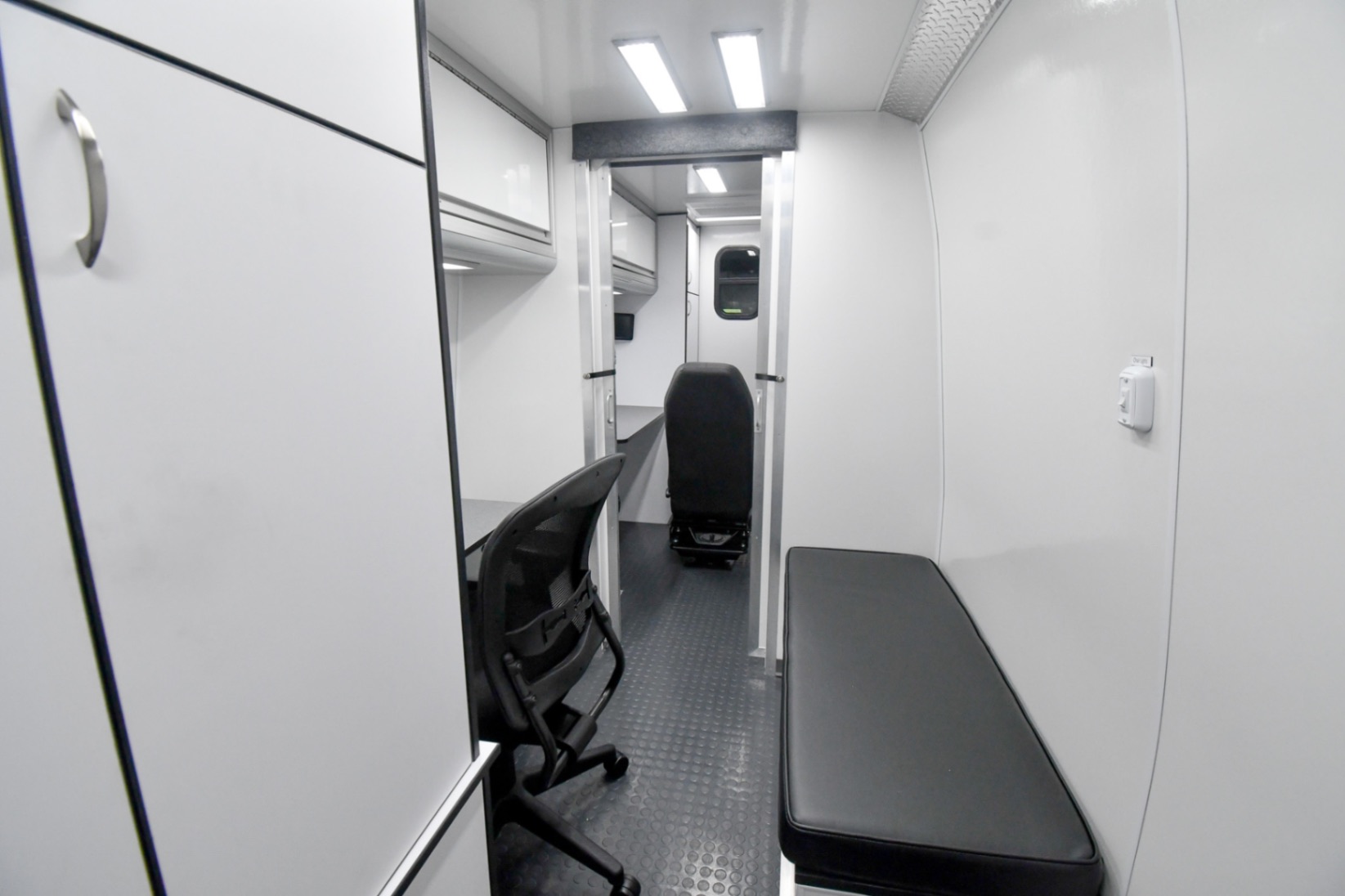

- Two workstations with a task chair and hinged, padded bench seats for additional storage purposes

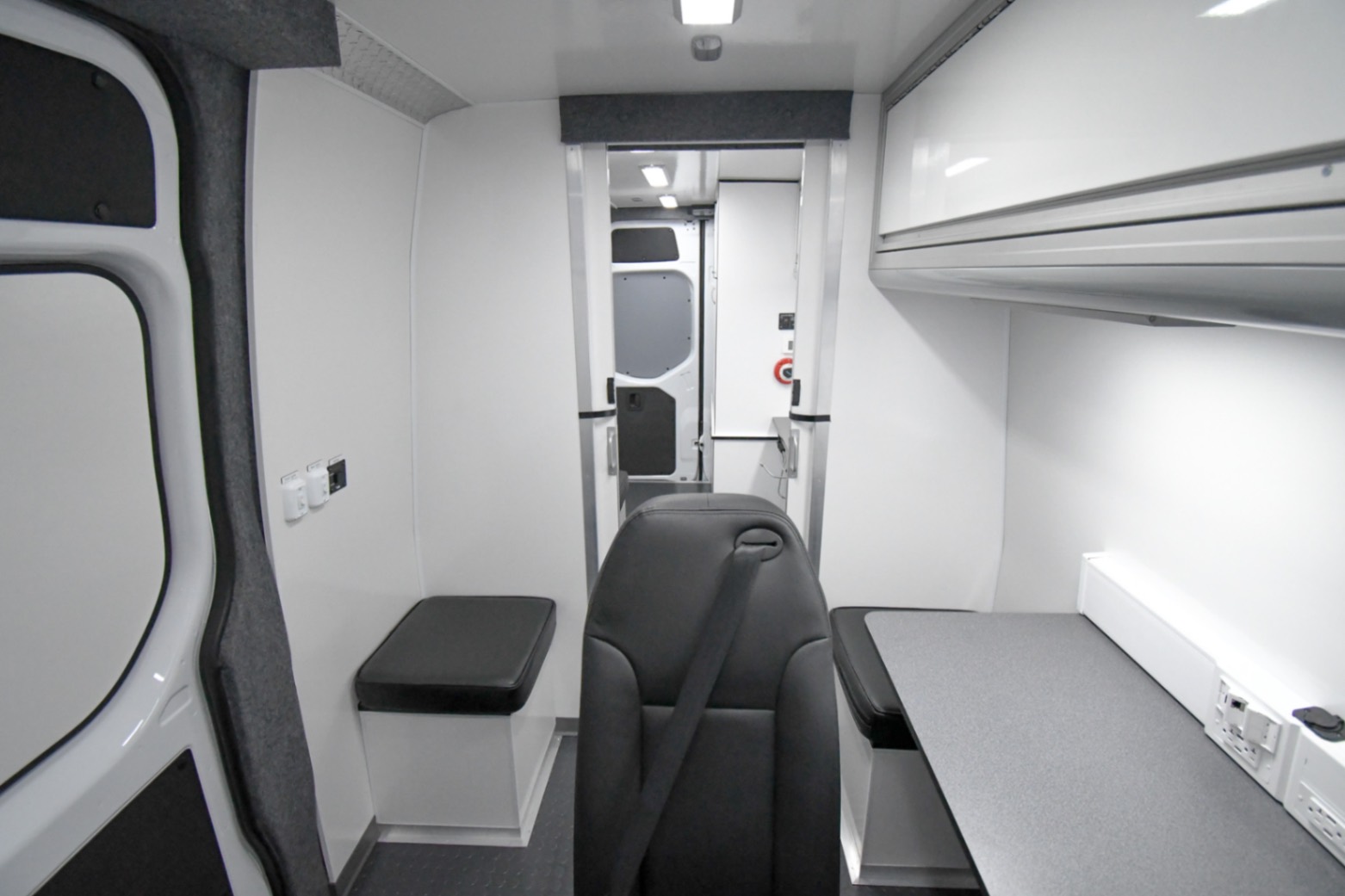

- One mounted seat with a swiveling base and seatbelt
- Storage & Surfaces:

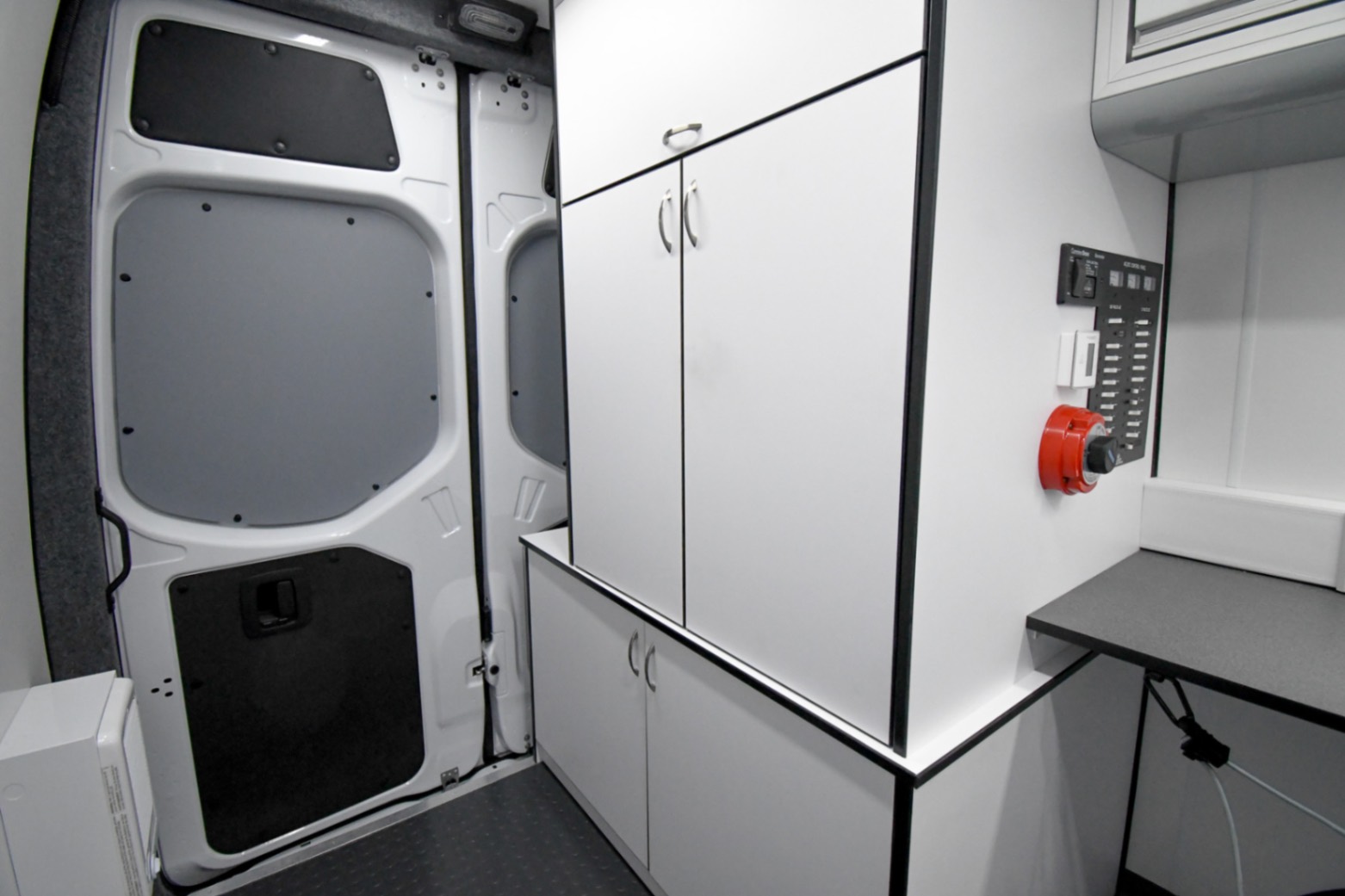

- Overhead ACE aluminum cabinets
- Solid surface countertops
- One generator and storage cabinet
Exterior
- Awning: One Fiamma 13′ x 9″ electric awning
- Visibility & Surveillance:
- Four perimeter lights
- One 360-degree vehicle surveillance camera system connected to an interior monitor
- Power outlet: One exterior GFI outlet located on the driver’s side
- Rear access: One rear door assist handle

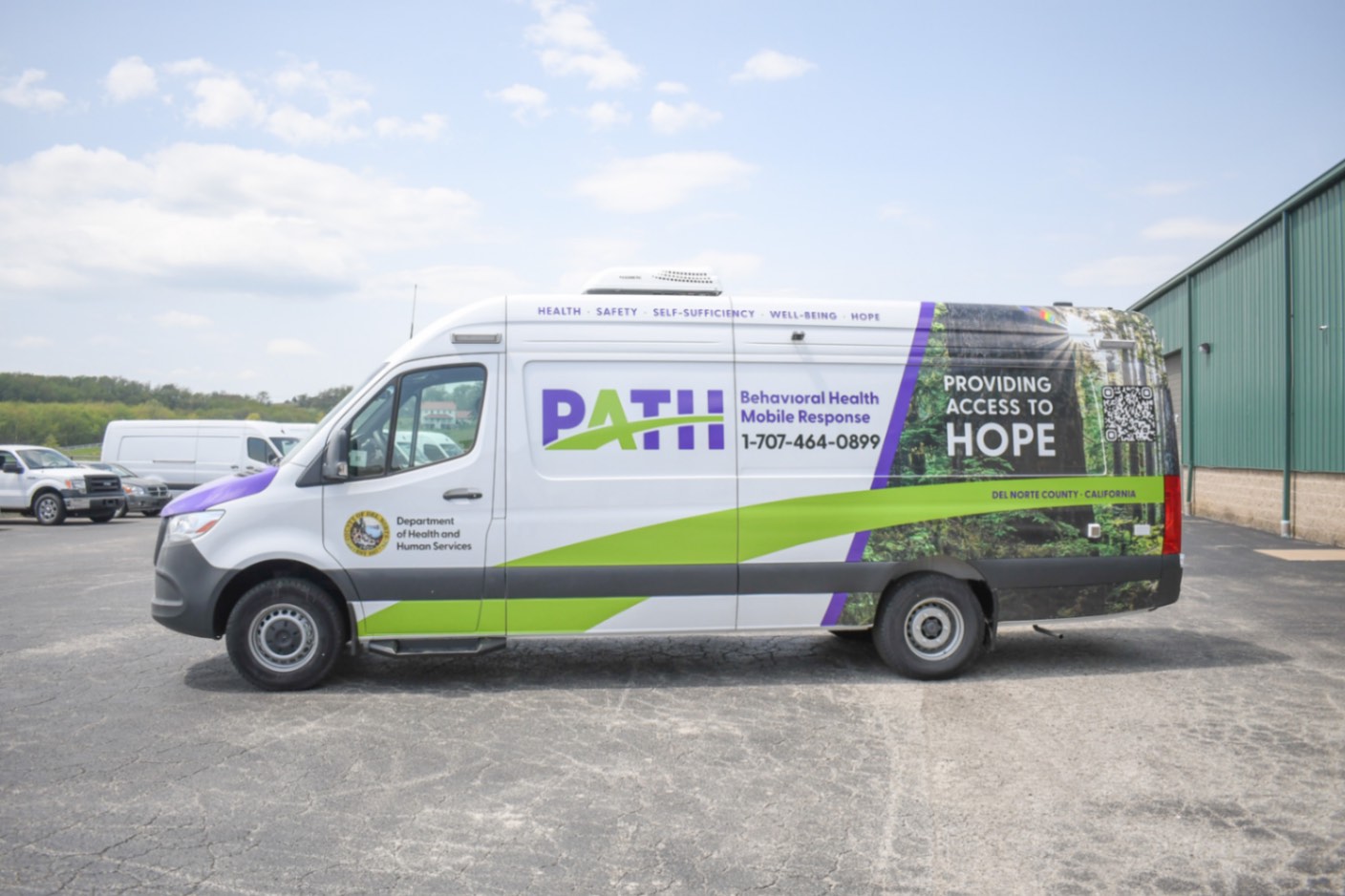

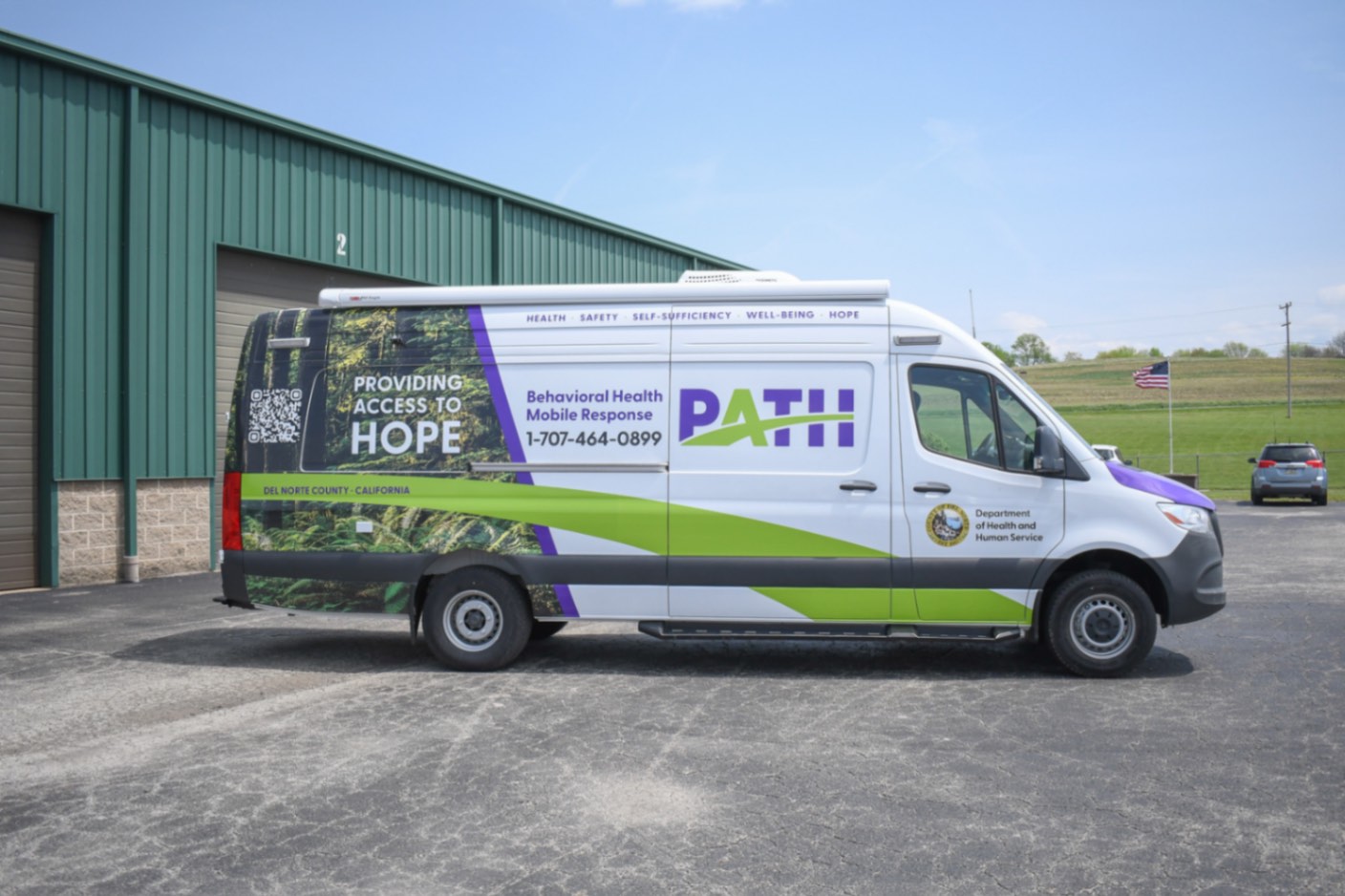

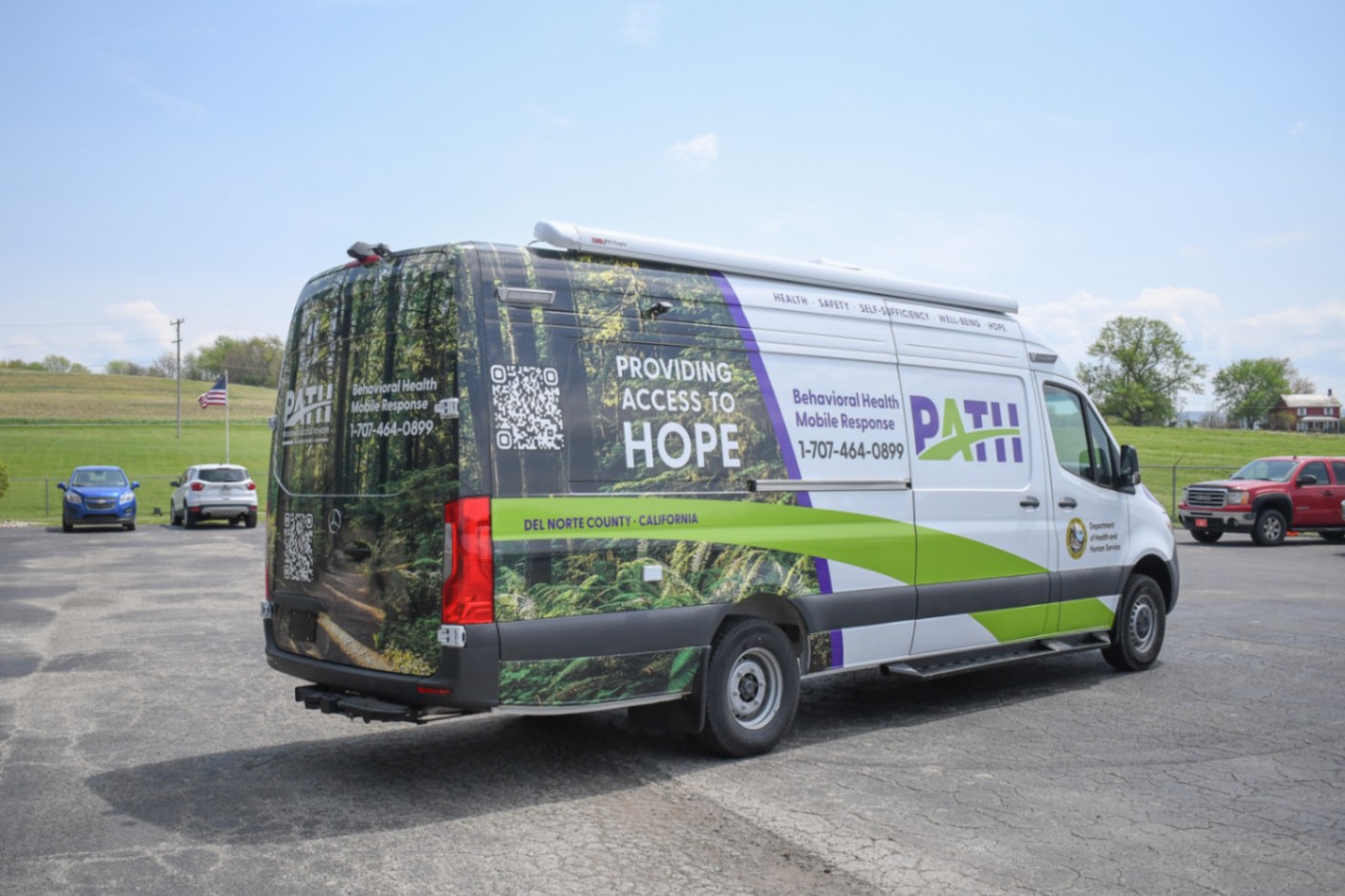

- Graphics: Custom graphics
